Tiêu đề Ford F100 Monstertruck Model CNC đơn giản Bí ngô nửa đêm

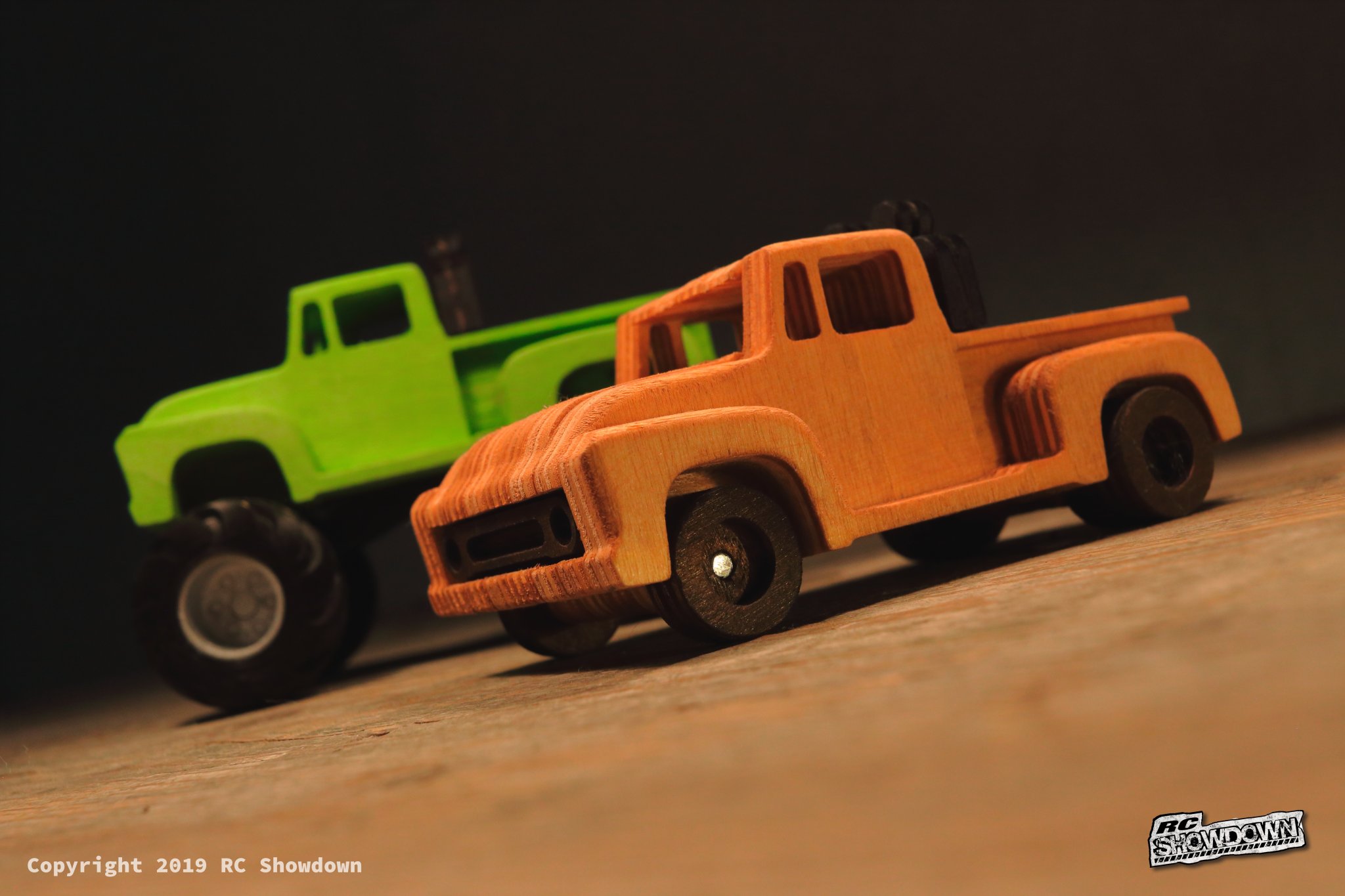

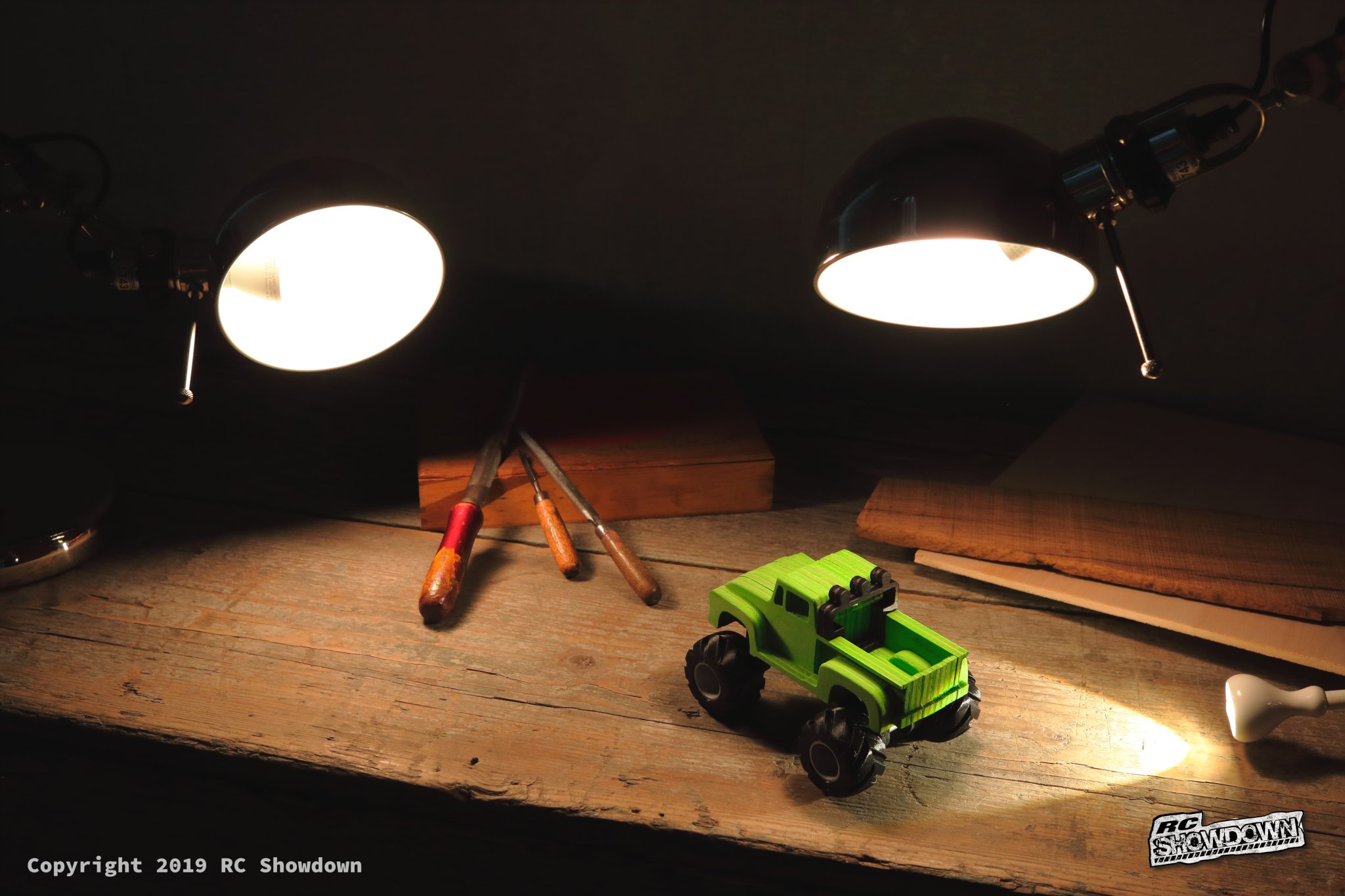

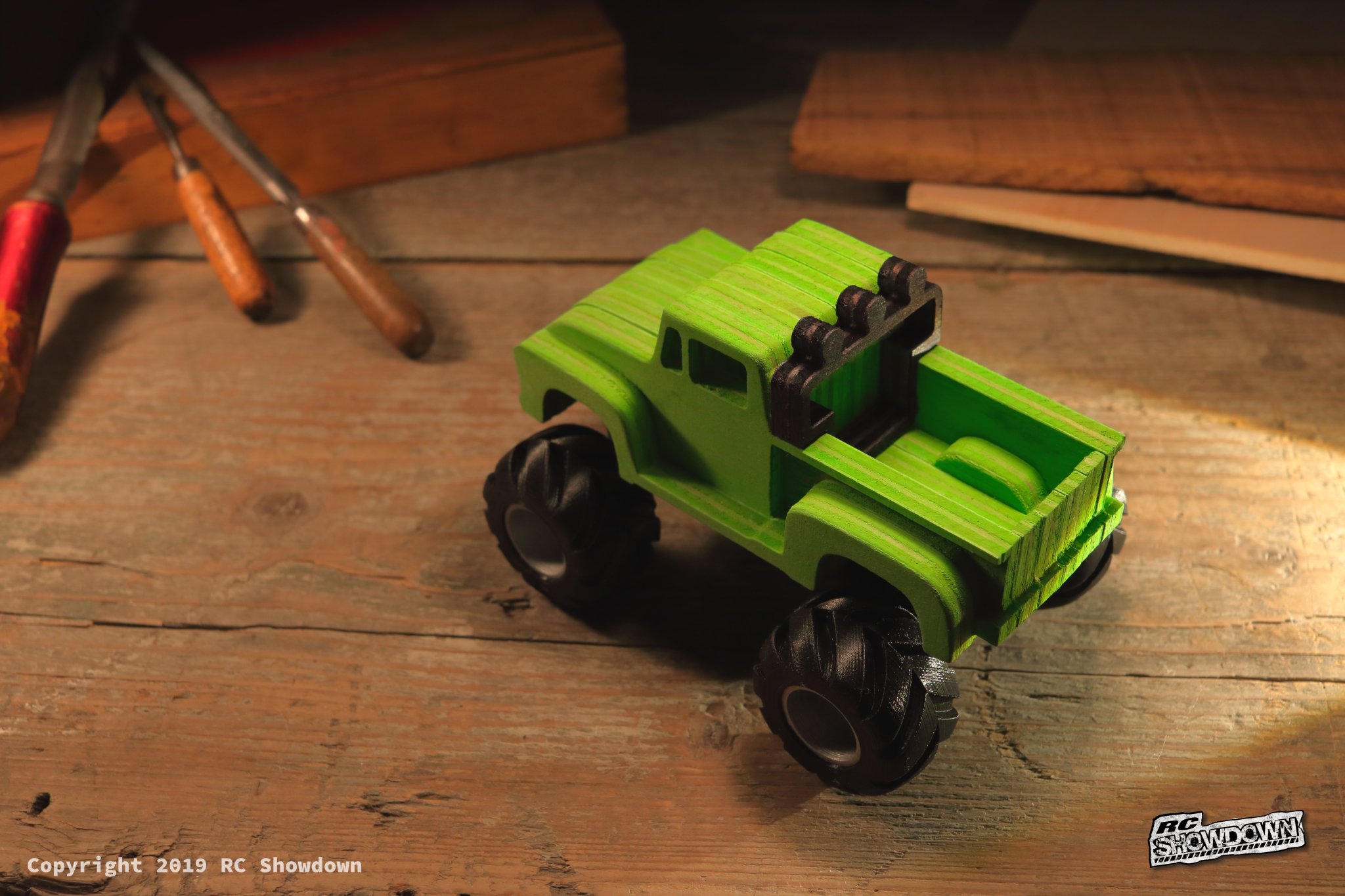

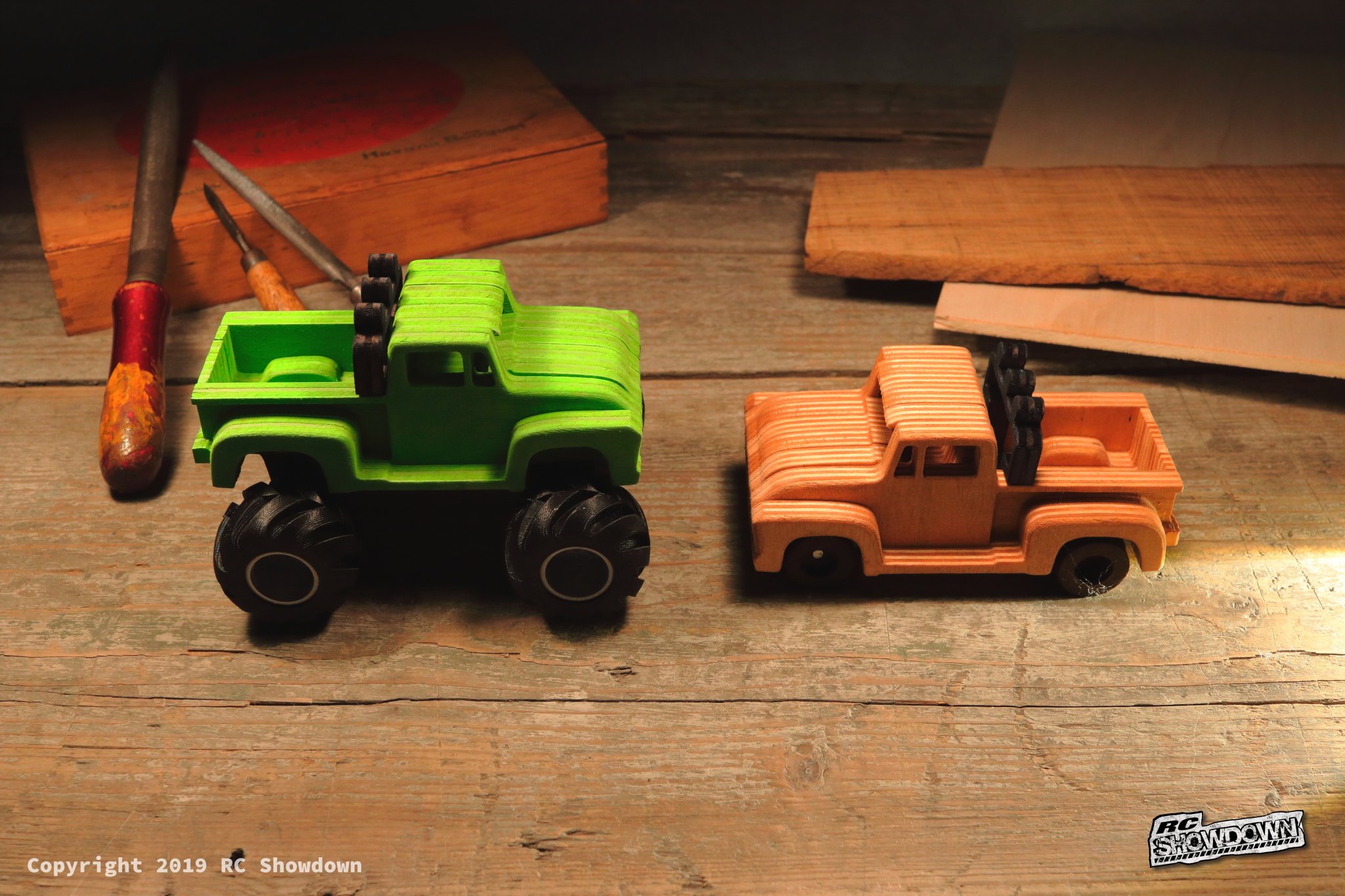

This is a simplified, wooden model of a 1954 Ford F100 Monstertruck, inspired by the famous Tamiya RC model "Midnight Pumpkin". It is based on my F100 Pickup Truck and designed to be milled from 8mm plywood. For the axles 6mm aluminium rod is required. You will also need to cut spacers for the axles with an inner diameter of 6mm and a height of 5mm to get the wheels away from the chassis. (Printed spacers also work fine!)

The wheels are 3D printed and consist of 3 parts. I used PLA for this with a Layer height of 0.1mm and 10% infill. The rim was painted separately.

Important Note: This model cannot be cut with a lasercutter!

To be able to see the comments and remarks on the *.DXF file, open it with a different application than "Estlcam" - Estlcam doesen't show the text!

Have Fun!

Normal Version: https://www.printables.com/model/642988-1954-ford-f100-simplified-cnc-model-with-interior

_________________________________________________________________________________________________________

Special thanks to ZenziWerken who helped me out with this model by optimizing the DXF files! Check him out for more awesome CNC models!
