Tiêu đề FRC Giá đỡ bộ điều khiển động cơ cho MK4 SDS Swerve

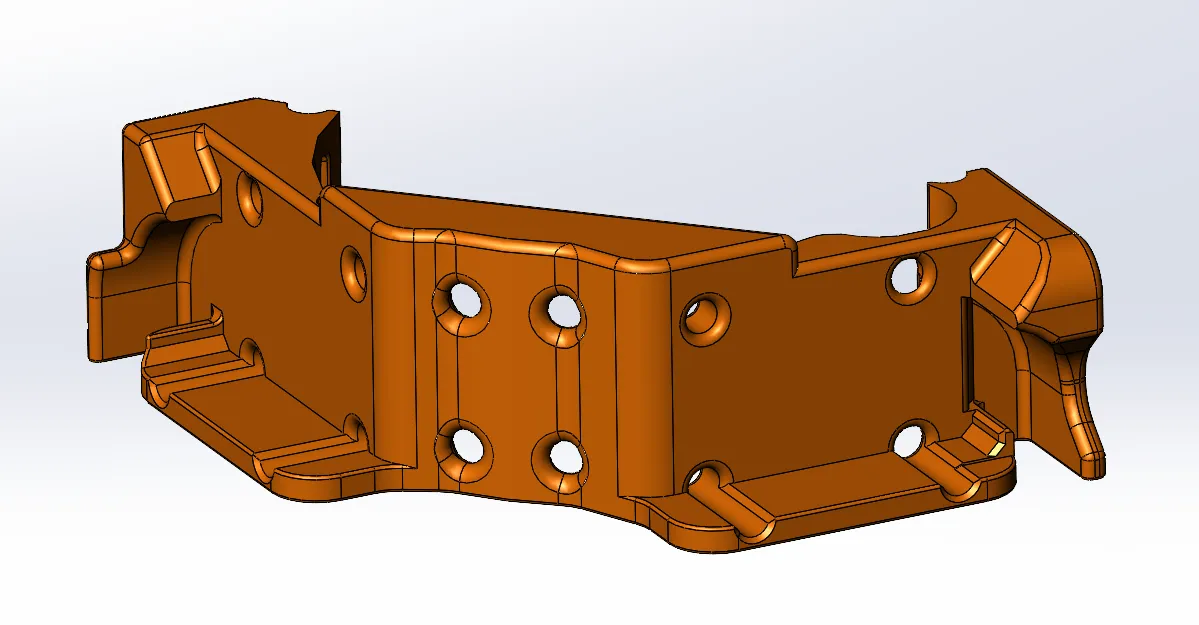

This mount is intended to be attach to the MK4/MK3 (top motor mounted swerve from SDS) after the drive unit is fully assembled. This will provide locations for 2 zip ties for each motor controller, 2 zip tie locations for wire management, and 3 zip tie locations for attaching to the drive unit, fastening this model to the forward #10 spacers for the motor mount plate.

I printed these with 0.6mm nozzle, PLA-CF, 4 perimeters, 20% infill on my K1 Max. Print time was 2 hours.

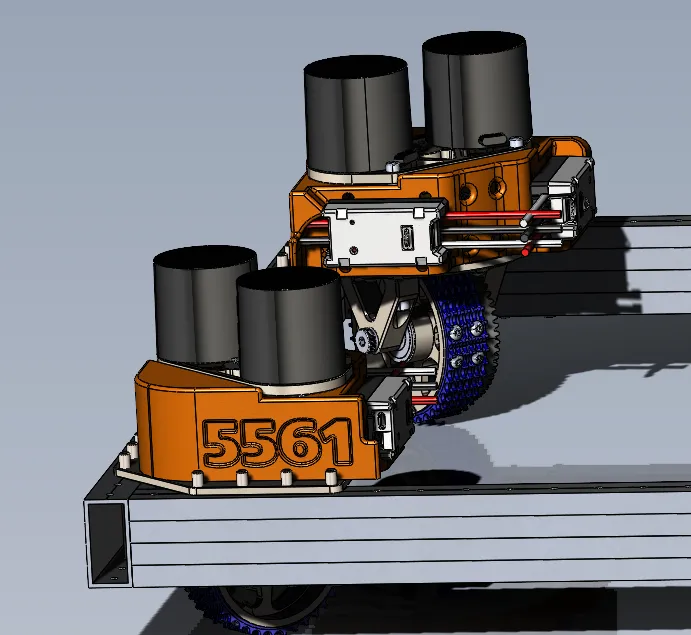

I added an image of the original design used in the assembly, this new design does not enclose the outer portion of the gears and belts.
