COFFEE DISPENSER (REVISED*)

(*) Bottom open containers have been included (for easy fill)

(09.11.2023: missing files have been included, sorry for the inconvenience)

Watch the video: https://youtu.be/BWoMwAzL7AI

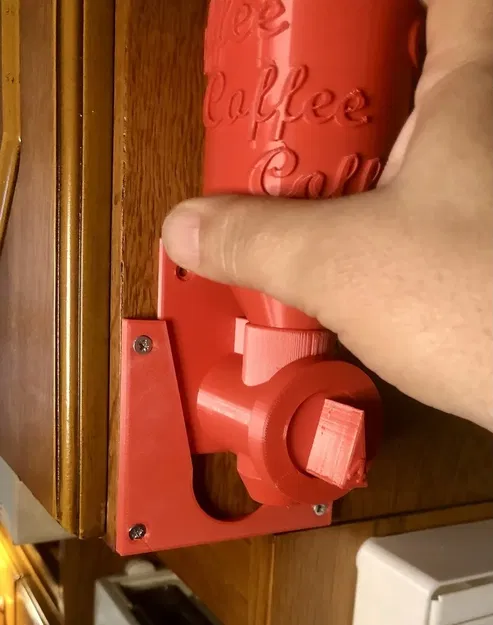

Just put your coffee pot (or mug) under the dispenser and turn the knob 180 degrees and a standard portion of coffee (or sugar) is dispensed into your pot.

Pour some hot water and enjoy your coffee.

STL FILES:

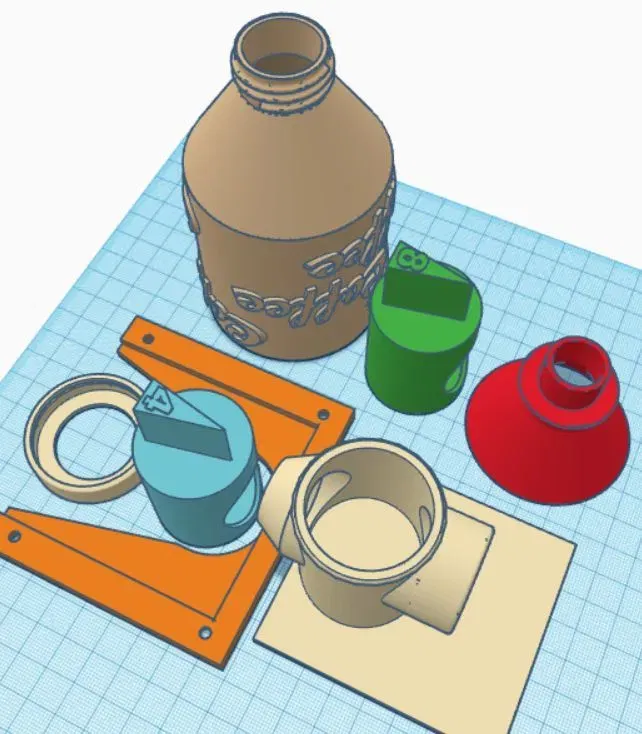

There are 9 thing files of which 4 of them are optional:

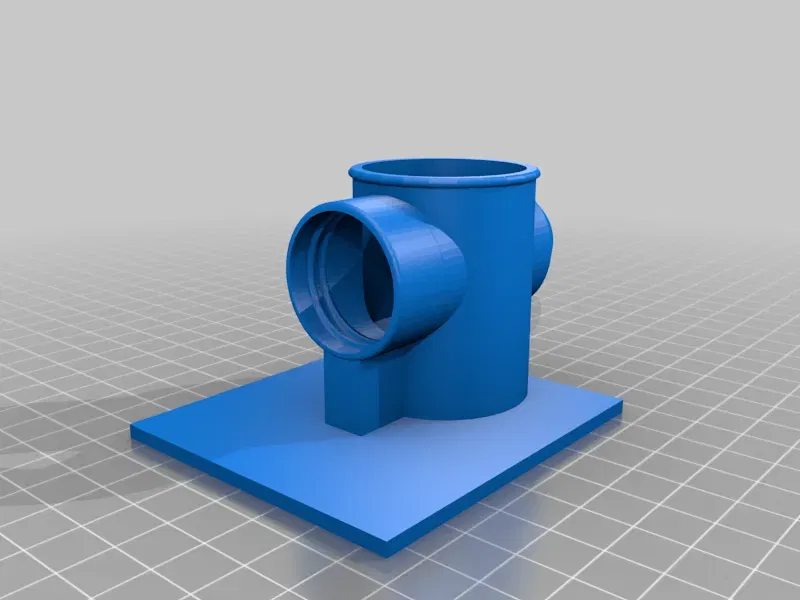

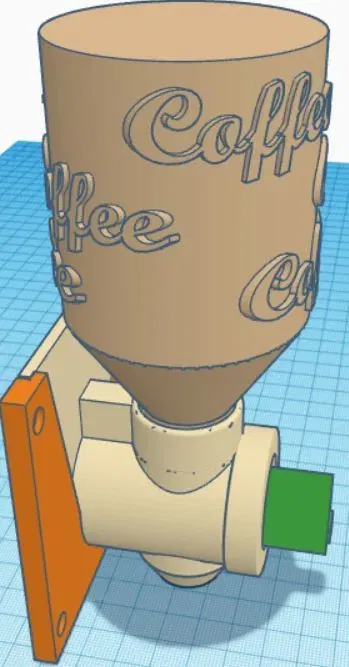

The Dispenser

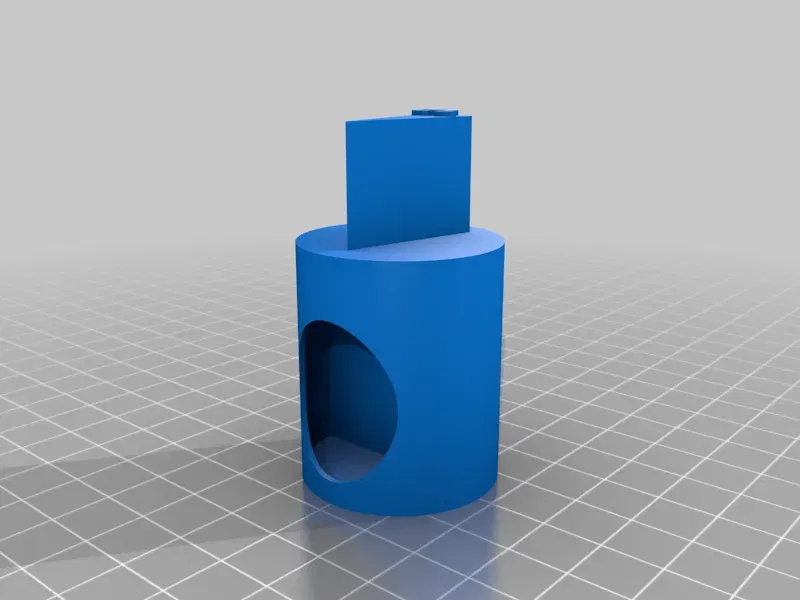

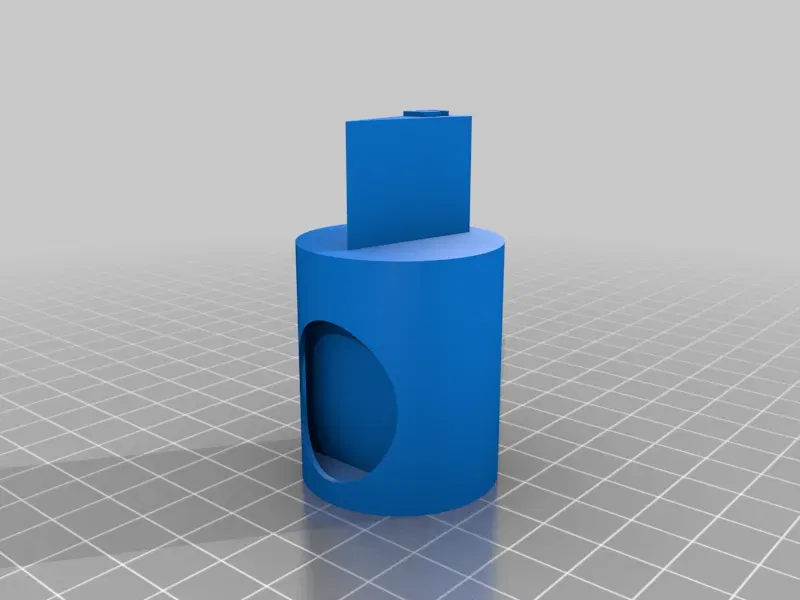

Cylinder Spoon (12cc)

Cylinder Spoon (24cc)*Optional

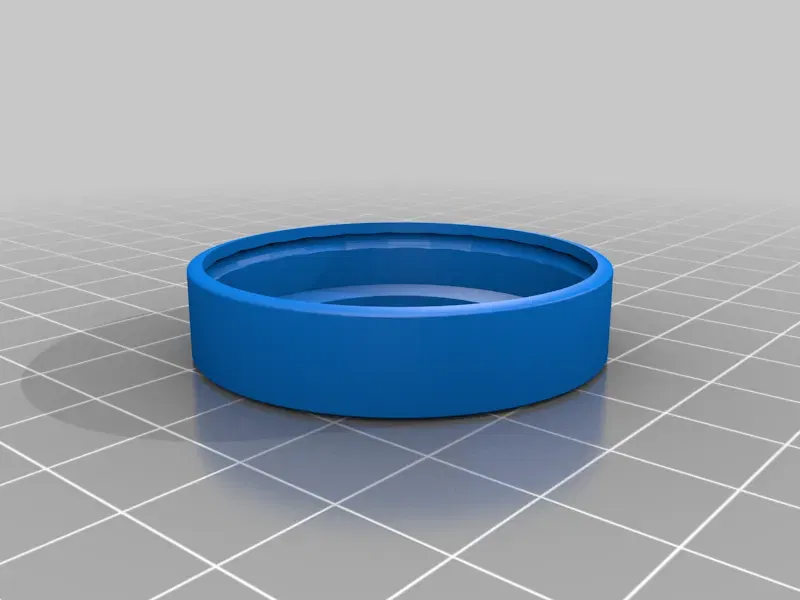

The cylinder spoon "Lock Cap"

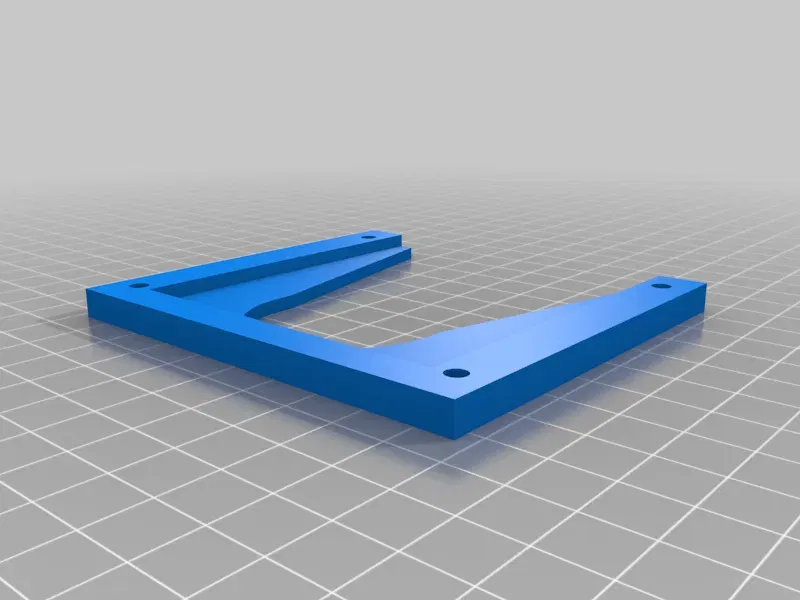

The wall mount Cradel

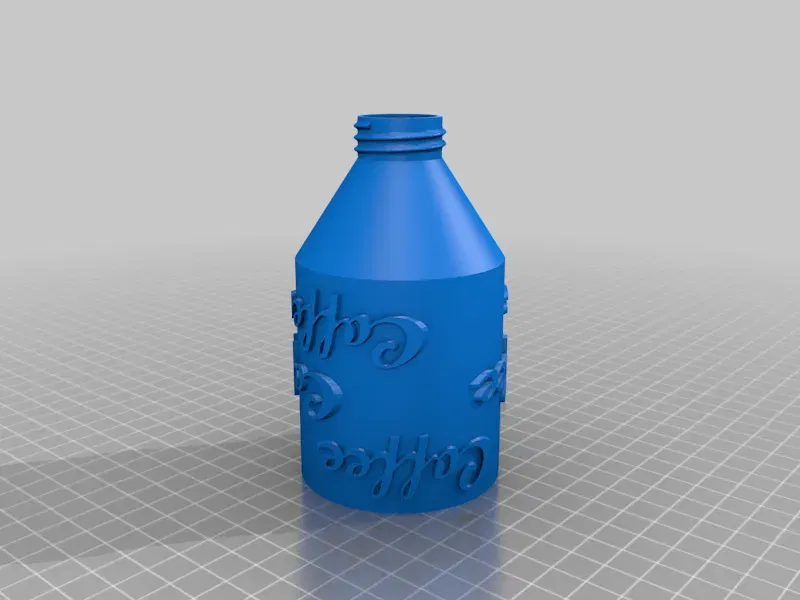

The Coffee and the Sugar Container* Optional(*)

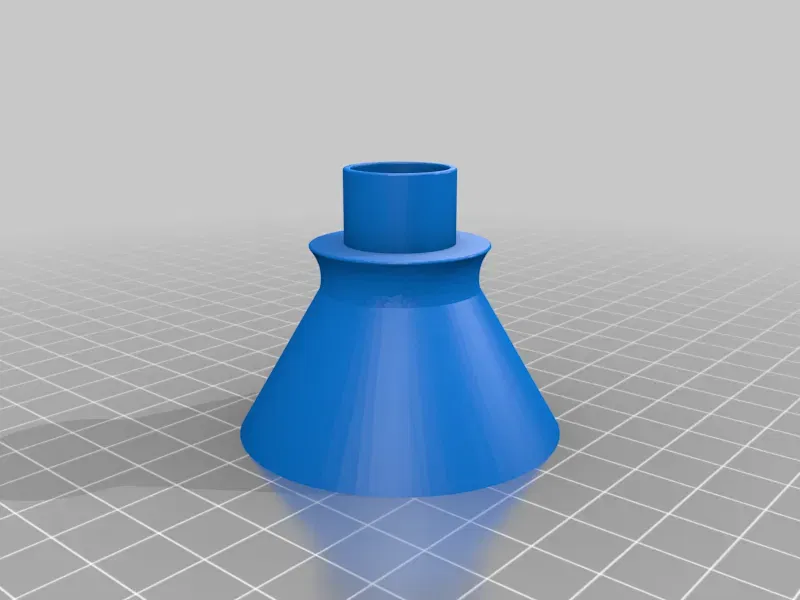

The Funnel*Optional

Cylinder Spoon (5cc)* Optional (upon request)

(*) The Container is optional as you can twist any standard/universal PET bottle onto the dispenser.

MOUNTING AND USING INSTRUCTIONS:

While mounting the Dispenser you can insert either the 5cc, 12cc or the 24cc Cylinder Spoon as desired.

After inserting the desired Cylinder Spoon in the dispenser lock the cylinder inside the Dispenser with the "Lock Cap". Push hard and click.

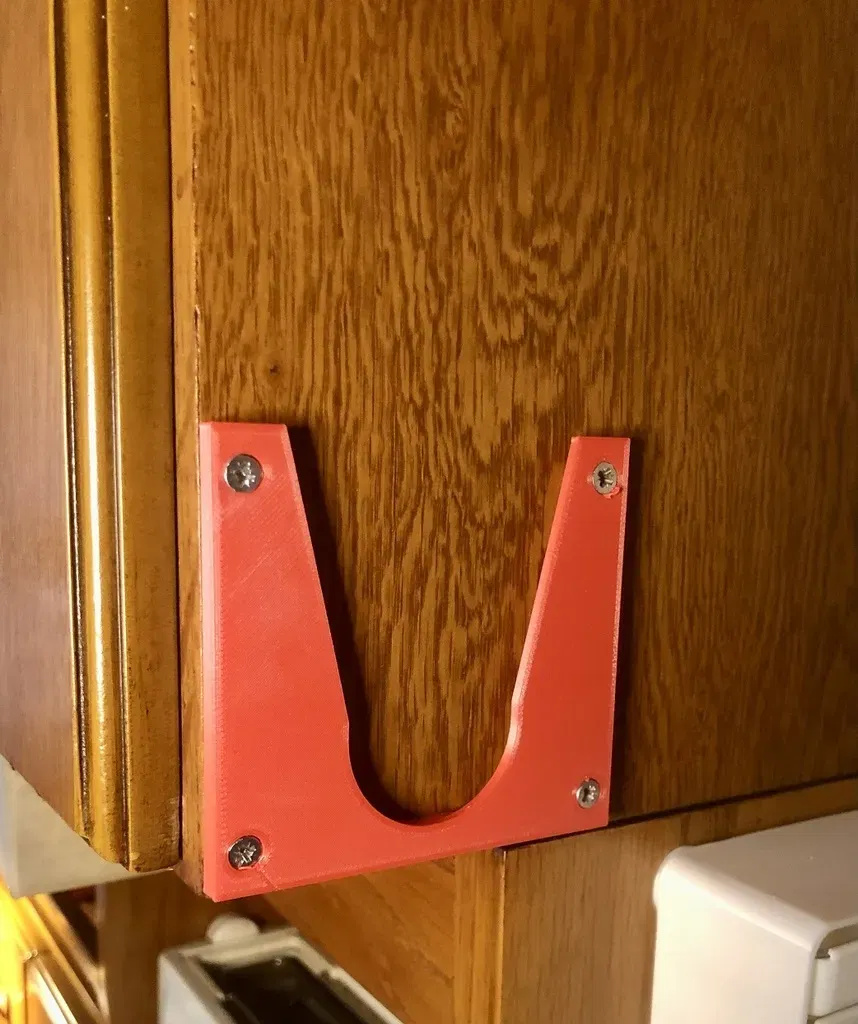

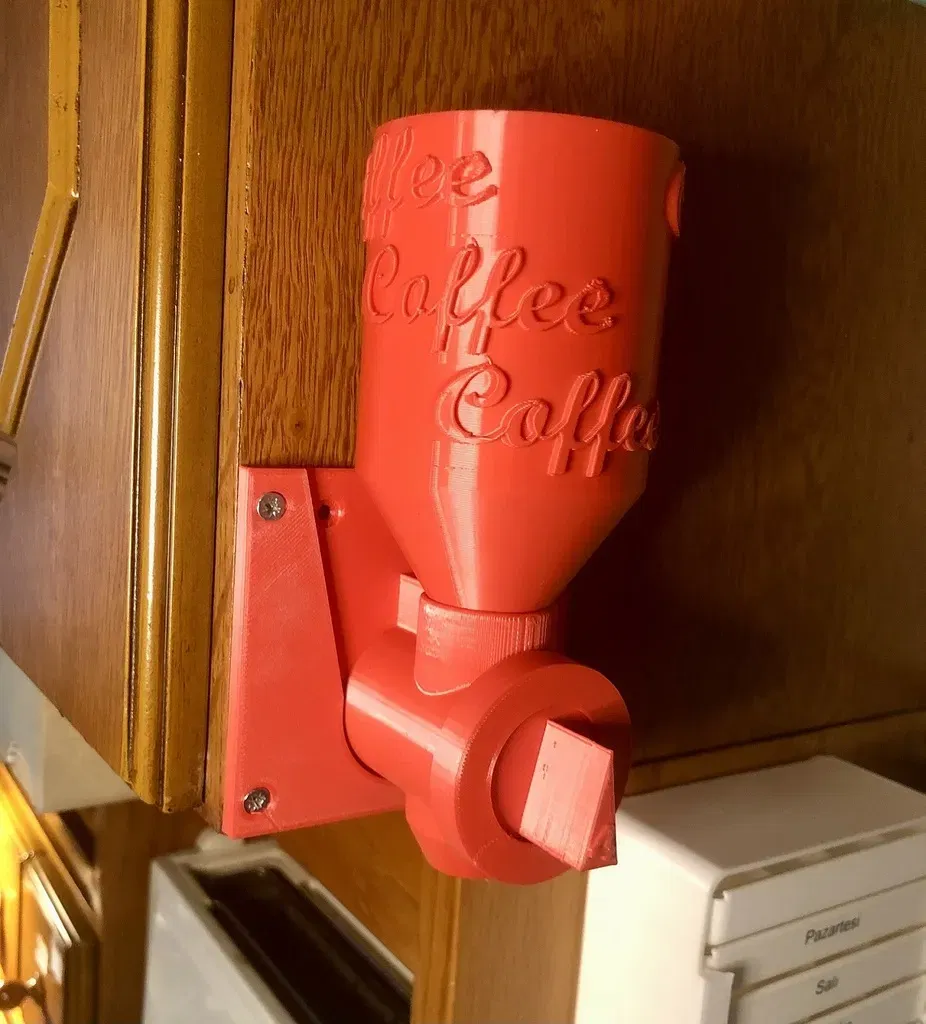

Mount the Cradel to any vertical surface (preferably to a wooden surface) with 4 small screws and slip the Dispenser from the open top side.

Use the optional Funnel to fill up the Container (or a dry PET bottle) with coffee.

First twist close the Container with the Dispenser and then turn it upside down before slipping the Dispenser (from the top open side) to the wall mount Cradel.

To change the Cylinder Spoon with another one, force pull the "Lock Cap" until it's released change the Cylinder Spoon, and then lock it again as before.

OTHER NOTES:

Suitable for grain/granular coffees; as powder coffees stick to each other and jam the container neck (at least the portion dispensed would not be standard).

Keep the Dispenser away from moisture to avoid sticking and jams in due course.

Health Warning: PLA is non-toxic but may keep bacteria in the long term. Please check 3d print material's health issues before use.

PRINTING INSTRUCTIONS:

Filament: PLA

Layer Height: 0.28mm

Infill: 15%

Supports: NONE

Build Plate Adhesion: NONE

Happy printins...:)

Print Settings

Printer Brand:

Creality

Printer:

Ender 3 Pro

Rafts:

No

Supports:

No

Resolution:

0.28

Infill:

15%

Filament:Local PLA PLA Any Color
