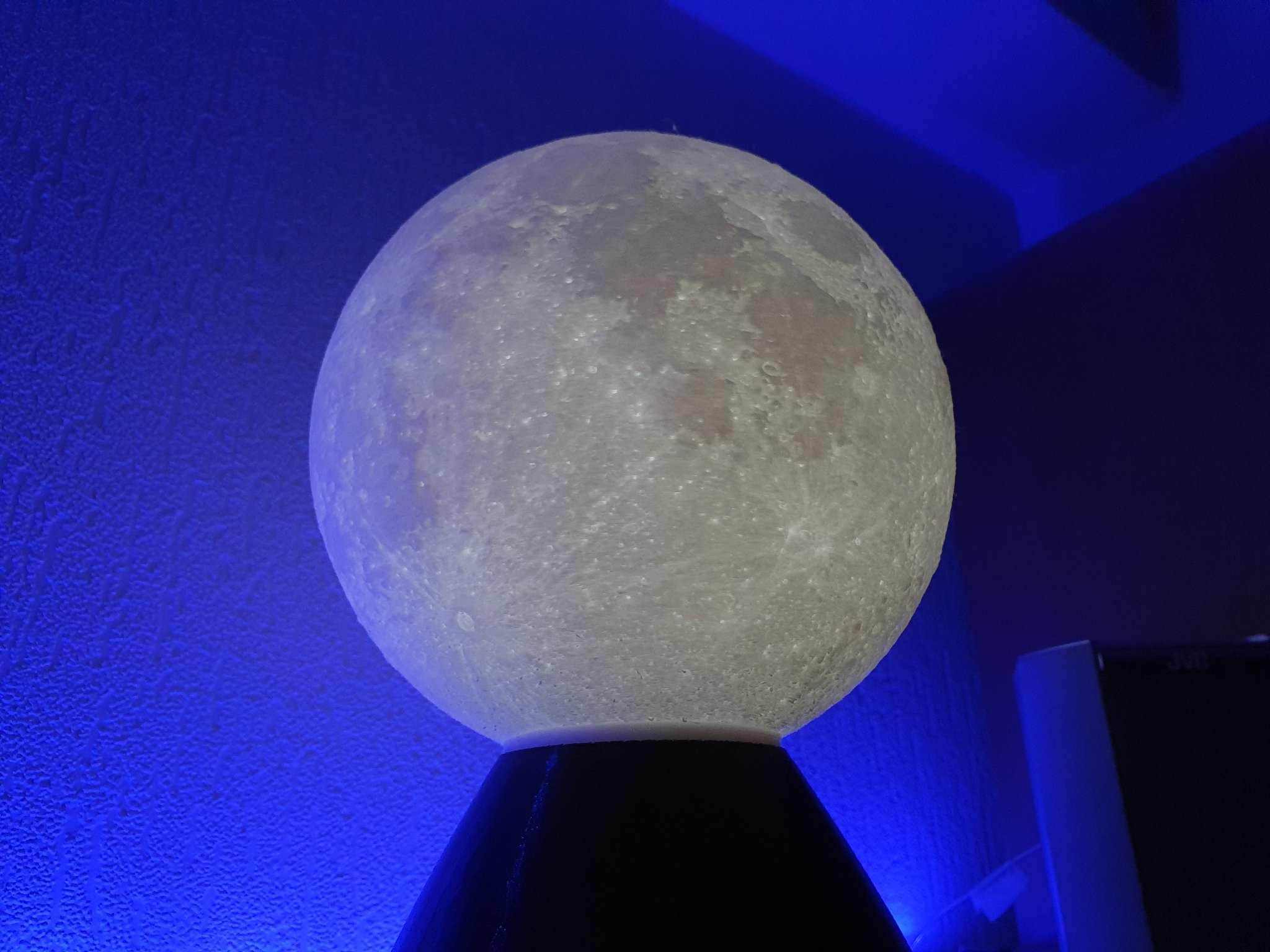

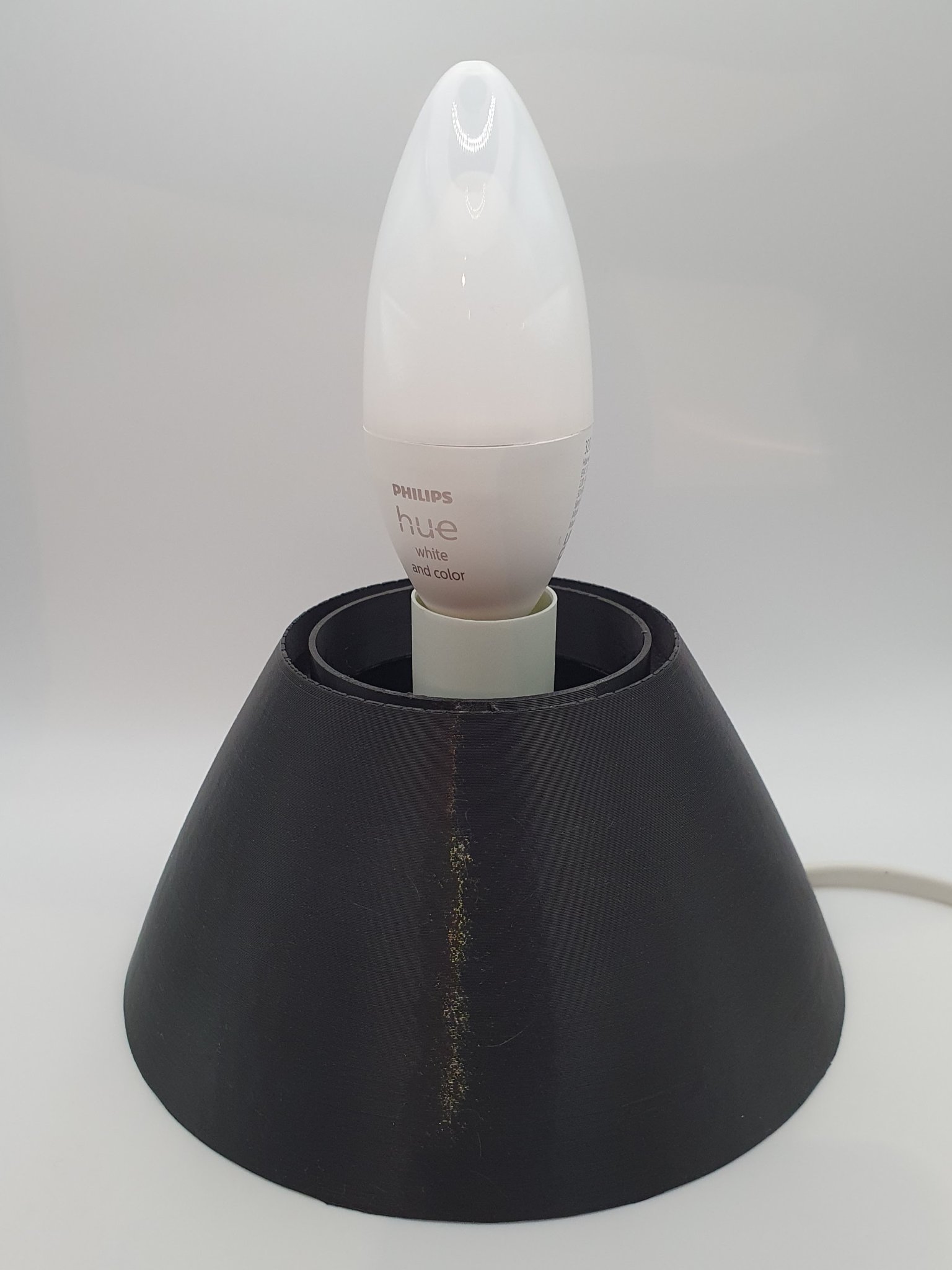

To mount a cool moon lamp to my existing E14 socket from a broken IKEA GRÖNÖ lamp I designed a stand for it. In combination with a Philips Hue LED lamp this looks very nice.

There are two versions of the bayonet:

• Version A with bayonet, which is compatible with Designer Lithophane Moon Lamp
• Version B with bayonet, which is compatible to Bambulab LED lamp kit and the “Moon Globe for LED Lamp 001” (model 31191 on makerwold, can't link it here)

The base plate has to be mounted to with 4 M3x8 countersink screws and fits both variants.

At the buttom there are three holes for some 8 mm rubber feet (or can print them from TPU).

Maybe this design helps somebody :)

Printing:

Layer height: 0.2

Supports: Yes (organic support works fine)

Brim: Yes

Infill: 20%

Material: all
