Giá đỡ Cảm biến Sợi đốt Orbiter 2020

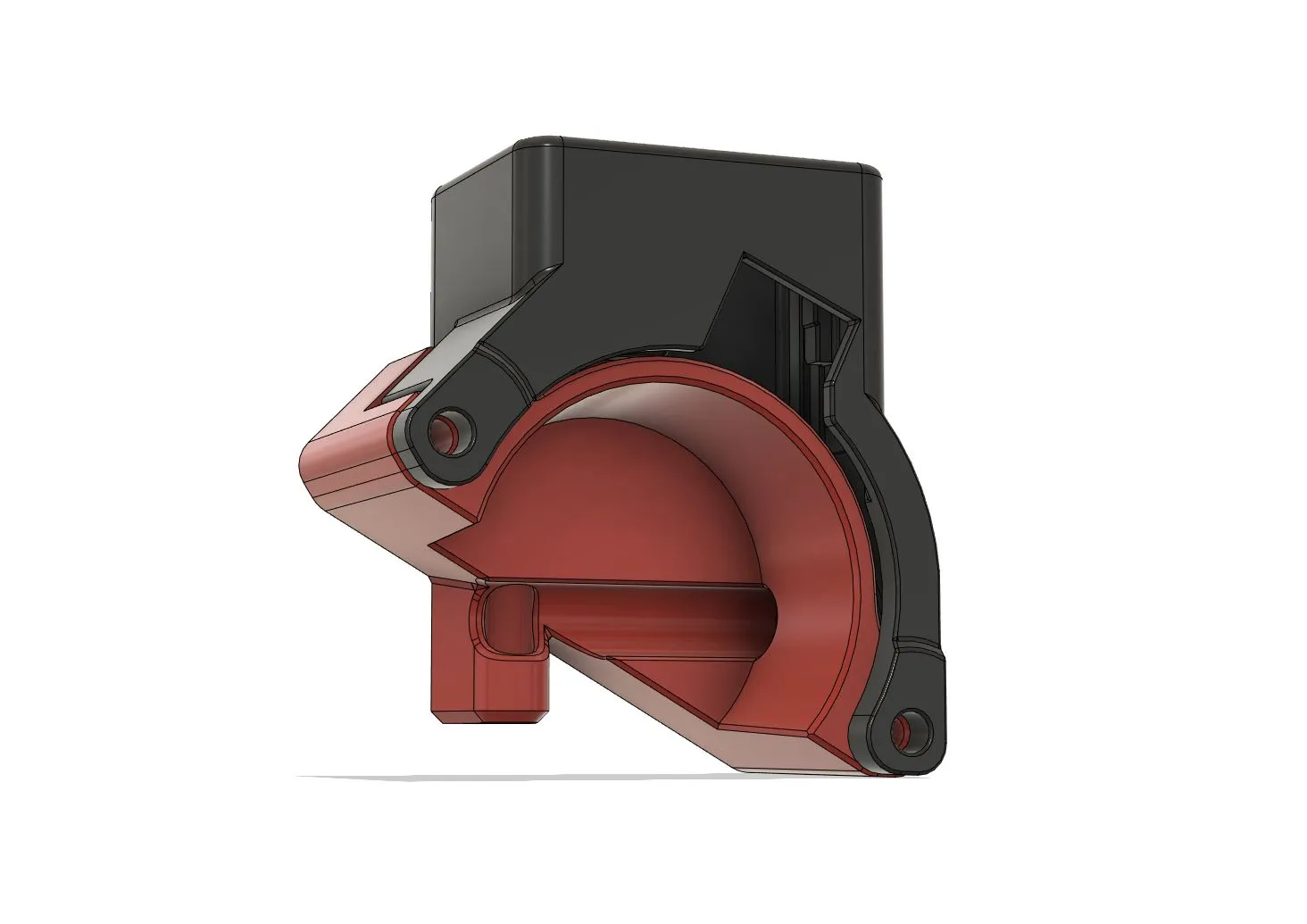

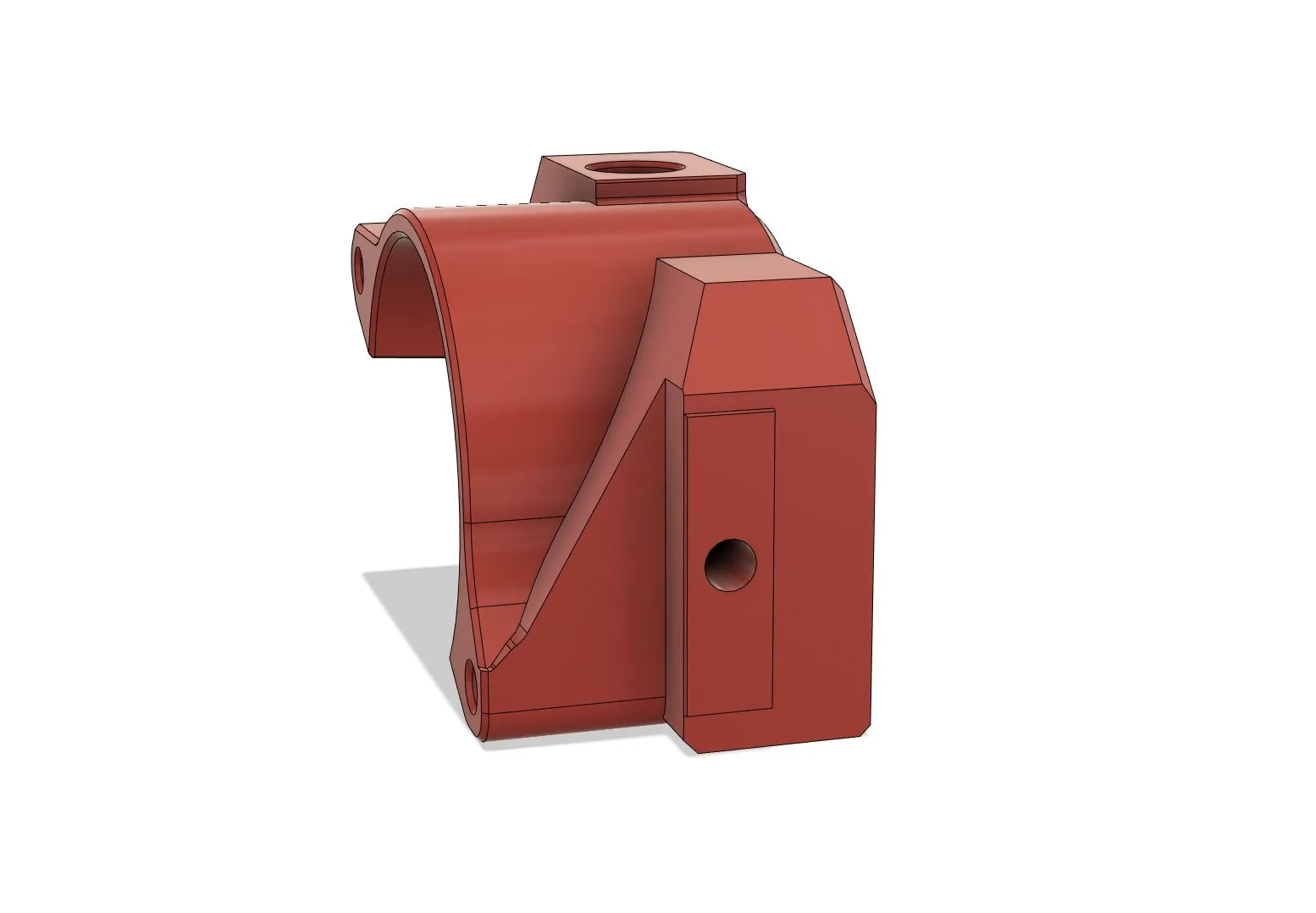

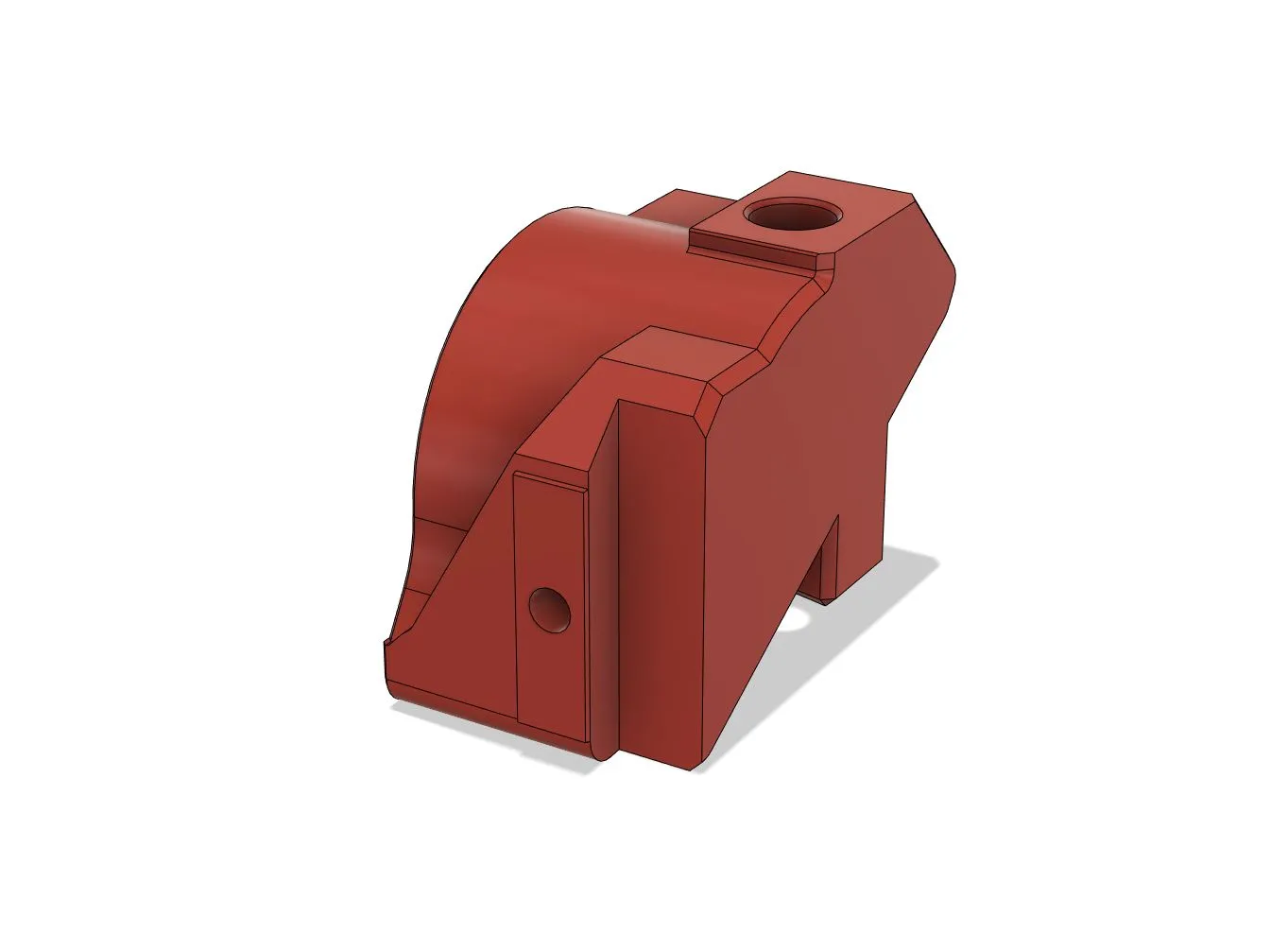

Use this on a printer using 2020 extrusions if you use the Orbiter extruder and, like me, don't/can't have the filament sensor mounted on the extruder. There's a version with or without a cutout for the standard Voron 3mm panels.

Print settings

My settings:

• nozzle: 0.4 (100% line width, so 0.4)
• layer height: 0.2
• top/bottom layers: 4
• walls: 4
• infill: 20% gyroid
• supports: no
• filament: any normal structural material will do

Adjust your settings if needed based on your preferred print setup.

BOM

• 2 x M3 6mm-20mm SHCS or BHCS (any length in range will work)
• 1 x M3 10mm
• 1 x M3 'hammerhead' or T-nut
• 4mm OD bowden tube

Assembly

Sensor housing bolts thread into the mount, so don't bolt/unbolt them too many times. Best to test your sensor before you mount it. The bowden tube should fit snugly in the hole and the bolts should thread in without too much force.
