Wall mount for filament spools

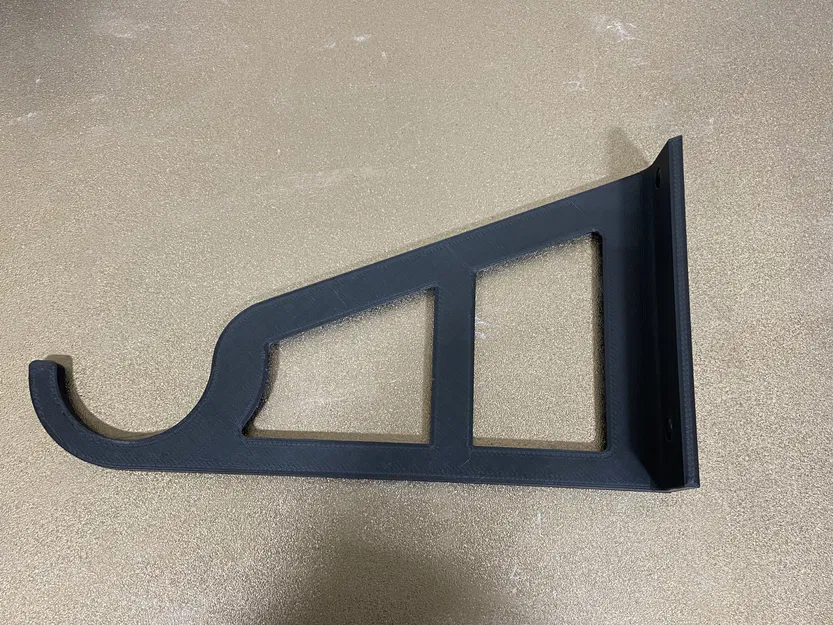

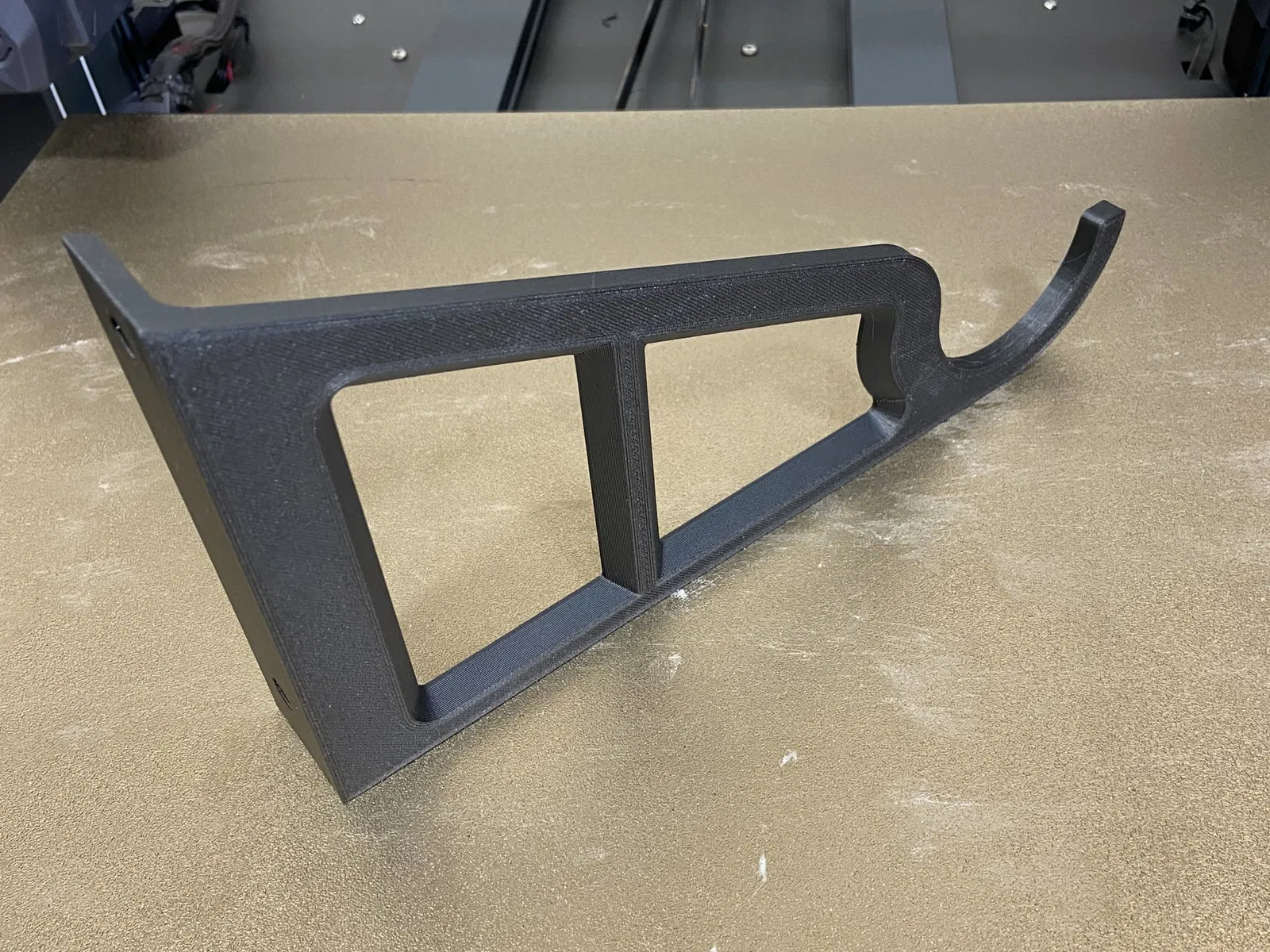

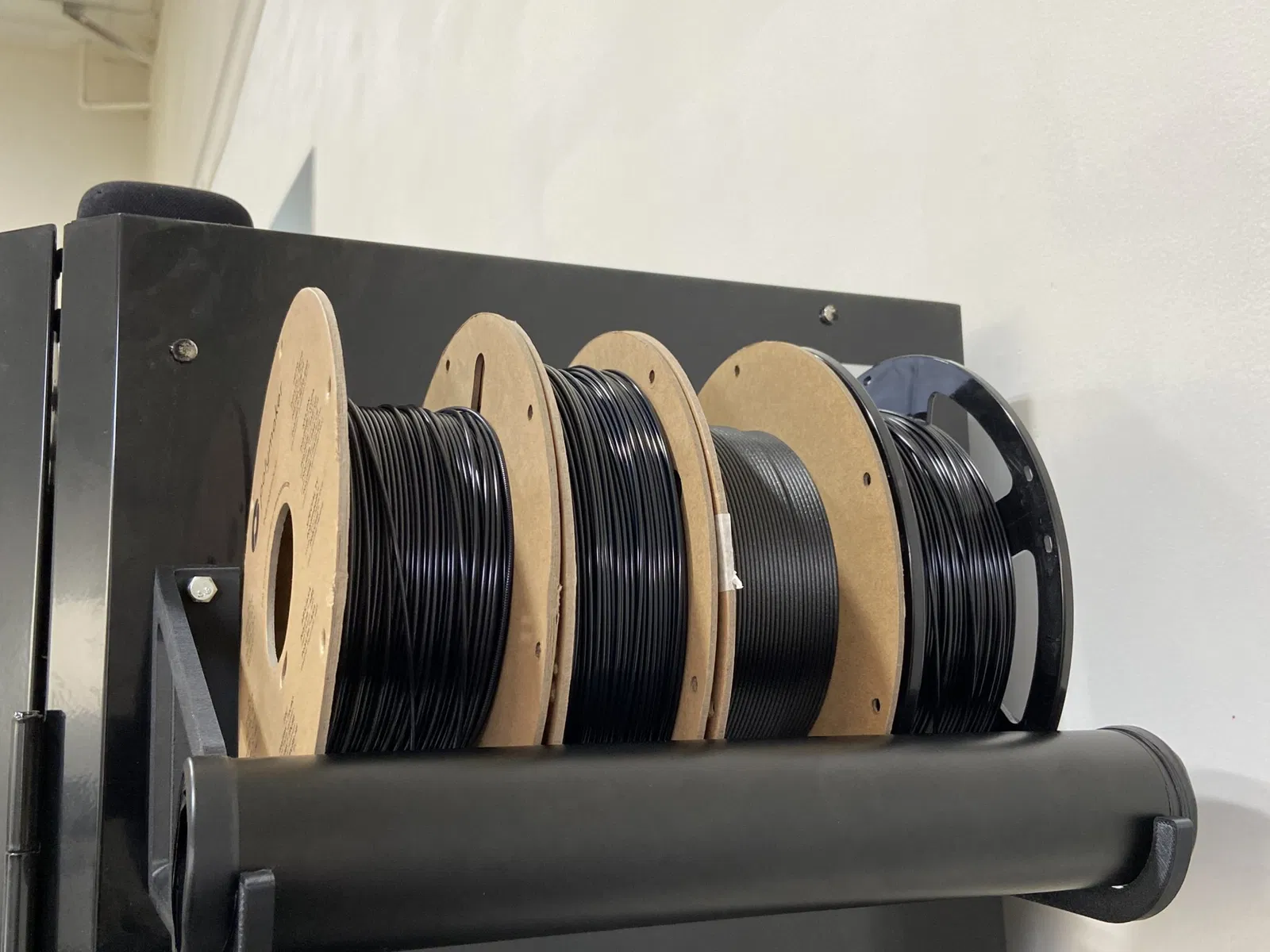

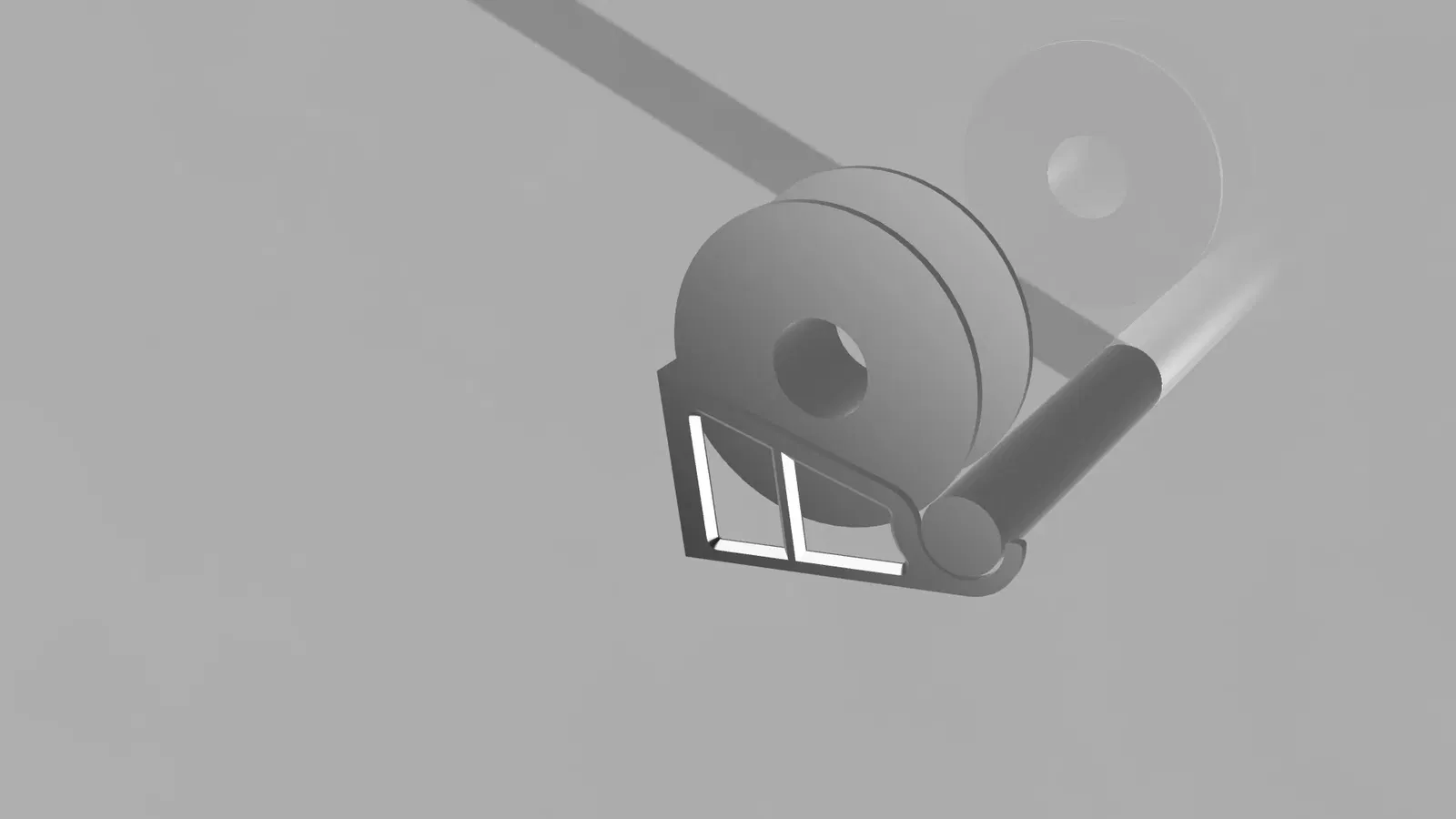

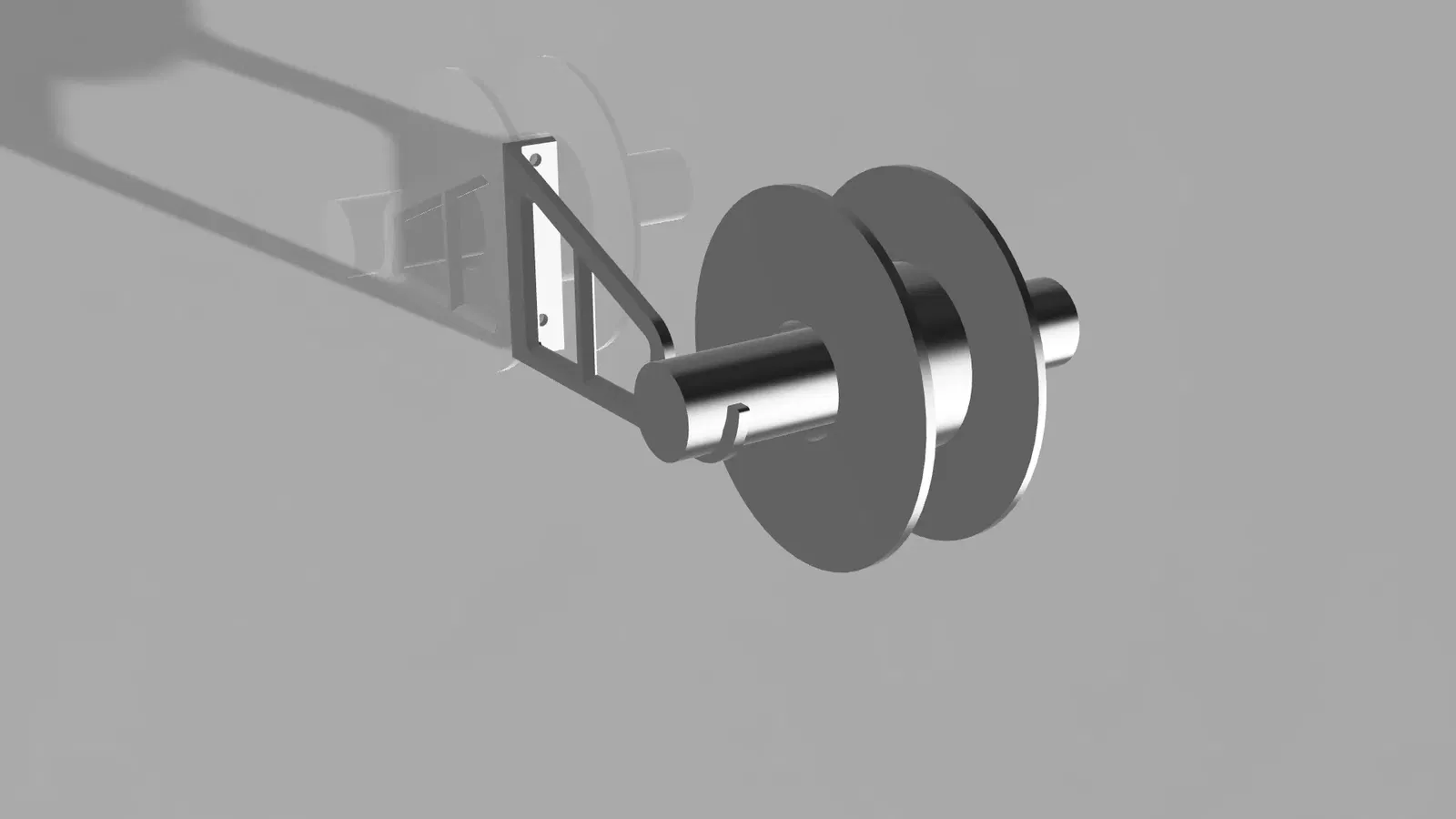

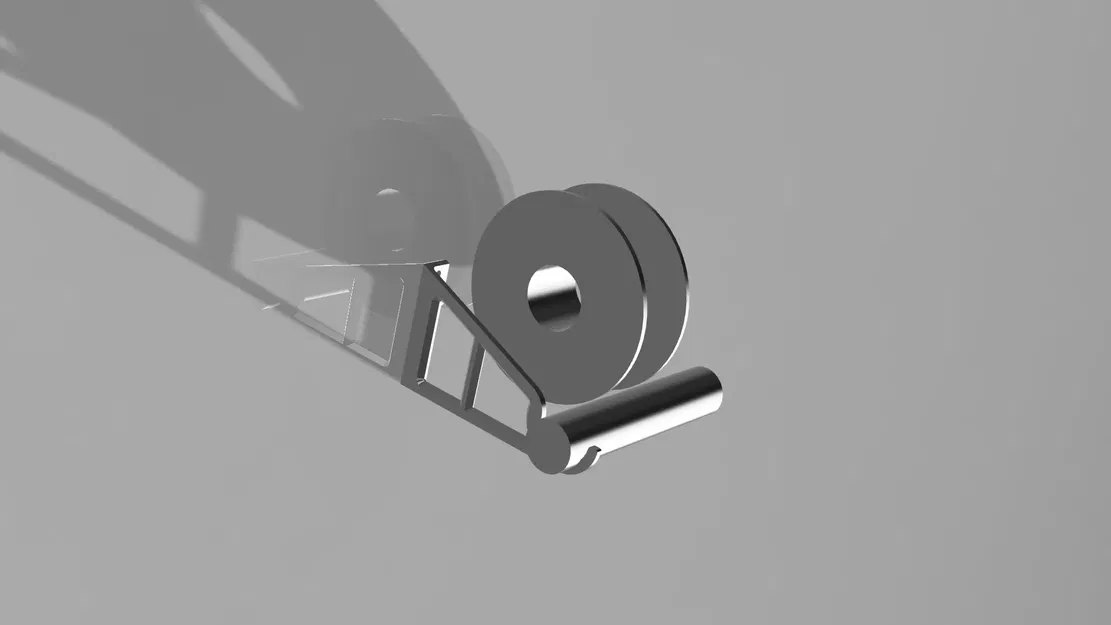

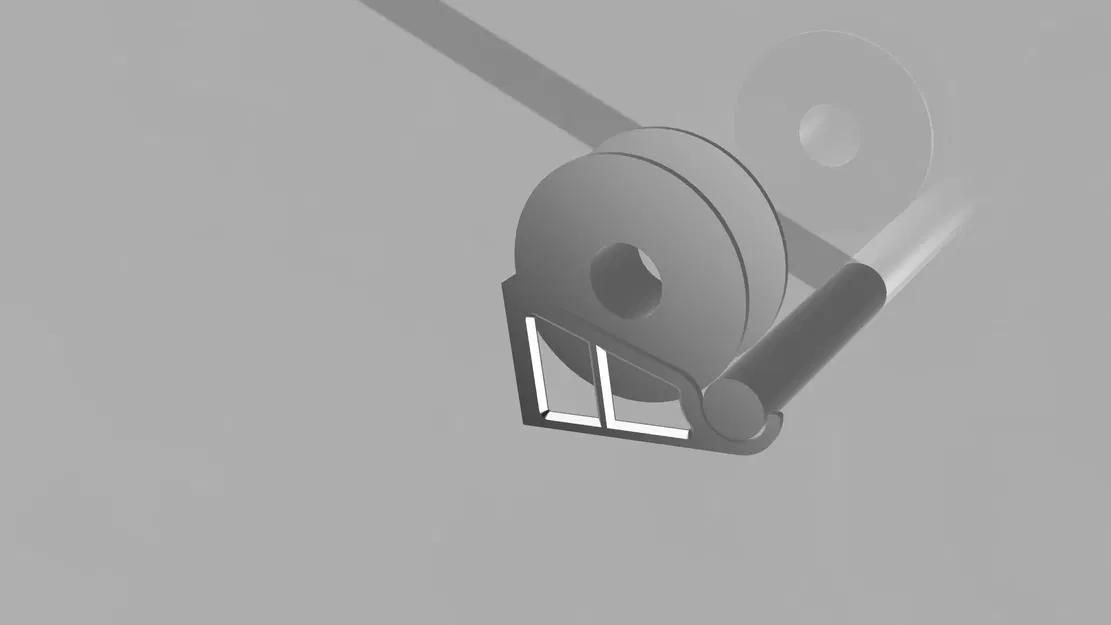

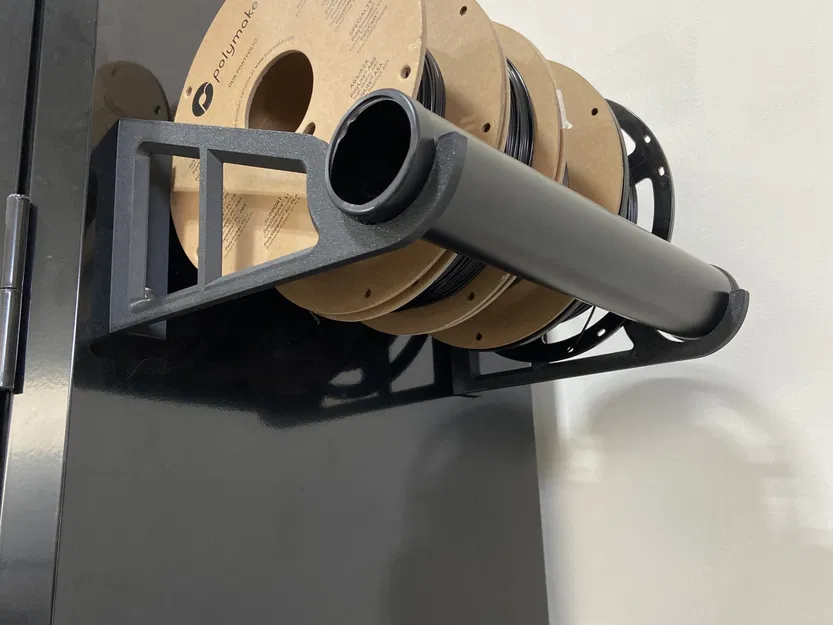

Use your wall space to organize your filament collection! The mount is designed for a 2 inch circular rod or tube. I had an old Ikea table leg that worked for me! The longer the rod the more spools fit. It can be used with spools on top for easy removal or put the rods through the spool holes.

I have not tried it with a 3kg spool. If you use a long holder rod I'd recommend a 3rd mount in the middle for extra support.

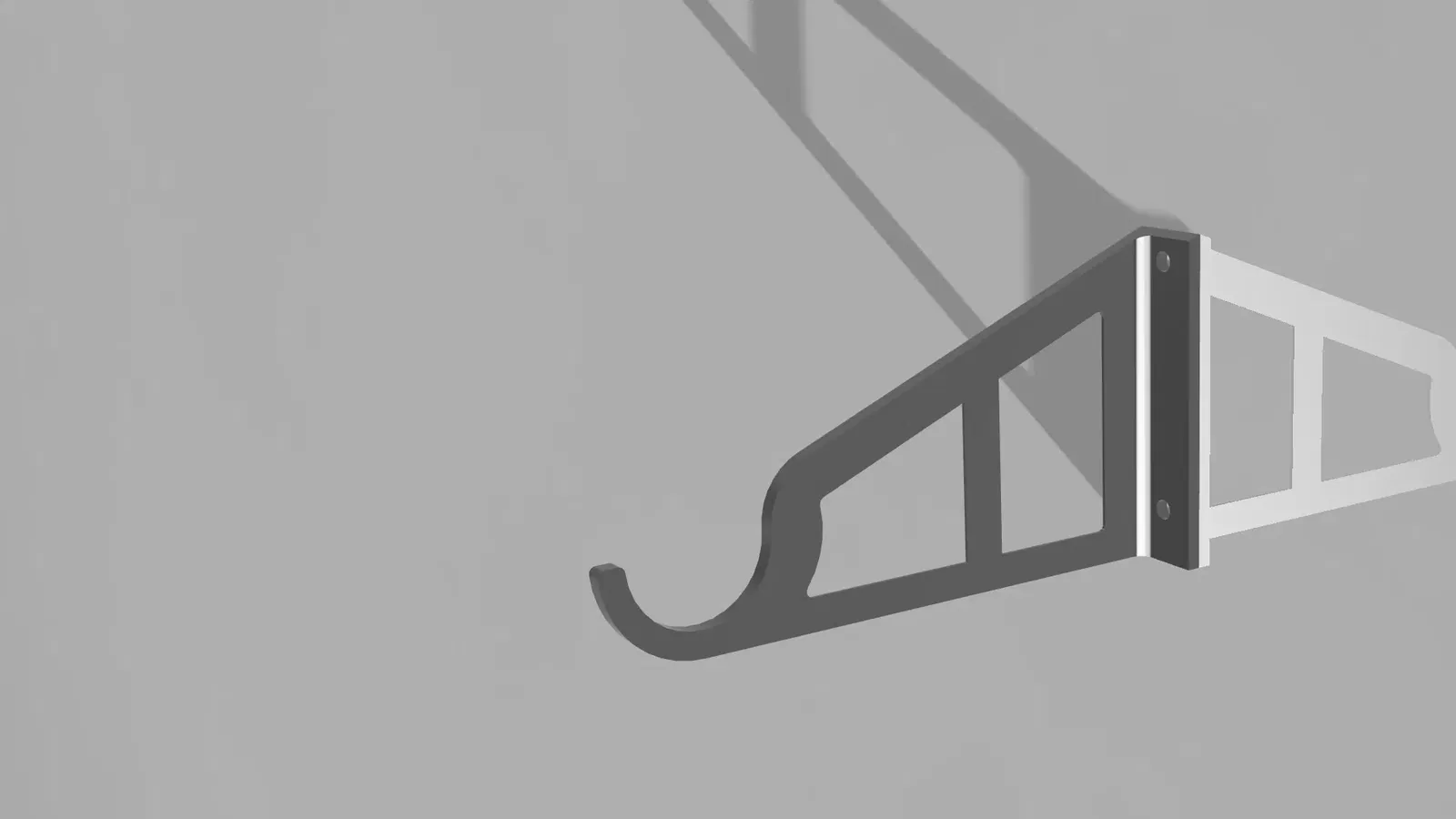

The wall supports will need to be secured via wall anchors or nuts depending on the wall or surface.

Mirror one of them to get a left and right side

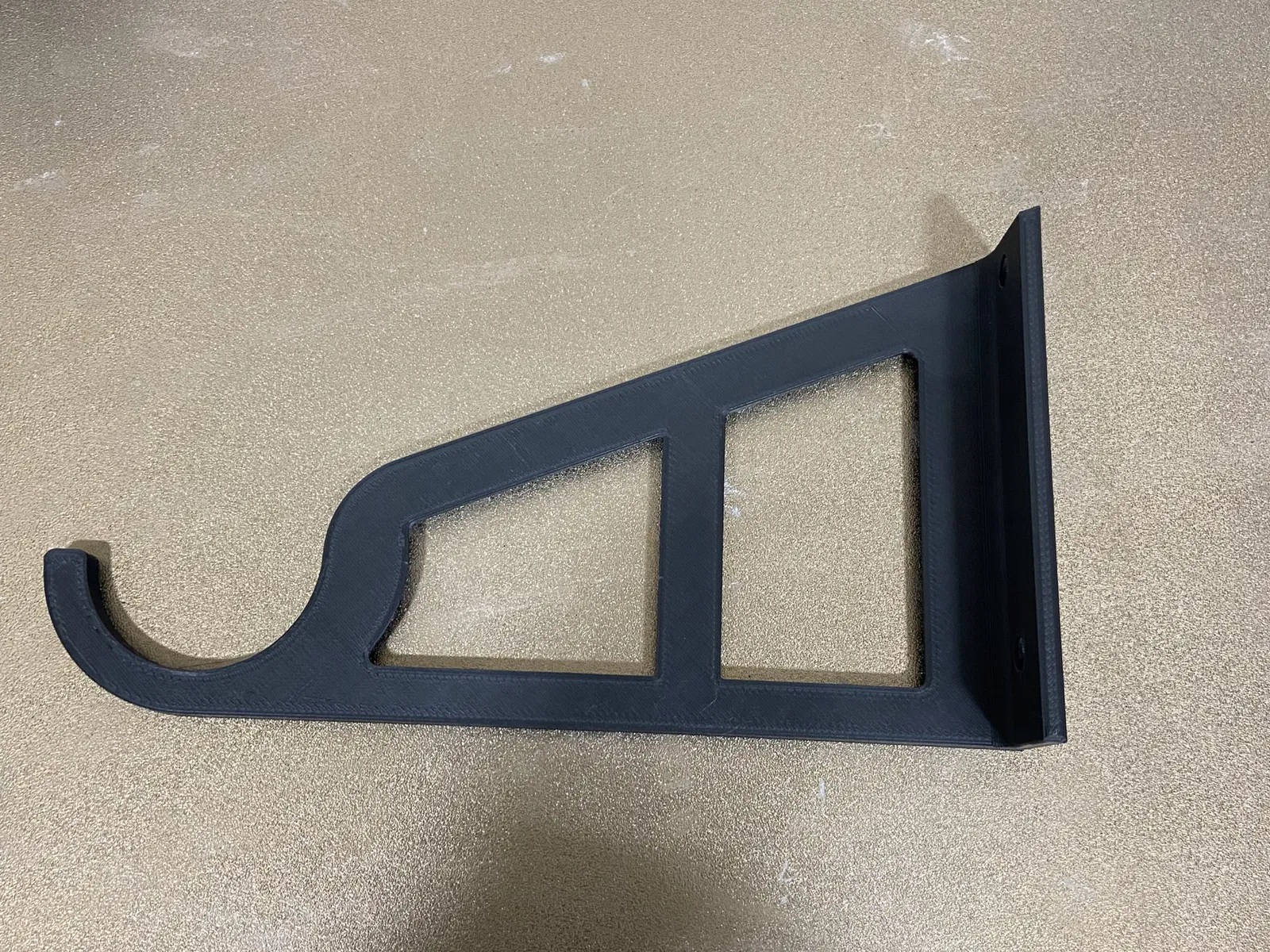

Print with long flat side down. No need for supports this way and much stronger layers.

I printed with .6 nozzle, 25% zig zag infill and 3 walls for extra strength. Do a concentric first layer for a cool pattern if you want.

I recommend printing with more perimeters than you think for added strength.
