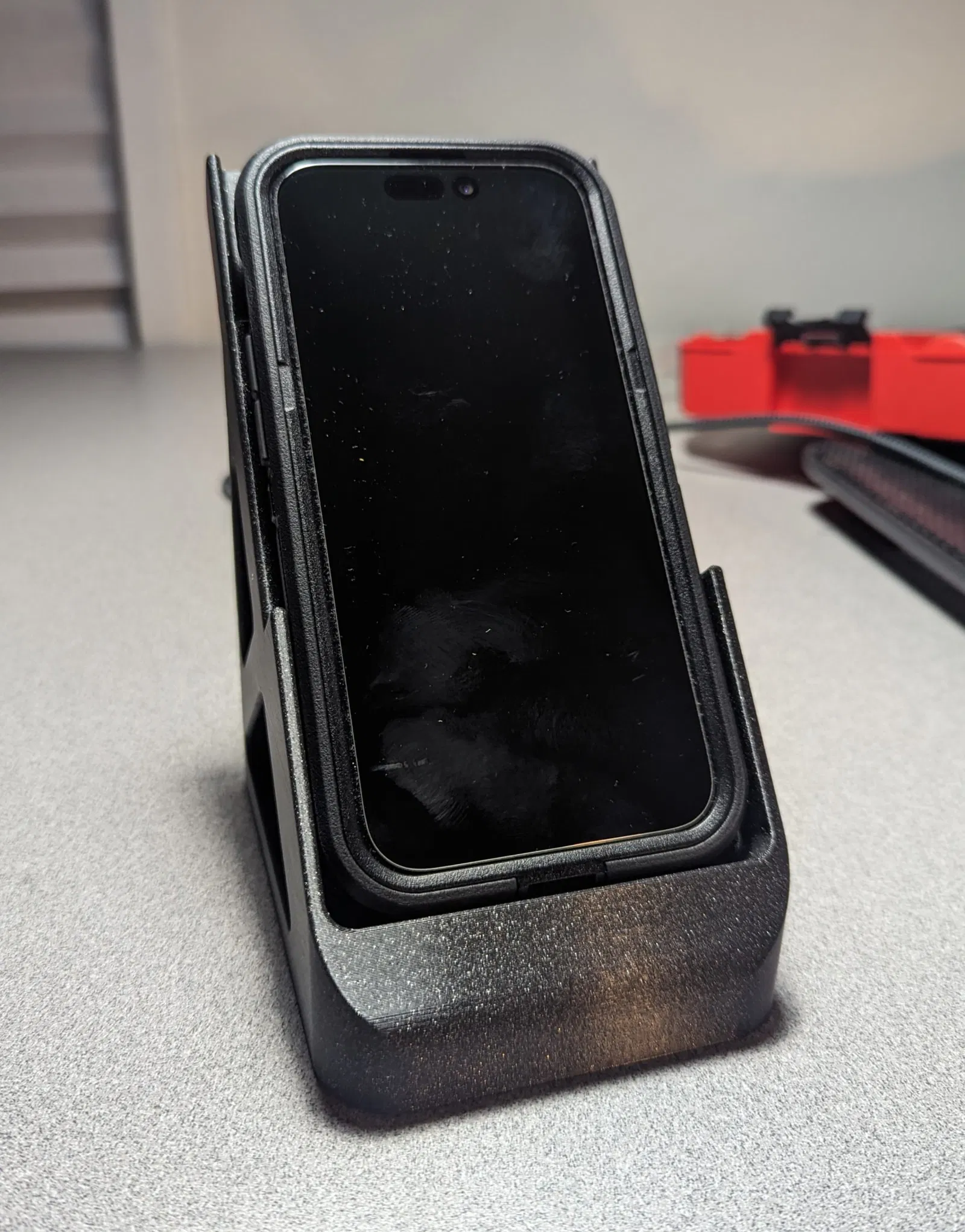

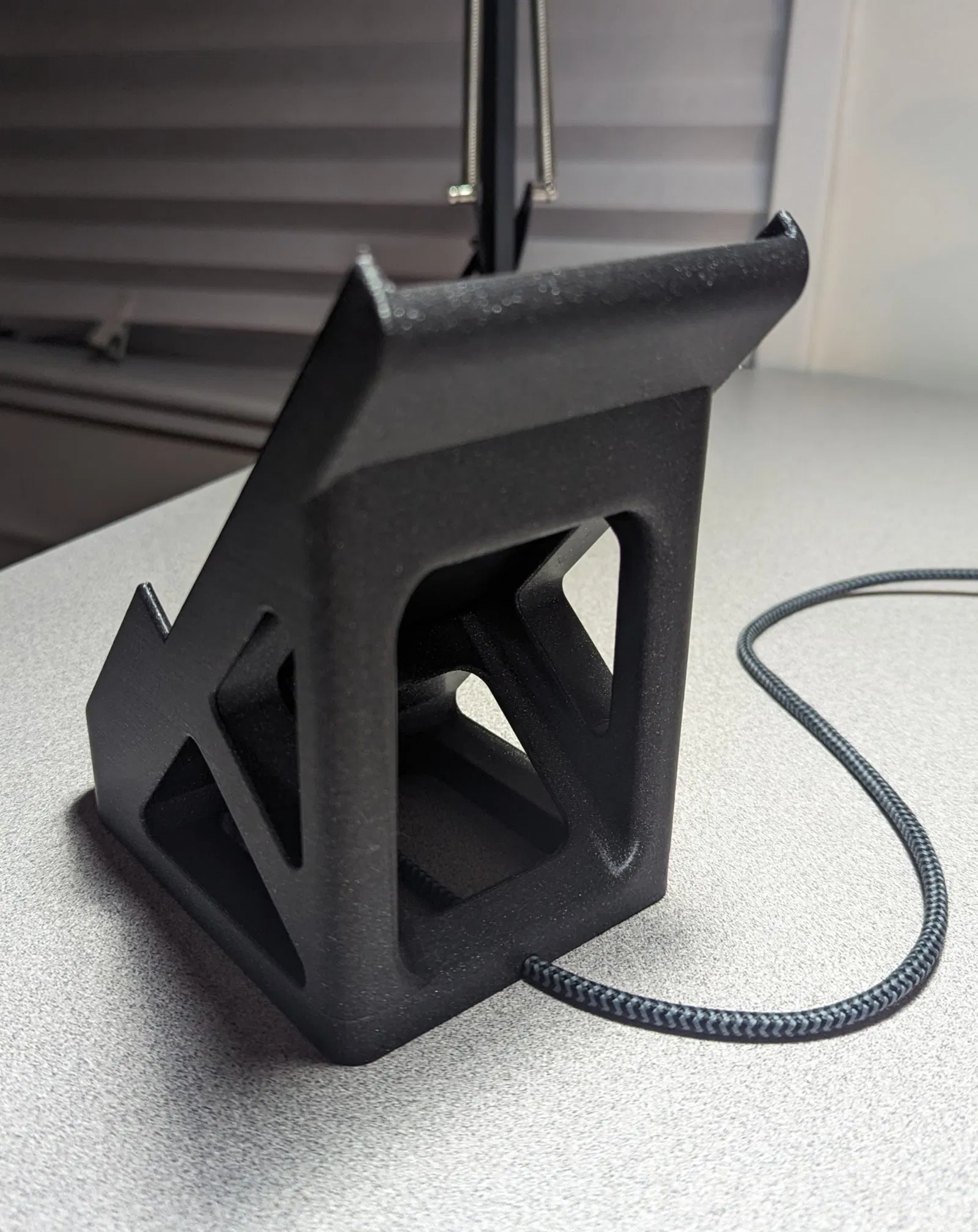

Wireless Charger Phone Stand (15W Spigen Charger)

Phone stand that incorporates the 15W Spigen wireless charger. Should fit most Android & Apple phones.

I already owned this Spigen 15W wireless charger: https://www.amazon.com/Spigen-ArcField-Wireless-Charger-Black/dp/B08PSNPT5J/ref=sr_1_1_pp?keywords=spigen+charger&qid=1699399912&sr=8-1 , and often had issues with charging since the phone was not perfectly centered on the pad.

After dealing with it for 2 years, I finally got fed up and made a stand for it to stop the issue.

The stand was initially designed for the Google Pixel 6 (with case), but I added a bit of extra room and found that it will likely fit most phones (maximum phone width is 83.1mm). I've tested with a iPhone 15 and Pixel 2, both of which fit fine. I've included a recession so that the bulky camera housings on most new phones don't interfere with the stand.

In case you don't want to use the Spigen charger, I've included some project files below so you can modify and remix it.

Printing Instructions:

• Nothing fancy, 15-20% infill in PLA at 2 perimeters or whatever you want should be fine. It is very overdesigned.

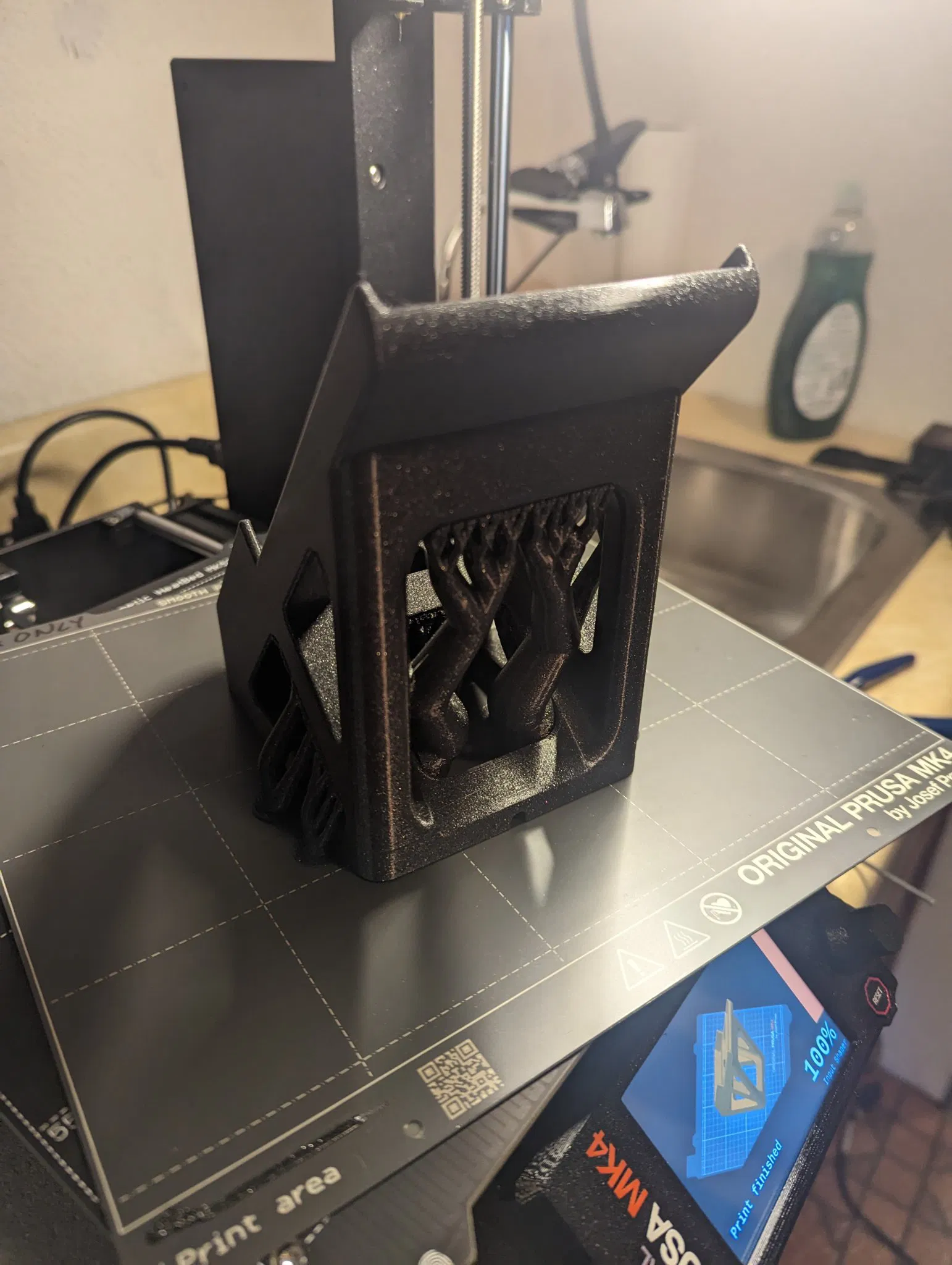

• I've tested with both organic supports and snug. Snug is faster and has less waste, but organic leave less scarring. The majority of the angles in this print are >45degress, so should technically be able to print without supports (though I haven't tried). Depends on how much you trust your printer's overhangs.
