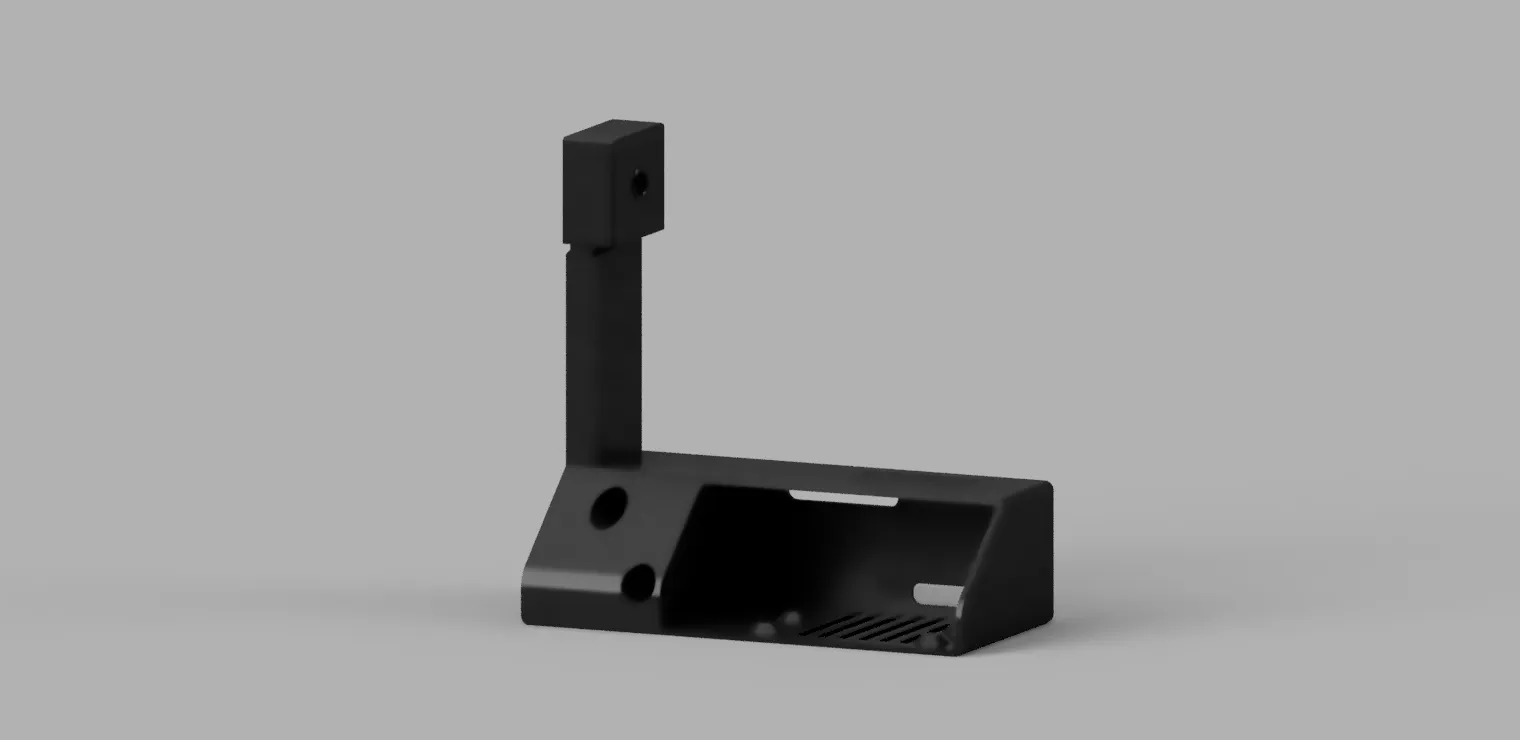

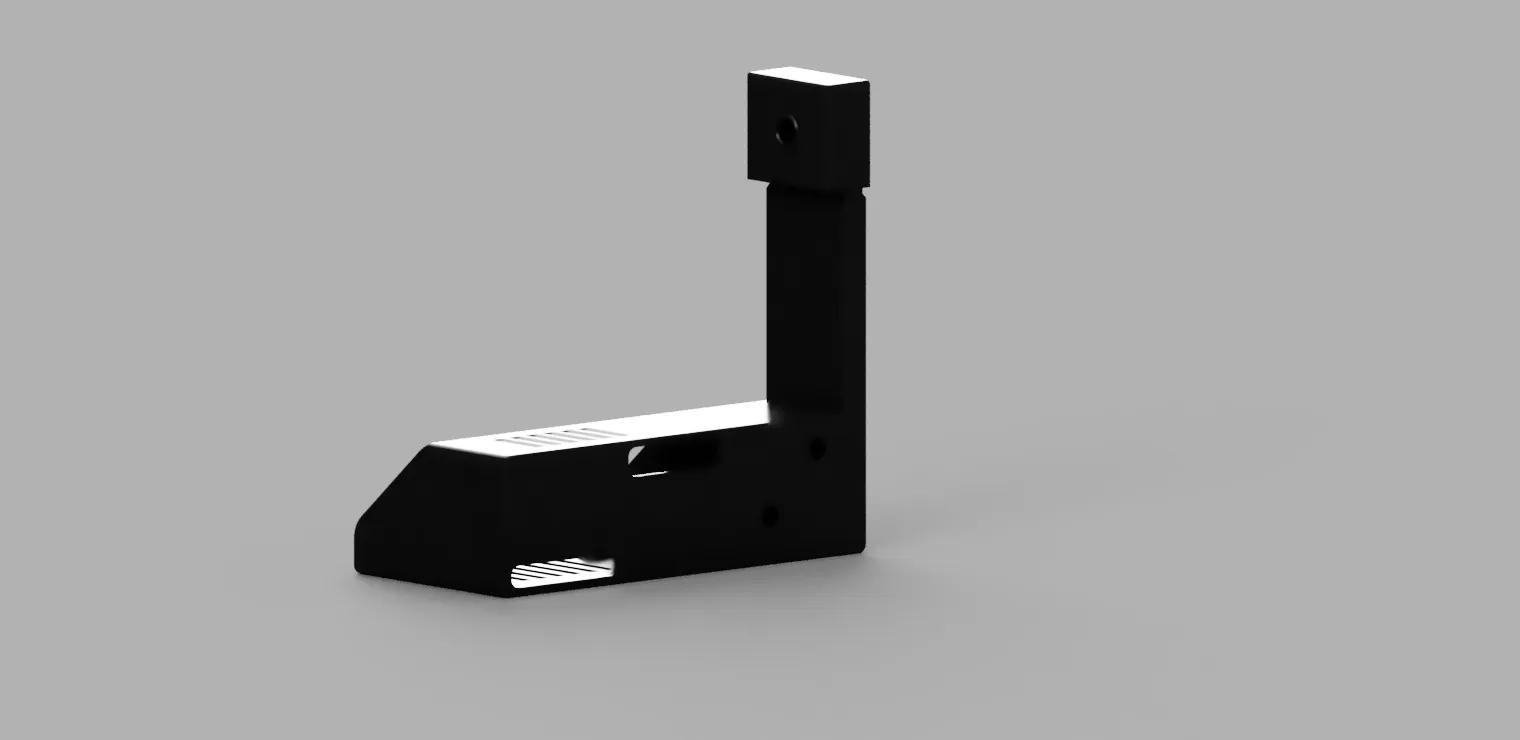

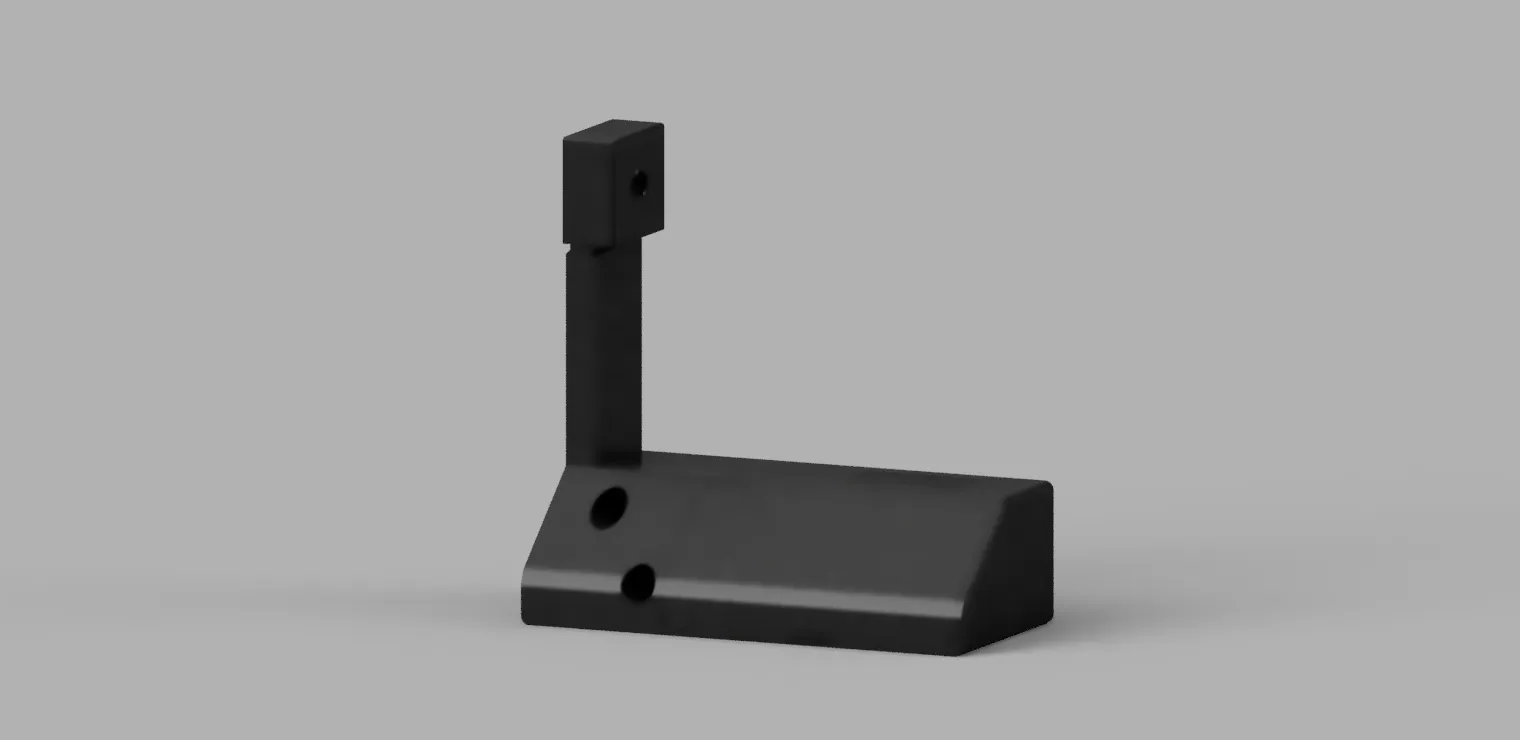

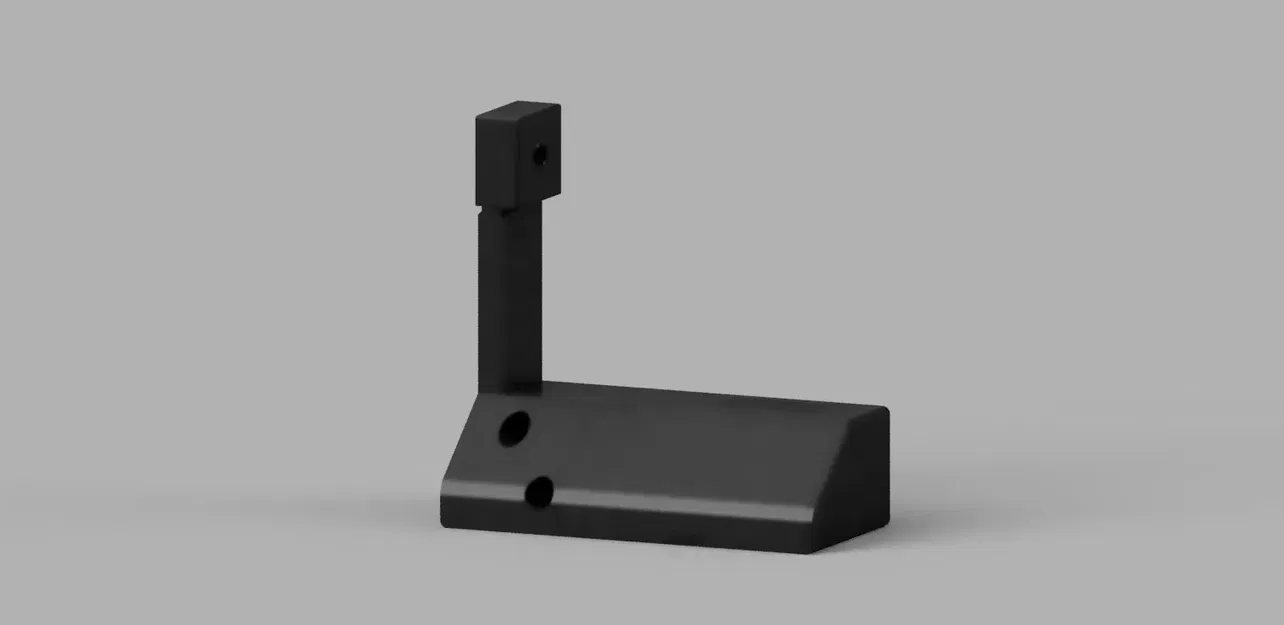

Ender 3 V2 Upgrades: Raspberry Pi Zero 2 W case + CSI Camera Holder

The model is designed to give a better look to a classic OctoPrint setup (RPi Zero + CSI Camera).

The model provides:

1. enough space to organize all the cables inside
2. angled air vents for better heat dissipation
3. embedded spacers to lift the RPi from the bottom of the case
4. modularity, you may choose to print the RPi housing without the camera stand.

To mount the case you should reuse the 2 M5 screws used to fasten the front plate (the one holding the main board cover and fan).

In the current build, I used M2*3*3.5 brass knurled nuts and nylon screws, but it is not required as there is a ton of space for the board to rest.

To attach the camera stand you will need a knurled nut - M3*6*5 - M3*10*5 and an appropriate M3 screw.
