Ender 3 V1 Sonic Pad Accelerometer Fan Shroud Mount

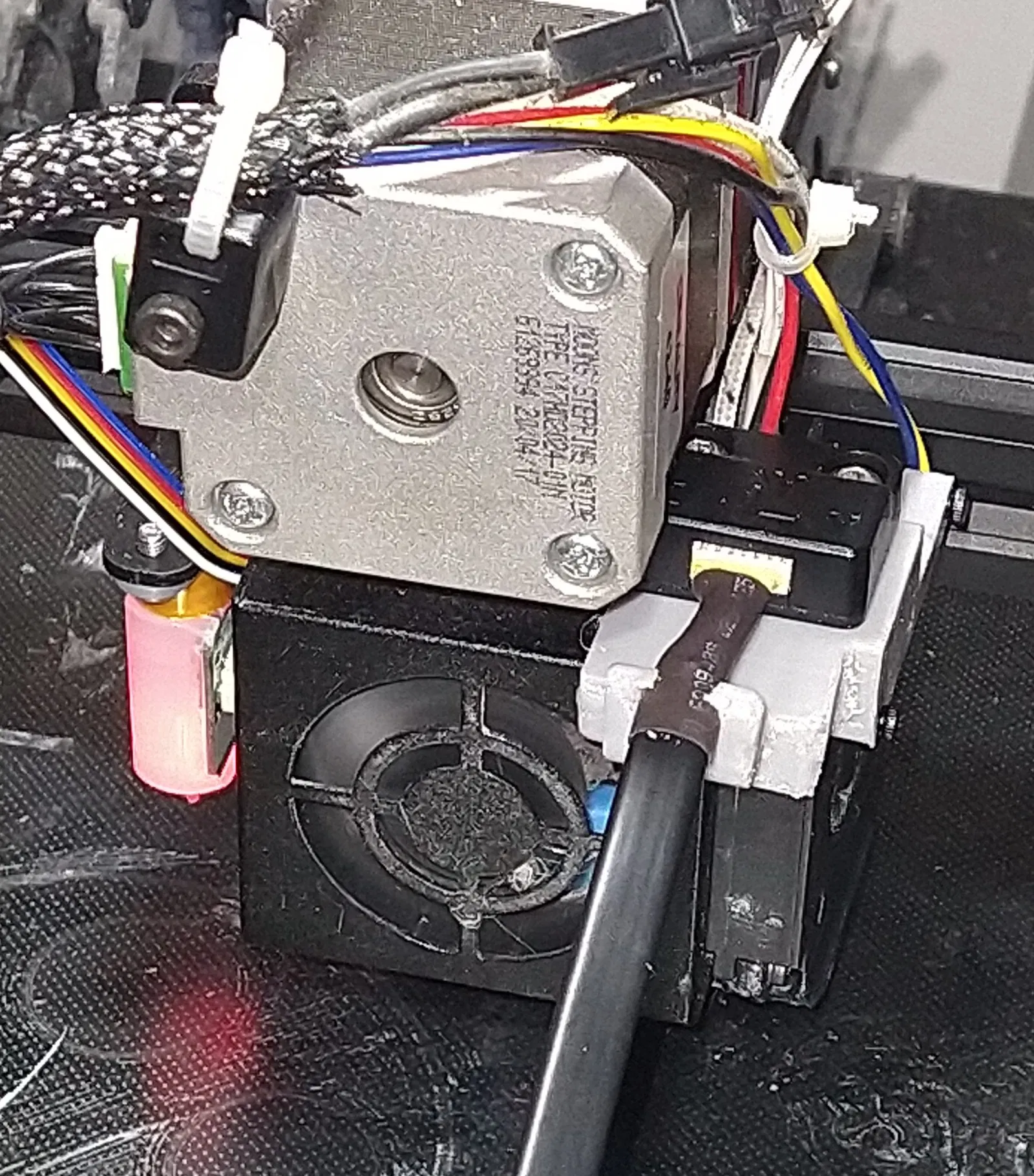

This is a mount to attach the accelerometer for the Creality Sonic Pad to the outside of the part cooling fan on the hot end shroud of the Ender 3 V1. Works with PrinterMods.com direct drive mount, and probably other direct drive setups.

I'm sure this will probably also work for other Creality printers that use the same fan shroud, but I don't have any other printers to test it on. It looks like it will work for the Ender 2, Ender 4, Ender 5 and Ender 5 Plus printers.

Hardware: 2x M2x20mm screws to attach the mount to the fan shroud 2x M3x10mm screws to attach the accelerometer to the mount A pin vise or drill chuck and 2mm and 2.5mm drill bits are suggested for cleaning out screw holes before use.

STL and 3MF files should import into your slicer in the proper print orientation. Use of support material is suggested. I used PETG, but any rigid filament that you have a good profile for should be fine.
