Supermicro SC846 2.5" HDD/SSD Mount
Cơ sở để lắp SSD bên trong khung gầm SC846.
Mô tả
In my Supermicro SC846, I have the BPN-SAS2-846EL1 backplane with SAS expanders. This means that all the drives in the 24 bay must be connected through my HBA.
If you're running a hypervisor, such as Proxmox, you may want your hypervisor to be installed on a separate disk.

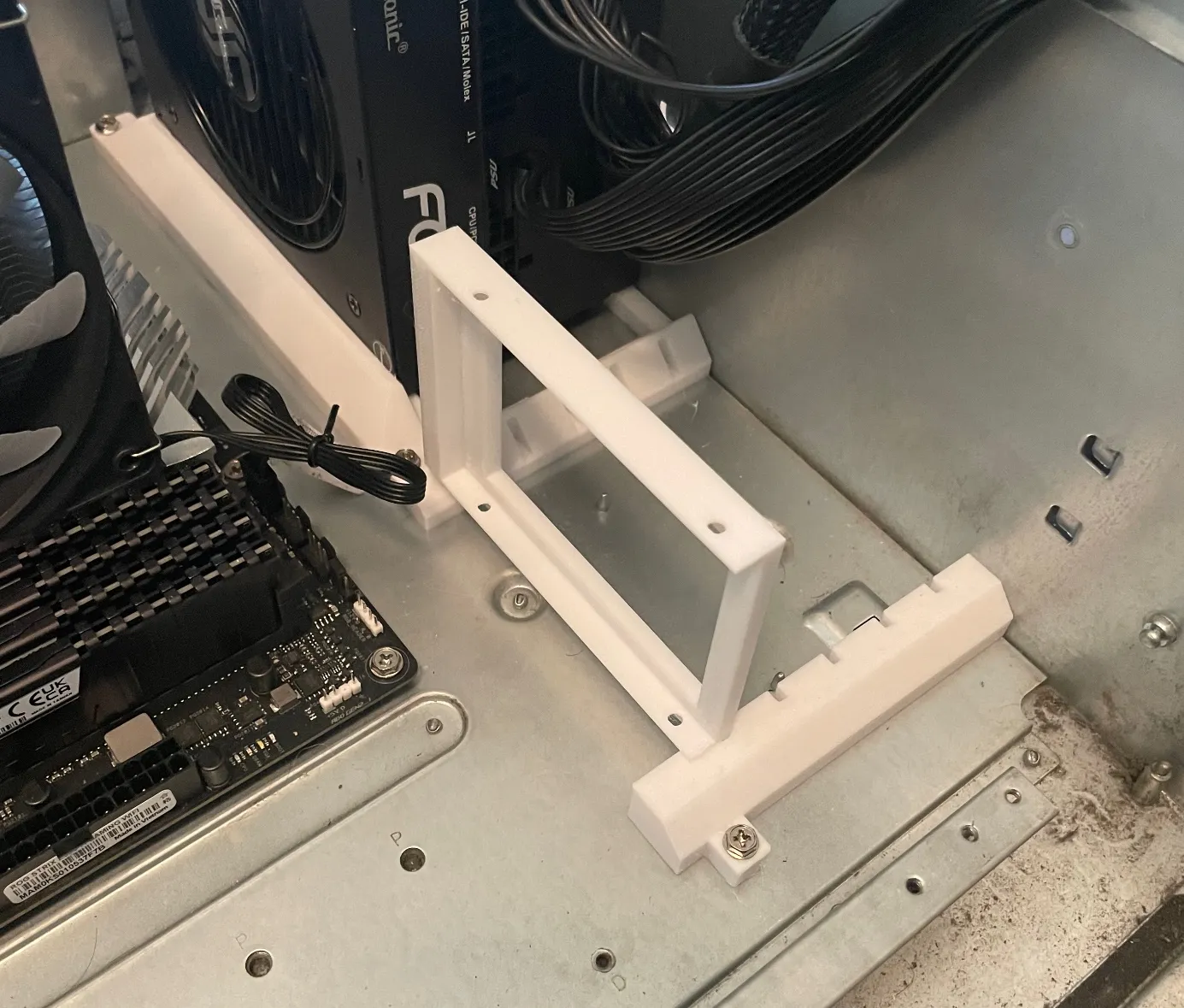

This allows you to mount one or more 2.5" HDD/SSDs inside your chassis and connect them directly to your motherboard.
The HDD/SSD caddies are intentionally a bit loose, but should be fine for keeping the drive secure. If there's enough interest, I may redesign for a tighter fit or add a latch.
Notes:
This mod requires the ATX PSU mount and is designed to use with the included HDD caddies.
