CO2 sensor enclosure (D1 Mini + SenseAir S8)

Tác giả Citruspers

Lượt tải
159
Lượt thích
22
Lượt coi
1.930
Bình luận
5

File 4 806,3 KB

  • Wemos_D1_Mini_Senseair_S8_V2_1765537328.stlSTL · 154,7 KB
  • Wemos_D1_Lid_1765537339.stlSTL · 8,5 KB
  • Wemos_D1_mini_senseAir_V2_v14_1765537347.stepSTEP · 286,2 KB
  • Wemos_D1_mini_senseAir_V2_v14_1765537356.f3dF3D · 356,9 KB

Tạo biến thể bằng AI

Dựng một phiên bản khác của mẫu này.

Mở Studio

Mô tả

Description:

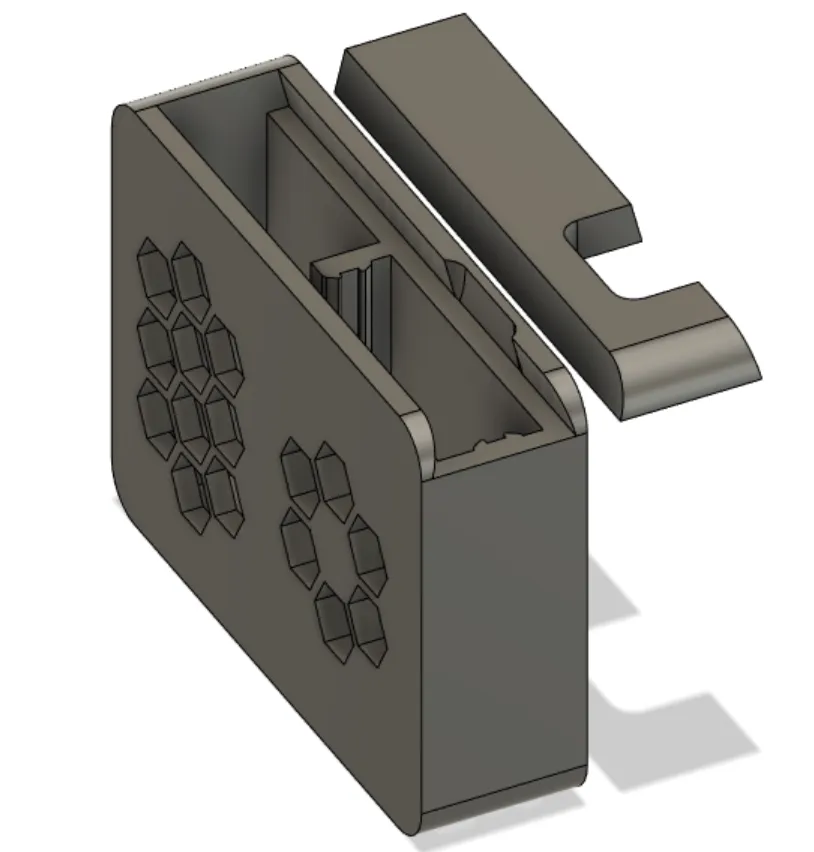

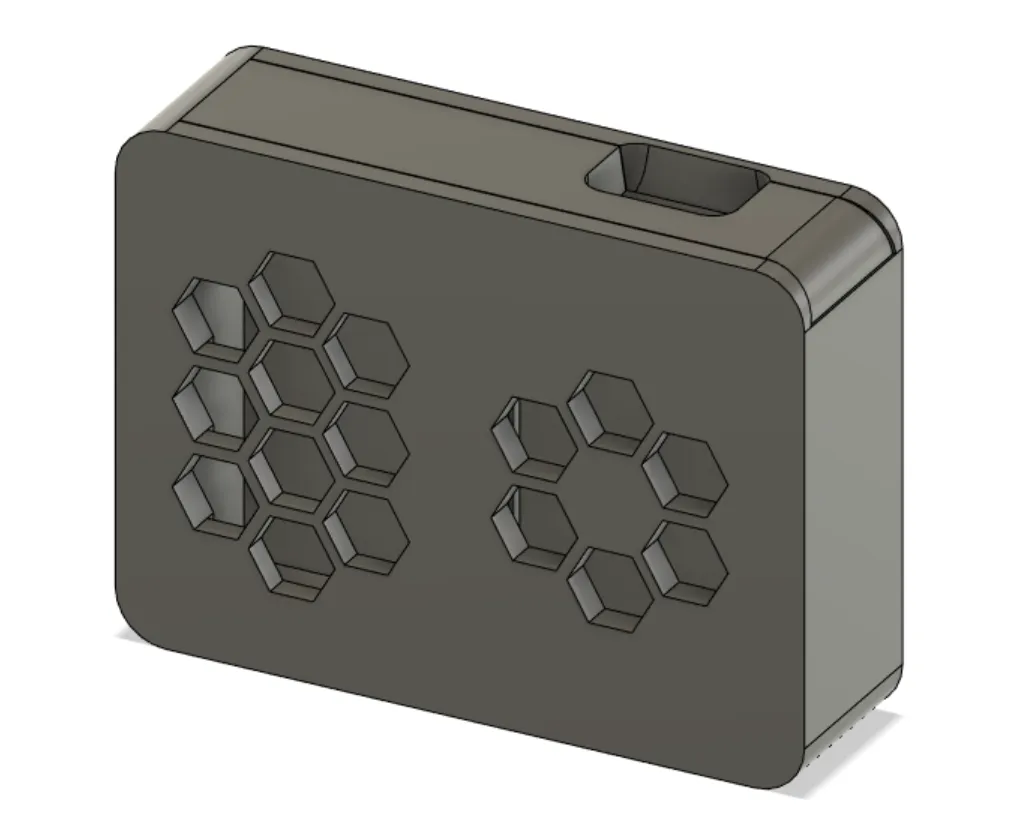

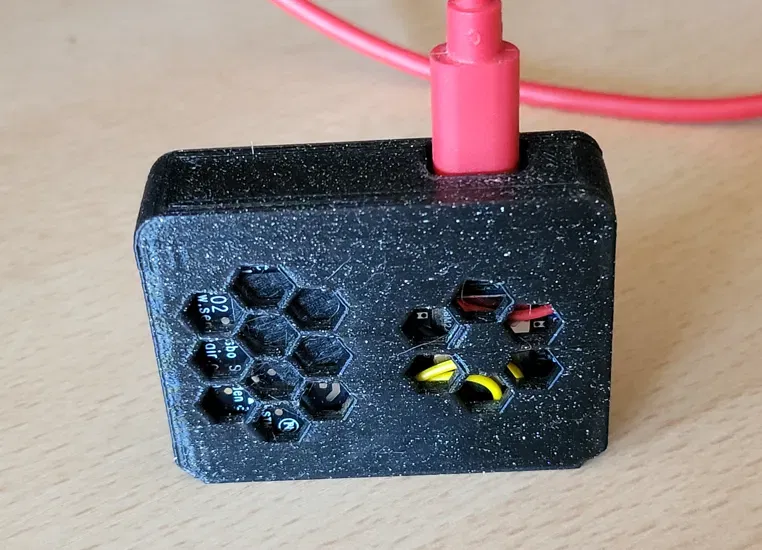

A small enclosure for a Senseair S8 CO2 sensor and a Wemos D1 Mini ESP board. No supports and no fasteners needed. Everything just slides into place.

Tips:

Make sure the wiring connects from the wifi-side on the D1, and the plastic side on the Senseair, otherwise things may not fit.

I printed this in PLA using a 0.4mm nozzle at .15mm layer height.

.STEP and .f3d files are included, feel free to improve/adapt and share alike!

Software:

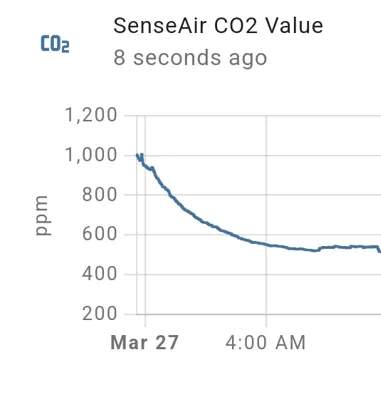

I'm using this with Home Assistant using the excellent ESPHome project.
