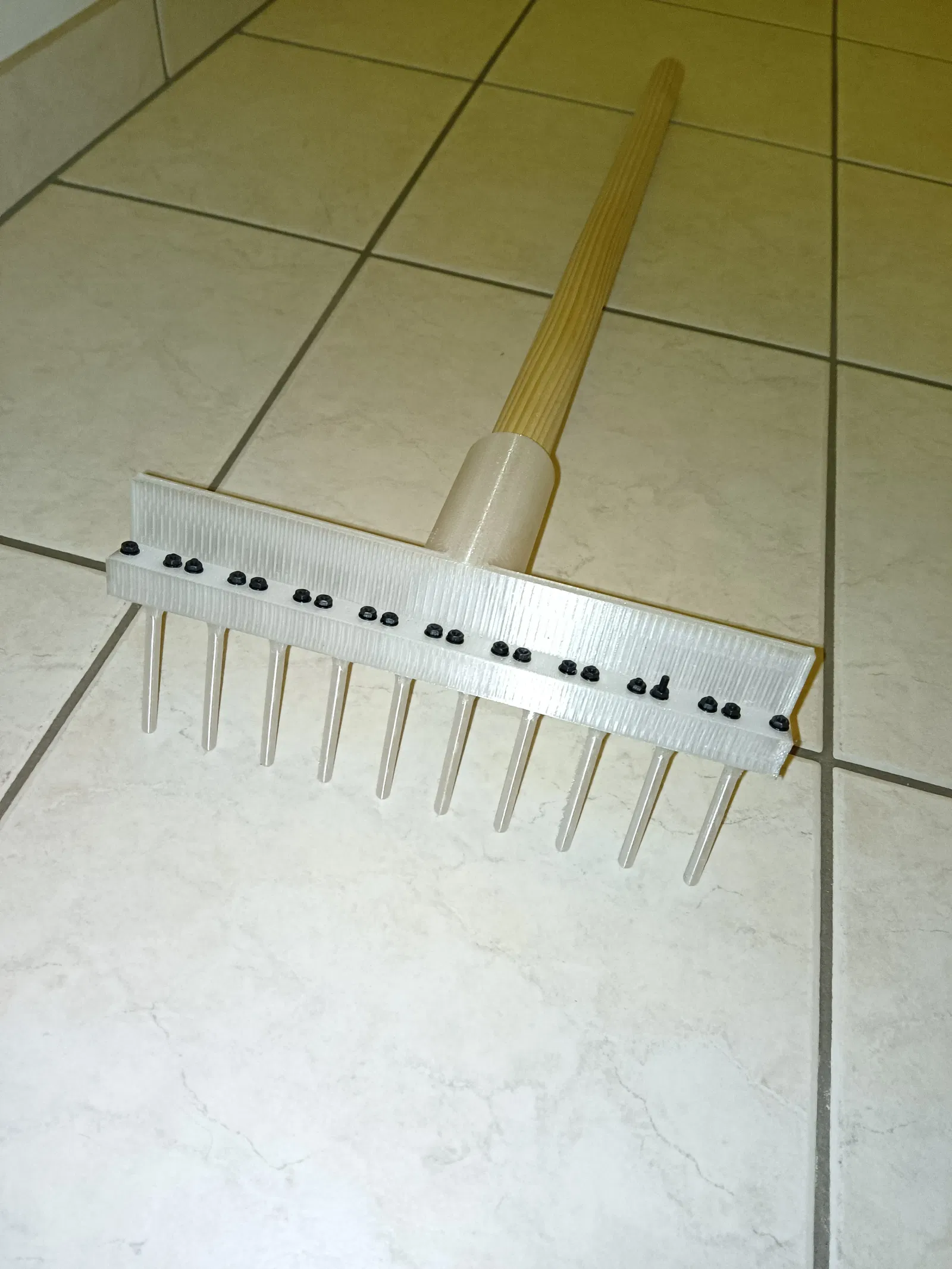

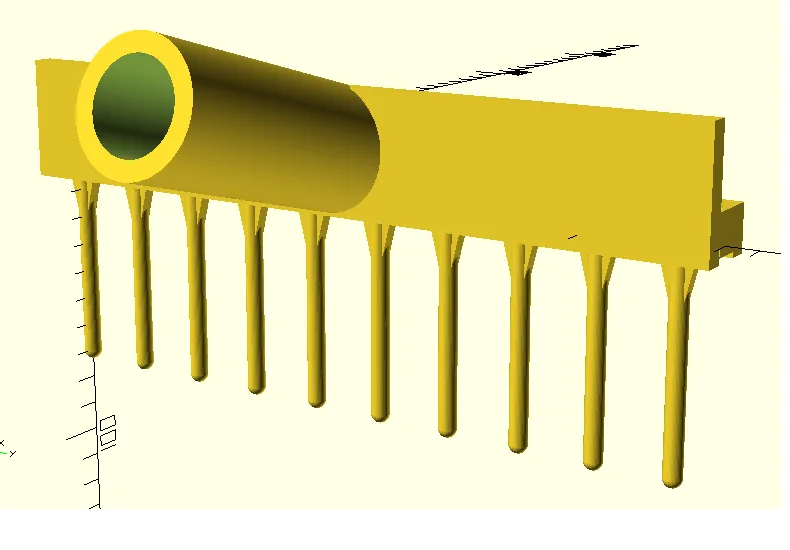

Garden Rake

A full-size rake for the garden having 10 tooths. Each tooth can get replaced. The rake is intended to scratch fallen leaves from the ground.

You need to print:

1 x base 10 x tooth

To assembly the rake you need:

The printed parts (see above) 1 x stick wood round having 28 mm in diameter + 1 screw 3mm diameter 20 x screws M3 + 20 washers + 20 nuts M3

I've printed mine in PETG but other materials will also work.

Print- settings:

0,2 mm height 35% infill

The minimum bed-size of your printer must be 235x235 mm.

Happy gardening!
