Raspberry Pi 5 Reference Model

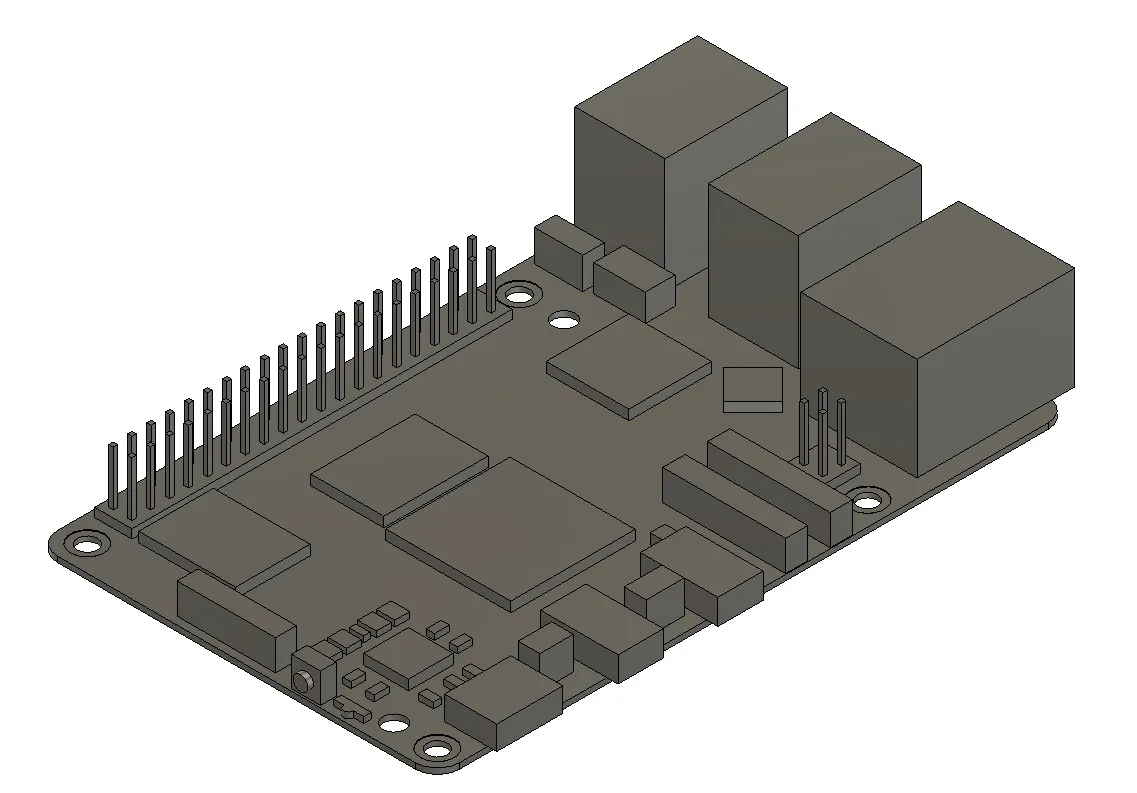

This model is intended to be used as a CAD reference in designing cases and peripherals for the Raspberry Pi 5, as I could not find another model to use for my own designs. This model is by no means exact, and measurements for components and placements could vary up to a couple millimeters. The model was extracted from pixel measurements and at-the-time released official documentation. Please check back occasionally, as I will update this model to take into account additional official documentation as it is released.
