MKIII Hinged Electronics Panel Remix

Eebel's hinged electronics board is awesome, but I wanted to mount more common electronics than what he used in the current version.

The board holds the following components -

Microsoft Xbox Receiver, Sabertooth 2x32 Motor Driver, SyRen 10 Motor Driver, Arduino Mega 2560, Amplifier, Sparkfun MP3 Trigger, 5V and 12V buck converters, and a Fuse Block

The switch plate space works with Romain Dalencourt's switchplate, which I uploaded here as well..

I have included a split version and a single print version. I also included a ‘blank’ board.

These are the buck converters.

This is the fuse block.

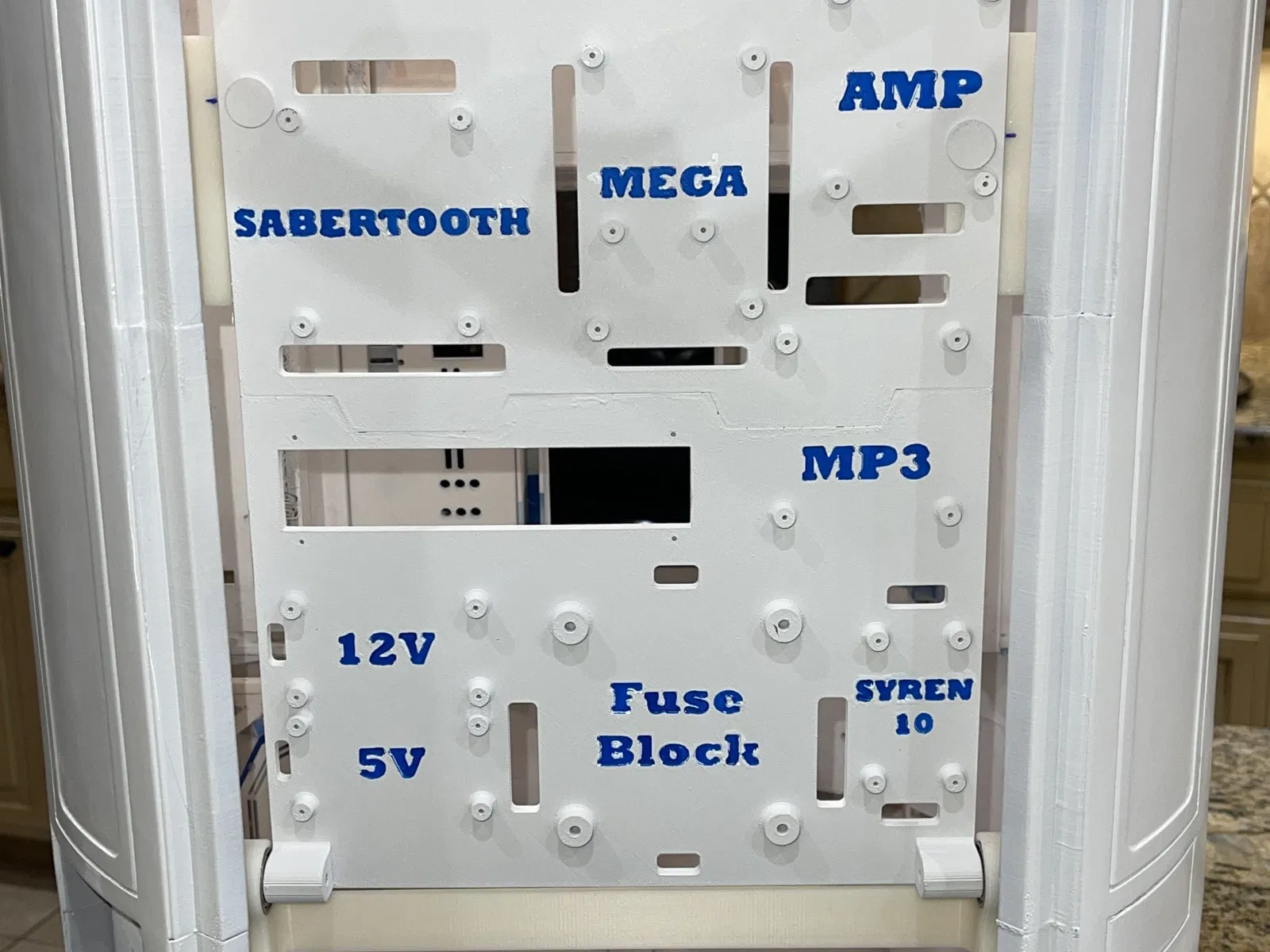

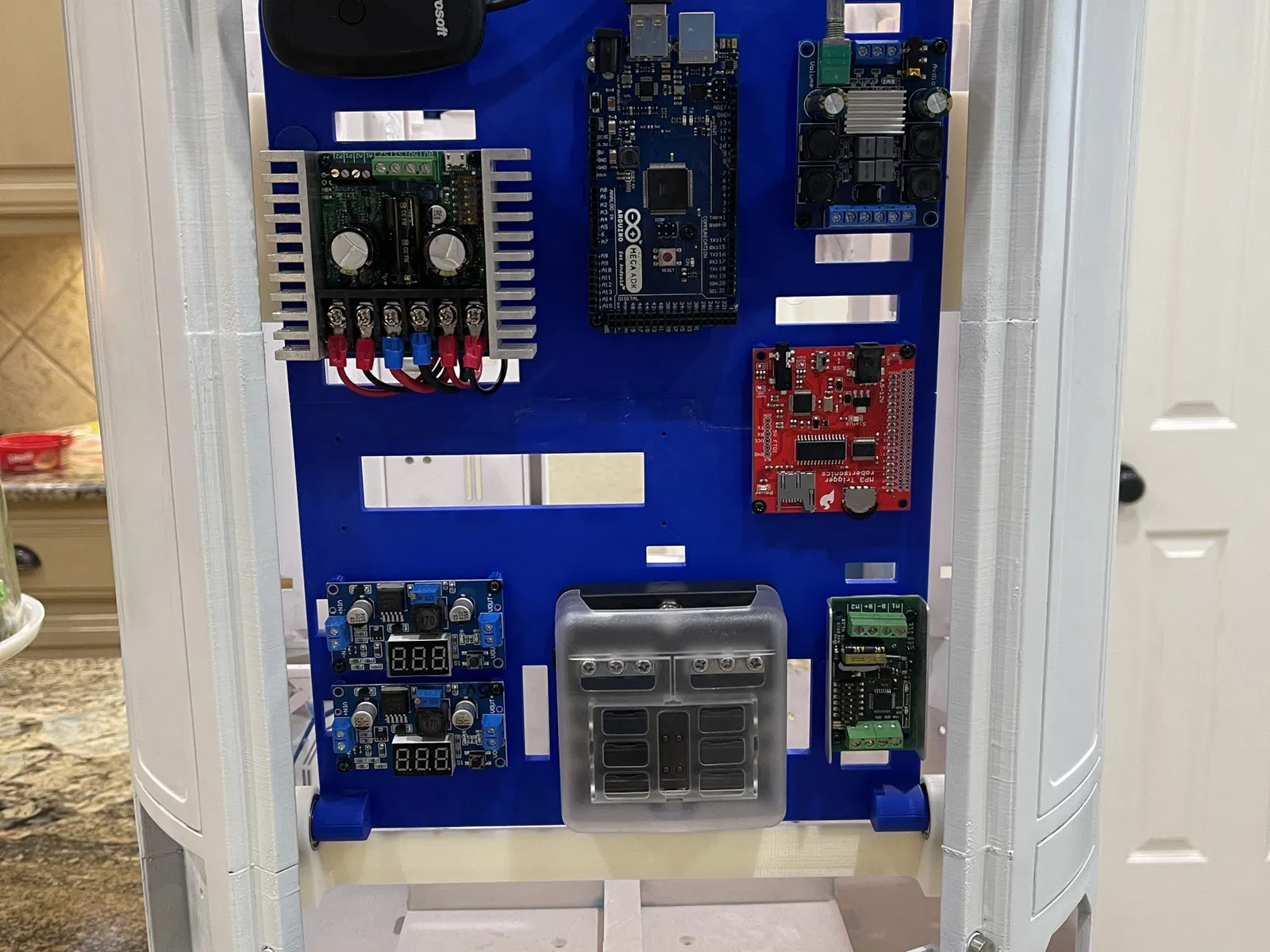

The picture with the white and blue board is the current version uploaded here. The picture with the blue board and electronics mounted is just to show how the electronics look mounted. I added a few more cable slots after taking that picture, and moved the Arduino down to allow for more clearance with the USB cable plugged in.
