Sinew Puller

Summary

This model represents an innovatively designed sinew puller, optimized for tie-dye artists who require a reliable tool for applying tight, consistent pressure to sinew or rubber bands during the dyeing process. The tool's ergonomically crafted handle ensures comfortable grip and ease of use during prolonged tie-dye sessions, reducing hand fatigue and improving precision. Its compact, easily printable structure allows for quick production and accessibility for DIY enthusiasts and professionals alike. Constructed with durability in mind, the sinew puller is ideal for pulling, twisting, and securing the sinew tightly around fabric, ensuring intricate designs and patterns emerge beautifully in the finished product. Compatible with a variety of materials and fabrics, this sinew puller is a versatile addition to any tie-dye toolkit, promising to enhance the creative experience with its functionality and efficiency.

Optional Drill Use

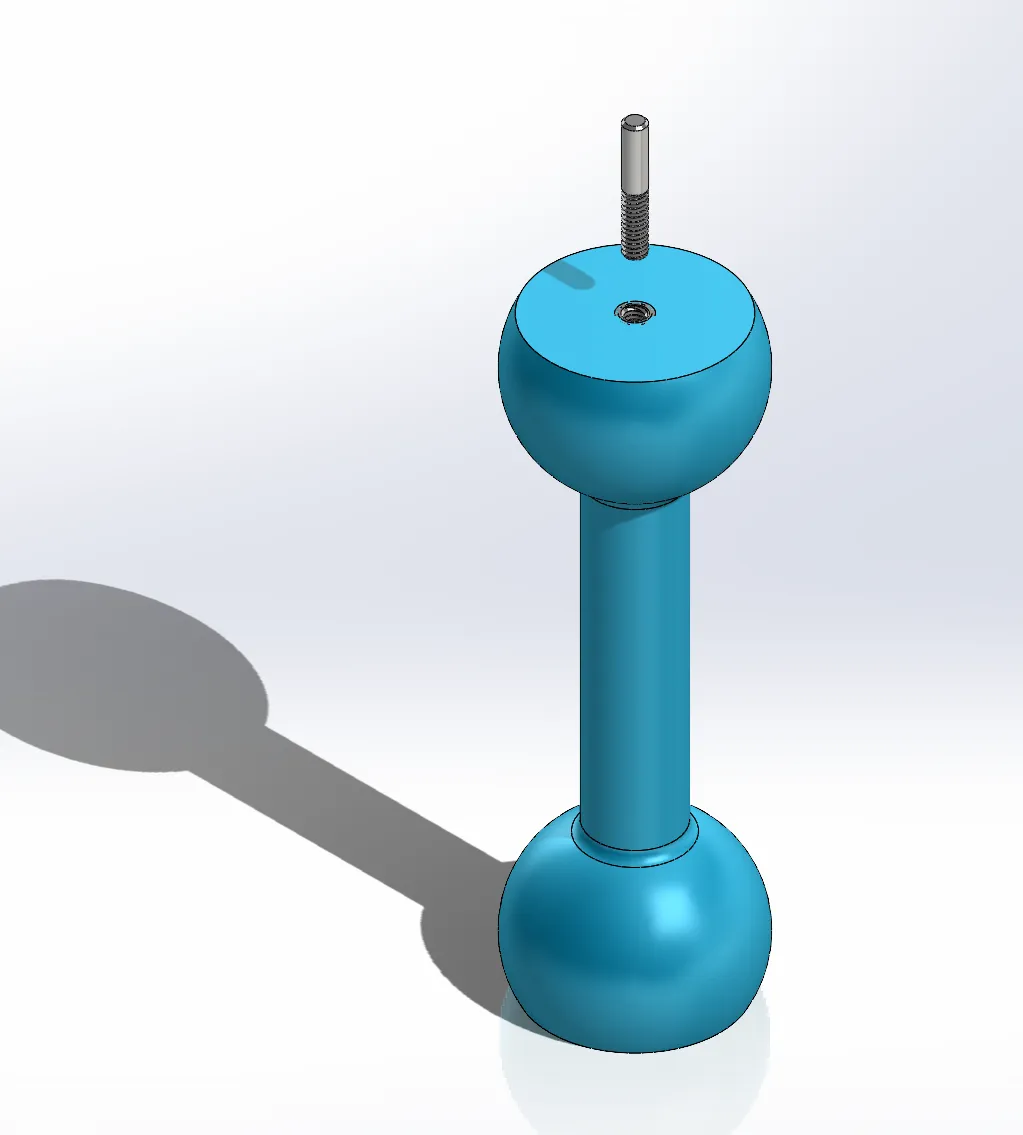

This model was designed with the use of an electric drill in mind to respool the sinew onto the 3D printed sinew puller. The hardware I used is listed below. I used a soldering iron to set the inserts into the plastic. The hole is purposely undersized to allow for enough plastic to adhere to the insert.

Note: I used 4 walls when printing with the intent of adding inserts. This allows enough plastic at the hole for the insert to fuse into the model.

Hardware

• Tapered Heat-Set Inserts for Plastic 1/4"-20 Thread Size, 1/2" Installed Length
  • https://www.mcmaster.com/97164A106/
• 18-8 Stainless Steel Threaded on One End Stud 1/4"-20 Thread, 1-1/2" Long
  • https://www.mcmaster.com/97042A216
• Installation Tip for 1/4"-20, M6 x 1 Thread Size Heat-Set Inserts for Plastics
  • https://www.mcmaster.com/92160A131

Happy Tie-Dying!
