Small Replacement Gears for Toy

Tác giả Atko

Lượt tải
84
Lượt thích
8
Lượt coi
515
Bình luận
1

File 8 17,3 MB

  • Lazy_Egg_Repair-8-22_gear_1768091521.stlSTL · 448,1 KB
  • Lazy_Egg_Repair-24_Tooth_Axle_1768091522.stlSTL · 358,4 KB
  • Lazy_Egg_Repair-8-22_gear_1768091523.stepSTEP · 9,6 MB
  • Lazy_Egg_Repair-24_Tooth_Axle_1768091524.stepSTEP · 6,1 MB

Tạo biến thể bằng AI

Dựng một phiên bản khác của mẫu này.

Mở Studio

Thông tin

Mã mẫu
#59905
Danh mục
Đồ Chơi
Ngày đăng
Giấy phép
CC BY — Ghi công
Thẻ

Mô tả

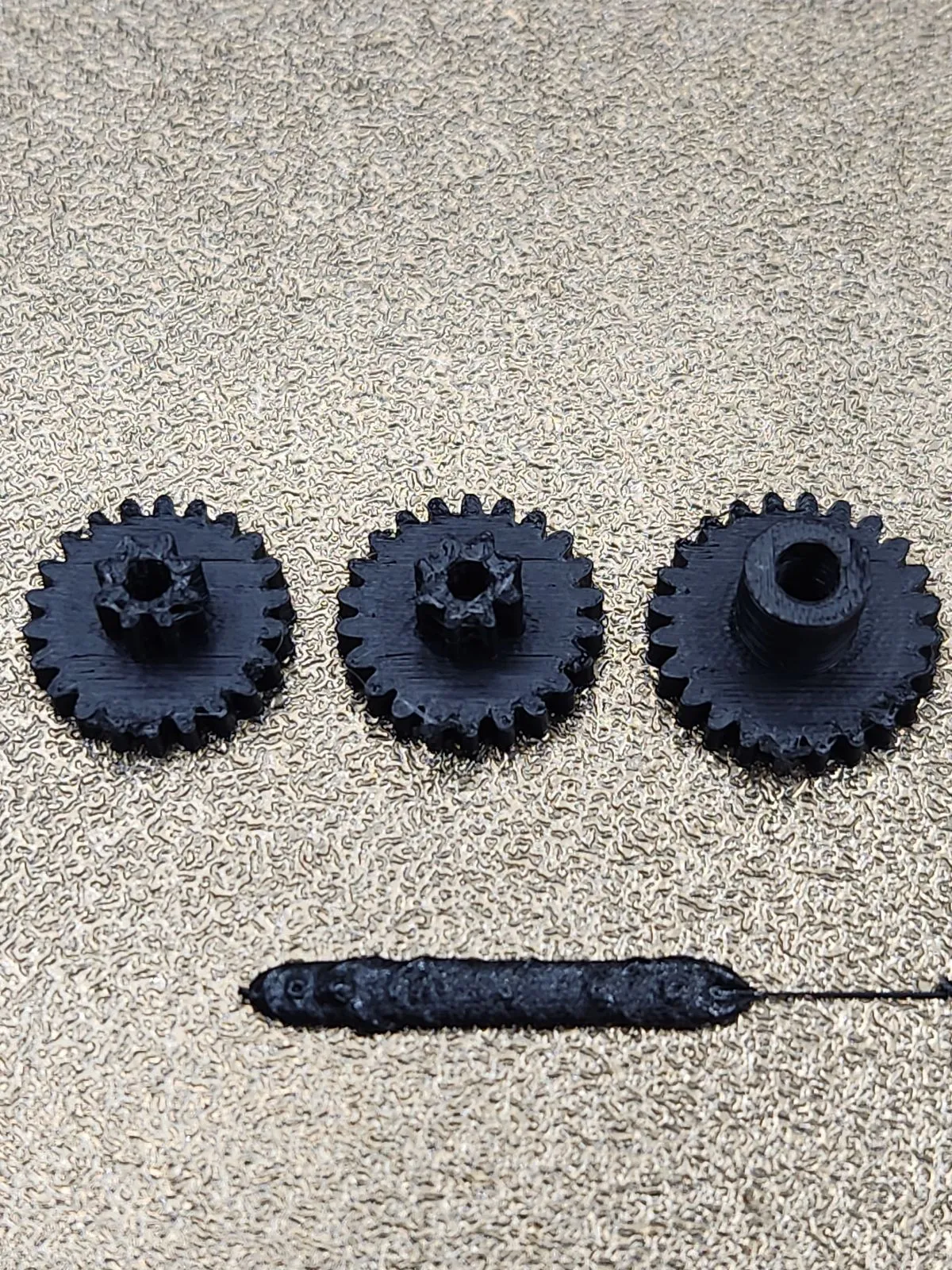

Made and combined a few replacement gears with to repair a toy RC car that has a small 3V DC motor in it. Priinted with a 0. 2mm nozzle, scaling the X and Y in your slicer by 50% since doesn't let me do frational modules. Combined the STL files generated from the STL gears website in FreeCAD by importing them, converting from mesh to shape, creating a solid from the shape, refining the shape, creating a simple copy and then finally fusing two geears together. There are 4 gears that needed replacing:

The gear attached to the motor, a small 8 toothed gear

Two reduction gears, 22 tooth to 8 tooth gears

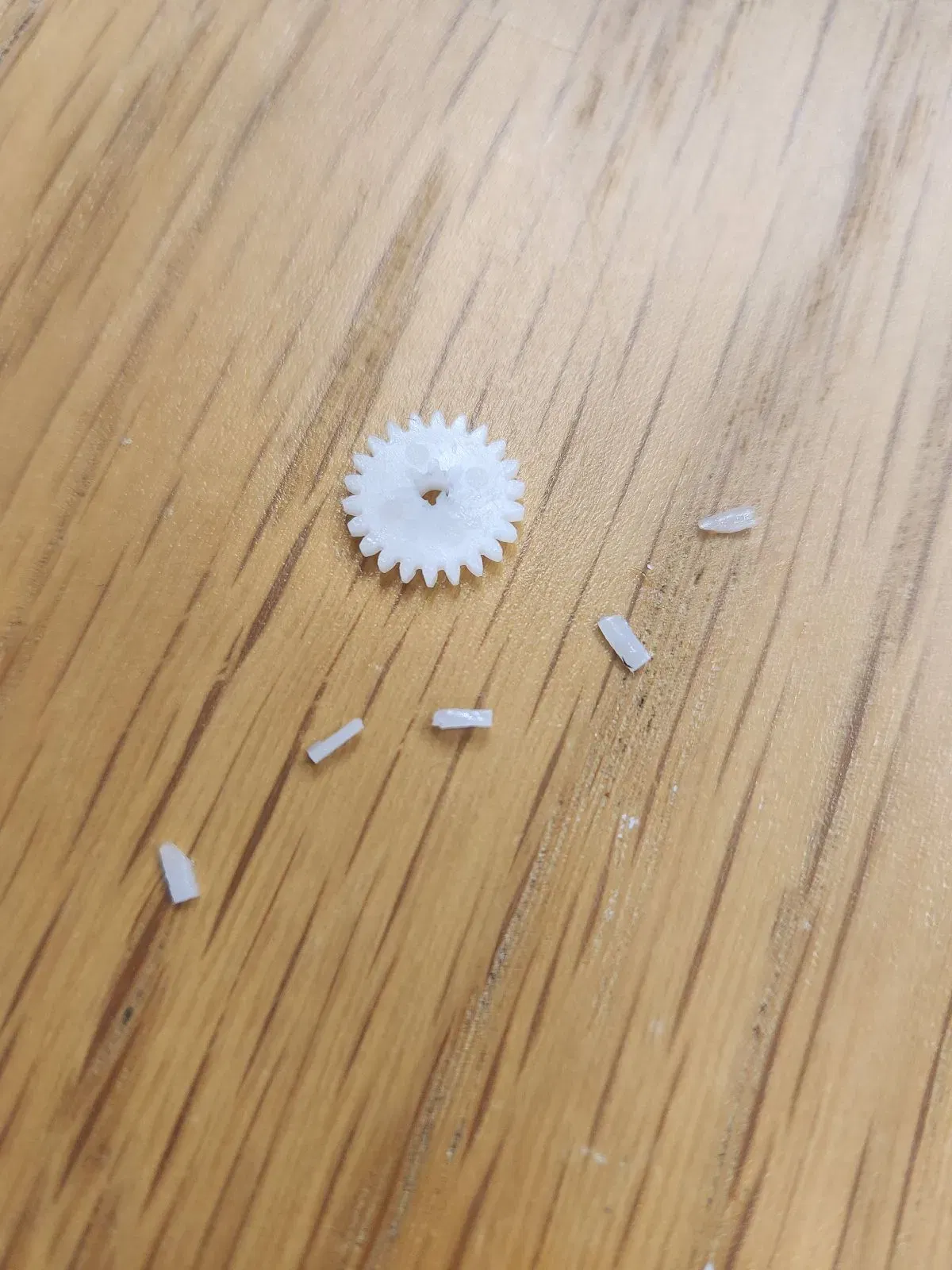

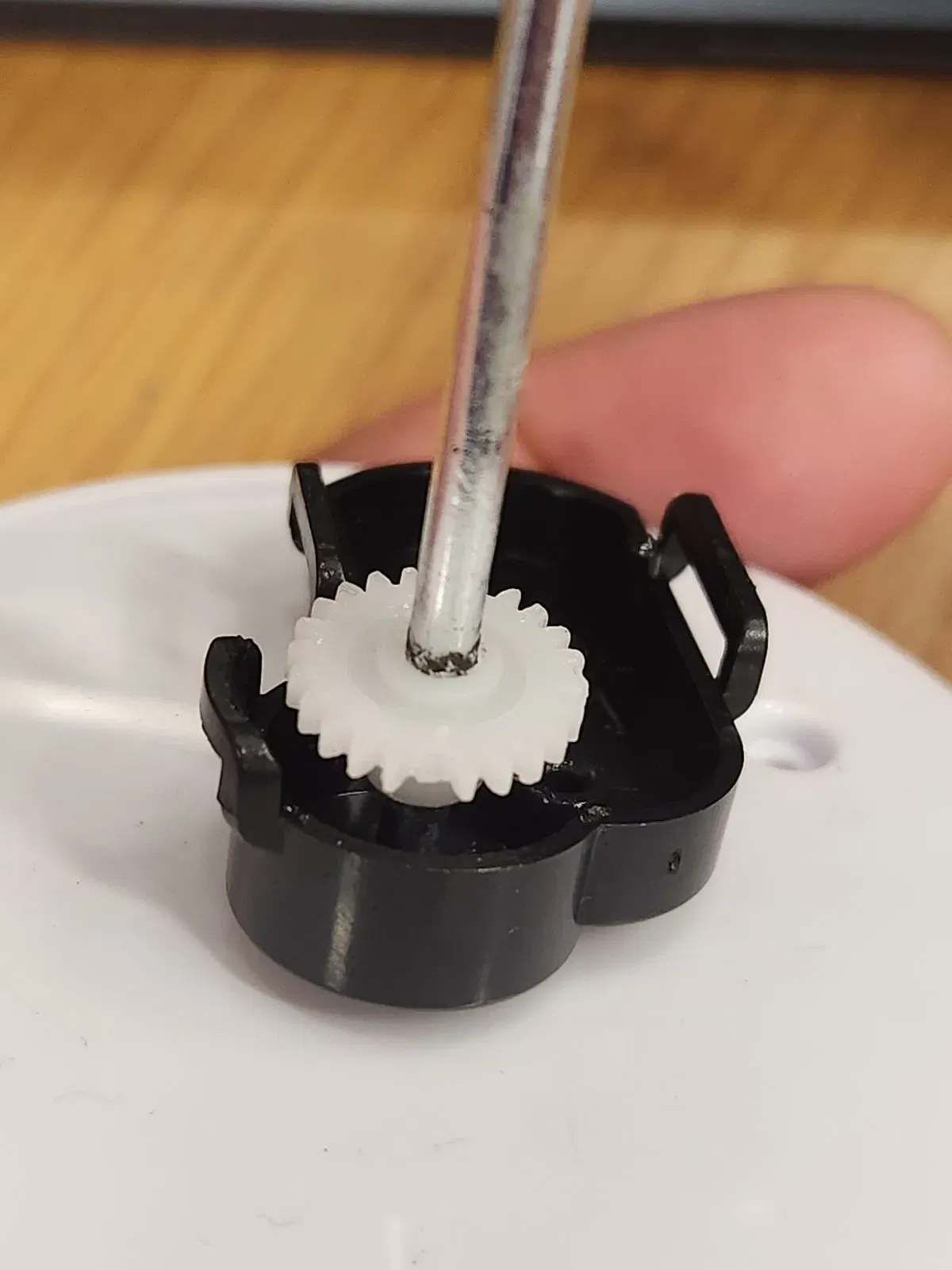

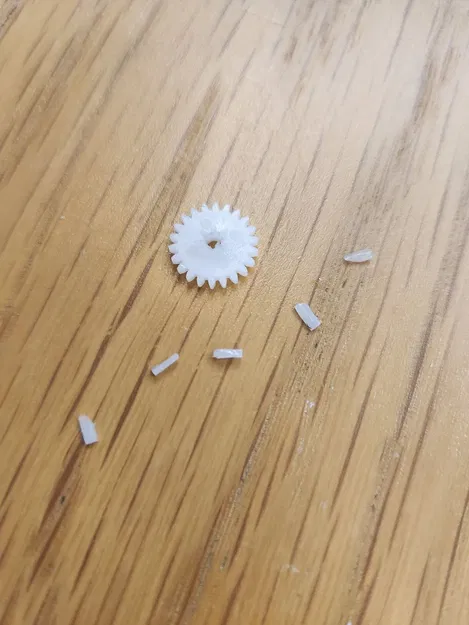

The gear attached to the axel, 24 tooth gear
