Bộ lọc xả Prusa Core One L: Exhaust Hepa Carbon Filter
Mẫu bộ lọc Exhaust Hepa Carbon cho Prusa Core One & Core One L, in PLA. Thiết lập 2 perimeters, 15% infill; file .3mf có modifier cho infill. Lắp bằng vít ISO 4762 M3; có thể thêm sealing.
Mô tả

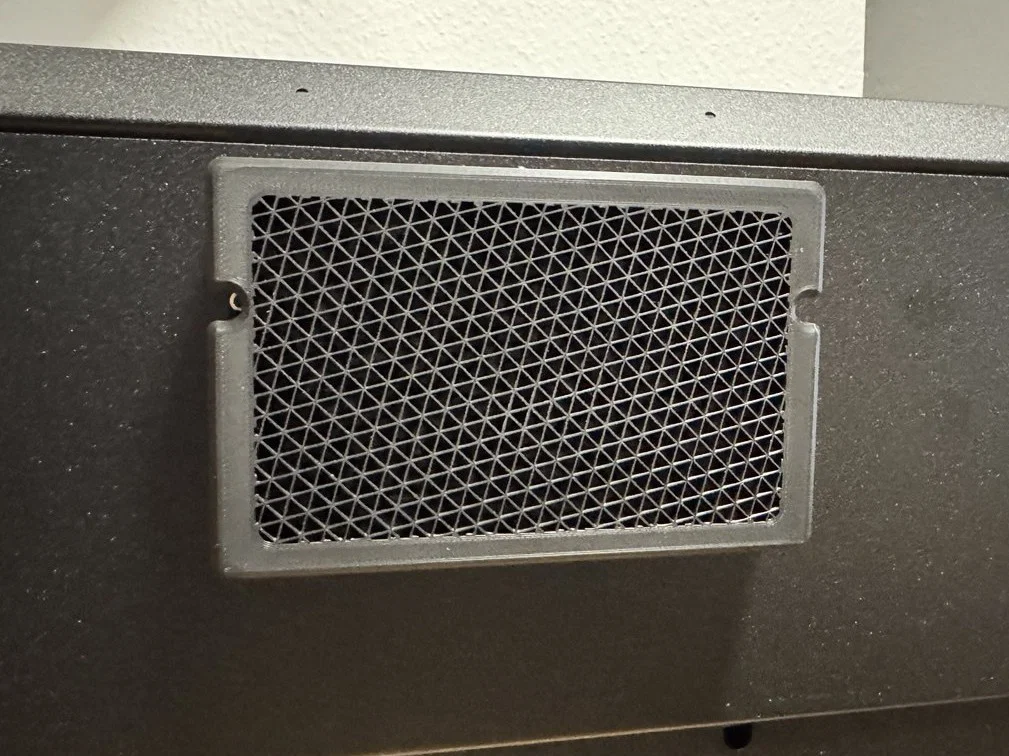

Bộ lọc Carbon + HEPA cho cửa thoát quạt (fan outlet) của Prusa Core One & Core One L
In bằng PLA
2 perimeters, 15% infill
Trong file .3mf có các body bổ sung, dùng chúng làm modifier cho infill.
Các phần tam giác: infill tối thiểu 25%, không top hoặc bottom, không perimeters
Dùng vít ISO 4762 M3 để lắp
Có thể thêm sealing (gioăng/keo kín) hoặc không, tuỳ nhu cầu

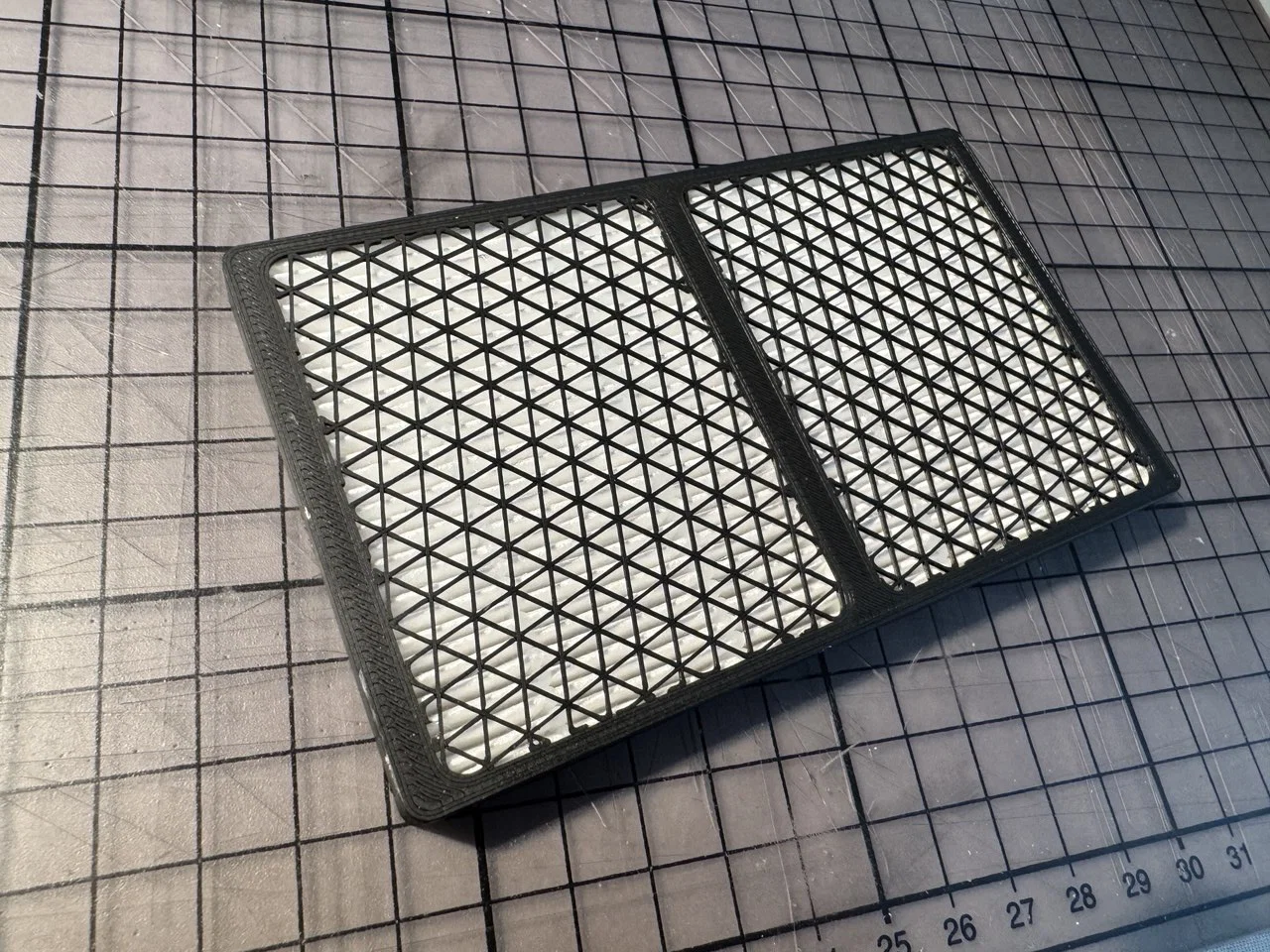

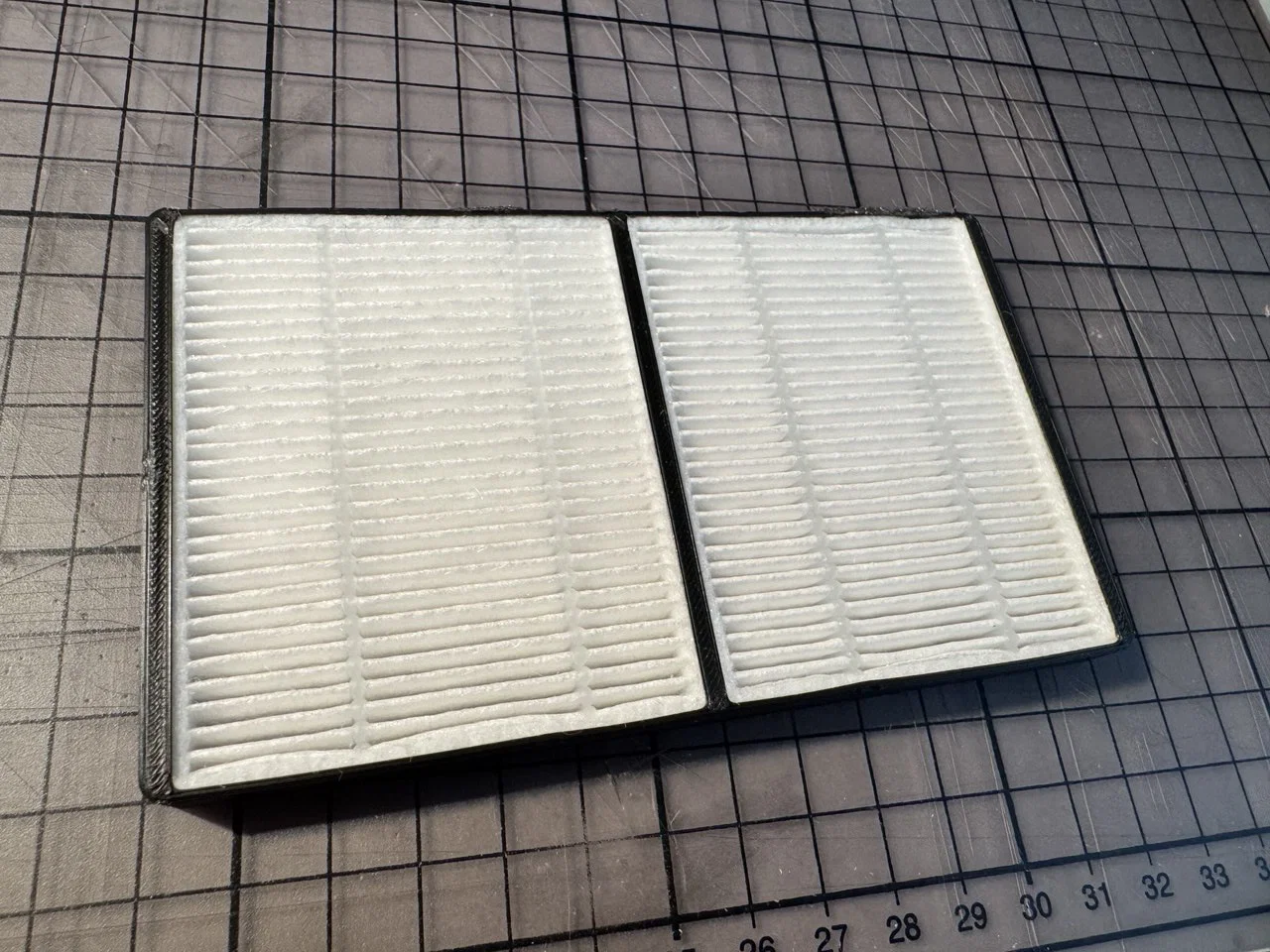

Hepa-Filter:
Roomba 104 HEPA-Filter
https://www.amazon.de/dp/B0DHNK6WG8?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

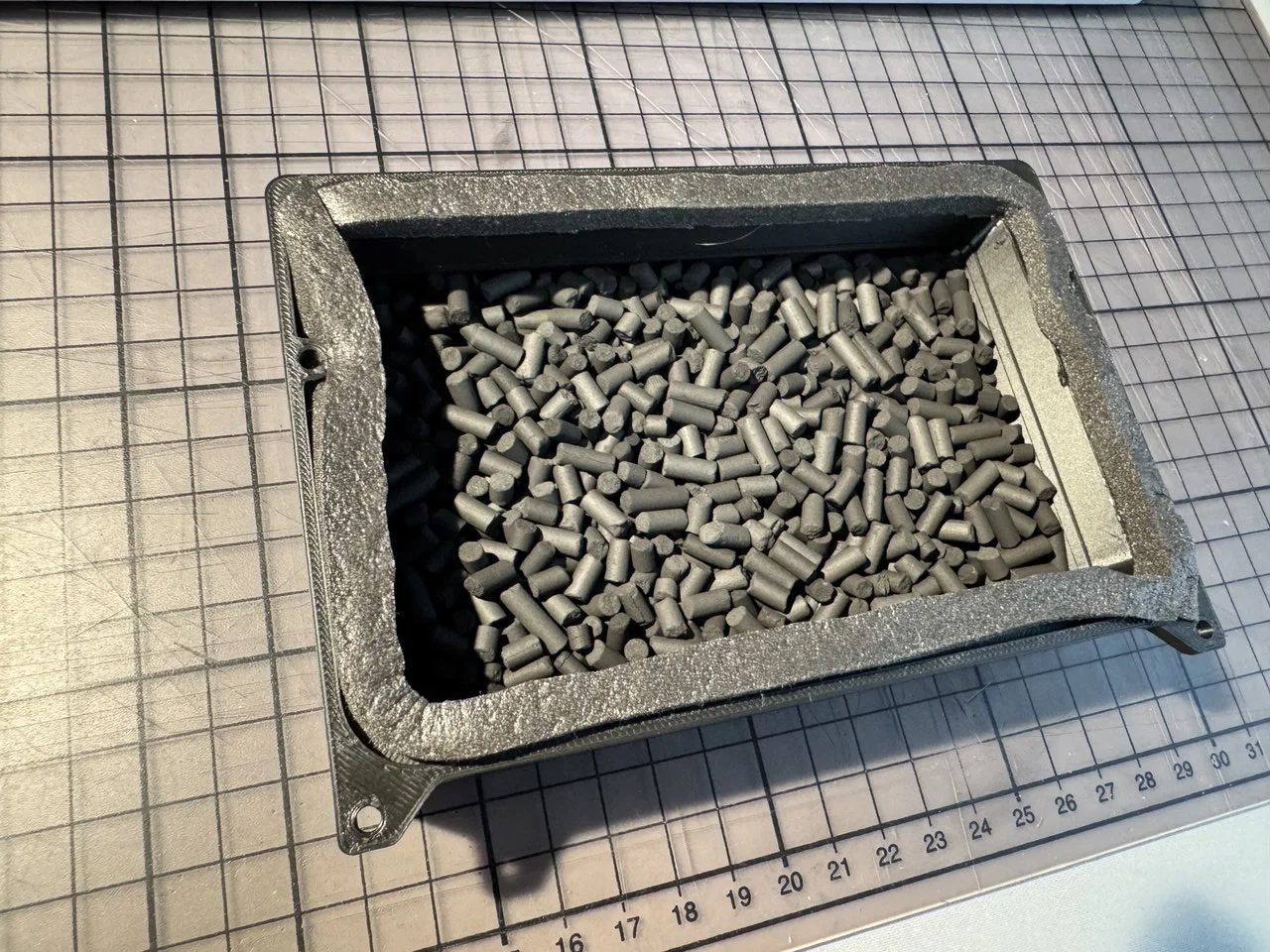

Carbon Pellets:
https://www.amazon.de/dp/B095YYVDCK?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
Giấy phép
Tác phẩm này được cấp phép theo
Creative Commons — Attribution — Noncommercial — Share AlikeCC-BY-NC-SA
