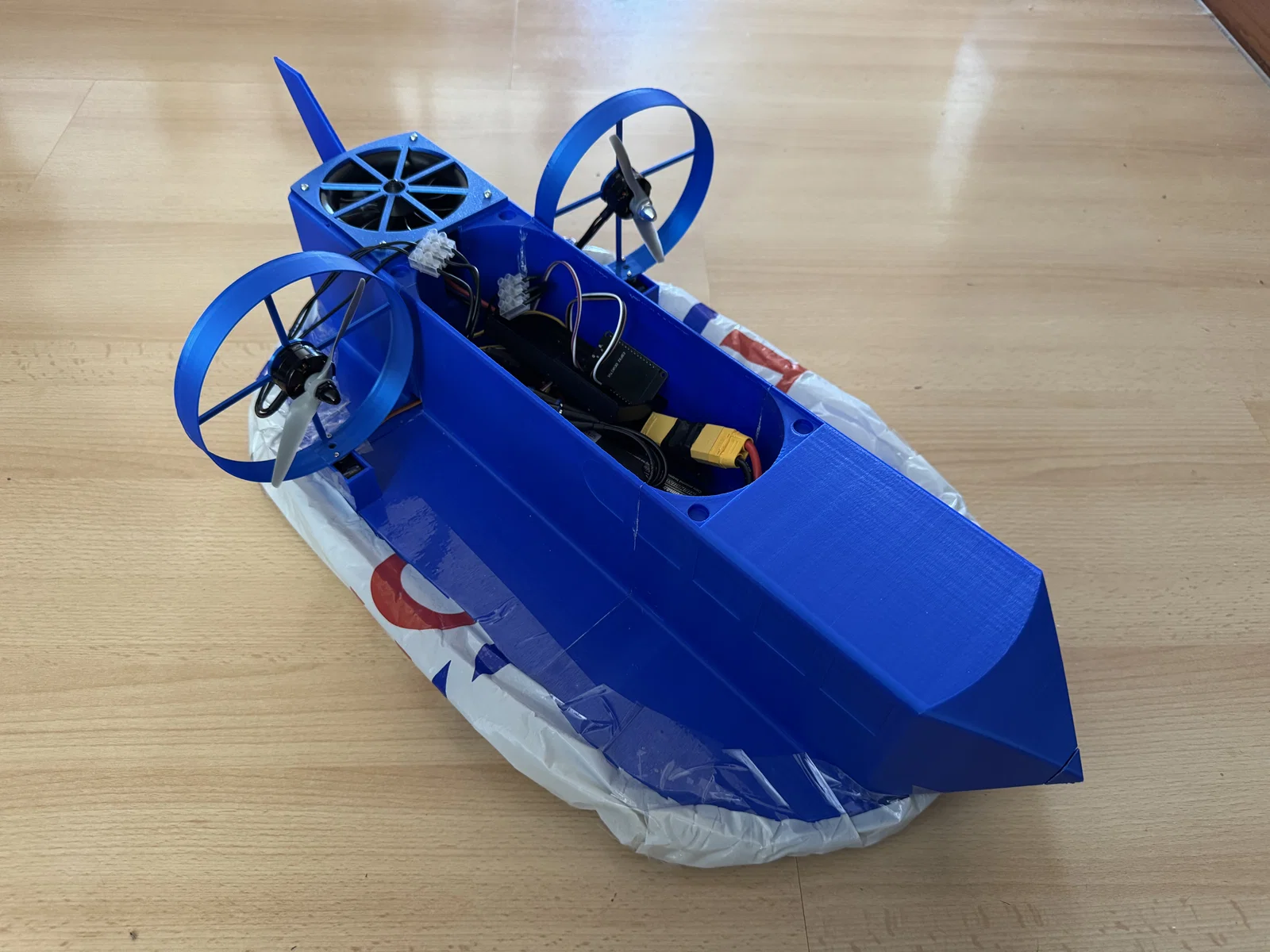

Hovercraft

Code cho ESP: https://github.com/BohyBoy1/Hovercraft

DIMENSIONS

length

580 mm

width

280 mm

height

PARTS

NAME

NUMBER

LINK

PRICE PER PIECE

TOTAL PRICE

Pin (Battery)

1

https://www.bighobby.cz/li-pol-baterie-4200mah-4s-35c--70c--bighobby-nano-tech/

1 494 CZK

1 494 CZK

Turbine

1

https://www.bighobby.cz/edf-70mm-pro-12-4s-2800kv-brushless-motor-cw-dmychadlo/

1 428 CZK

1 428 CZK

Servo

2

https://www.bighobby.cz/digitalni-servo-pdi-1109hb-9-5g-0-07s-1-9kg-jx-servo/

200 CZK

400 CZK

ESP

2

https://dratek.cz/arduino-platforma/1581-esp-32s-esp32-esp8266-development-board-2.4ghz-dual-mode-wifi-bluetooth-antenna-module.html

175 CZK

350 CZK

Động cơ (Engines)

2

https://www.hadex.cz/p/l741-motor-stridavy-mt2204-pro-drony-pravotocivy

210 CZK

420 CZK

Bộ sạc (Charger)

1

https://www.bighobby.cz/nabijec-i-vybijec-imax-b6ac-80w--balancer--vestaveny-zdroj--modry-darek--nabijeci-vak/

799 CZK

799 CZK

ESC

1

https://www.peckamodel.cz/kav32-42018-kavan-r-80sb-plus-stridavy-regulator-80a-sbec

1 250 CZK

1 250 CZK

ESC

2

https://www.bighobby.cz/regulator-otacek-30a-flycolor-flydragon-bec-5v-2a--2-4s-/

356 CZK

712 CZK

Joystick

1

https://www.laskakit.cz/keyes-ky-023-joystick-s-tlacitkem/

22 CZK

22 CZK

Biến trở 10k (Potentiometer 10k)

1

https://dratek.cz/arduino-platforma/7597-potenciometr-10k-ohm-linearni.html

18 CZK

18 CZK

Cánh quạt (Propeller)

2

https://www.bighobby.cz/vrtule-maytech-mt--apc-4-75x4-75/

73 CZK

146 CZK

Vòng bi (bearings)

2

https://www.turtle3d.cz/cz/323/6/lozisko-688zz-8x16x5-

19 CZK

38 CZK

Nam châm (Magnets)

TOTAL PRICE

7077 CZK

PrusaSlicer SETUP

Cài đặt in:

0.20 mm SPEED

Infill:

15%

Các phần đã in

NAME

NUMBER

USE

Front

1

Back

1

Top

1

Connecting roller

4

Balloon holder frame

66

chỉ dùng nếu bạn xài bóng bay (66 miếng)

Balloon holder

66

plastic liner middle

2

chỉ dùng nếu bạn xài foil (khoảng bốn miếng cỡ ~12x35 cm)

plastic liner front

1

plastic liner back

1

bottom hole cover

27

chỉ dùng nếu bạn cần bịt các lỗ ở đáy

Middle

1

turbine cover

1

cover

1

upper engine frame bracket

2

frame for engine

2

Sơ đồ đi dây:

tạo bằng: https://www.lucidchart.com/pages

Tài liệu tham khảo:

1. MALÝ, Martin. ESP32 prakticky: od základních obvodů k pokročilým aplikacím. CZ.NIC. Praha: CZ.NIC, 2024. ISBN 9788088168799.

2. https://www.itnetwork.cz/hardware-pc/arduino/esp32/seznameni-s-esp-32

3. https://www.itnetwork.cz/hardware-pc/arduino/programovaci-jazyk

4. https://www.especko.cz/blog

5. https://www.bighobby.cz/user/related_files/flycolor_flydragon_lite-4.pdf

6. https://wiki.kavanrc.com/KAVAN_Plus_ESCs_-_Instruction_manual/cs

Cách set up supports:

upper engine frame bracket:

Middle:

Back:

Front:

Balloon holder:

Chúc bạn in vui vẻ
