Kệ Gridfinity tham số (Parametric Gridfinity Rack) cho Fusion 360
Parametric Gridfinity Rack cho Fusion 360, cho phép chỉnh tham số để tạo kệ/khay theo nhu cầu. Có sẵn công thức thiết lập để làm Plier Rack như bản gốc, phù hợp chứa hộp phân loại, dụng cụ đo và giấy nhám.
👁️
675
Lượt Xem
❤️
33
Lượt Thích
📥
154
Lượt Tải
Cập Nhật May 03, 2026
Chi tiết
Tải xuống
Bình Luận
Khoe bản in
Remix
Mô tả
Để tái tạo đúng Plier Rack bản gốc, dùng các thông số sau:
CompartmentAccessHeight
20
CompartmentAccessLength
150 - (6 - slotsDeep) * slotDimension
CompartmentHeight
50
Các tình huống sử dụng:
- Hộp đựng đồ phân loại (assortment boxes) .. mà bạn không muốn tách ra thành nhiều bin riêng lẻ ;)
- Dụng cụ đo

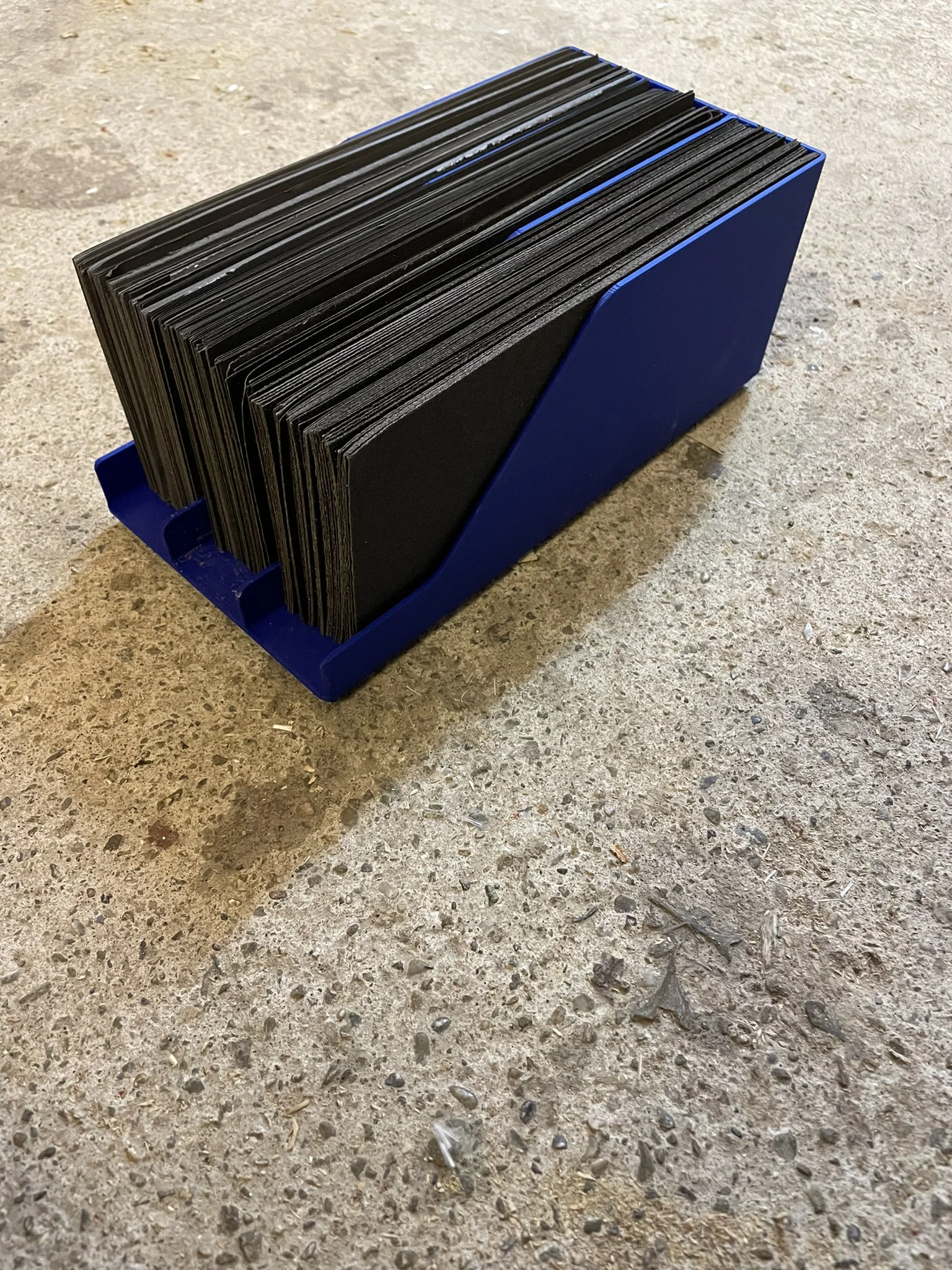

- Giấy nhám
Giấy phép
Yêu cầu ghi công
Remix & phái sinh Được phép
Sử dụng thương mại Được phép
Tìm hiểu thêm về giấy phép này tại http://creativecommons.org/licenses/by/4.0/
