Vỏ (Housing) ESTLCAM-LPT-Adapter Housing
Mẫu vỏ (housing) cho ESTLCAM-LPT-ADAPTER (Classic). Phần đế ép nóng 4 insert ren M3, bắt adapter bằng 4 vít M3x6mm rồi trượt nắp vào từ bên hông để khóa ngàm. In PETG, 0.15mm, không cần support.
Mô tả

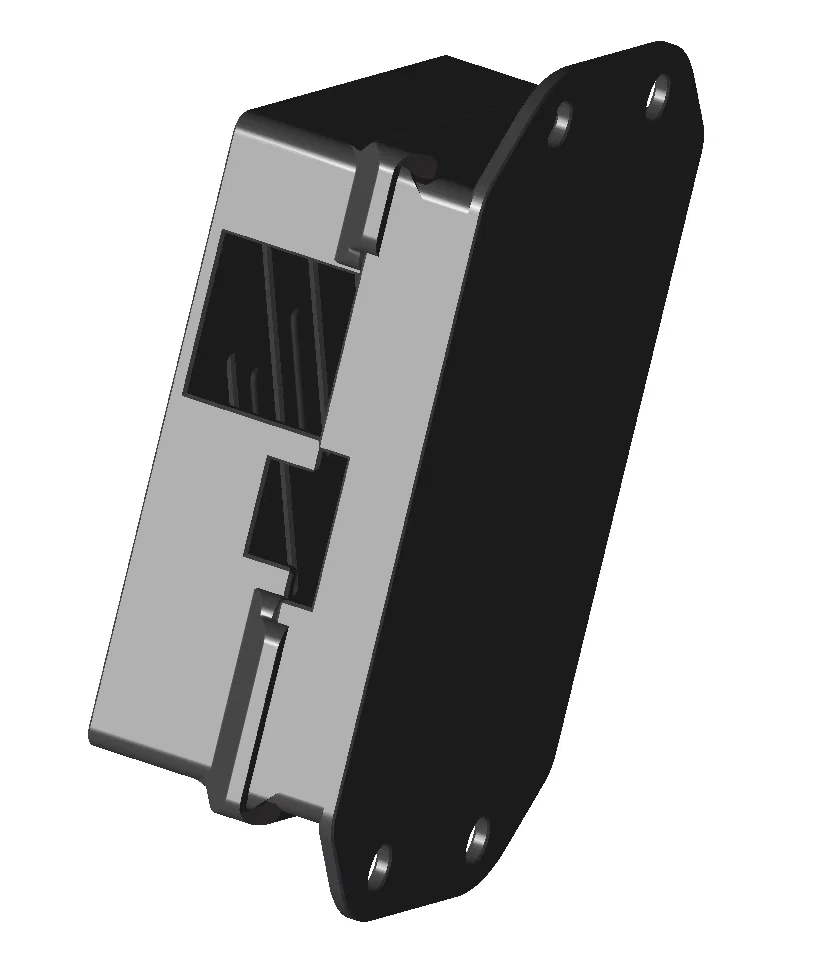

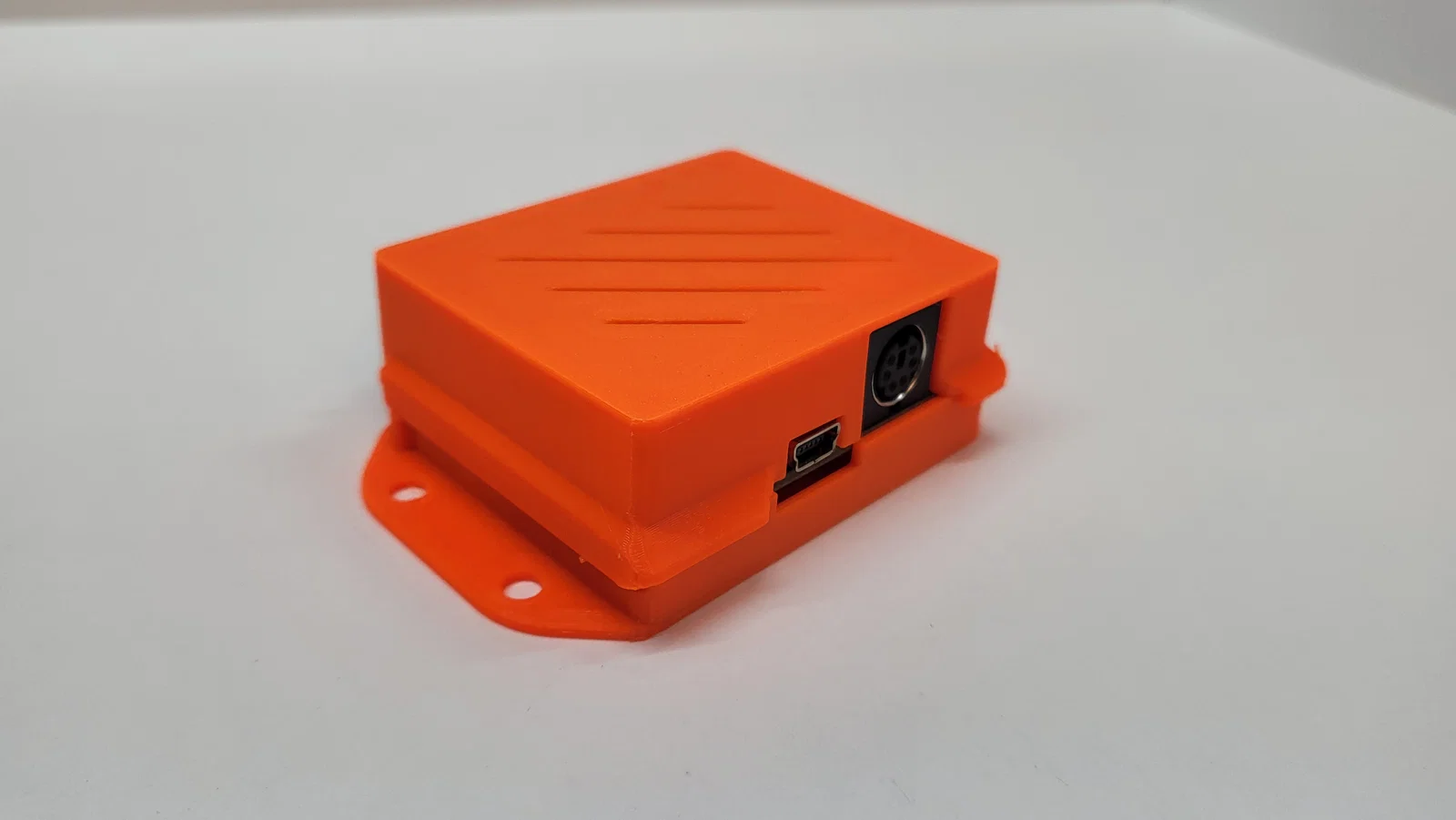

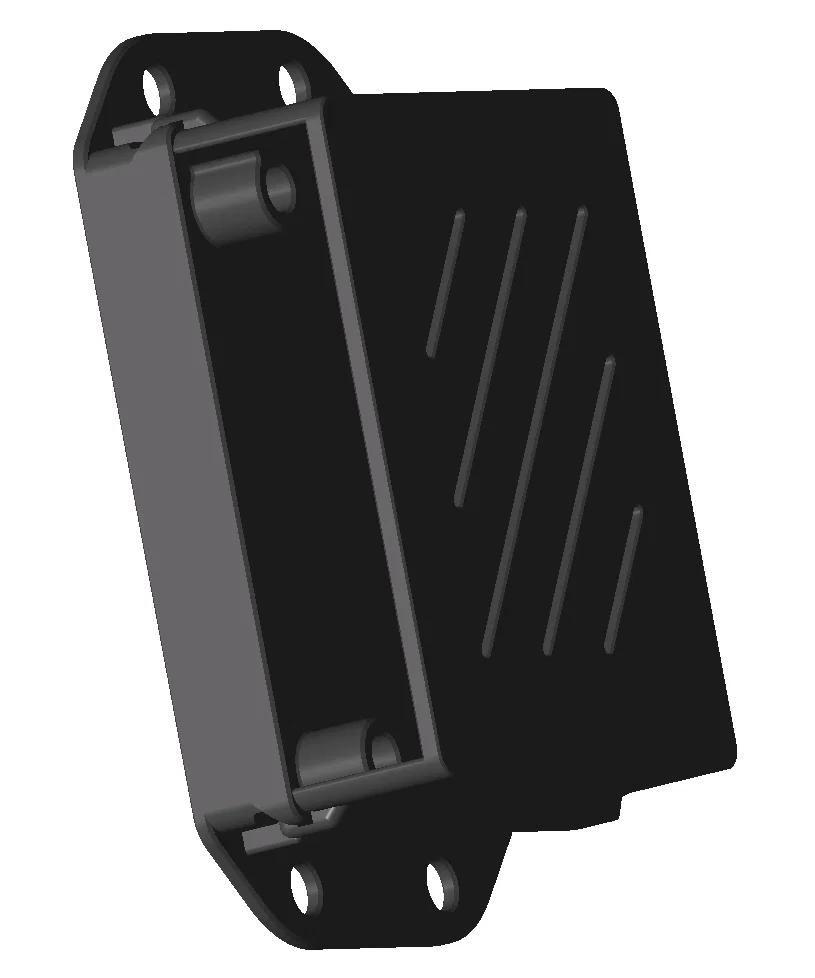

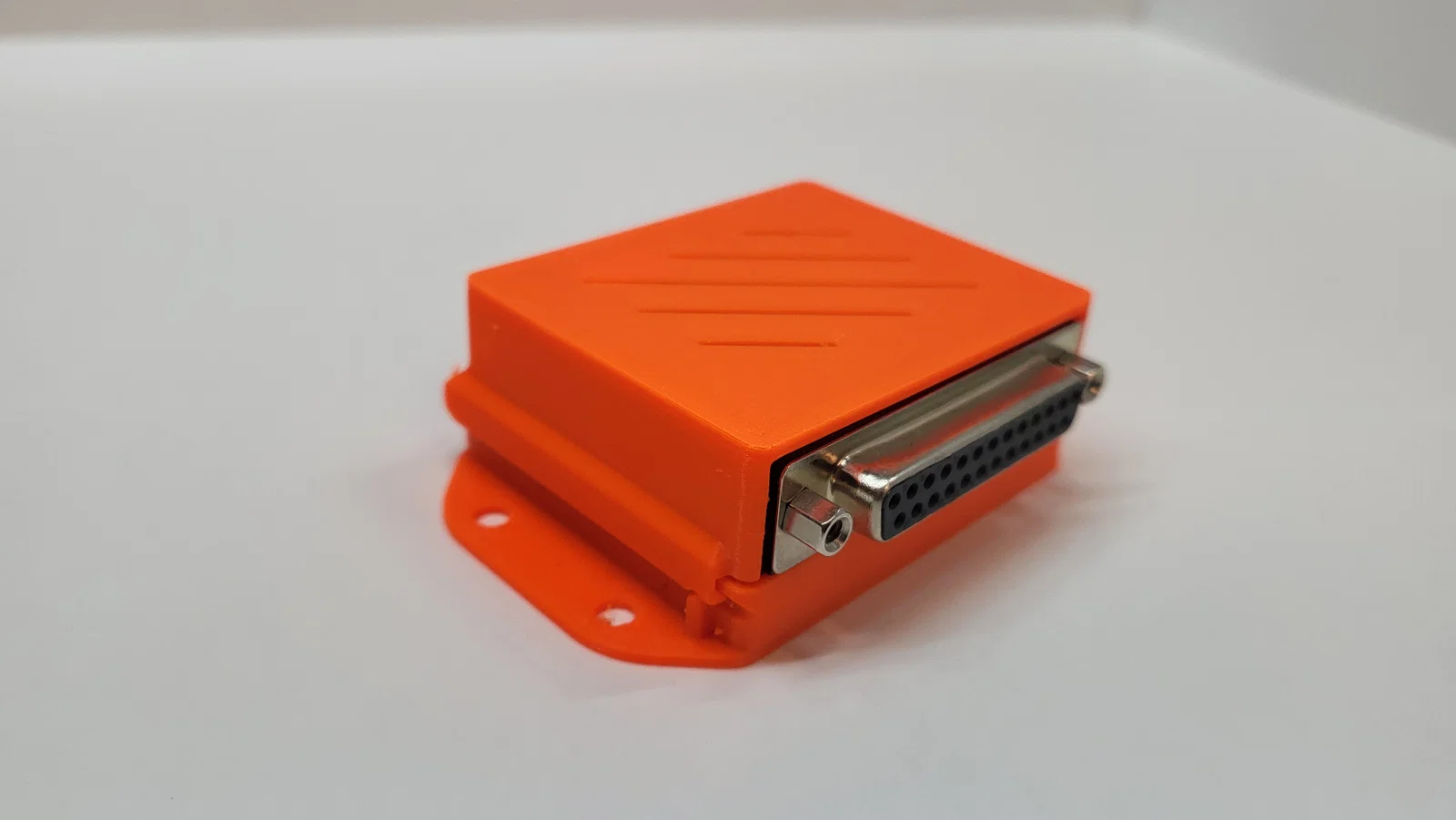

Ở đây bạn sẽ tìm thấy một mẫu vỏ (housing) cho ESTLCAM-LPT-ADAPTER (Classic).

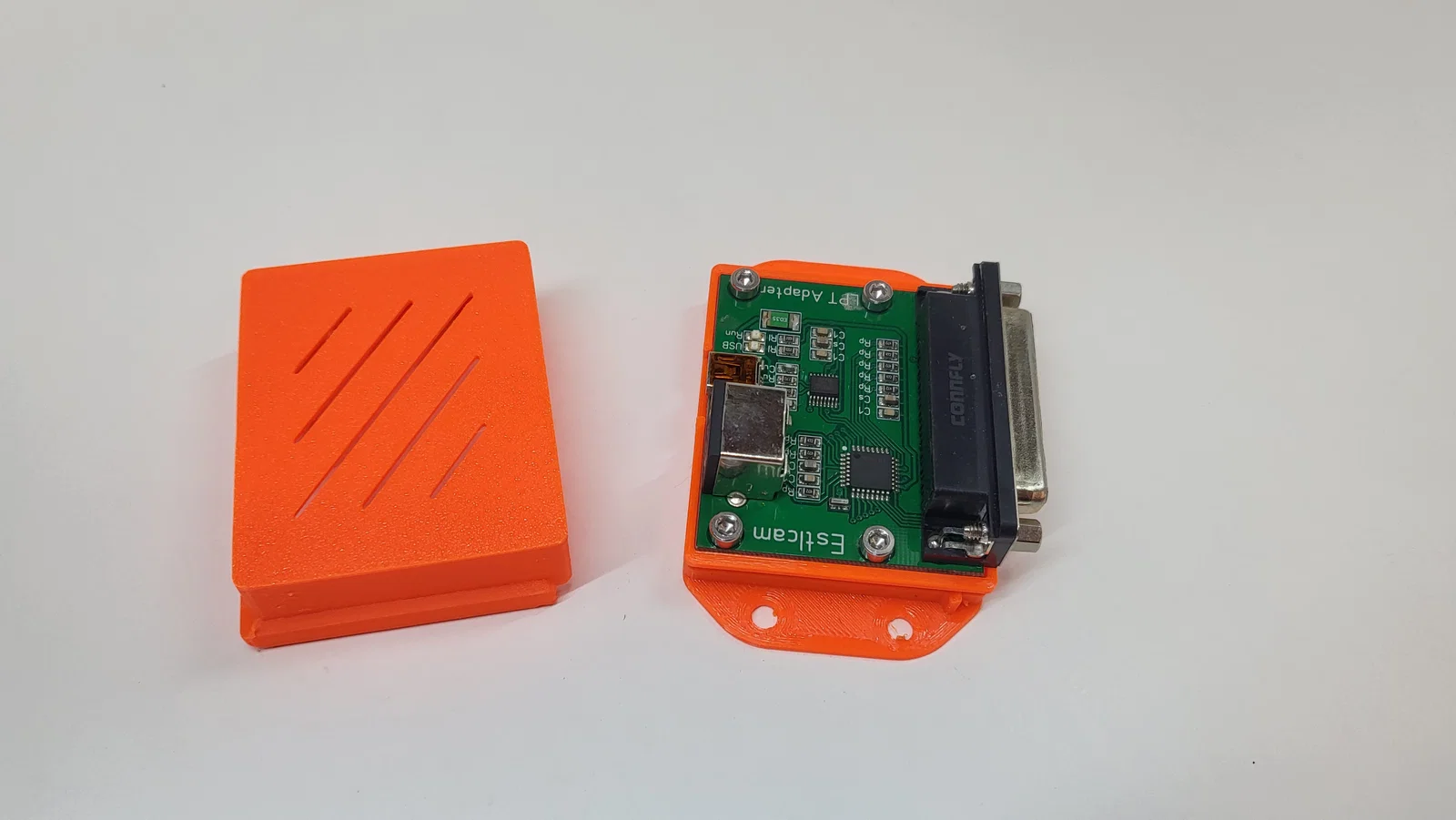

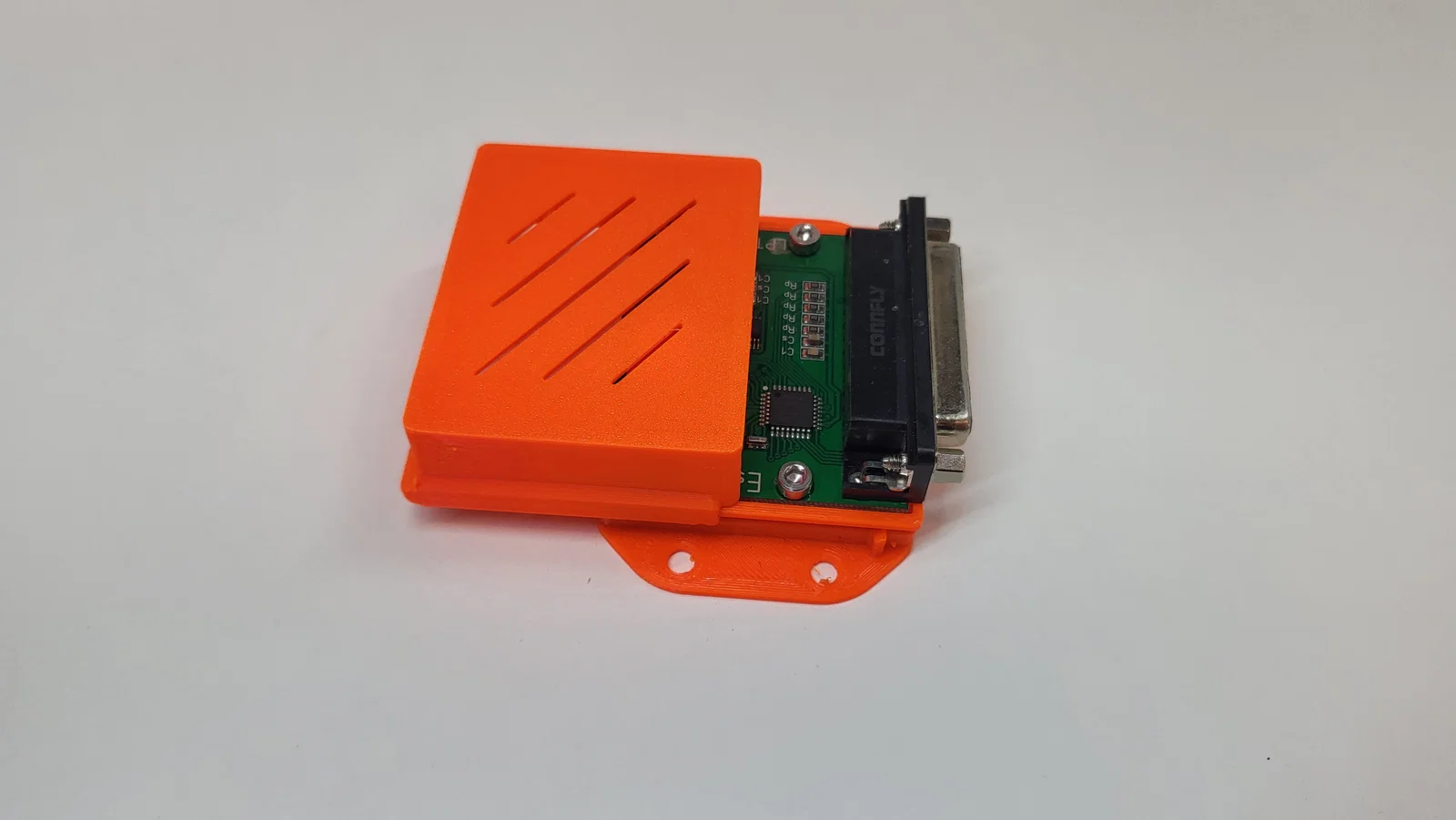

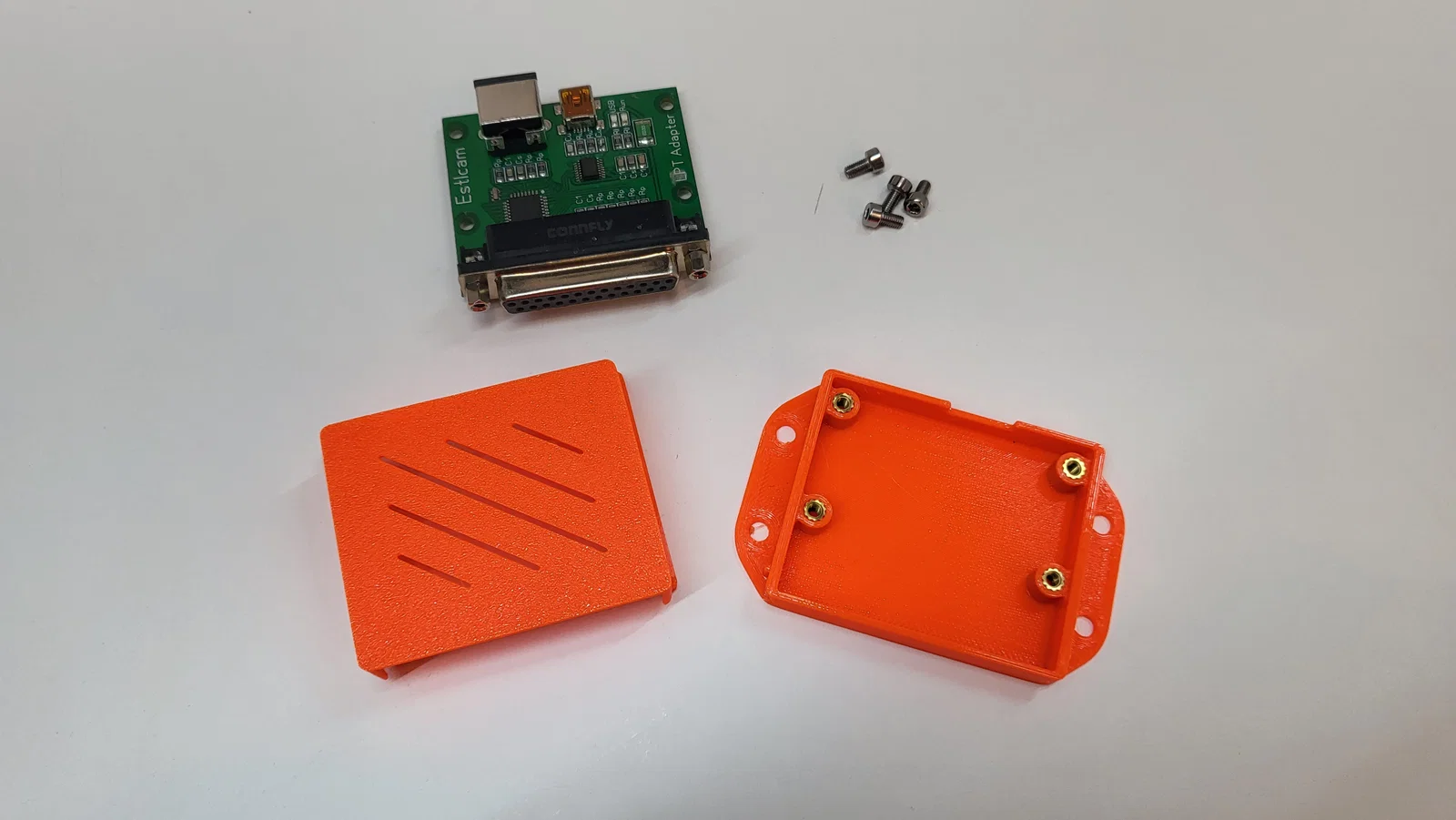

Phần đế (underpart) sẽ ép nóng (melt) 4 insert ren M3 vào, sau đó bắt LPT adapter bằng 4 vít M3x6mm, rồi trượt phần nắp (upper part) vào từ bên hông. Nắp sẽ khóa/ngàm (snap) vào phần đế.

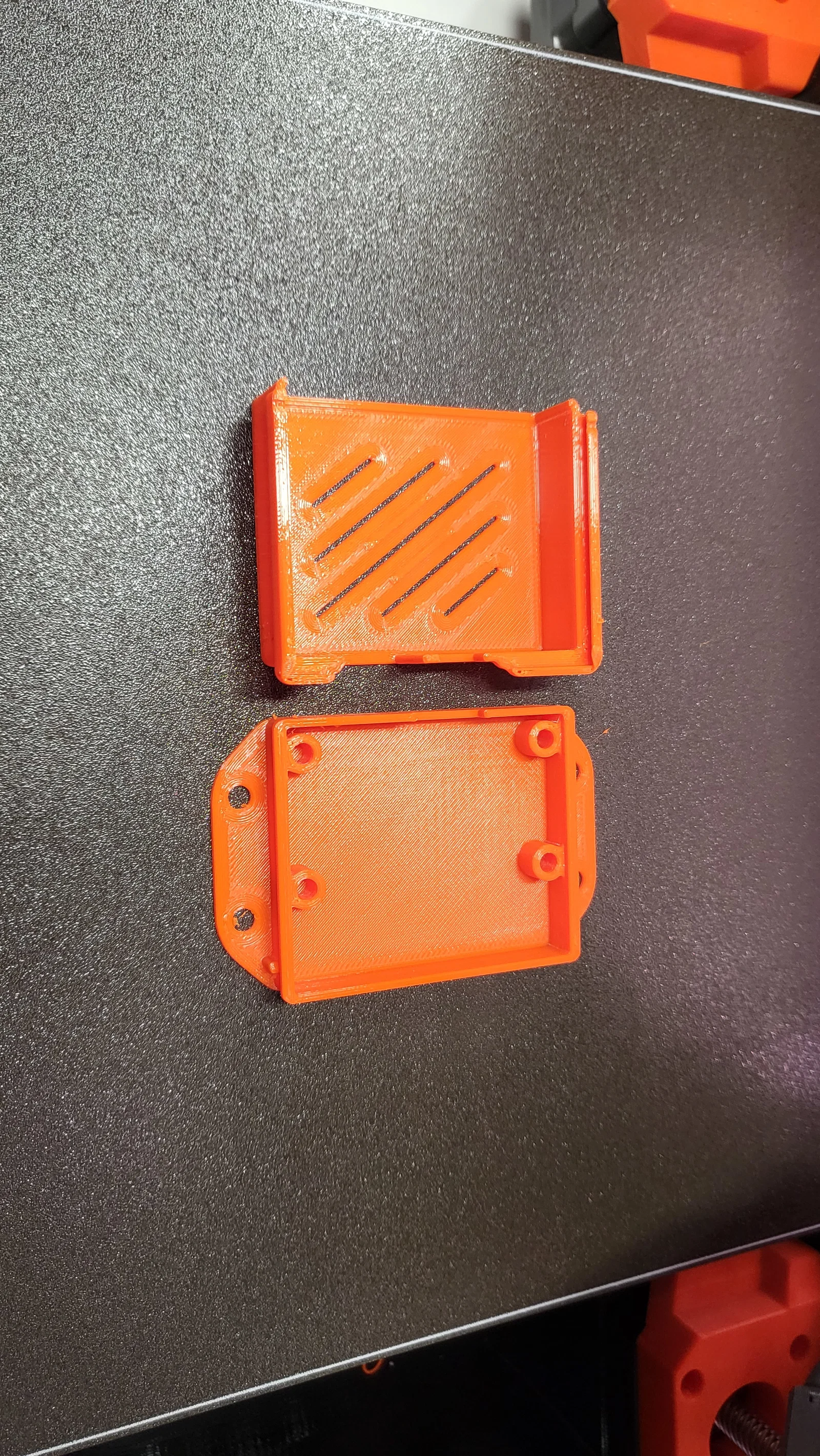

Toàn bộ được in không cần support, dùng Prusament PETG với profile 0.15mm Structural.
Chúc bạn in vui vẻ! Nếu bạn thích mẫu này thì cho mình xin một like nha.
Here you can find a model of a housing for the ESTLCAM-LPT-ADAPTER (Classic).
Four M3 threaded inserts are melted into the lower part, then the LPT adapter is screwed in place with four M3x6mm screws, and then the upper part is slid on from the side. This then locks into place with the lower part.
The entire thing was printed without support material using Prusament PETG with a 0.15mm structural profile.
Have fun printing! If you like the model, I would be happy if you leave me a like
Giấy phép
Tác phẩm này được cấp phép theo
Creative Commons — Attribution — Noncommercial — Share AlikeCC-BY-NC-SA
