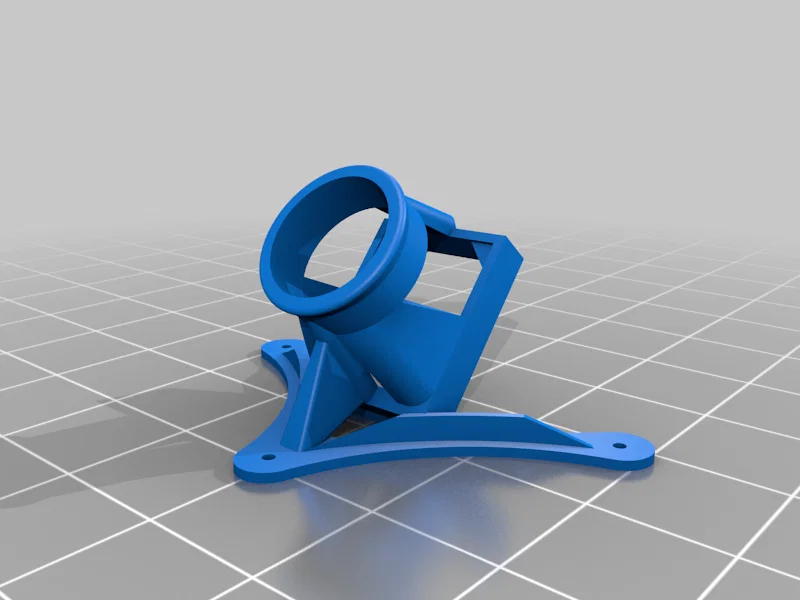

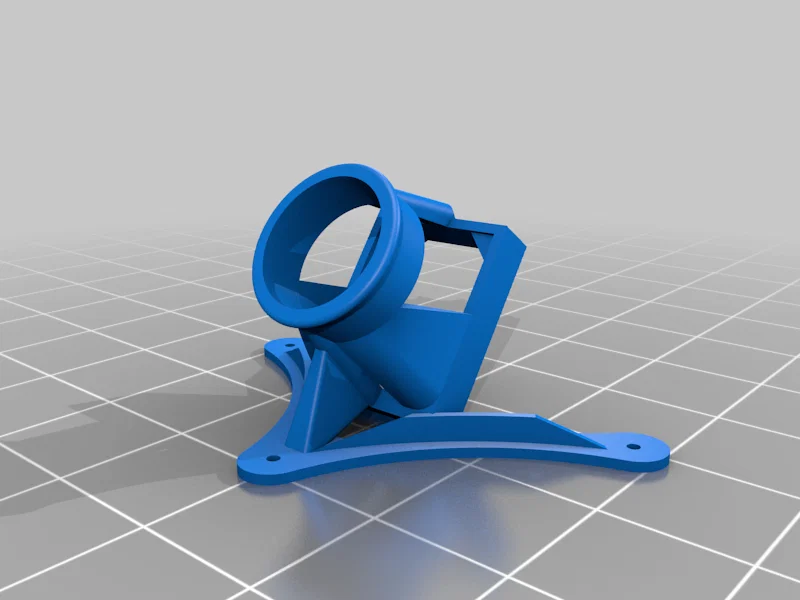

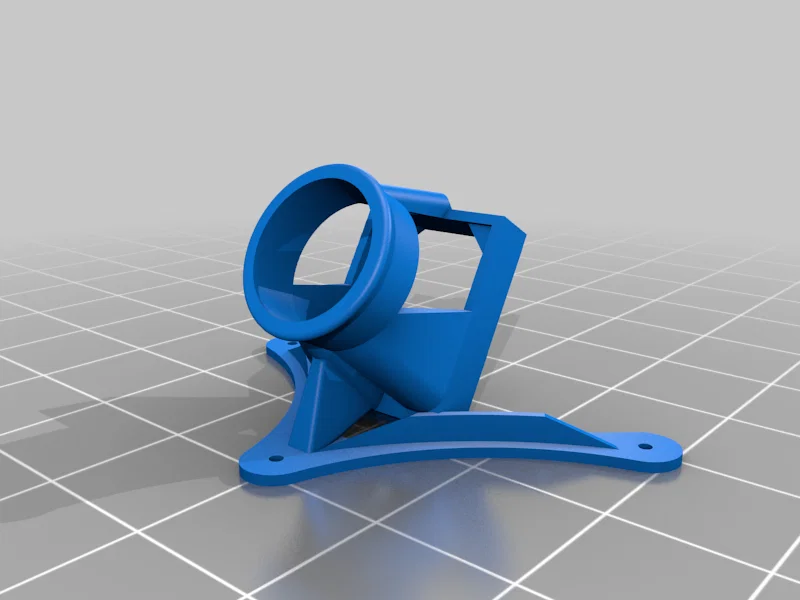

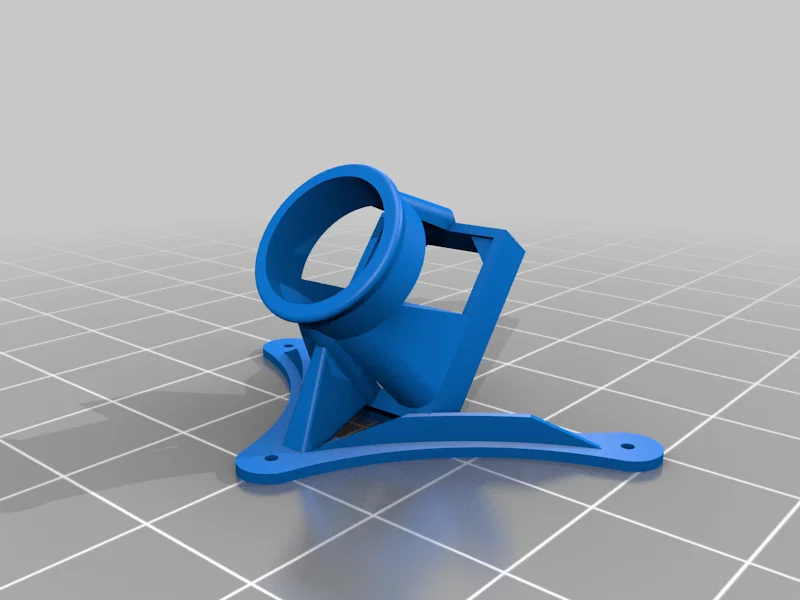

Ngàm camera siêu nhẹ BETAFPV C03 cho whoop 65mm (đủ góc phổ biến)

Ngàm camera từ chiếc five33 whoop
Các ngàm này được Team BlueEyes thiết kế và sử dụng trong Italian Whoop League

30 độ

35 độ

37 độ

40 độ

Thiết lập in (print settings):

• infill: 100%
• dùng tree supports
• filament: TPU
• layer: 0.2

Cũng có trên Thingiverse: https://www.thingiverse.com/thing:6015114

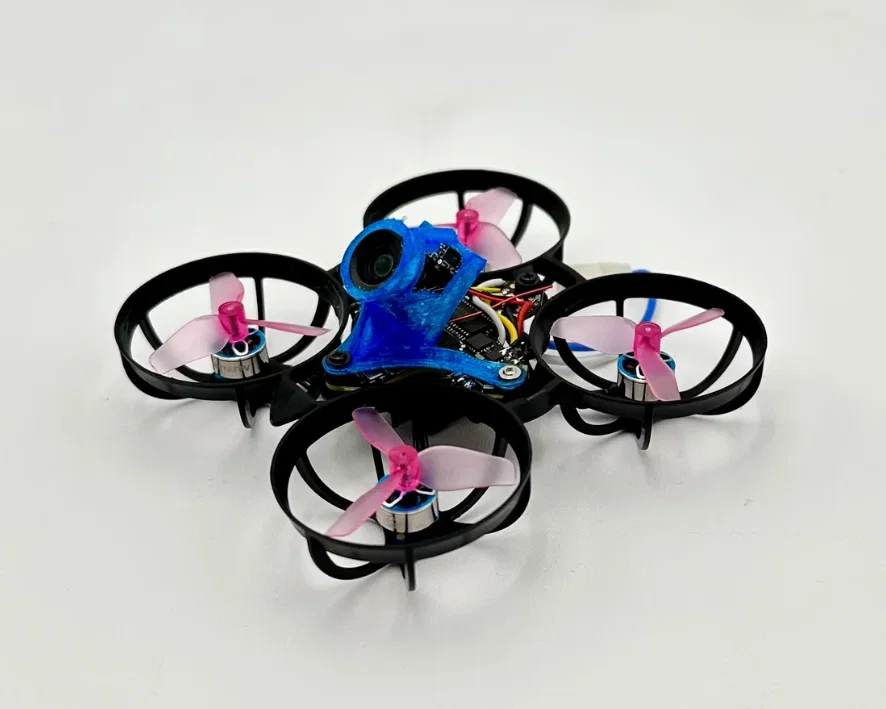

Thông số whoop:

Mua bản prebuilt tại đây: https://flyfive33.com/collections/new-products/products/17-2-g-race-whoop-ready-to-fly

Specifications

Frame: https://flyfive33.com/products/meteor65-air-brushless-whoop-frame?_pos=9&_sid=e0acb8e47&_ss=r

AIO: https://flyfive33.com/products/betafpv-f4-1s-5a-aio-brushless-flight-controller-light-version-serial-elrs?variant=47523203842342

Camera: https://flyfive33.com/products/c03-fpv-micro-camera?variant=47523208266022

Motors: https://flyfive33.com/products/betafpv-0702-brushless-motors-0702se-27000kv?variant=47523206693158

Props: https://webleedfpv.com/collections/props/products/hq-ultralight-whoop-prop-31mmx31-2x1-1x3-2cw-2ccw-pc-1mm-shaft

Batteries: we bleed (ph 2.0) https://webleedfpv.com/collections/batteries-chargers-accessories/products/webleedfpv-300mah-1s-ph2-0-or-bt2-0-lipo-batteries?variant=40774984368267

https://pyrodrone.com/collections/1s-batteries/products/tattu-300mah-3-8v-hv-75c-1s1p-lipo-battery-pack-with-bt-2-0-plug-5pcs

VTX: https://flyfive33.com/collections/vtx/products/tbs-unify-pro32-nano-5g8-v1-1
