Chổi Gạt Nozzle Trước Khi Bed Leveling

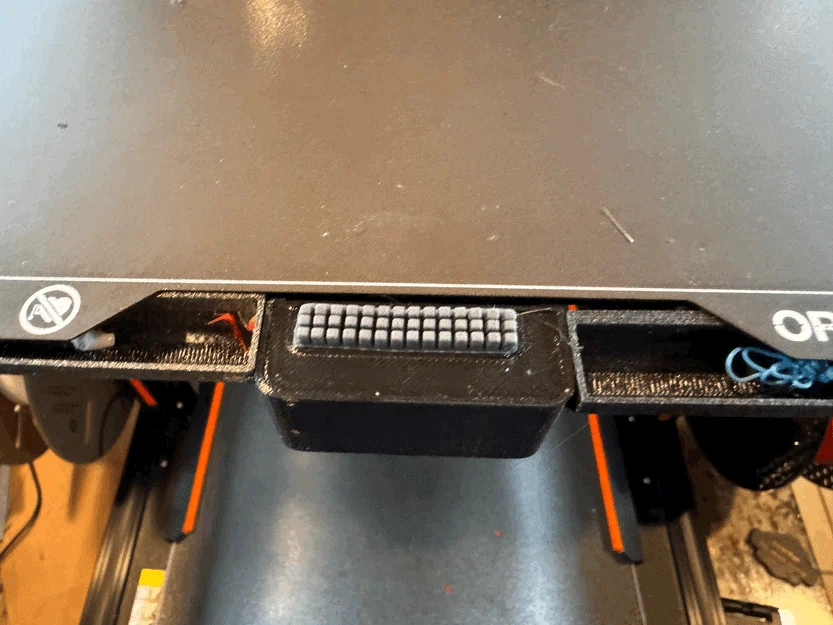

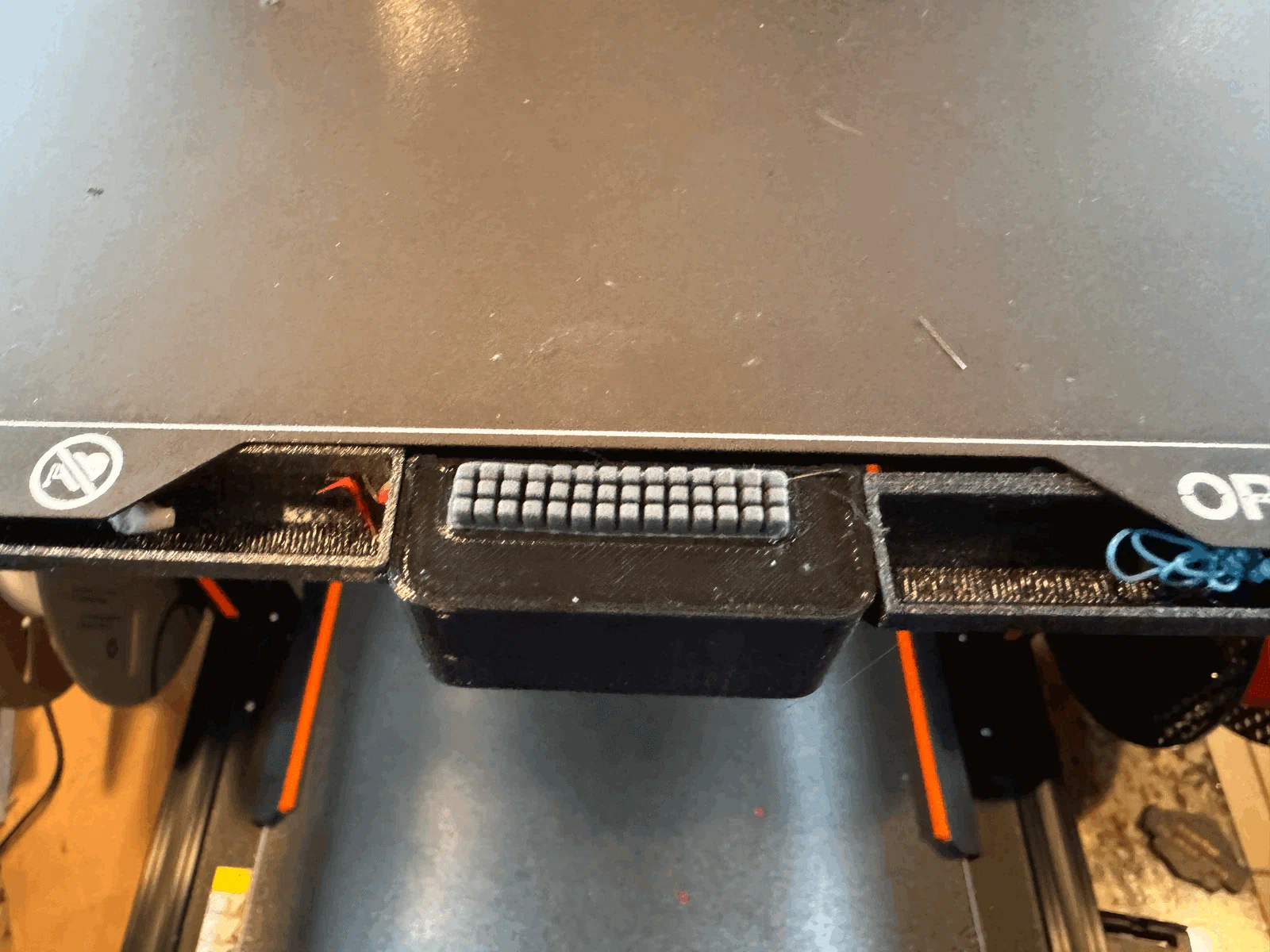

Wiper để gạt sạch phần nhựa chảy (ooze) ngay trước khi bed leveling.

Bạn sẽ cần 4x M3x20mm để làm phần Mount.

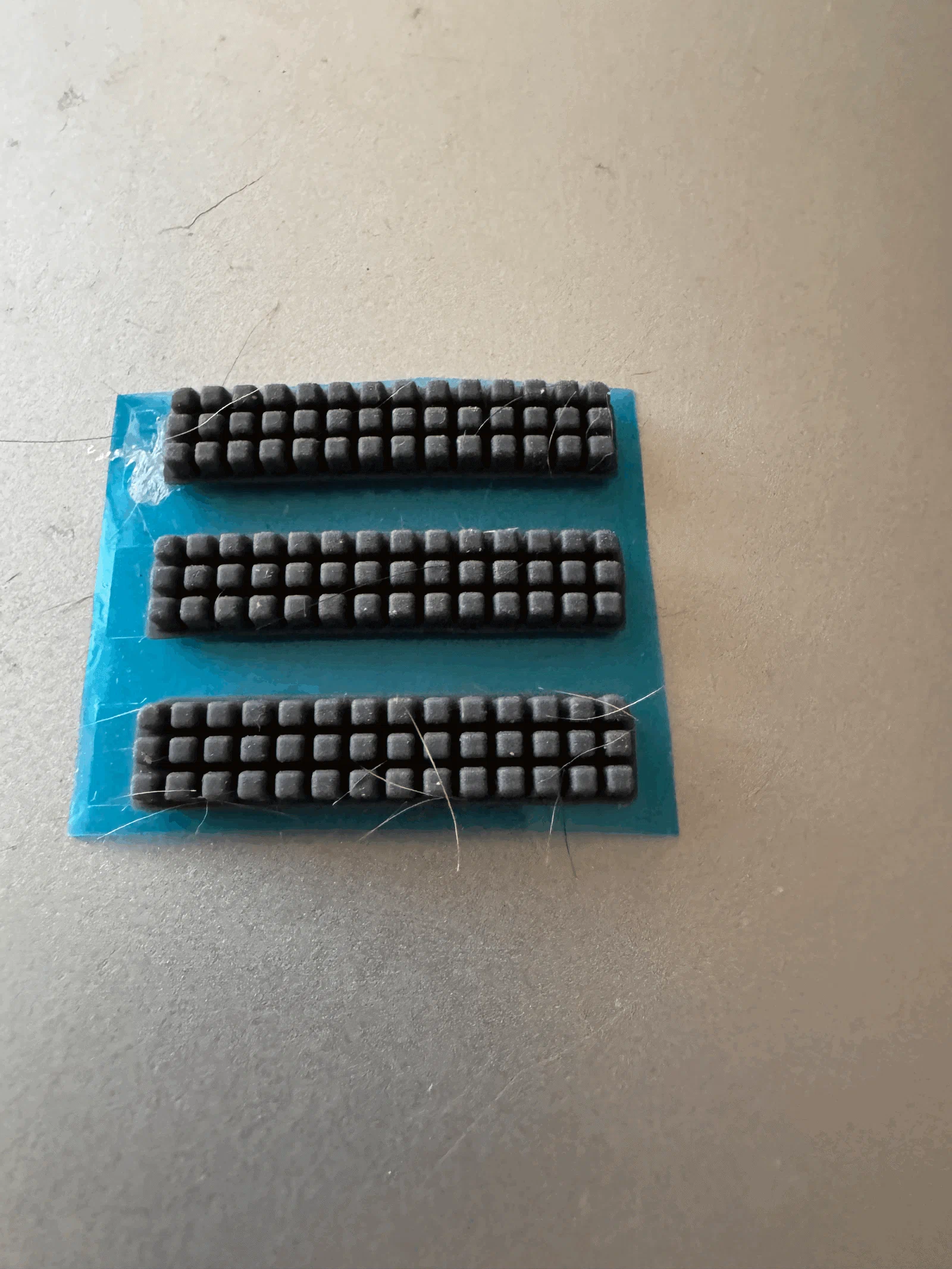

Cây brush dùng là Silicone nozzle brush cho A1 (không phải bản mini như model mình remix từ đó)

Thêm đoạn Code sau trước mục “Moving to Nozzle Cleaning area” trong Start Gcode

G1 E-10 F2400 ; retract nhiều hơn để bù lượng ooze trước khi làm sạch nozzle
; Start nozzle brush cycle

G1 X160 Y-5 Z5 F24000 ; nozzle brush cycle - move to brush
G1 X160 Y-9 Z1 F24000 ; nozzle brush cycle - lower nozzle and move to y -9
G1 X200 Y-9 Z1 F24000 ; nozzle brush cycle - swipe left to right at y -9
G1 X200 Y-8 Z1 F24000 ; nozzle brush cycle - move to y -8
G1 X160 Y-8 Z1 F24000 ; nozzle brush cycle - swipe right to left at y -8
G1 X160 Y-7 Z1 F24000 ; nozzle brush cycle - move to y -7
G1 X200 Y-7 Z1 F24000 ; nozzle brush cycle - swipe left to right at -7
G1 X200 Y-8 Z1 F24000 ; nozzle brush cycle - move to y -8
G1 X160 Y-8 Z1 F24000 ; nozzle brush cycle - swipe right to left at y -8
G1 X160 Y-9 Z1 F24000 ; nozzle brush cycle - move to y -9
G1 X200 Y-9 Z1 F24000 ; nozzle brush cycle - swipe left to right at y -9
G1 X200 Y-8 Z1 F24000 ; nozzle brush cycle - move to y -8
G1 X160 Y-8 Z1 F24000 ; nozzle brush cycle - swipe right to left at y -8
G1 X160 Y-7 Z1 F24000 ; nozzle brush cycle - move to y -7
G1 X200 Y-7 Z1 F24000 ; nozzle brush cycle - swipe left to right at -7
G1 X200 Y-8 Z1 F24000 ; nozzle brush cycle - move to y -8
G1 X160 Y-8 Z1 F24000 ; nozzle brush cycle - swipe right to left at y -8
G1 X160 Y-9 Z1 F24000 ; nozzle brush cycle - move to y -9
G1 X200 Y-9 Z1 F24000 ; nozzle brush cycle - swipe left to right at y -9
G1 X200 Y-8 Z1 F24000 ; nozzle brush cycle - move to y -8
G1 X160 Y-8 Z1 F24000 ; nozzle brush cycle - swipe right to left at y -8
G1 X160 Y-7 Z1 F24000 ; nozzle brush cycle - move to y -7
G1 X200 Y-7 Z1 F24000 ; nozzle brush cycle - swipe left to right at -7
G1 X200 Y-8 Z1 F24000 ; nozzle brush cycle - move to y -8
G1 X160 Y-8 Z1 F24000 ; nozzle brush cycle - swipe right to left at y -8
G1 X160 Y-9 Z1 F24000 ; nozzle brush cycle - move to y -9
G1 X200 Y-9 Z1 F24000 ; nozzle brush cycle - swipe left to right at y -9
G1 X200 Y-8 Z1 F24000 ; nozzle brush cycle - move to y -8
G1 X160 Y-8 Z1 F24000 ; nozzle brush cycle - swipe right to left at y -8
G1 X160 Y-7 Z1 F24000 ; nozzle brush cycle - move to y -7
G1 X200 Y-7 Z1 F24000 ; nozzle brush cycle - swipe left to right at -7
G1 X200 Y-8 Z1 F24000 ; nozzle brush cycle - move to y -8
G1 X160 Y-8 Z1 F24000 ; nozzle brush cycle - swipe right to left at y -8
G1 X160 Y-9 Z1 F24000 ; nozzle brush cycle - move to y -9
G1 X200 Y-9 Z1 F24000 ; nozzle brush cycle - swipe left to right at y -9
G1 X200 Y-8 Z1 F24000 ; nozzle brush cycle - move to y -8
G1 X160 Y-8 Z1 F24000 ; nozzle brush cycle - swipe right to left at y -8
G1 X160 Y-7 Z1 F24000 ; nozzle brush cycle - move to y -7
G1 X200 Y-7 Z1 F24000 ; nozzle brush cycle - swipe left to right at -7
G1 X200 Y-8 Z1 F24000 ; nozzle brush cycle - move to y -8
G1 X160 Y-8 Z1 F24000 ; nozzle brush cycle - swipe right to left at y -8
G1 X160 Y-5 Z5 F24000 ; nozzle brush cycle
