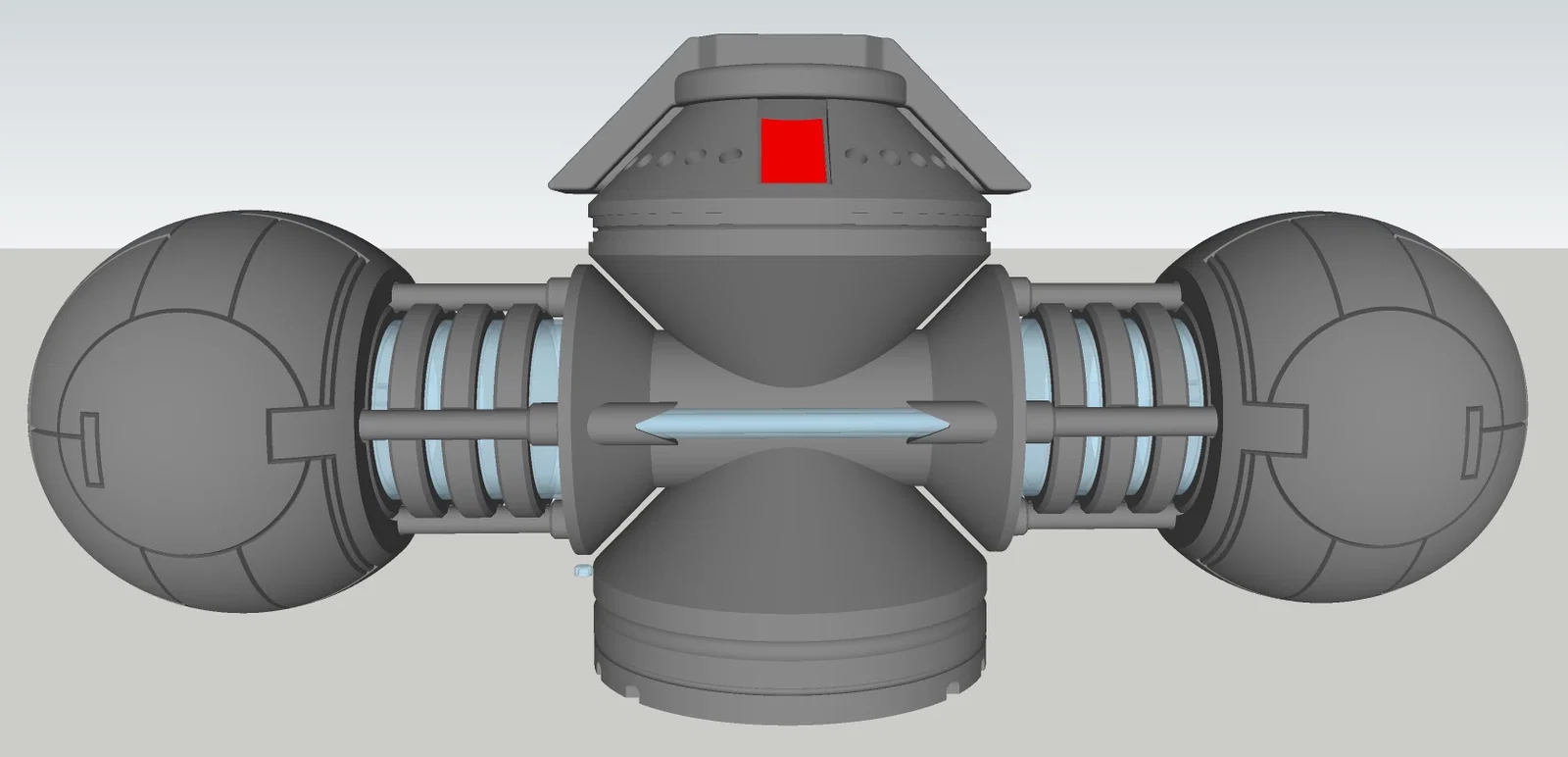

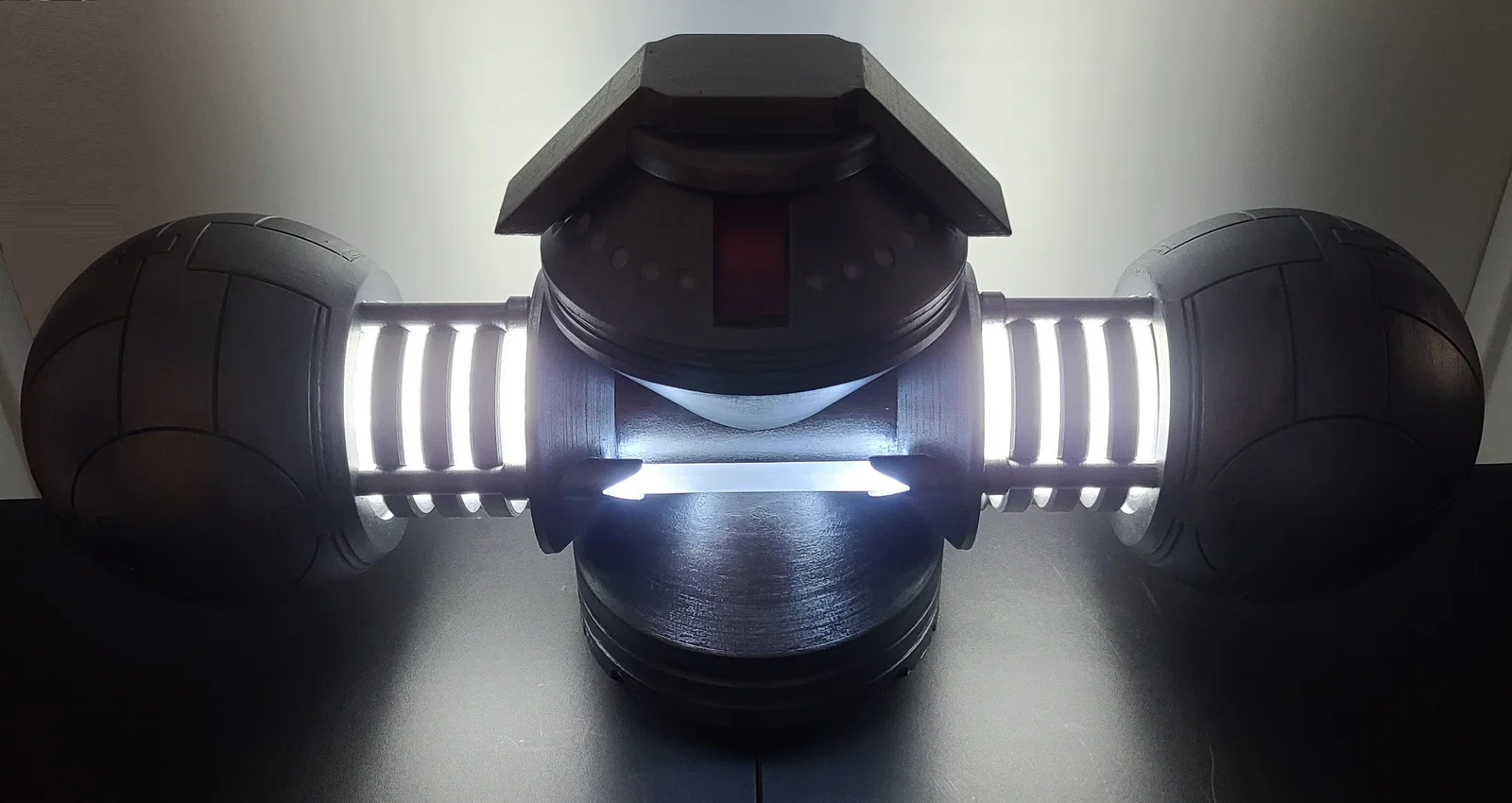

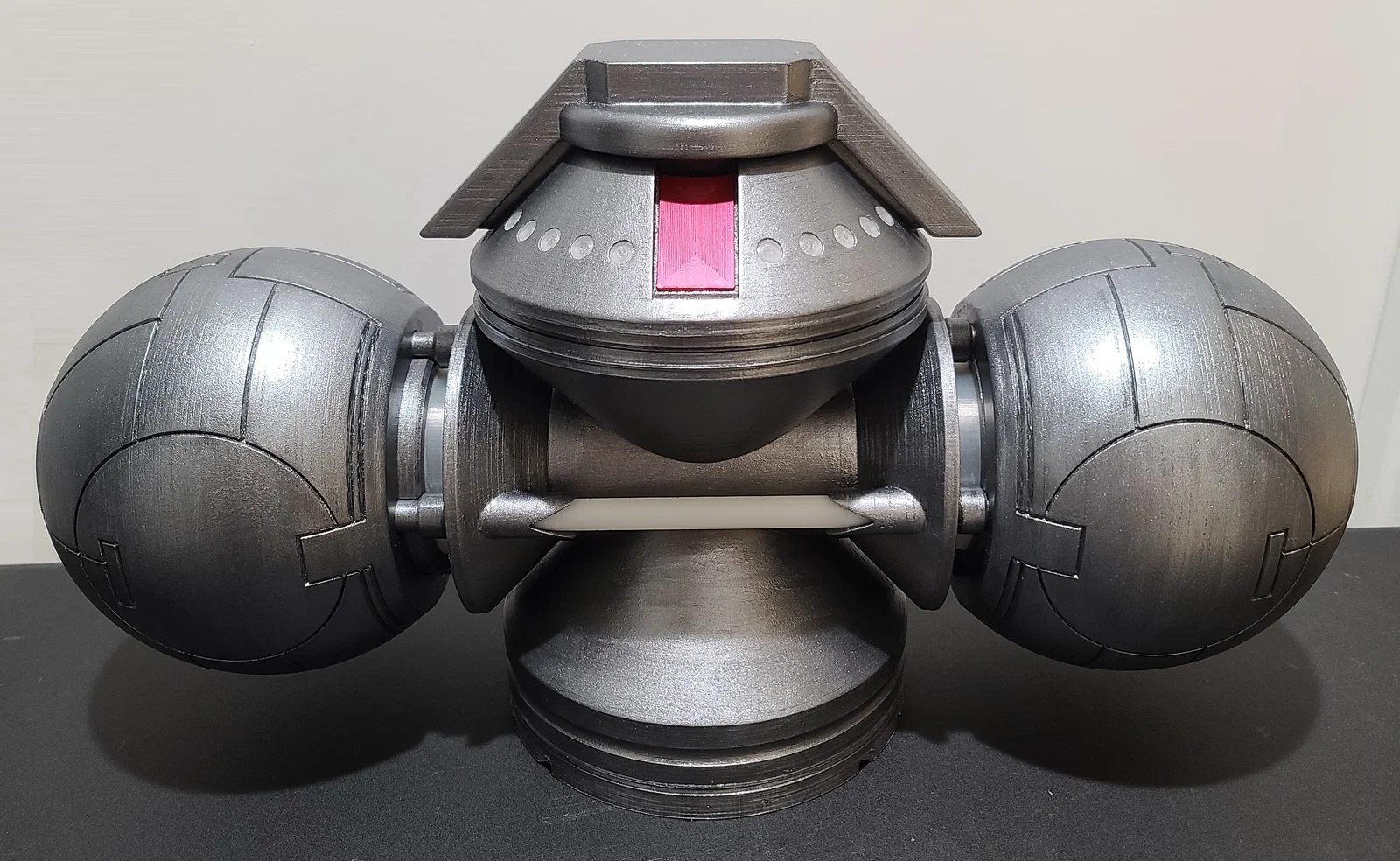

Prop Máy Phát Naquadah Stargate

Tác giả JDM755

Lượt tải
782
Lượt thích
242
Lượt coi
4.536

File 37 68,7 MB

  • Intermix_Flow_Chamber_Globe_Slide_1776758322.stlSTL · 195,3 KB
  • Intermix_Flow_Chamber_Crystal_1_1776758323.stlSTL · 448,6 KB
  • Intermix_Flow_Chamber_Crystal_2_1776758324.stlSTL · 449,4 KB
  • Intermix_Flow_Chamber_Base_Attachment_1776758325.stlSTL · 446 KB

Tạo biến thể bằng AI

Dựng một phiên bản khác của mẫu này.

Mở Studio

Thông tin

Mã mẫu
#321697
Danh mục
Cosplay
Ngày đăng

Mô tả

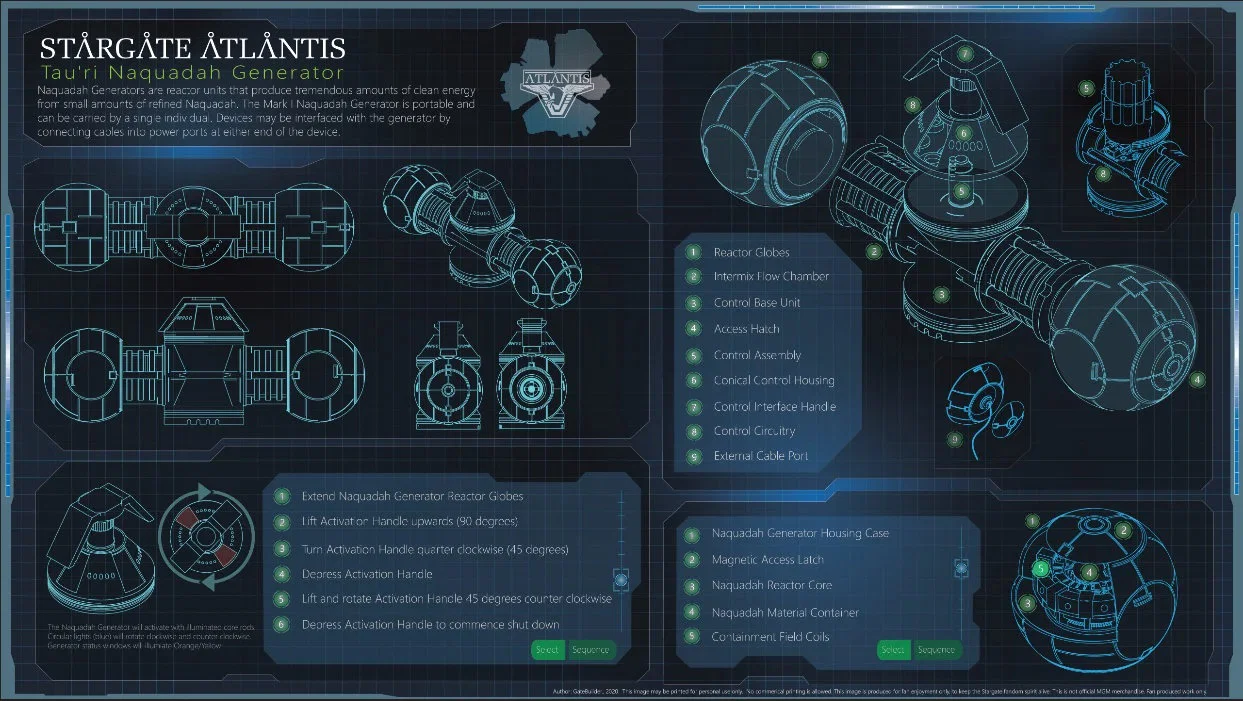

Lịch sử/Câu chuyện về Naquadah Generator: https://www.gateworld.net/wiki/Naquadah_generator

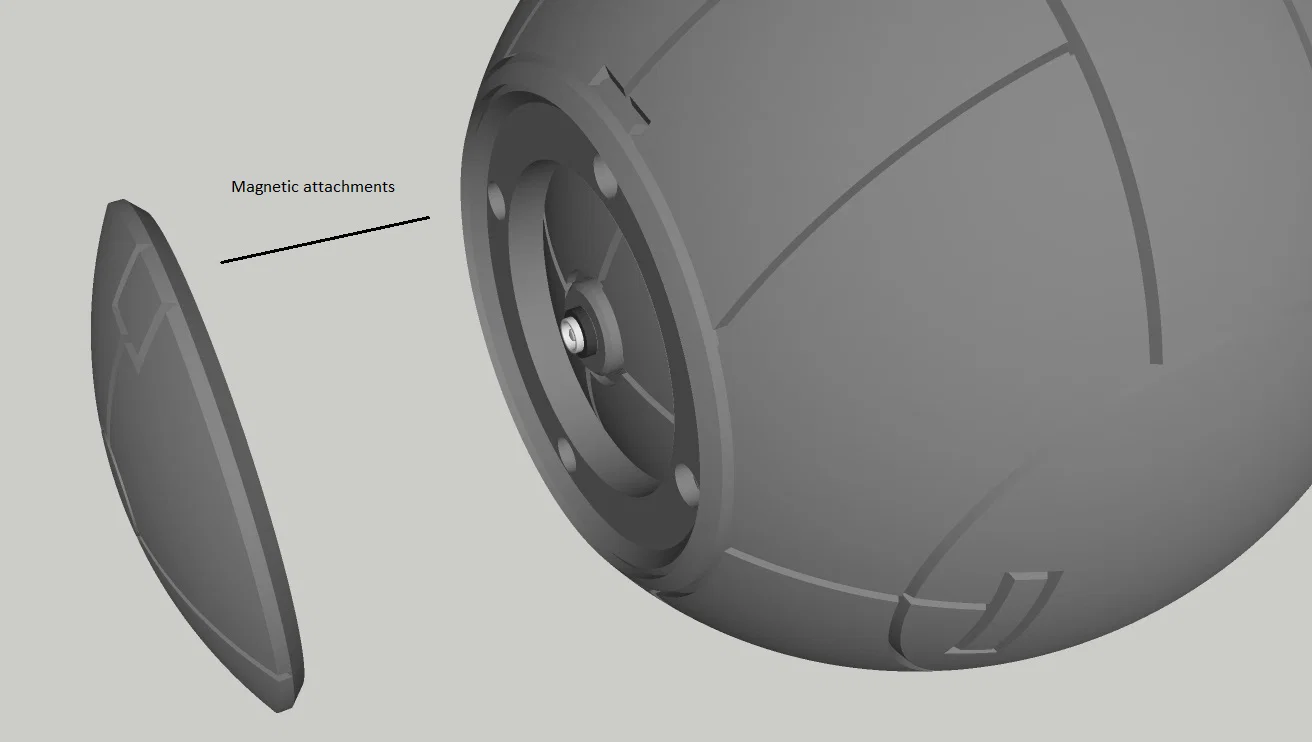

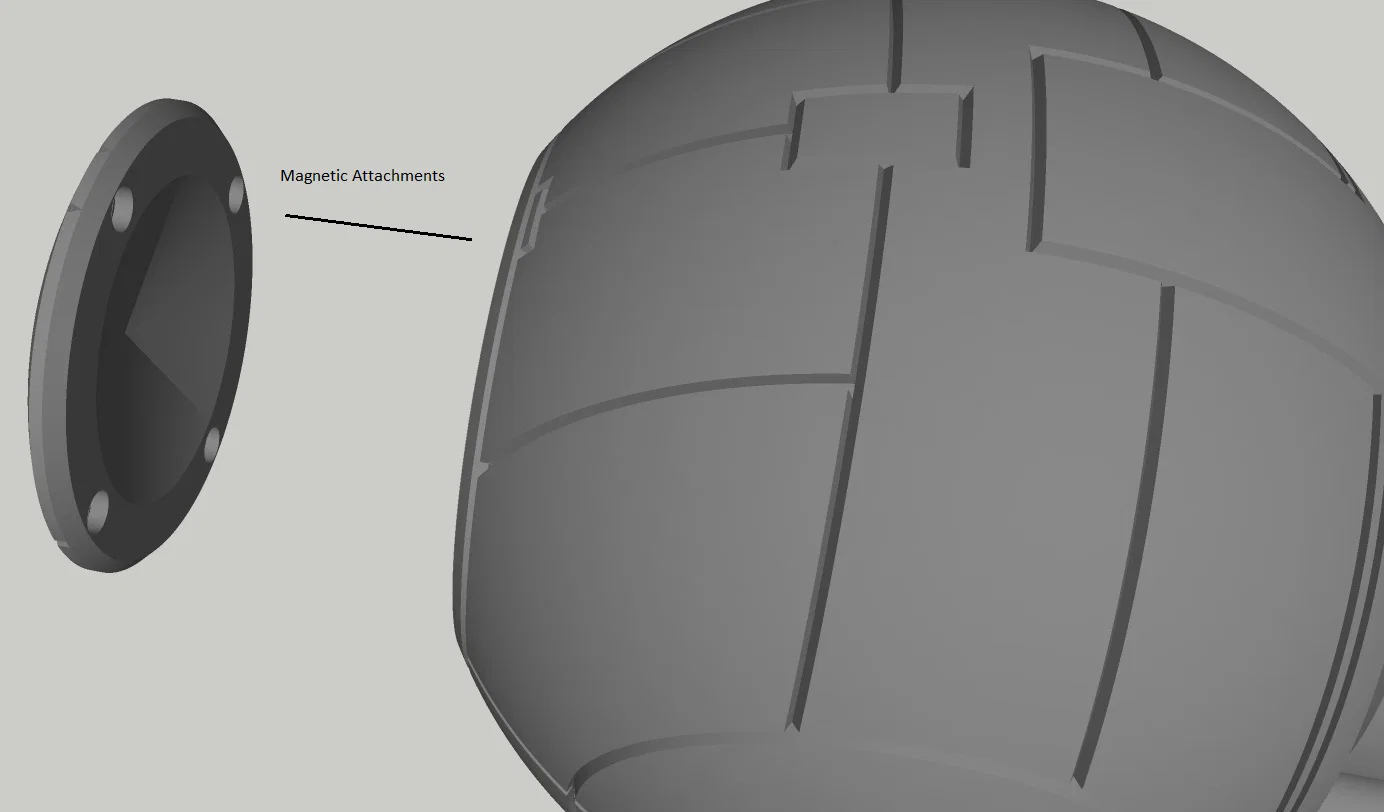

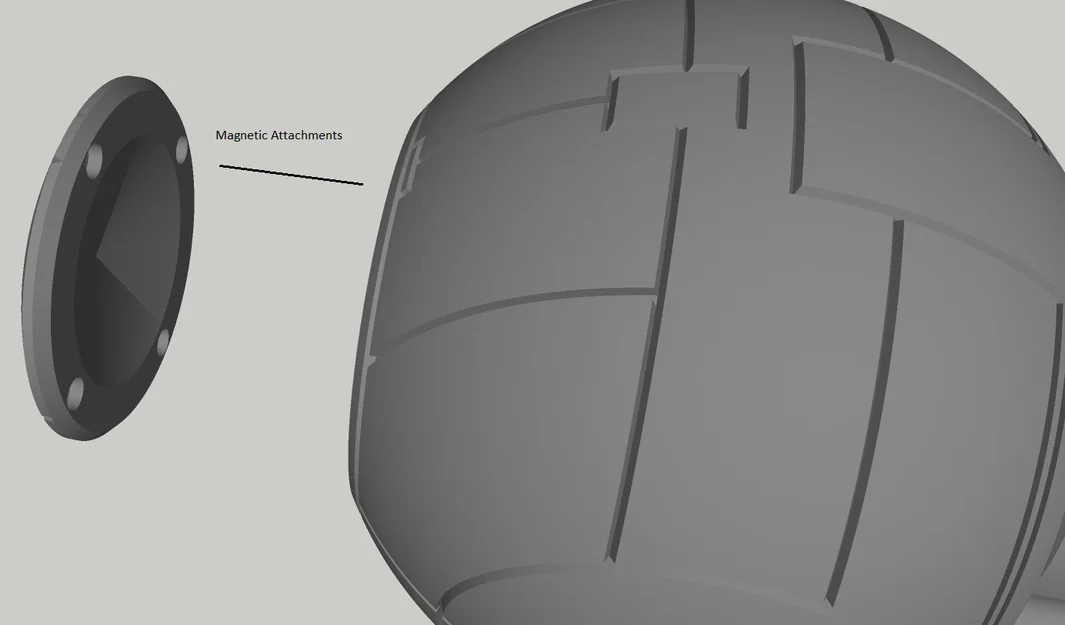

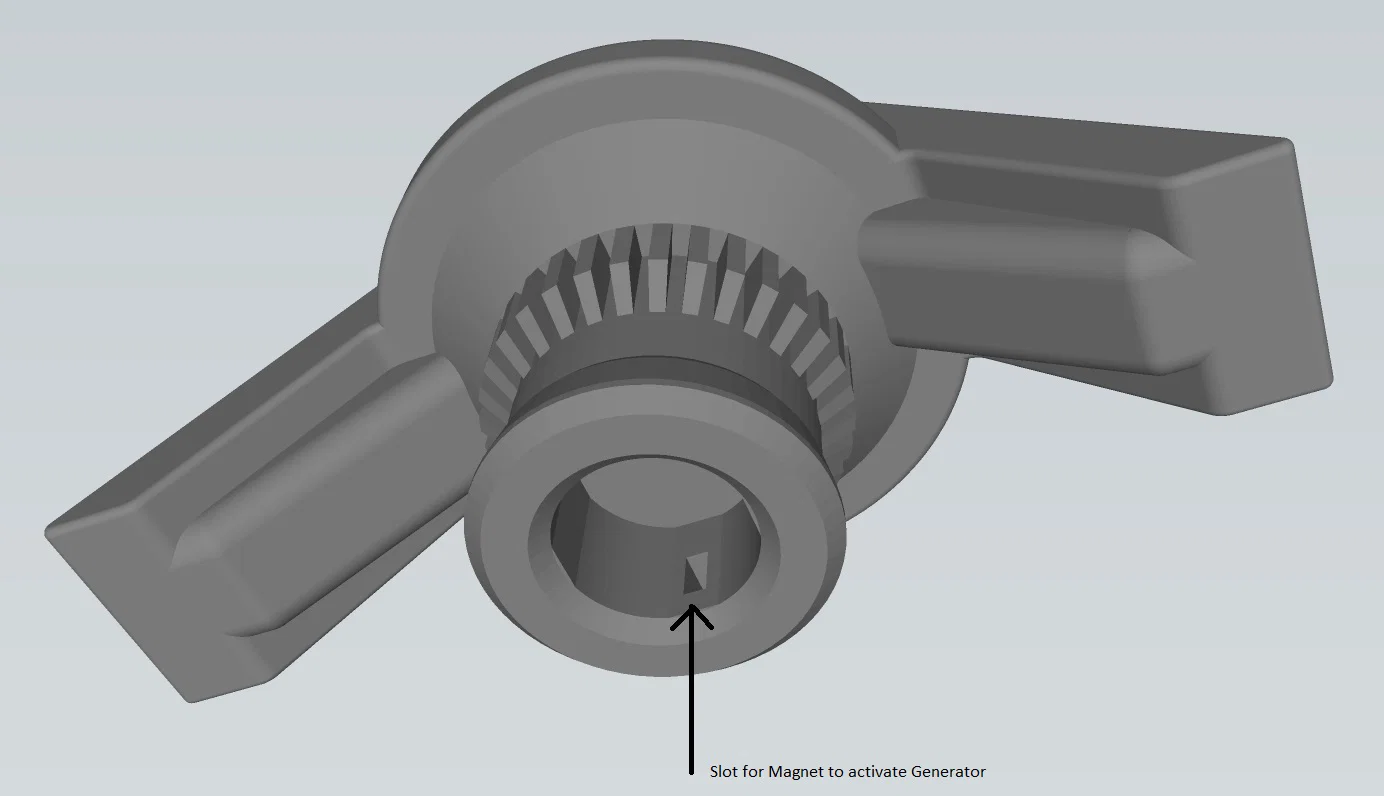

Mô hình prop này dùng nam châm (Magnets) để kích hoạt đèn (khi Control Interface Handle gạt sang vị trí on thì nó sẽ kích hoạt một công tắc dạng magnet, bật nguồn) và các nắp access hatch cũng được hít/đính bằng nam châm.

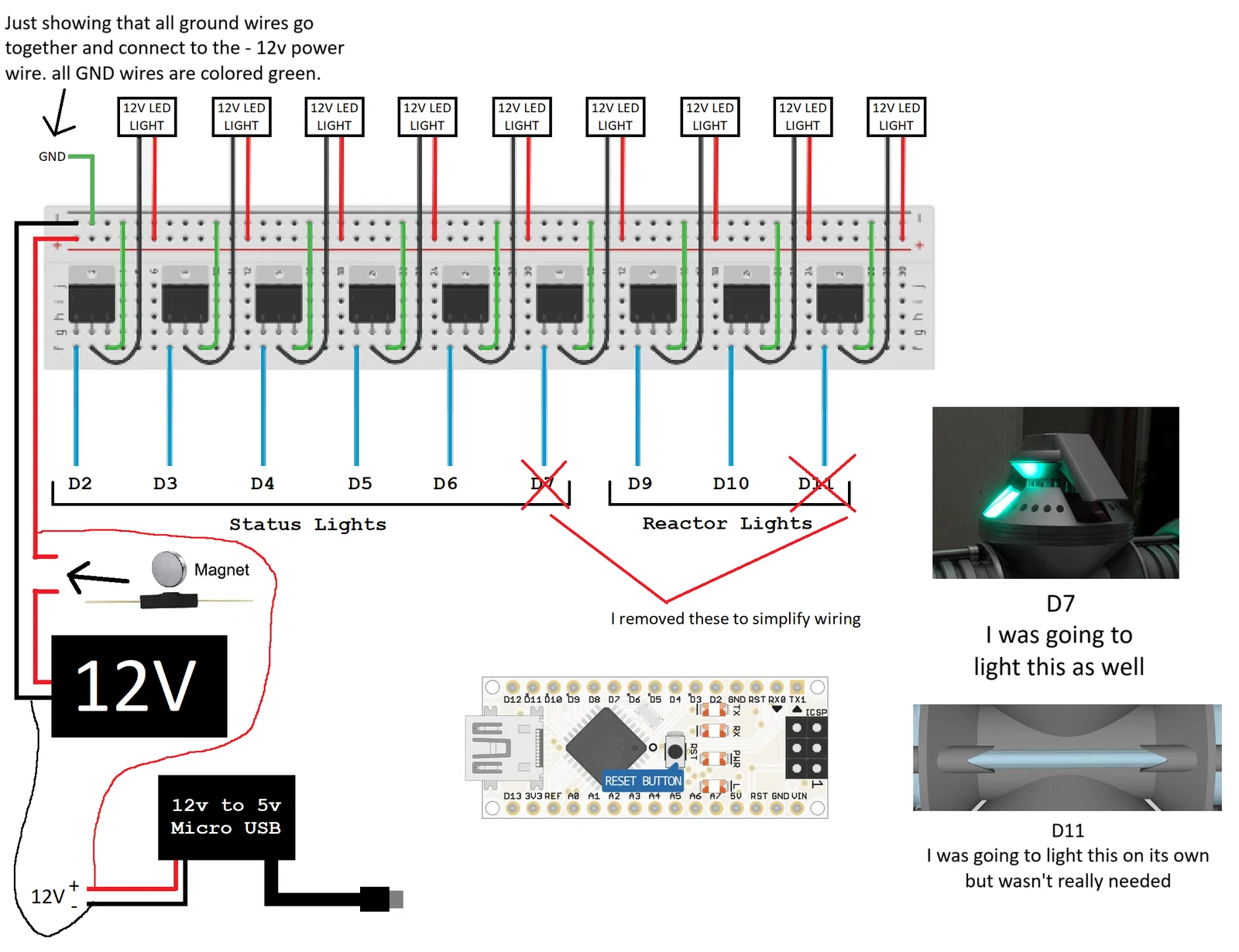

Linh kiện mua thêm: (Danh sách này là những món mình có và đã dùng cho dự án, không cần phải mua đúng từ các link này. Mục đích là để bạn hình dung cần những gì và ước tính chi phí để làm một cái)
Magnetic Induction Switch: https://www.amazon.com/gp/product/B07YFBQ4HS
Neodymium Disc Magnets, 8 x 3mm: https://www.amazon.com/gp/product/B097HCT43
5mm Blue LED Lights: https://www.amazon.com/gp/product/B07T9LGGJW
5mm White LED Lights: https://www.amazon.com/gp/product/B07T8H6V37

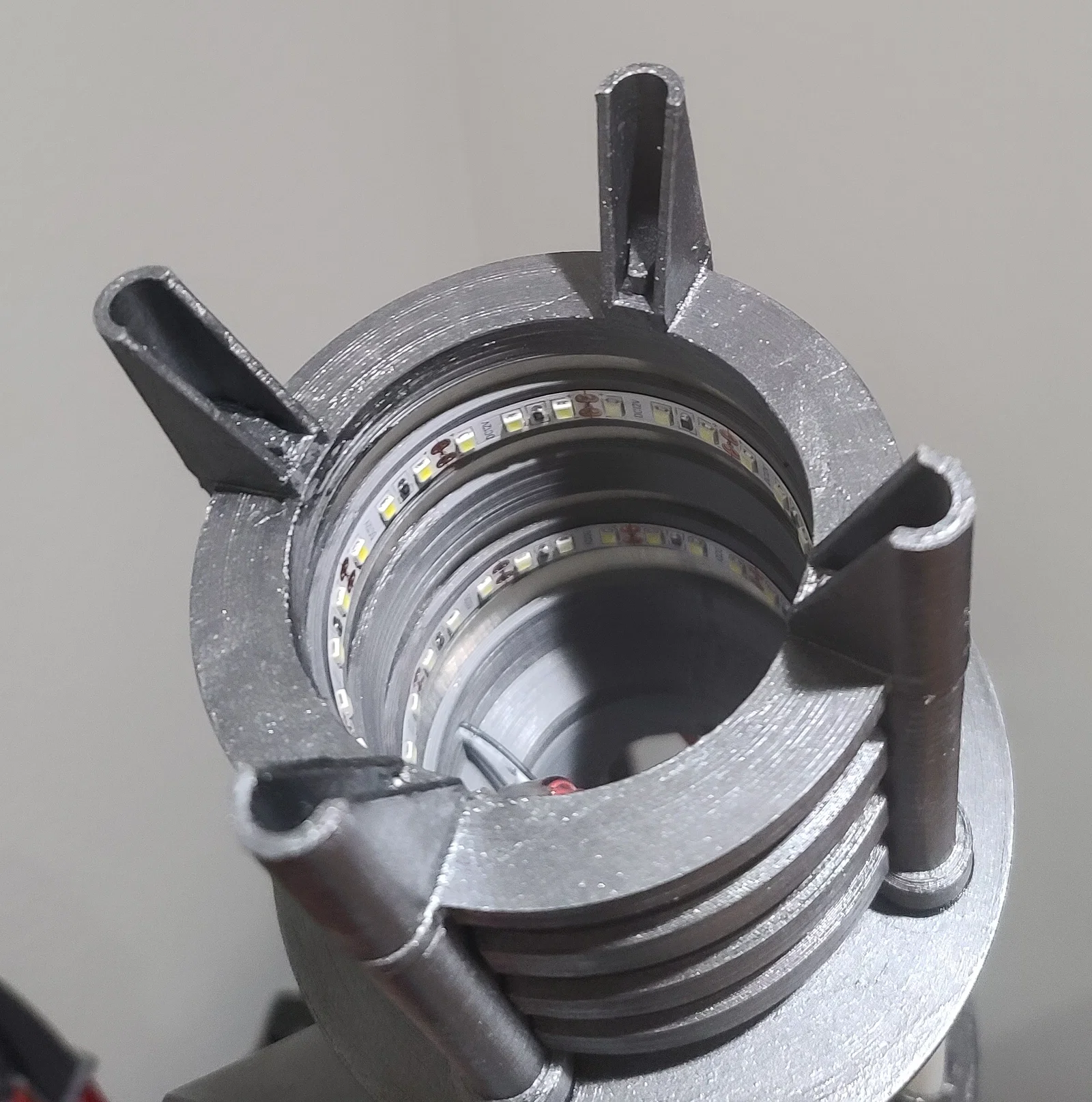

12V LED Strip Light: https://www.amazon.com/gp/product/B00HSF66JO

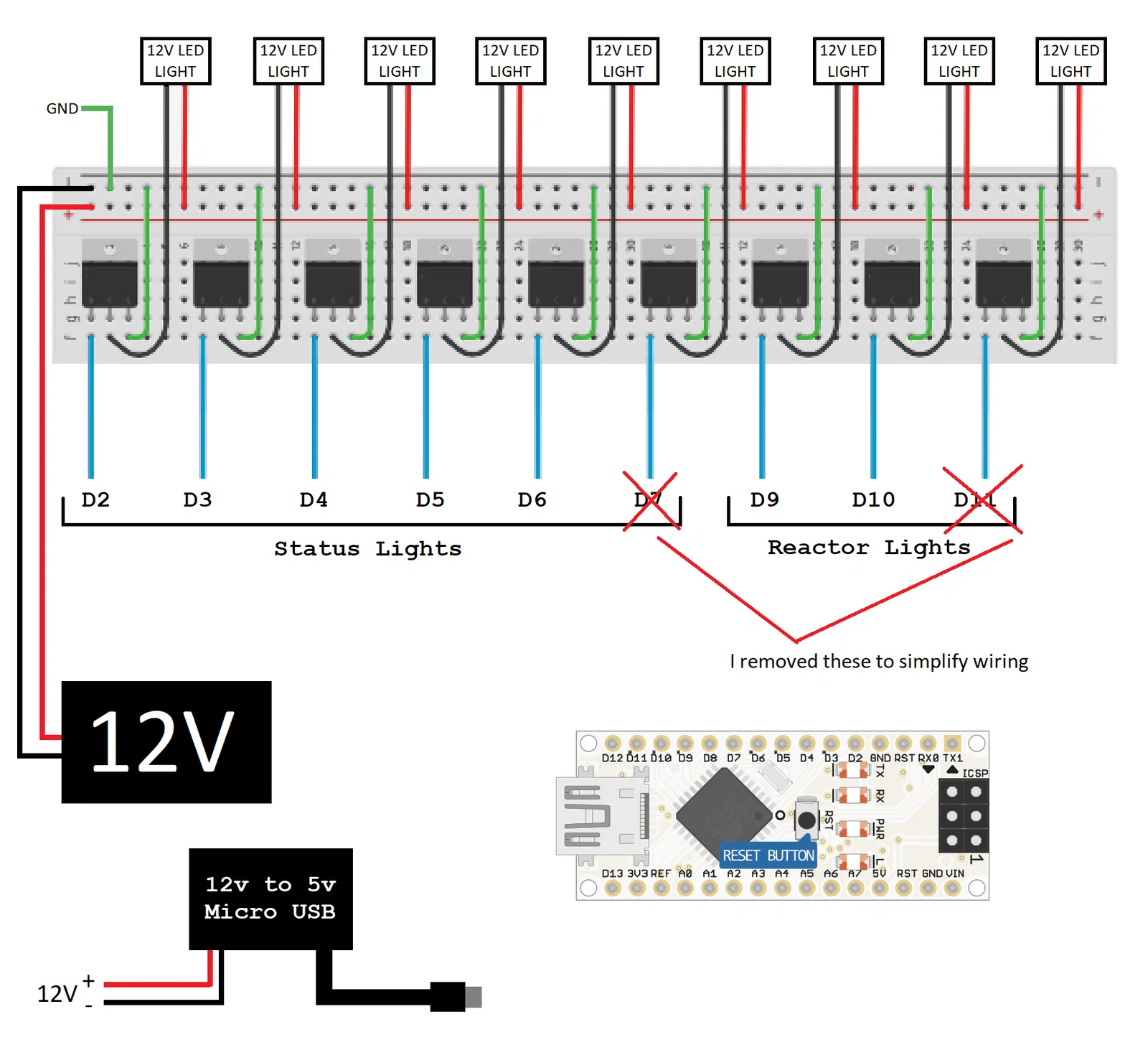

Arduino Nano Every: https://www.amazon.com/gp/product/B07VX7MX27
DC-DC Buck Converter: https://www.amazon.com/gp/product/B08Q34TYV5
N-Channel Power Mosfet: https://www.amazon.com/gp/product/B07CTJFG7M
Wire: https://www.amazon.com/gp/product/B009VCZ4V8
DC Power Jack: https://www.amazon.com/gp/product/B01N8VV78D
DC Power Jack Adapter: https://www.amazon.com/gp/product/B015OCV5Y8 (Tùy chọn, bạn có thể dùng Cable Port (Blank) và các loại power jack khác ở trên)
Super Glue và Epoxy: (để dán/gắn mọi thứ lại với nhau. Mình có dùng epoxy ở vài chỗ muốn độ bám chắc hơn)
3 cuộn nhựa 1KG: (Có thể bạn chỉ cần 2 cuộn, nhưng mình có vài phần phải thiết kế lại LOL)
Heat Shrink: nhiều kích cỡ
Bộ súng bắn keo nến

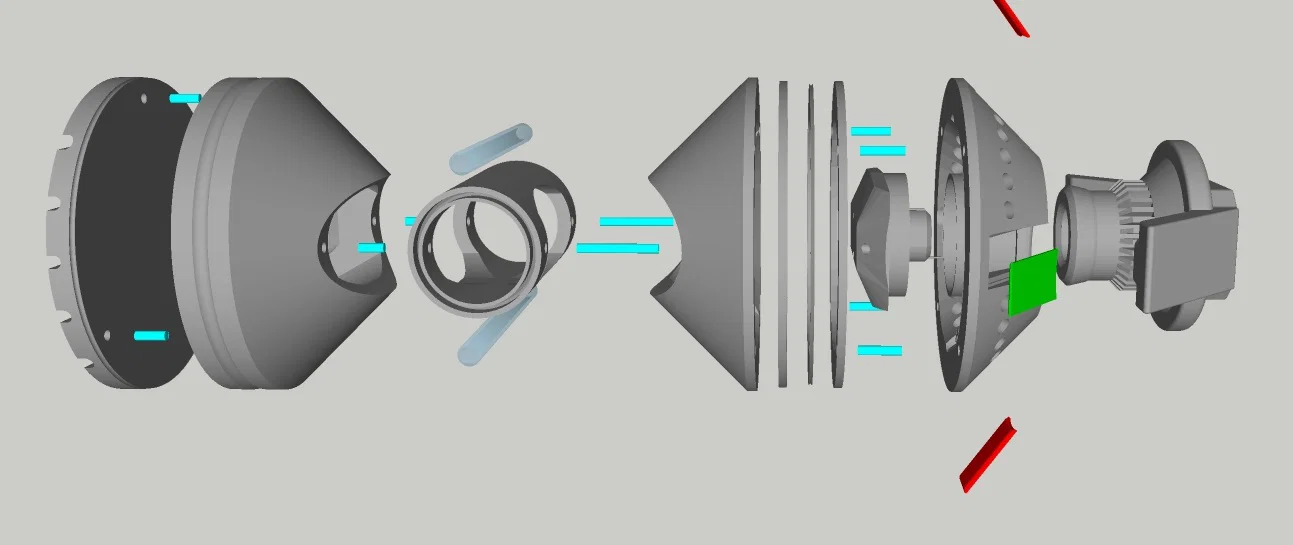

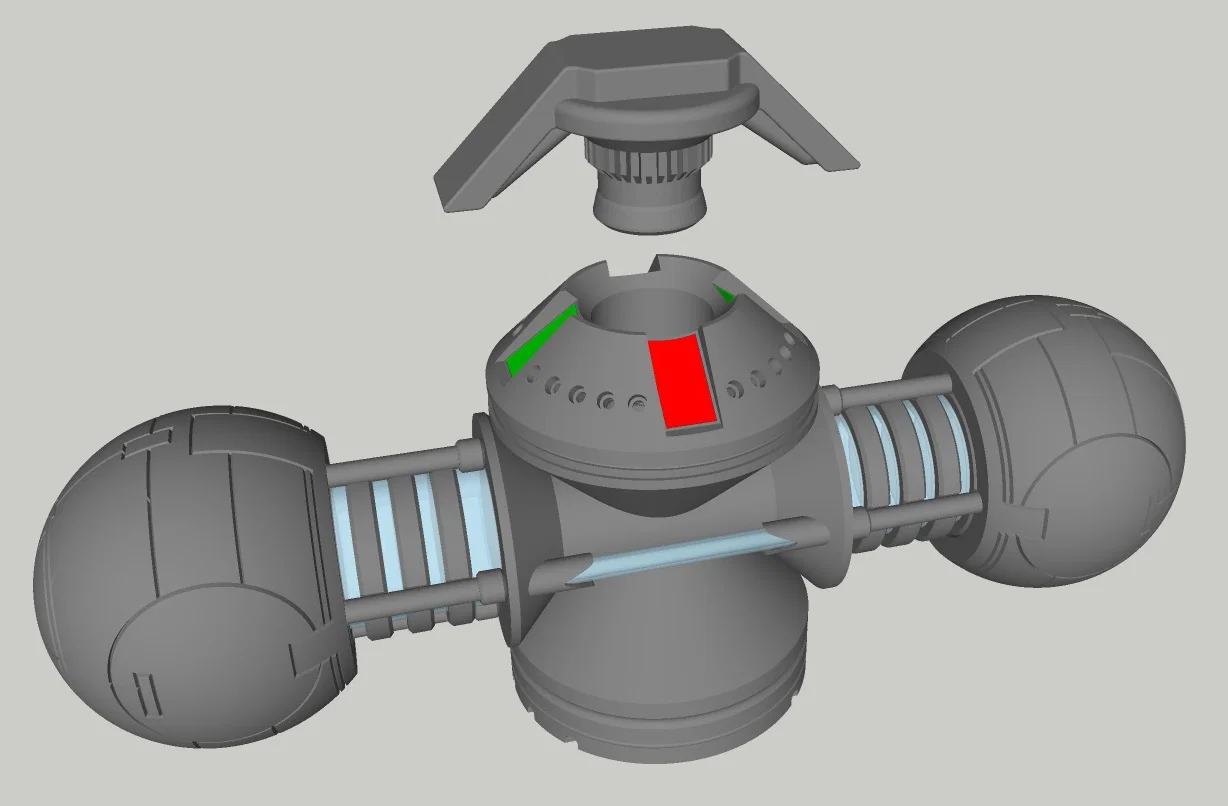

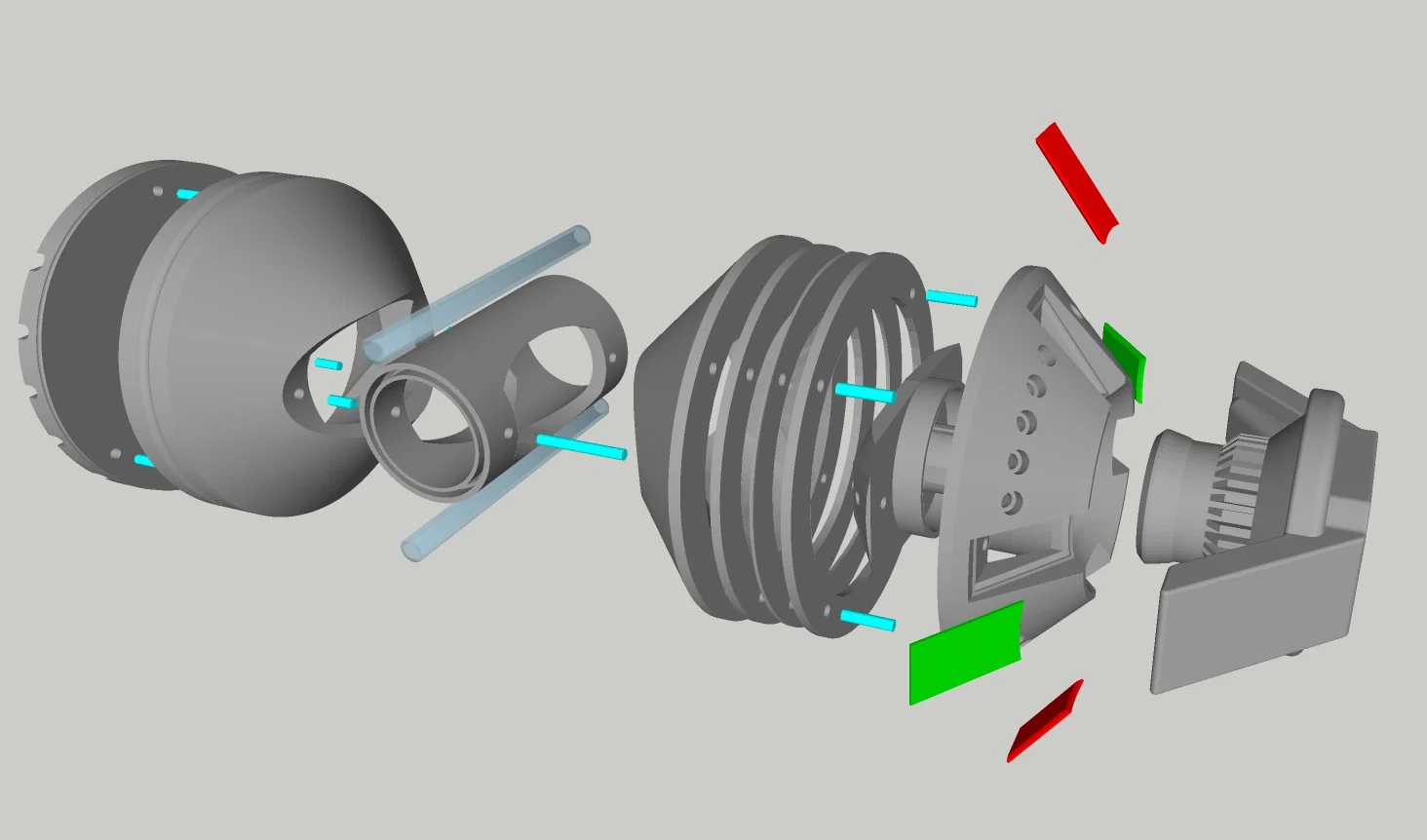

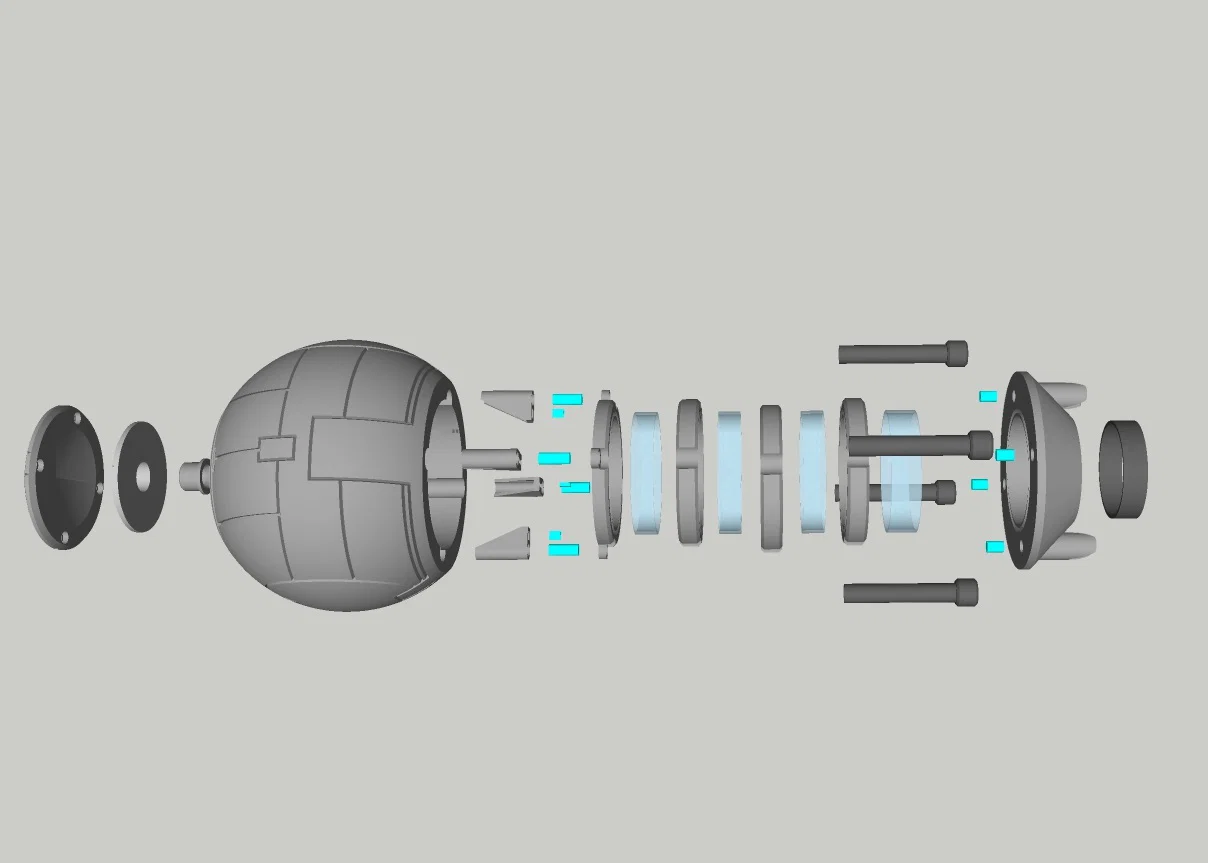

Các phần cần in:
2x Reactor Globe
2x Reactor Globe Inside
2x Reactor Globe External Cable Port

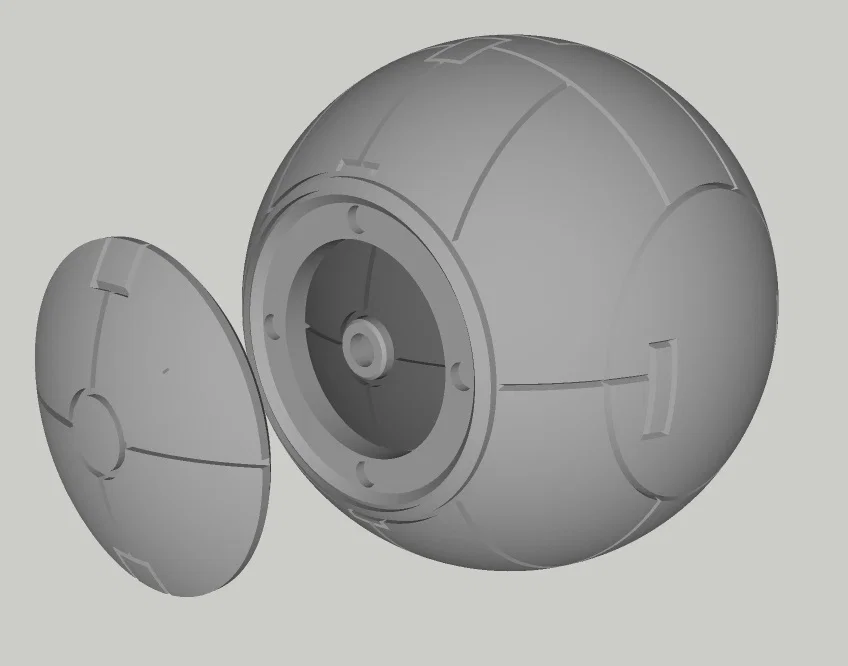

2x Reactor Globe Access Hatch

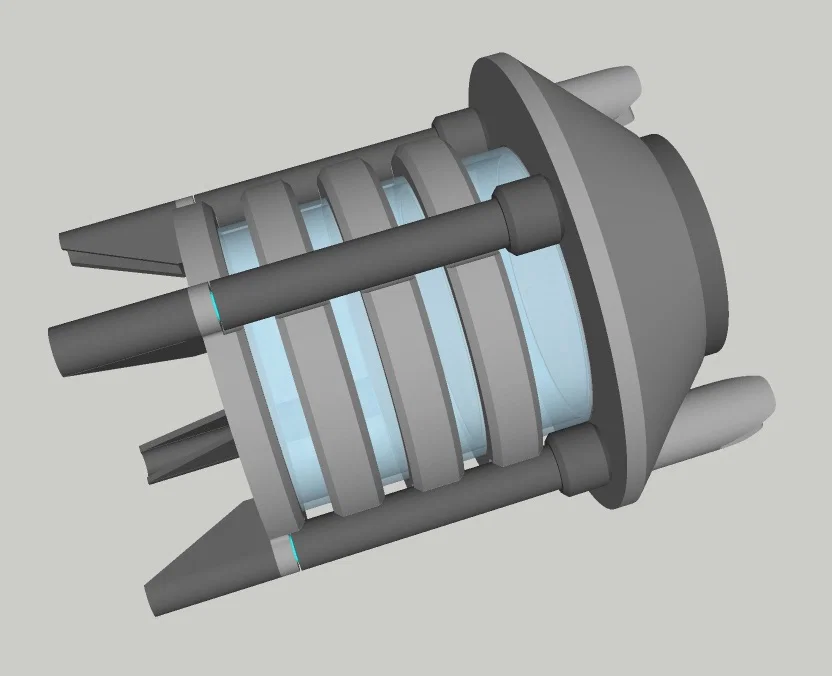

2x Intermix Flow Chamber Base
2x Intermix Flow Chamber Base Attachment
6x Intermix Flow Chamber Disk
2x Intermix Flow Chamber End
2x Intermix Flow Chamber Crystal 1
6x Intermix Flow Chamber Crystal 2
8x Intermix Flow Chamber Globe Slide
8x Intermix Flow Chamber Housing Rod
8x Intermix Flow Chamber Housing Rod Washer
2x Intermix Flow Chamber Housing Rod Base Attachment
2x Intermix Flow Chamber Housing Rod End Attachment
1x Base Pins
1x Control Assembly Bottom Cone Pins
1x Base Cone Pins
1x Center Base
1x Center Base Cone
1x Control Assembly Pins
2x Control Assembly Cone Spacer 1
1x Control Assembly Cone Spacer 2
1x Control Assembly Bottom Cone
1x Control Assembly LED Crystals
4x Control Assembly Upper Cone Power Crystal
1x Control Interface Handle Connector
1x Control Assembly Upper Cone
1x Control Shelf Pin
1x Control Shelf Light Shield
1x Control Interface Handle
1x Control Shelf
2x Intermix Flow Chamber Connector Crystal
1x Intermix Flow Chamber Connector

Tùy chọn:
Reactor Globe External Cable Port (Blank) *** chỉ khi bạn muốn kiểu cổng dây khác hoặc không cần lỗ mở ***

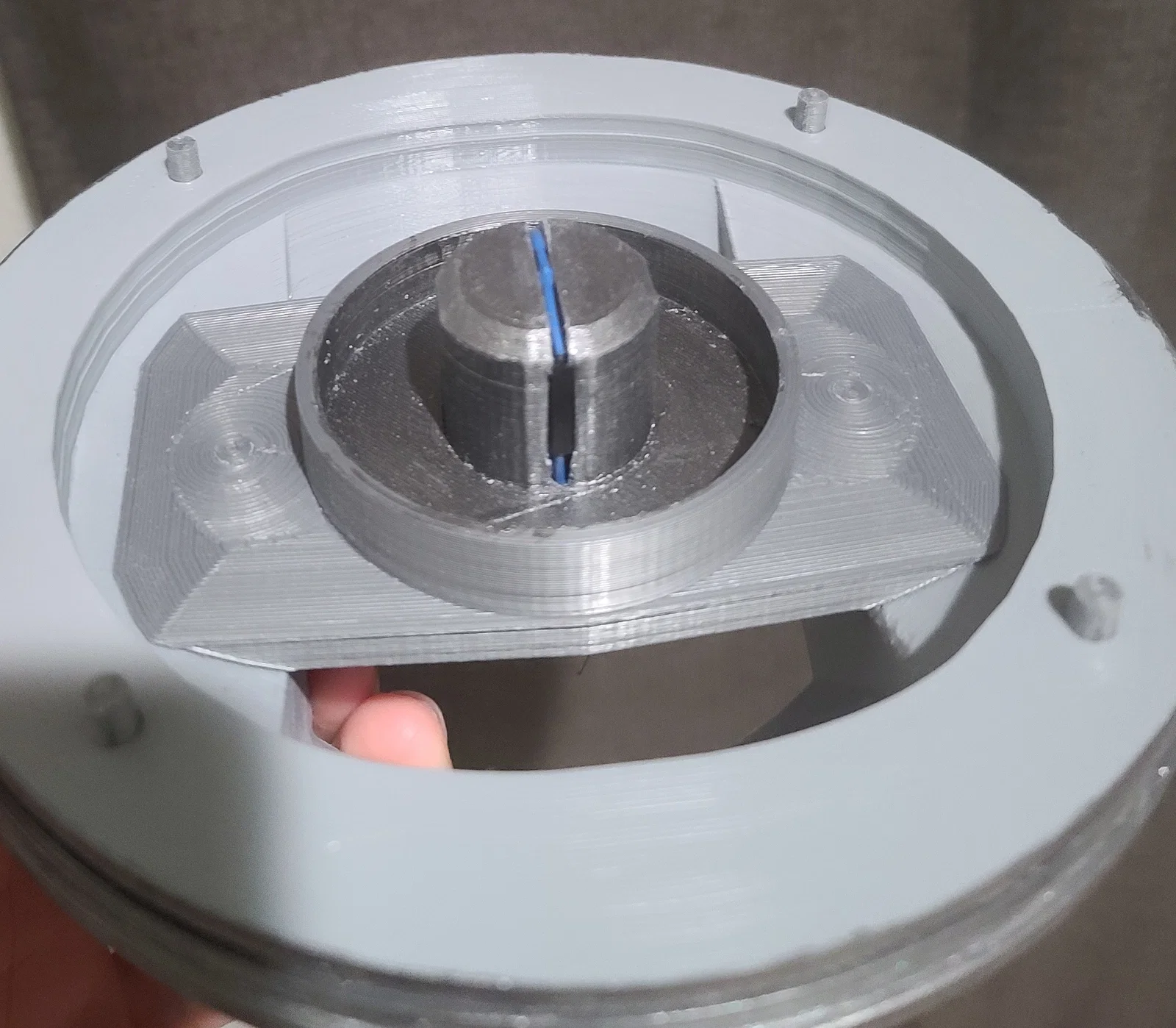

Handle Inside Spacer *** dùng để canh/align công tắc nam châm ***
