Đầu dẫn filament cho “PrintClosure Project” (Filament feedthrough)
Chi tiết dẫn filament vào vỏ “PrintClosure Project”. Phù hợp nắp dày 3 mm (acrylic), cần lỗ khoan Ø14 mm. Bên trong lắp ống PTFE ~10 mm (OD 4 mm, ID 2,5 mm) cho filament trượt êm; có nắp chắn bụi tuỳ chọn.
Mô tả

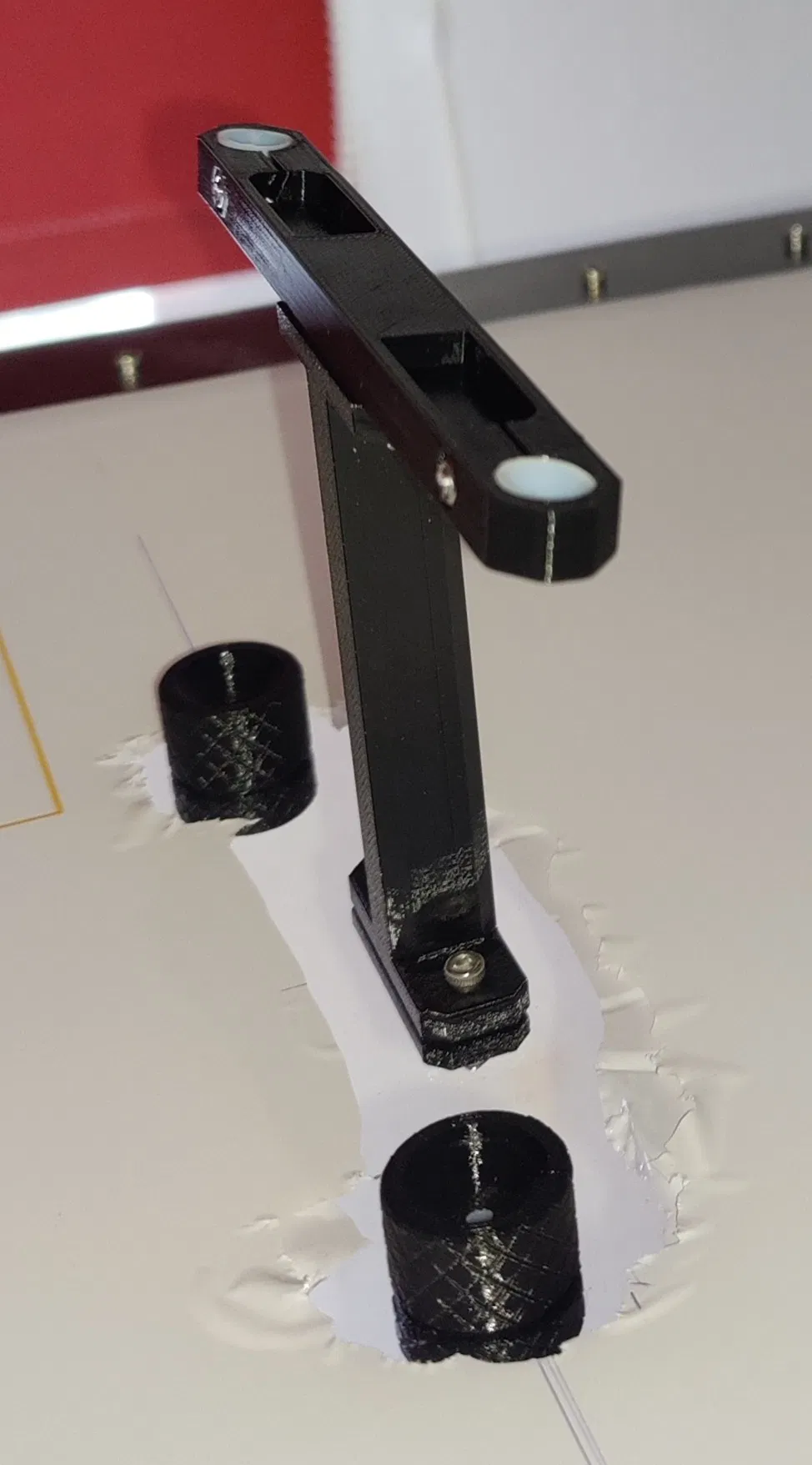

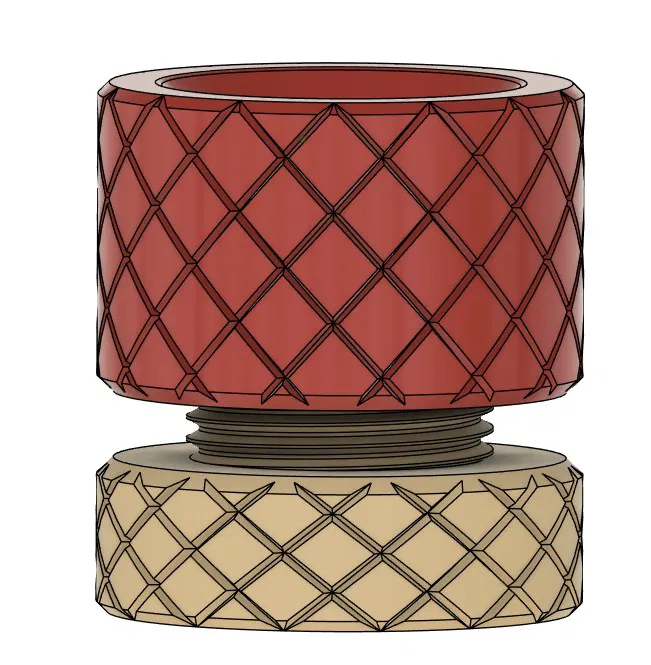

Mẫu này giúp đưa filament vào bên trong vỏ của “[PrintClosure Project]”. Nắp vỏ của mình dày 3 mm (mình dùng kính acrylic) và cần khoan một lỗ đường kính 14 mm.

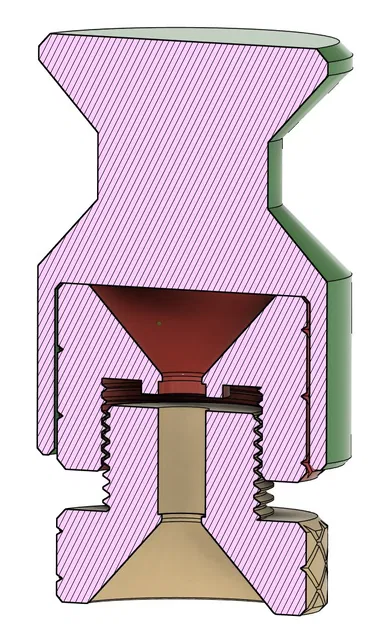

Bên trong sẽ lắp một đoạn ống PTFE dài hơi dưới 10 mm, đường kính ngoài 4 mm (đường kính trong 2,5 mm) để filament trượt mượt.
Ngoài ra còn có kèm một nắp chắn bụi (tuỳ chọn).
Bản dịch: DeepL
The model allows the filament to be fed into the housing of the “PrintClosure Project.” The cover of my housing is 3 mm thick (I used acrylic glass) and requires a hole with a diameter of 14 mm.
Inside, a PTFE tube just under 10 mm long with an outer diameter of 4 mm (inner diameter 2.5 mm) is inserted so that the filament slides smoothly.
An optional dust cover is also included.
