Wiper trước PrusaXL A1 chỉnh được kèm G-code

Xem thử bản dùng nam châm:

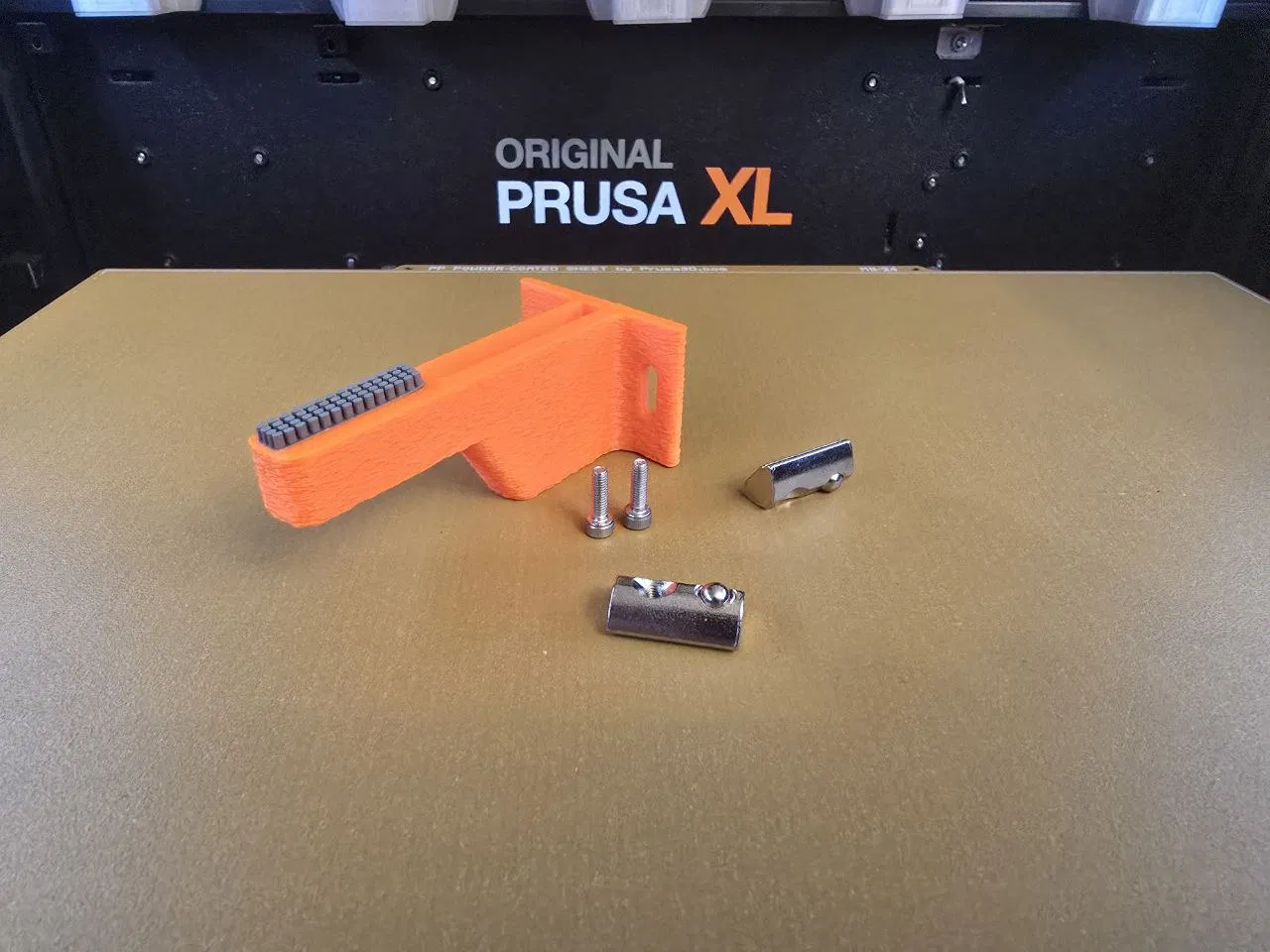

BOM

• PETG

• T spring nuts M3 cho 3030 - https://a.aliexpress.com/_Eyj33i0 hoặc đai ốc 3030 in 3D cho vít M3

• Vít M3 - 10 mm - https://a.aliexpress.com/_EHrTBG4

• A1 silicone brush - https://www.aliexpress.com/item/1005008129071080.html (loại có đế dày)

 In ấn

Mở file 3MF dưới dạng project. In bằng PETG.

Lắp đặt

Gắn T spring nuts vào. Bắt wiper PE bằng 2 vít M3 10mm.

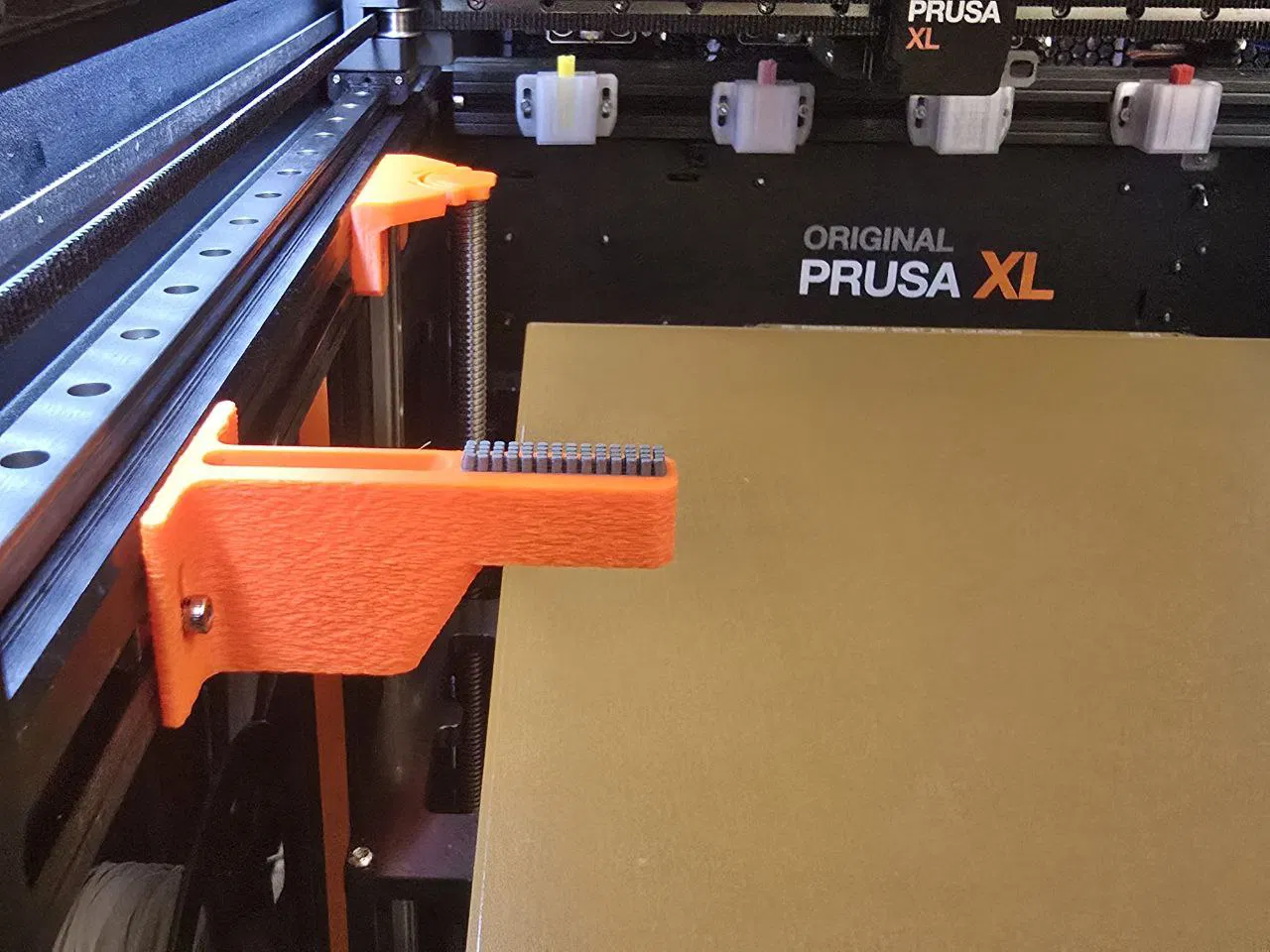

Canh vị trí

Wiper trái và phải là dạng mirror. Dưới đây là cách gắn wiper bên phải.

Canh Y (chừa 1 mm so với plate):

Canh Z:

Di chuyển bed lên Z = 1mm. Phần trên của wiper phải thẳng hàng:

G-code

Đây là phần nozzle clean up mới (nên đặt trong start G-code của máy in, thay cho nozzle cleanup cho tới trước MBL

; nozzle cleanup
; move to the nozzle cleanup area
M302 S155 ; lower cold extrusion limit to 155C
G1 E{-(filament_type[0] == "FLEX" ? 4 : 2)} F2400 ; retraction for nozzle cleanup
M84 E ; turn off E motor

; --- Start Nozzle Wipe
G1 Z5   ; Move bed out of the way

{if initial_tool == 0 or initial_tool == 1 }

; --- Start Nozzle Wipe LEFT ---
G1 X-2 Y-8 F24000    ; Move to start of wipe area
G1 X28 Y-8 F24000    ; Wipe pass 1
G1 X-2 Y-7.5 F24000  ; Reposition
G1 X28 Y-7.5 F24000  ; Wipe pass 2
G1 X-2 Y-7 F24000    ; Reposition
G1 X28 Y-7 F24000    ; Wipe pass 3
G1 X-2 Y-6.5 F24000  ; Reposition
G1 X28 Y-6.5 F24000  ; Wipe pass 4
G1 X-2 Y-6 F24000    ; Reposition
G1 X28 Y-6 F24000    ; Wipe pass 5
G1 X-2 Y-6.5 F24000  ; Reposition
G1 X28 Y-6.5 F24000  ; Wipe pass 6
G1 X-2 Y-7 F24000    ; Reposition
G1 X28 Y-7 F24000    ; Wipe pass 7
G1 X-2 Y-7.5 F24000  ; Reposition
G1 X28 Y-7.5 F24000  ; Wipe pass 8
G1 X-2 Y-8 F24000    ; Reposition
G1 X28 Y-8 F24000    ; Wipe pass 9
; --- End Nozzle Wipe LEFT ---

{else}

; --- Start Nozzle Wipe RIGHT ---
G1 X332 Y-8 F24000    ; Move to start of wipe area
G1 X361 Y-8 F24000    ; Wipe pass 1
G1 X332 Y-7.5 F24000  ; Reposition
G1 X361 Y-7.5 F24000  ; Wipe pass 2
G1 X332 Y-7 F24000    ; Reposition
G1 X361 Y-7 F24000    ; Wipe pass 3
G1 X332 Y-6.5 F24000  ; Reposition
G1 X361 Y-6.5 F24000  ; Wipe pass 4
G1 X332 Y-6 F24000    ; Reposition
G1 X361 Y-6 F24000    ; Wipe pass 5
G1 X332 Y-6.5 F24000  ; Reposition
G1 X361 Y-6.5 F24000  ; Wipe pass 6
G1 X332 Y-7 F24000    ; Reposition
G1 X361 Y-7 F24000    ; Wipe pass 7
G1 X332 Y-7.5 F24000  ; Reposition
G1 X361 Y-7.5 F24000  ; Wipe pass 8
G1 X332 Y-8 F24000    ; Reposition
G1 X361 Y-8 F24000    ; Wipe pass 9
; --- End Nozzle Wipe RIGHT ---

{endif}

G1 X{(min(((((first_layer_print_min[0] + first_layer_print_max[0]) / 2) < ((print_bed_min[0] + print_bed_max[0]) / 2)) ? (((first_layer_print_min[1] - 7) < -2) ? 70 : (min(print_bed_max[0], first_layer_print_min[0] + 32) - 32)) : (((first_layer_print_min[1] - 7) < -2) ? 260 : (min(print_bed_max[0], first_layer_print_min[0] + 32) - 32))), first_layer_print_min[0])) + 32} Y{(min((first_layer_print_min[1] - 7), first_layer_print_min[1]))} Z{5} F{(travel_speed * 60)}
; nozzle cleanup
G29 P9 X{((((first_layer_print_min[0] + first_layer_print_max[0]) / 2) < ((print_bed_min[0] + print_bed_max[0]) / 2)) ? (((first_layer_print_min[1] - 7) < -2) ? 70 : (min(print_bed_max[0], first_layer_print_min[0] + 32) - 32)) : (((first_layer_print_min[1] - 7) < -2) ? 260 : (min(print_bed_max[0], first_layer_print_min[0] + 32) - 32)))} Y{(first_layer_print_min[1] - 7)} W{32} H{7}

M107 ; turn off the fan
