Chặn Tóc Cho Lỗ Thoát Nước Bồn Tắm hoặc Vòi Sen

Chặn tóc cho lỗ thoát nước bồn tắm hoặc vòi sen

A very effective catcher for catching hair in the bathtub or shower. Not suitable for kitchen sink.

Recommended 3D printing settings: Material: PETG (recommended) or other Nozzle: 0.4mm Layer Height: 0.2 mm Wall Line Count: 4 Top Layers: 4 Bottom Layers: 4 Infill: 30% or more Support needed: No

The files are stored in the print position.

Material consumption: 23g (for diameter 42 mm)

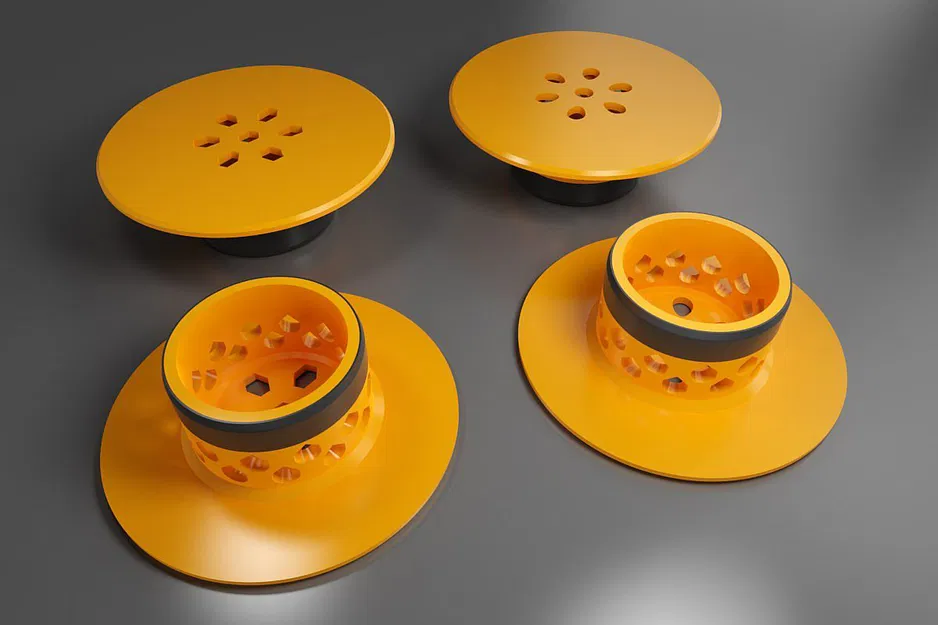

Dimensions are for a classic 42 mm diameter drain for a bathtub or shower. There are 2 versions:

• With round/oval holes

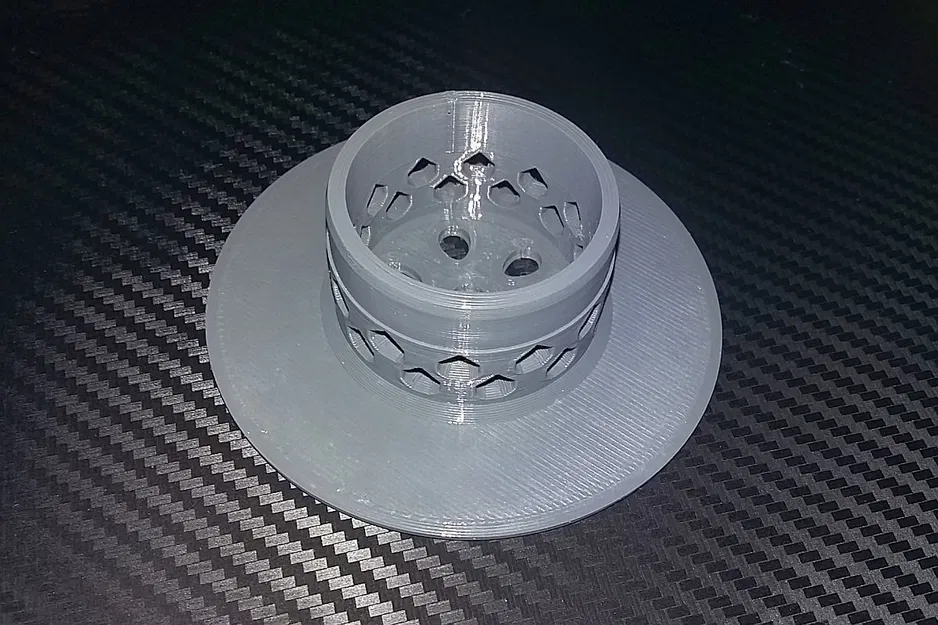

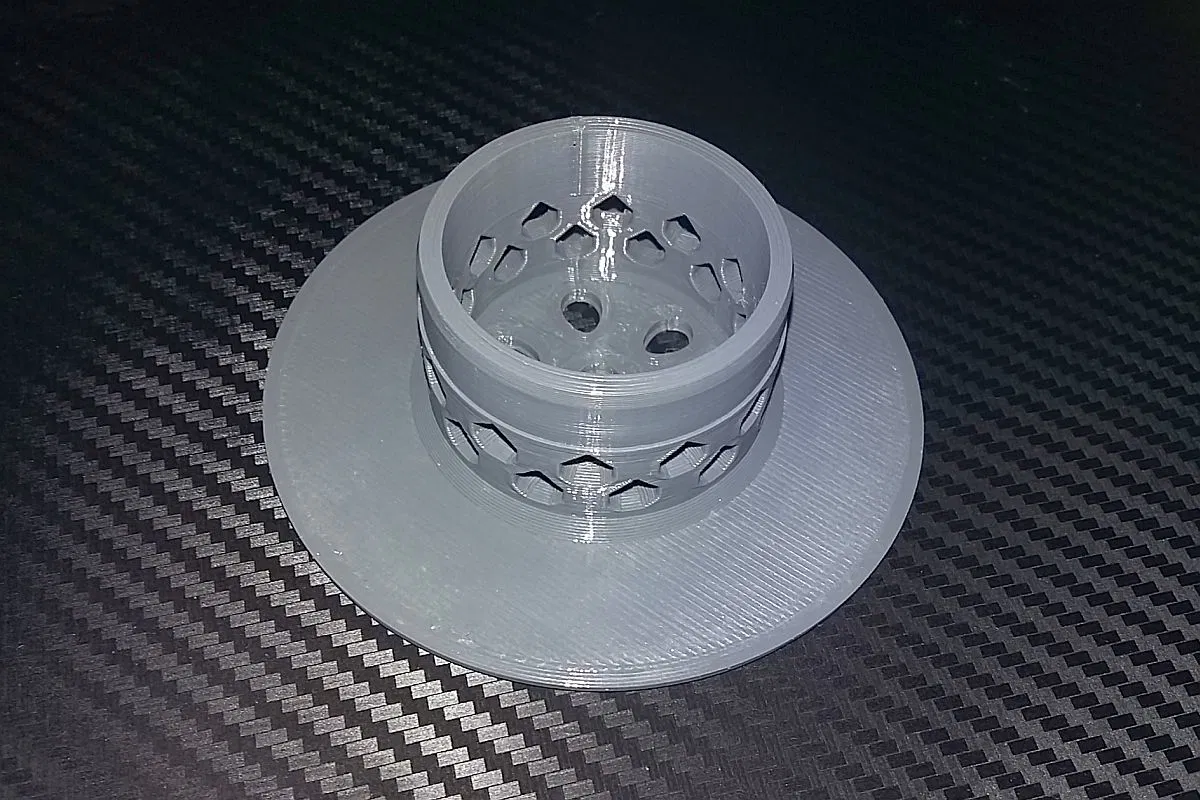

• With hex holes

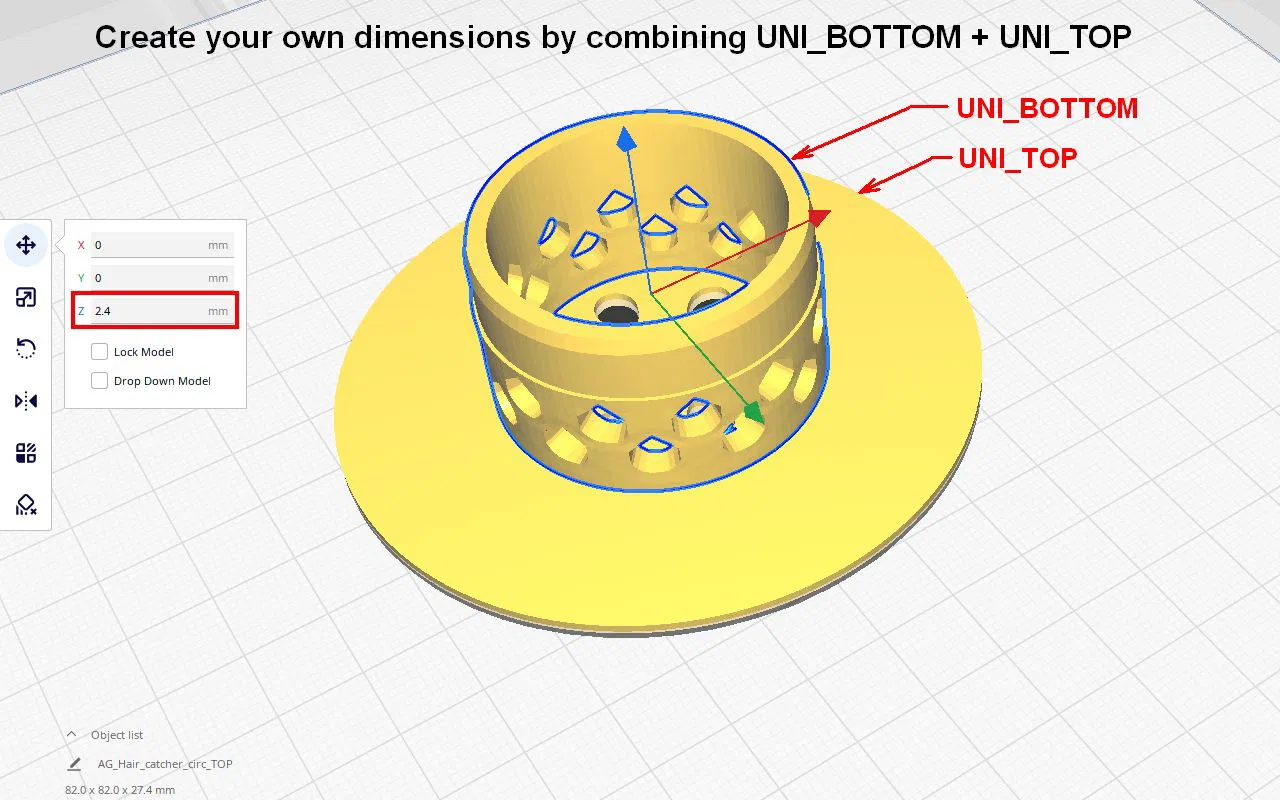

If you have a different drain diameter, you can also combine the UNI_TOP and UNI_BOTTOM parts and change the size to create a catcher of the appropriate size. For UNI_BOTTOM, set the Z offset: 2.4 mm.

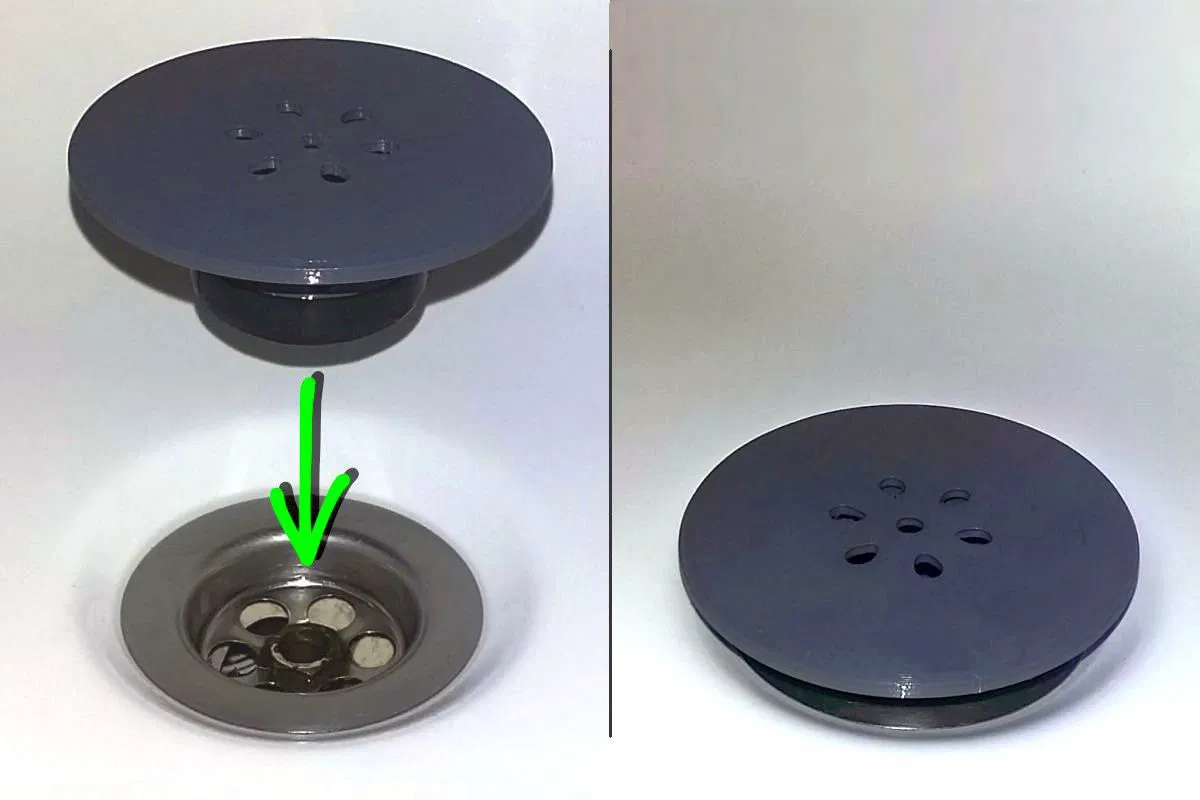

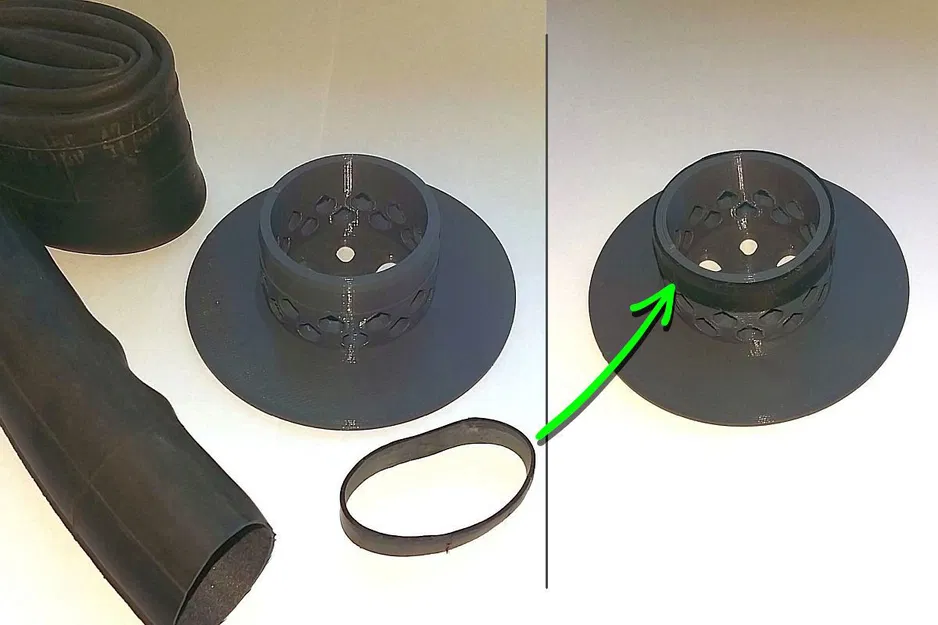

Important! It is important that the catcher is inserted tightly into the drain. The rubber collar from the inner tube of the bike is used for this. If the catcher is not tightly inserted, it can float in the water and will not catch anything.

To check if the catcher fits properly, print out the TEST model first and test if it fits snugly enough.

Bottom diameter: 42.5 mm (for 42 mm drain diameter) Top diameter: 82 mm
