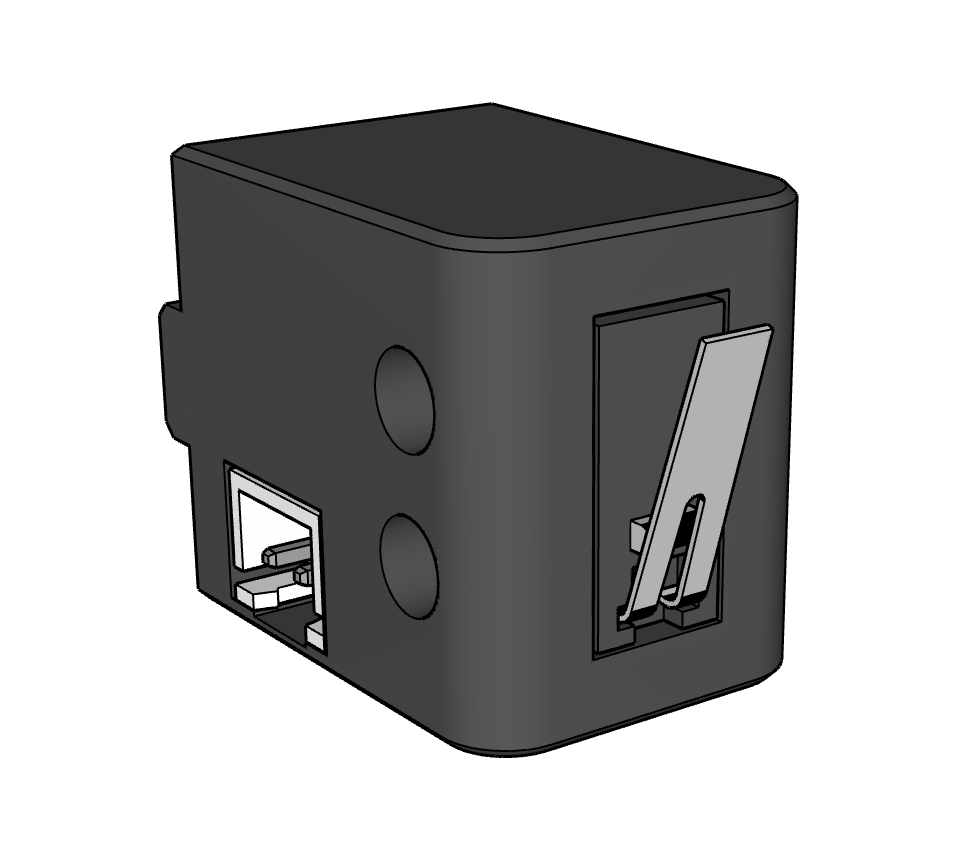

Cái Kẹp Cảm Biến Vị Trí Trục Y Cho Voron

BOM

1x M5 T-nut/Rollin nut

1x M5x8 bolt

1x Microswitch (D2F-L)

1x JST-SH Female

2x M2x10 self tapping screw

Cables for soldering the JST to the Microswitch

Installation

• Solder the cables to the JST connector
• Push the JST in place and solder the cables to the microswitch with some slack to hang it out the block

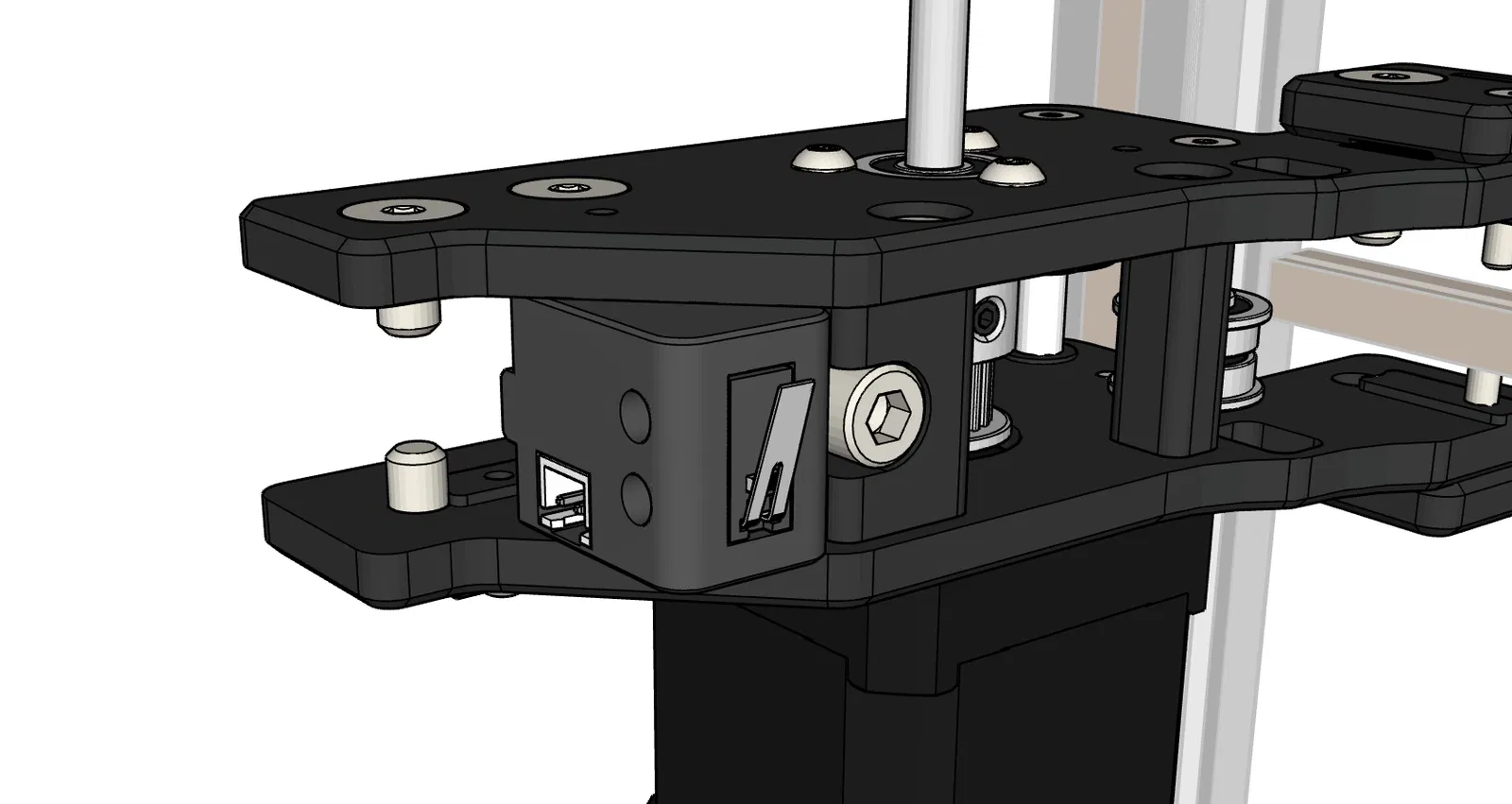

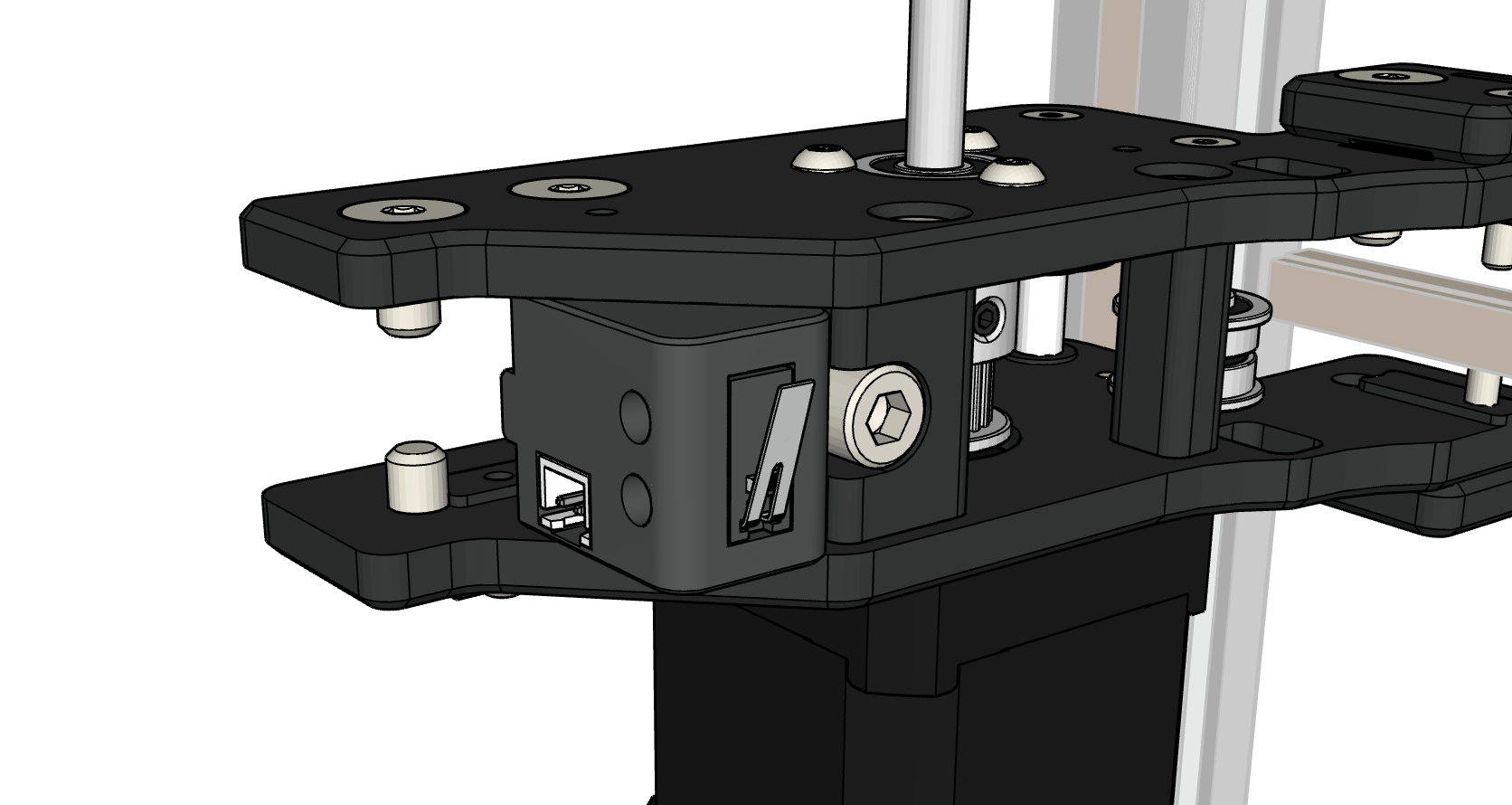

• Mount the stop to the extrusion from the inside of the block
• Push the microswitch in place and lock it in place with the self tapping screws
