Giá đỡ BlTouch Nhanh & Dễ dàng cho Kossel Mini E3D V6 Effector
Cách nhanh chóng và dễ dàng để gắn BlTouch Z-probe vào đầu in Kossel Mini E3D-v6 cho máy in Delta. Bao gồm bộ đệm BlTouch có thể tùy chỉnh và đường đi dây. Dự án này đã được sửa đổi để phù hợp với bộ điều khiển effector đã sửa đổi của tác giả.
Mô tả
CHƯA KIỂM TRA

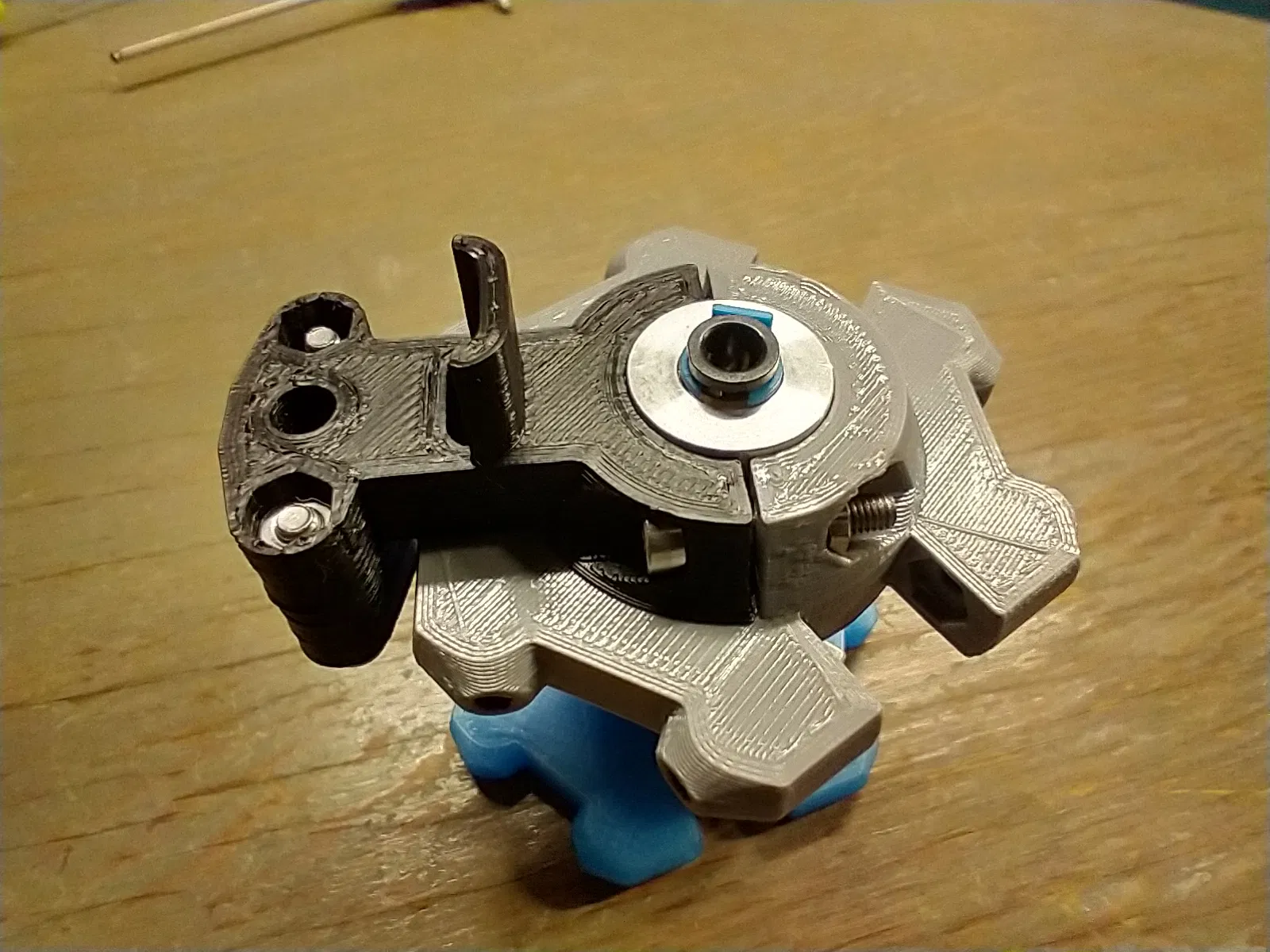

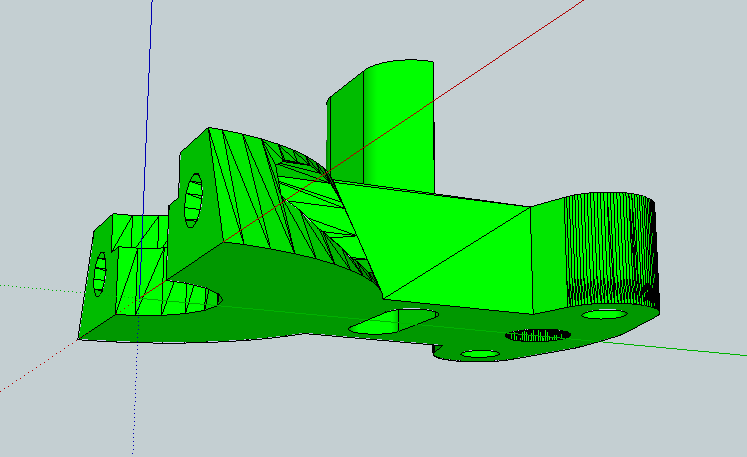

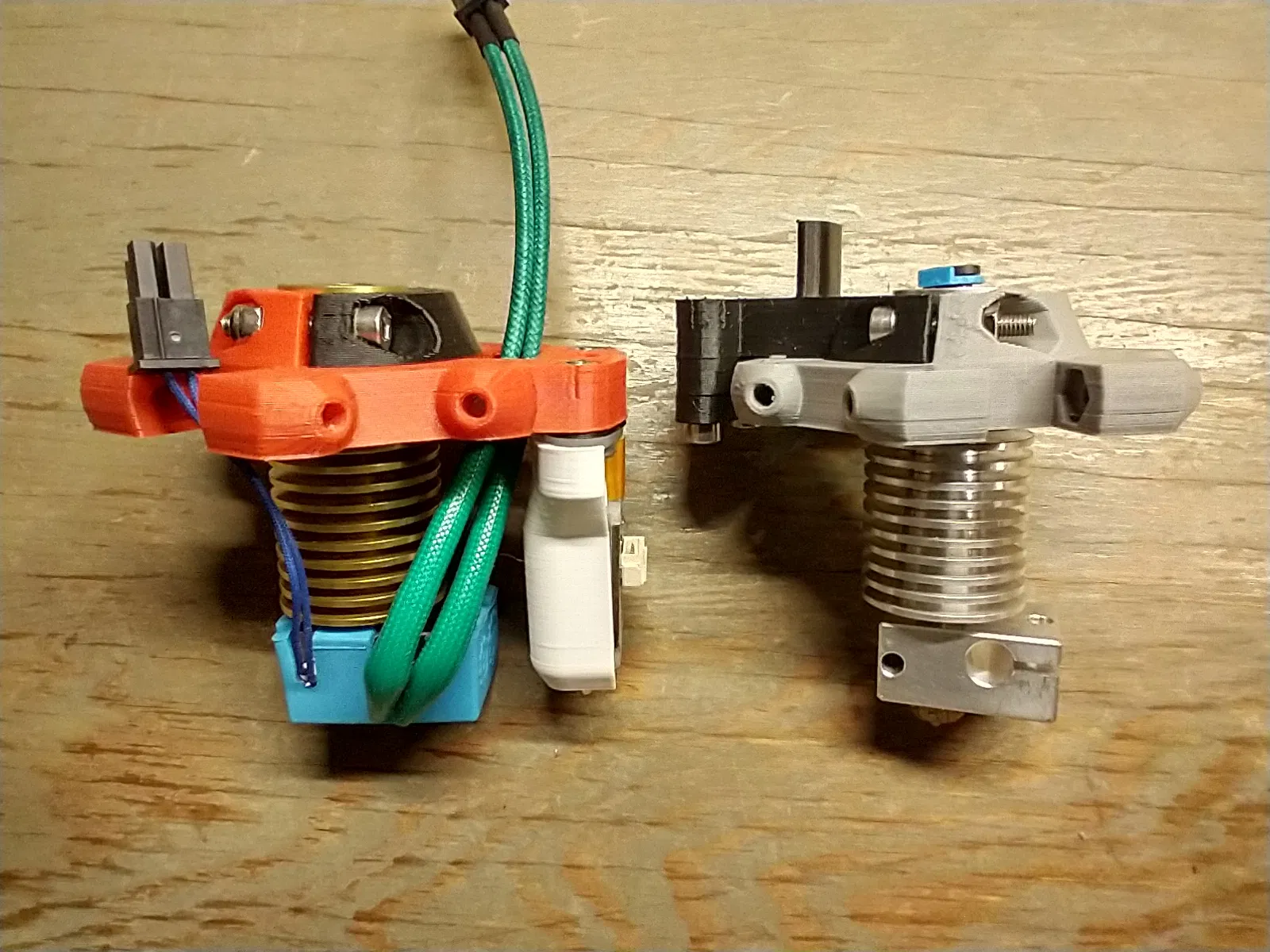

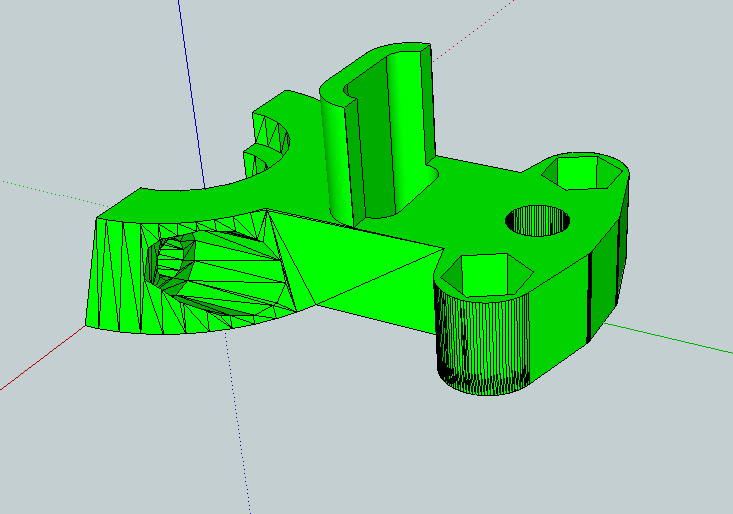

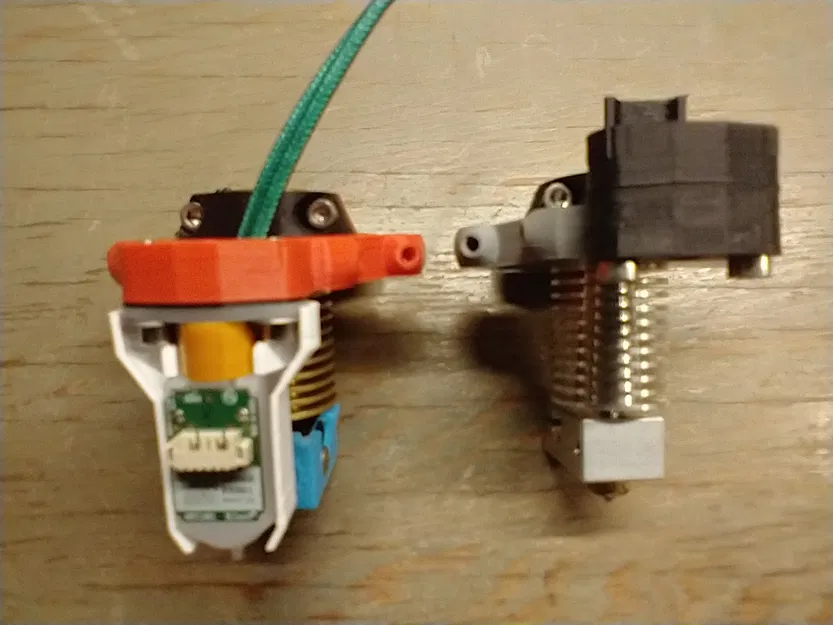

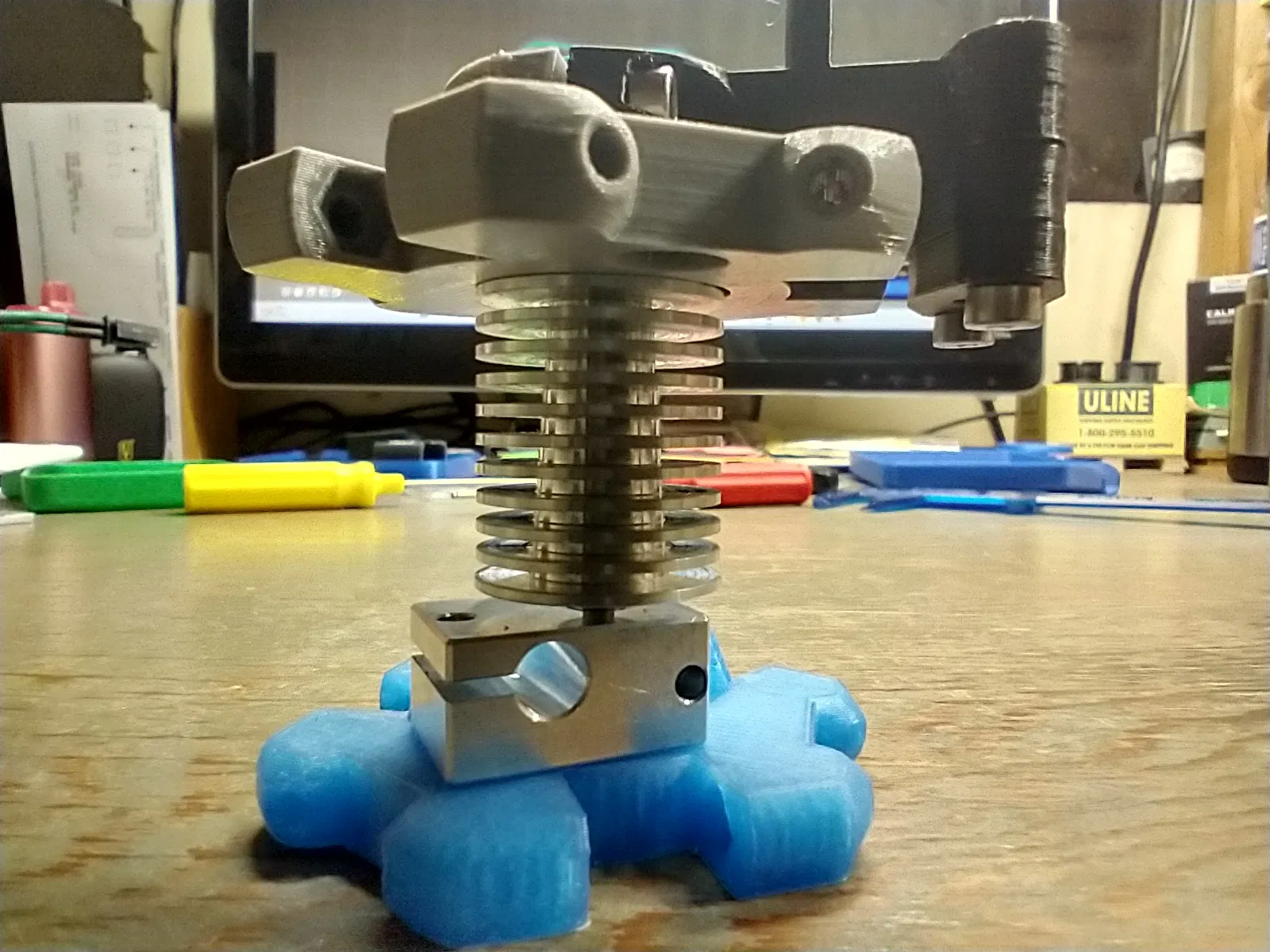

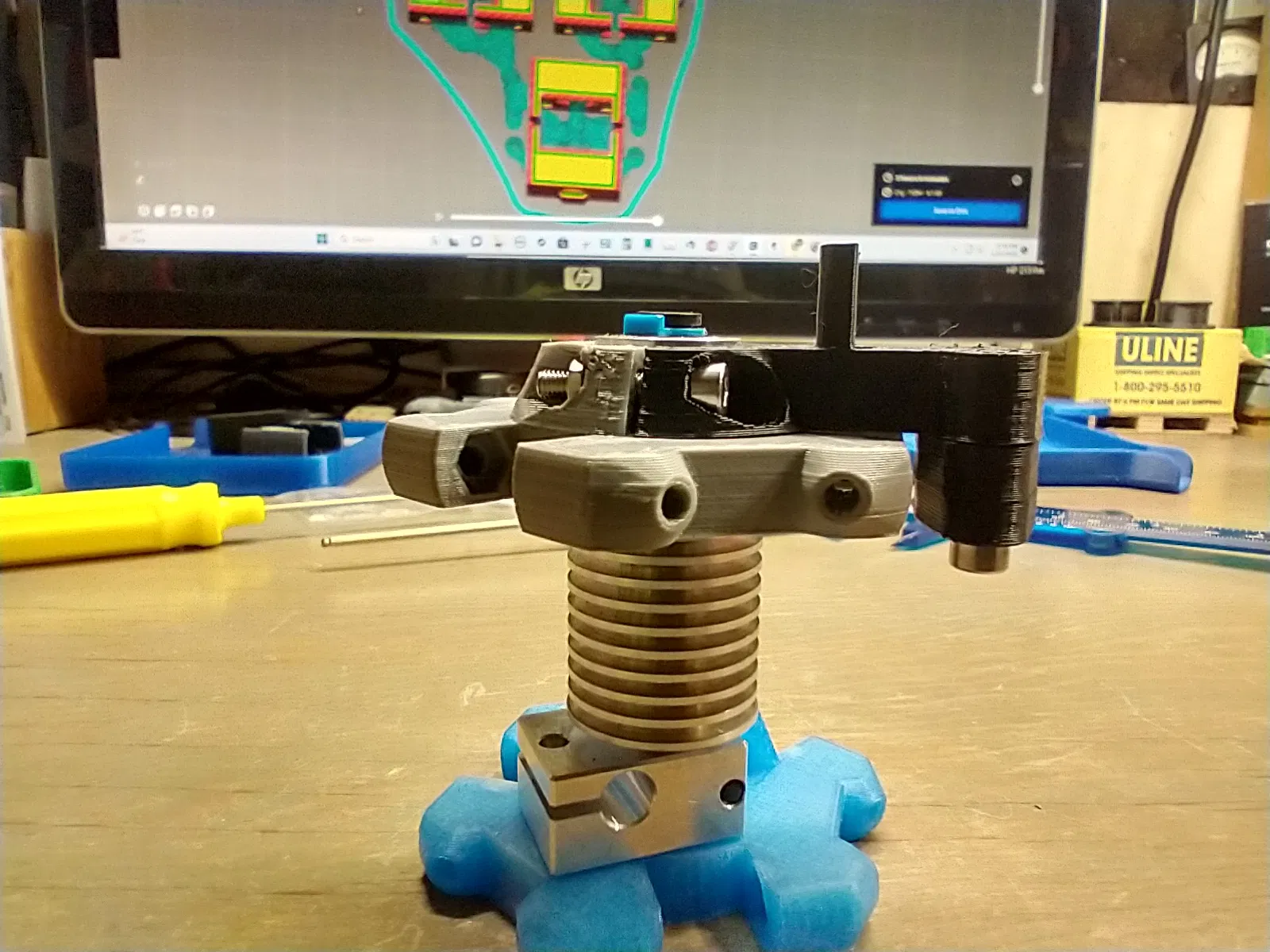

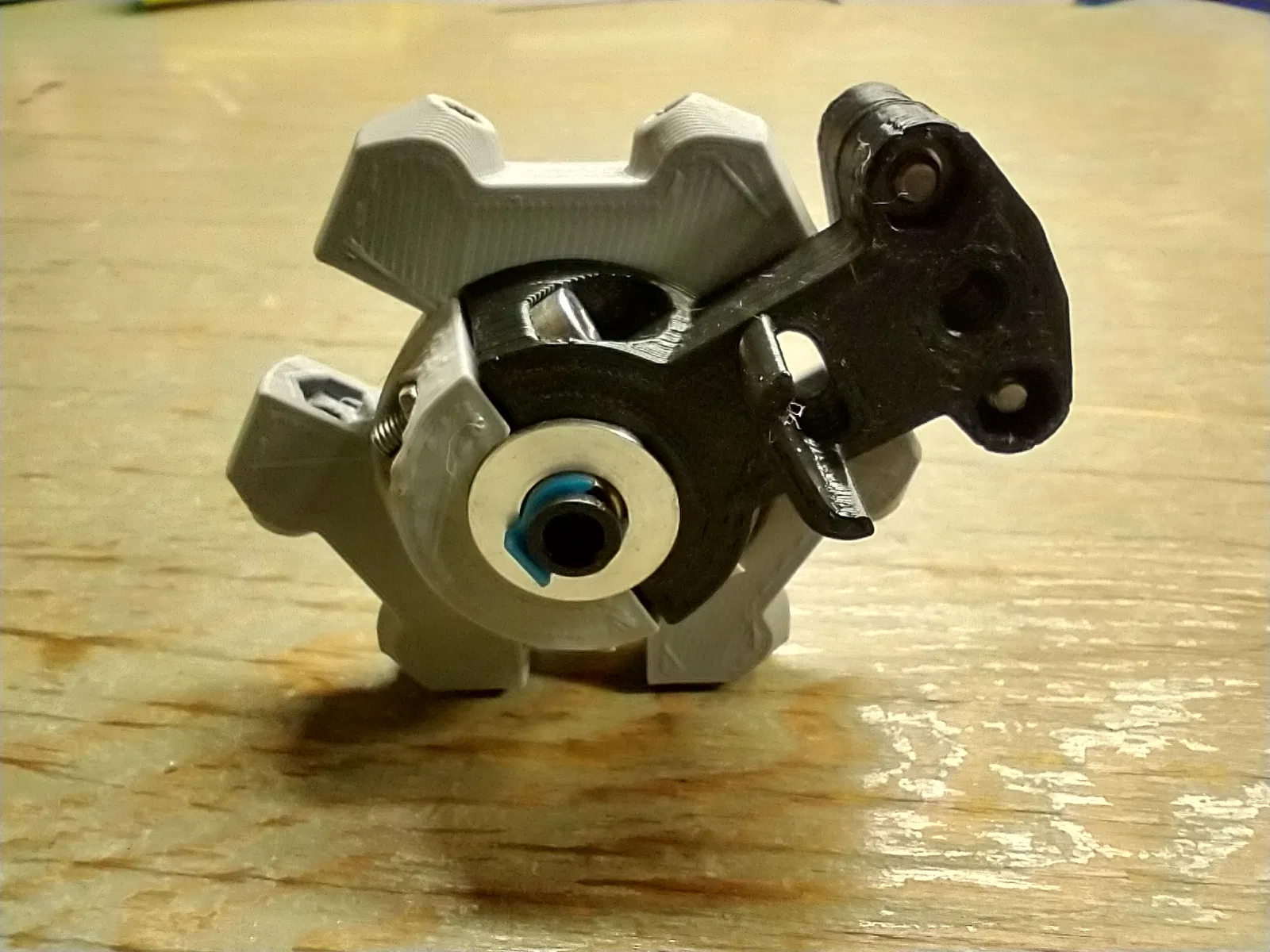

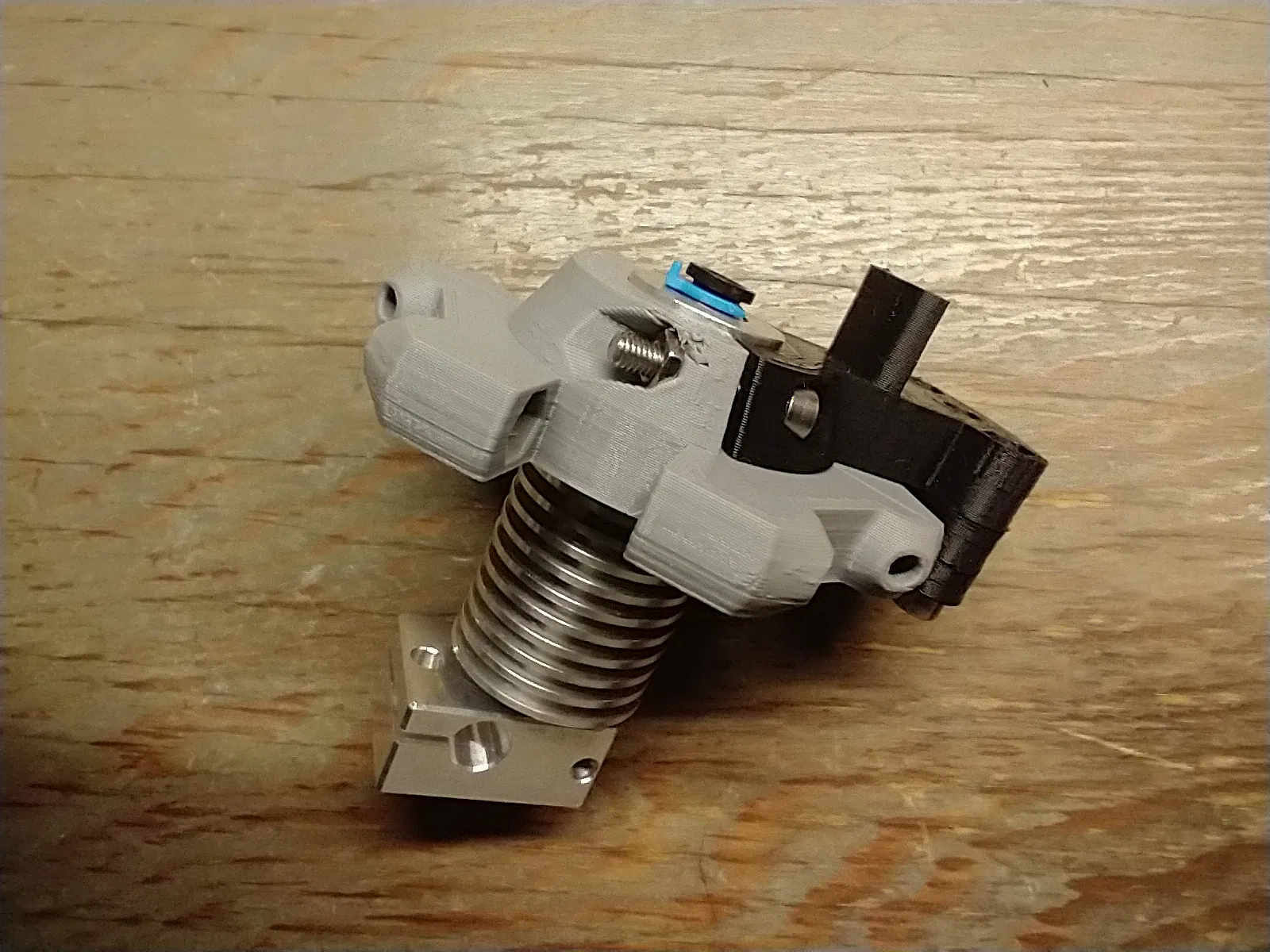

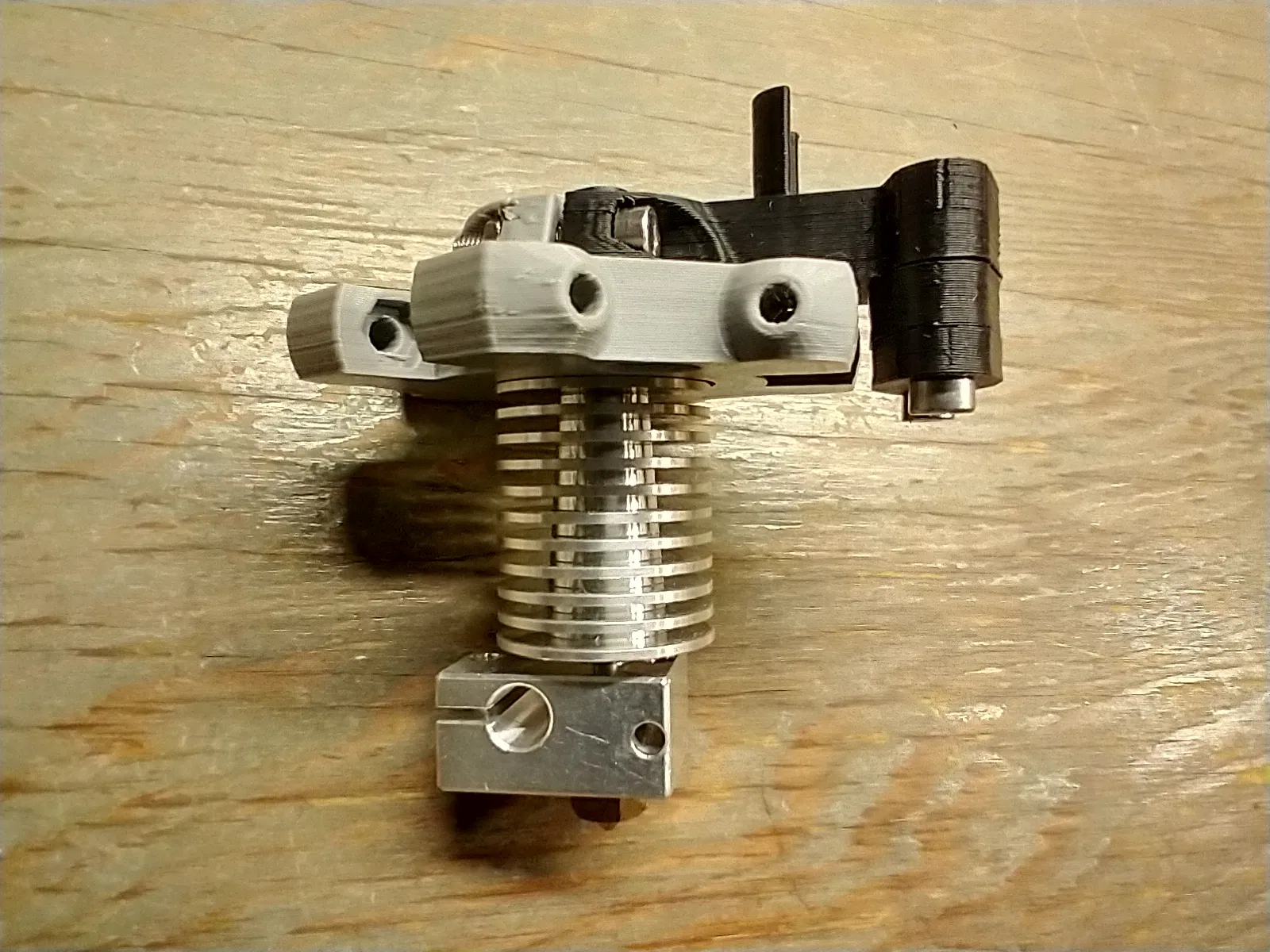

A quick and easy way to add a BlTouch Z-probe to the Kossel Mini effector for E3D-v6 hotend with 40mm spacing between Traxxas rod ends. You need to print the modified clamp and the appropriate BlTouch spacer to get the correct distance above the nozzle. Includes a cable pass-through for the BlTouch wires as well as the other hotend wires.

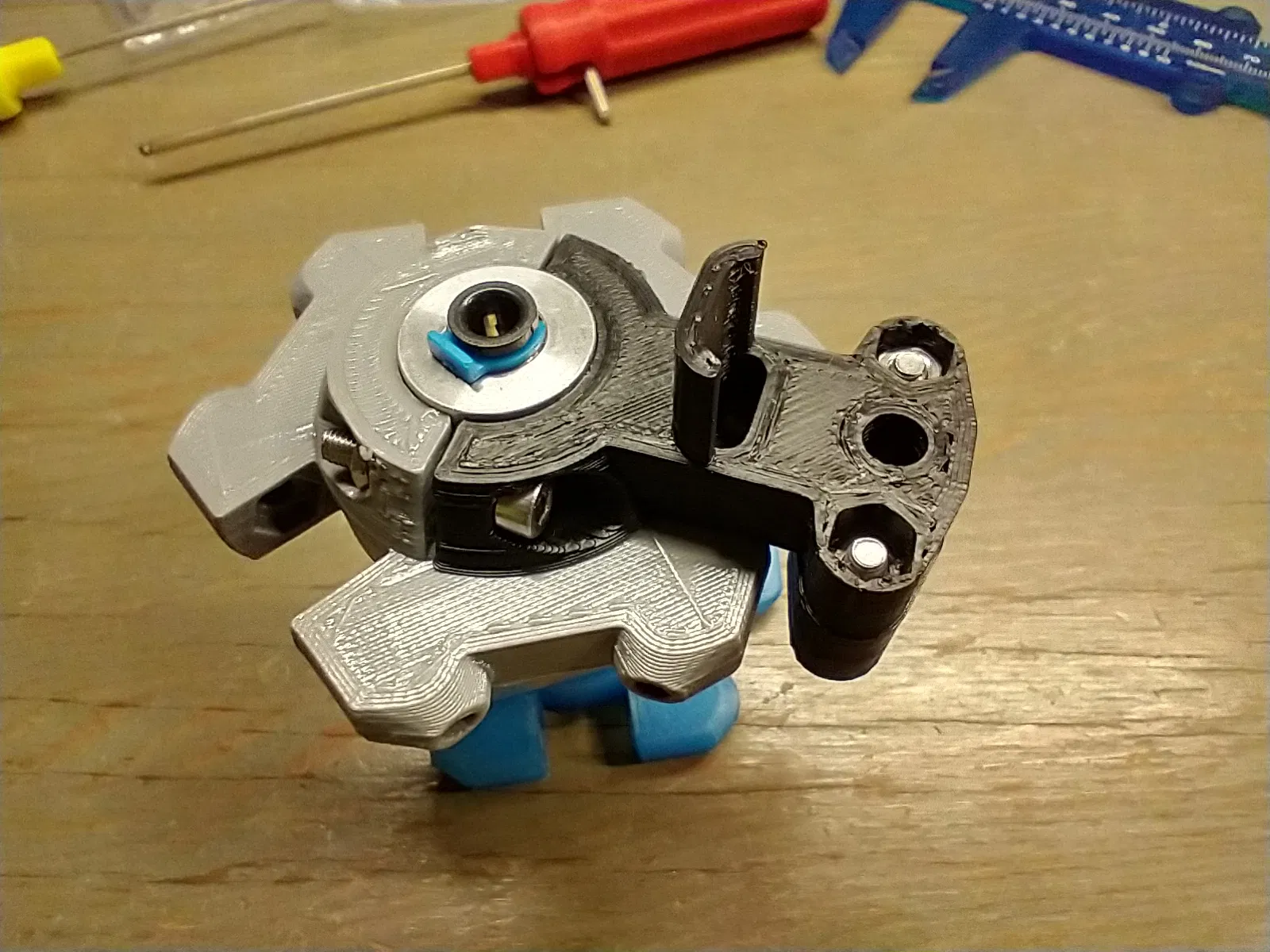

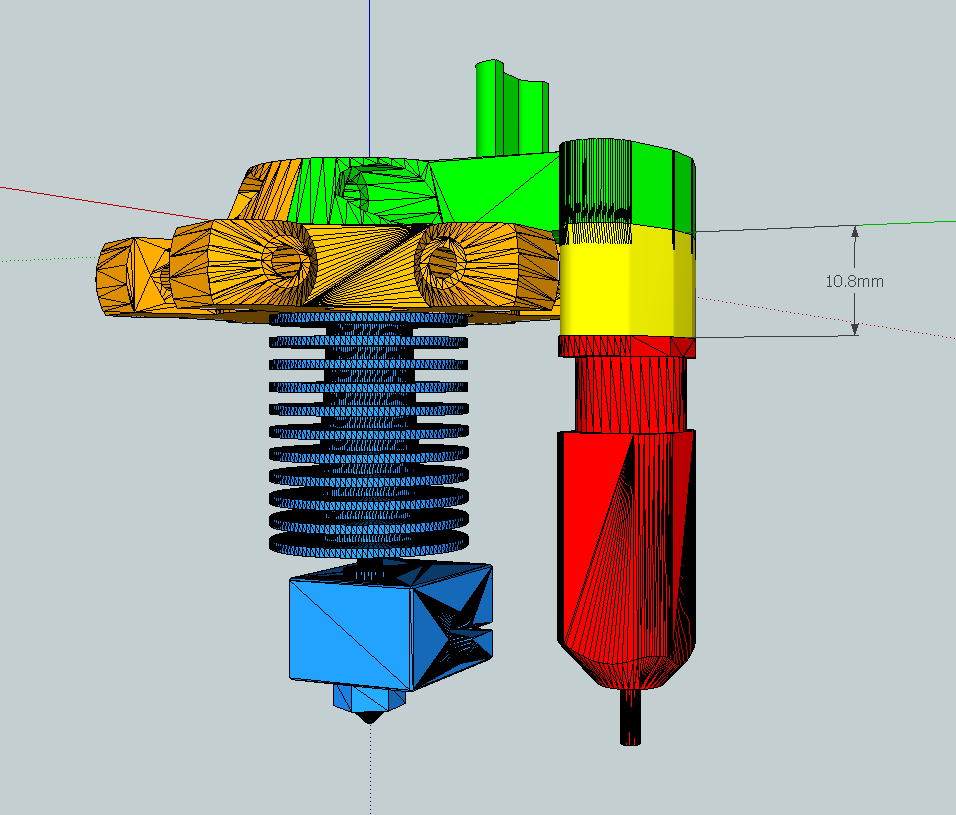

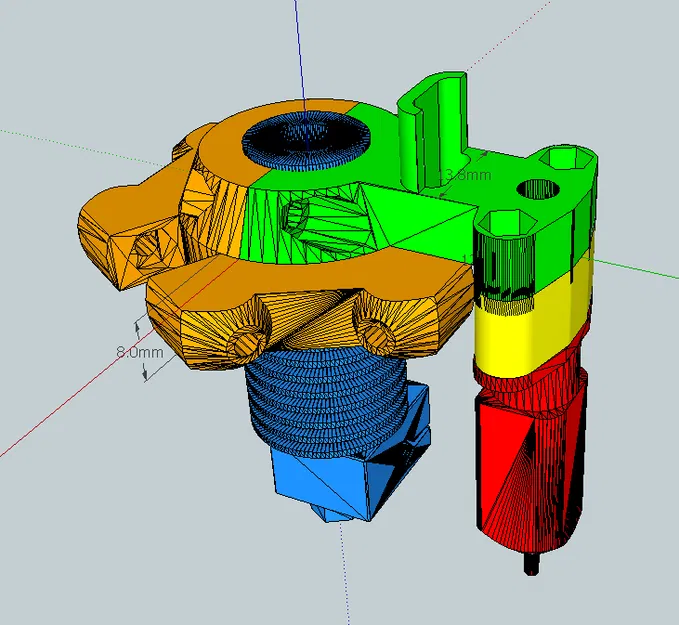

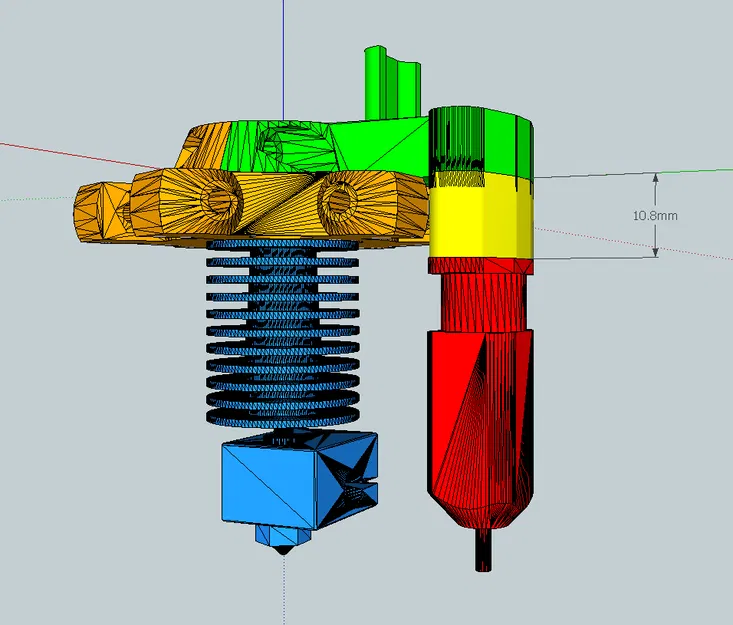

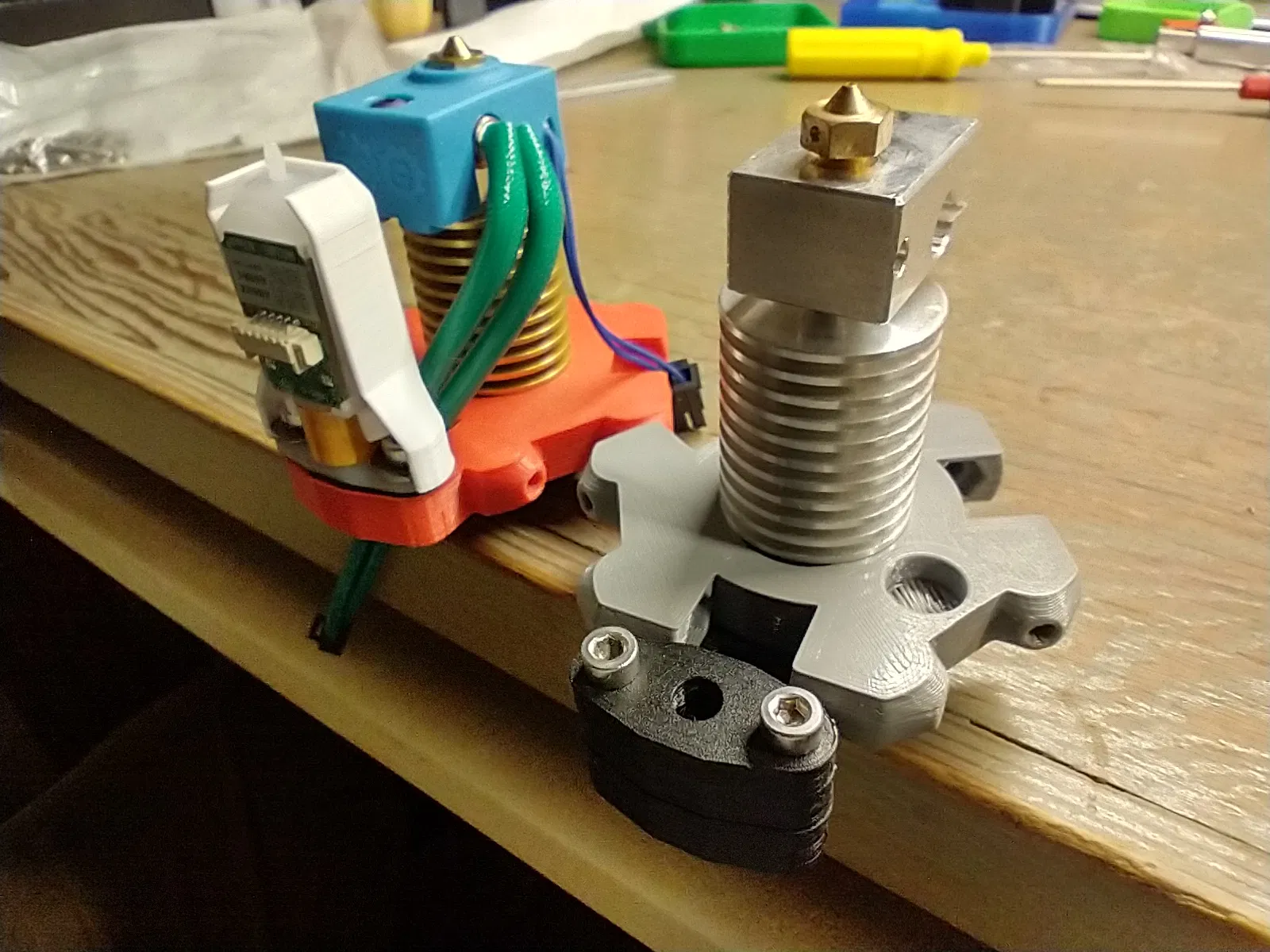

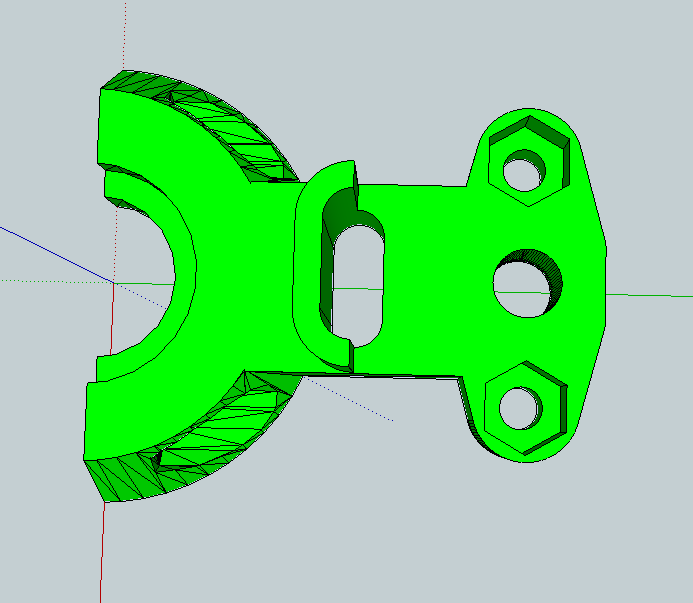

I modified a BLTOUCH 3D WASHER to 9.0 mm in SketchUp; I have included various sizes (as indicated by the file name) in case your setup is different. The 9.0 mm spacer looks about right in my mock-up. The first set of numbers is the height in mm, the last number is just my design iteration (Example: blt_9.5_spacer_1.2.3 is 9.5 mm tall).
I have not printed this as I ended up modifying the effector instead, which can be found HERE: /3d-model/kossel-mini-e3d-v6-effector-kem-ngam-gan-bltouch
