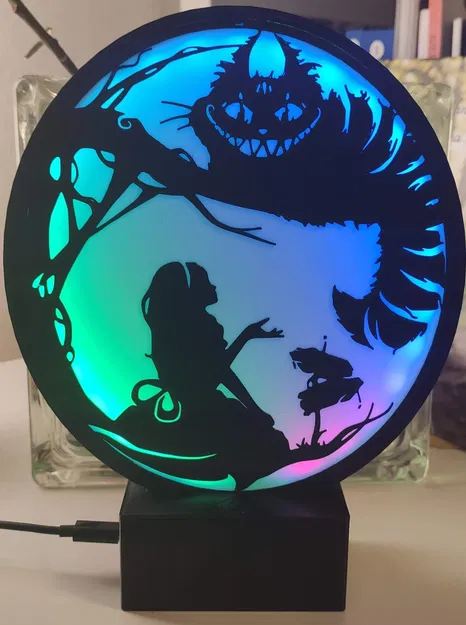

Đèn LED Alice ở xứ sở thần tiên

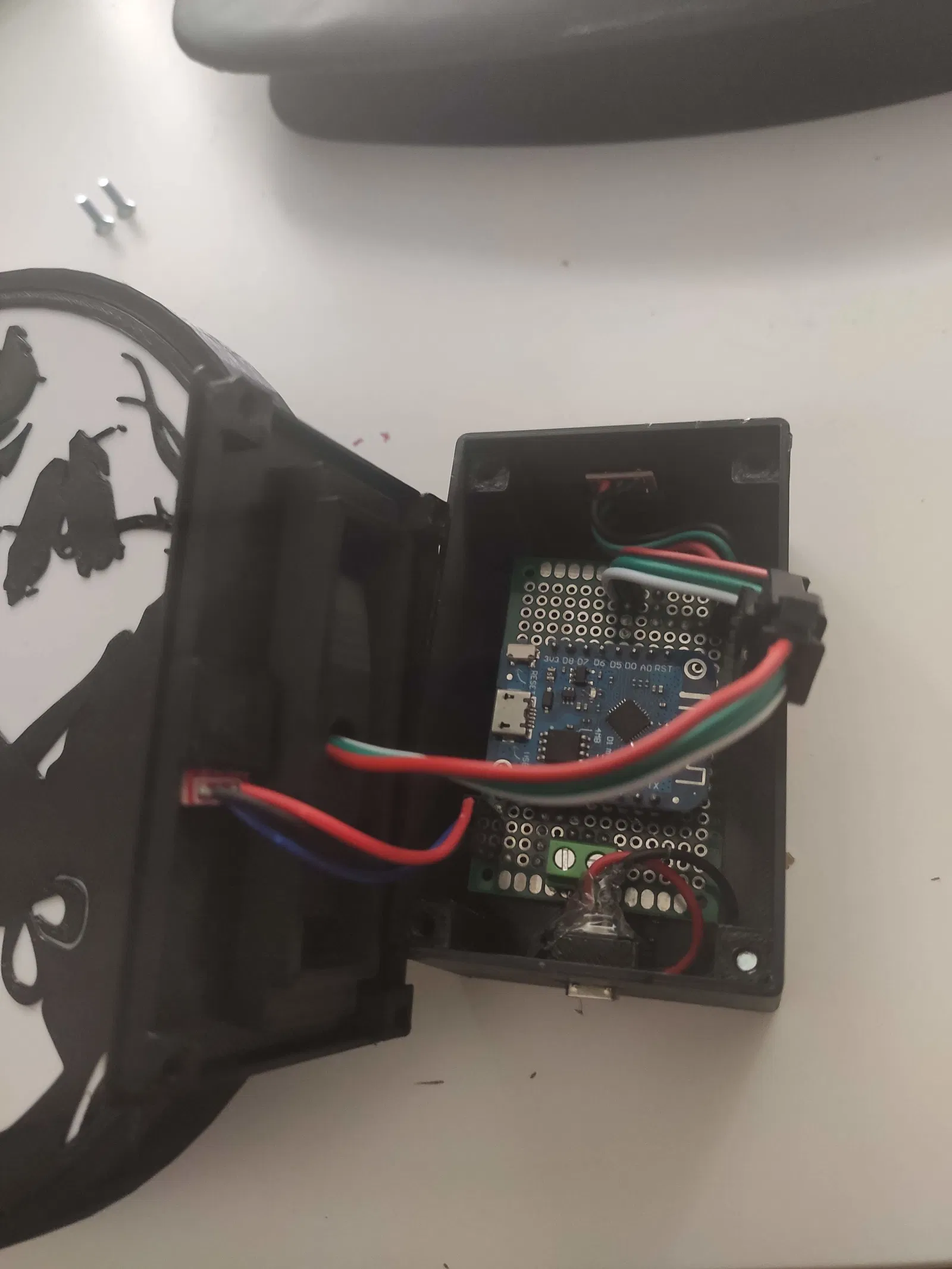

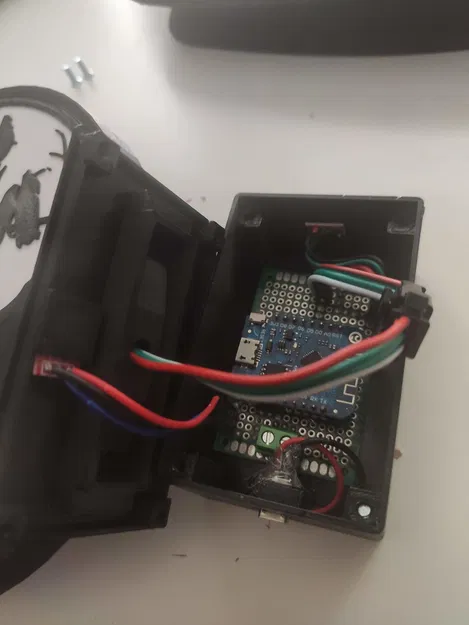

Bản remix này dựa trên https://www.thingiverse.com/thing:4686926 Đèn LED với họa tiết Alice ở xứ sở thần tiên. Đèn được điều khiển bởi ESP8266 sử dụng ESPHome. Linh kiện: * 2x Cảm biến cảm ứng TTP223

• 1x ESP8266
• 1x Dải LED (WS2812)
• 4x Vít M3 8mm Sơ đồ đấu dây: Cấu hình ESPHome ```yaml substitutions: device: alice_in_wonderland name: Alice in Wonderland esphome: name: ${device} platform: ESP8266 board: d1_mini logger: level: INFO globals: - id: effect type: int restore_value: false initial_value: '0' binary_sensor: - platform: gpio pin: D7 internal: true name: Alice power filters: - delayed_on: 80ms on_press: then: - light.toggle: id: svetlo - platform: gpio pin: D6 id: collor_alice_1 internal: true name: Alice color filters: - delayed_on: 80ms on_press: then: - if: condition: - lambda: |- return id(effect) == 0; then: - light.turn_on: id: svetlo effect: Rainbow - if: condition: - lambda: |- return id(effect) == 1; then: - light.turn_on: id: svetlo effect: Wipe - if: condition: - lambda: |- return id(effect) == 2; then: - light.turn_on: id: svetlo effect: random - if: condition: - lambda: |- return id(effect) == 3; then: - light.turn_on: id: svetlo effect: Fireworks - if: condition: - lambda: |- return id(effect) == 4; then: - light.turn_on: id: svetlo effect: Twinkle_random - if: condition: - lambda: |- return id(effect) == 5; then: - light.turn_on: id: svetlo effect: Scan - if: condition: - lambda: |- return id(effect) == 6; then: - light.turn_on: id: svetlo effect: pulse - if: condition: - lambda: |- return id(effect) < 6; then: - lambda: |- id(effect) = id(effect)+1; else: - globals.set: id: effect value: '0' - logger.log: "else" ligh t: - platform: fastled_clockless id: svetlo chipset: WS2812 pin: D5 num_leds: 29 rgb_order: GRB name: "Světlo" effects: - random: - pulse: - addressable_color_wipe: name: Wipe - addressable_scan: name: Scan - addressable_random_twinkle: name: Twinkle_random - addressable_fireworks: name: Fireworks use_random_color: true - addressable_rainbow: name: Rainbow on_turn_off: then: - globals.set: id: effect value: '0'
