Kẹp Kính Mũ Bảo Hiểm Smith Holt / Smith Holt helmet goggles clip
Cái kẹp kính mũ bảo hiểm Smith Holt này được thiết kế lại chắc chắn hơn bản gốc bị gãy. In bằng PETG, không cần support, chỉ cần dùng 2 đoạn filament 1.75mm làm chốt là xong. Rất dễ in và lắp đặt, phù hợp cho các anh em hay đi trượt tuyết.
Mô tả
In PETG.
Does not need any support.
Two small holes are for pins from 1.75 mm filament pieces.

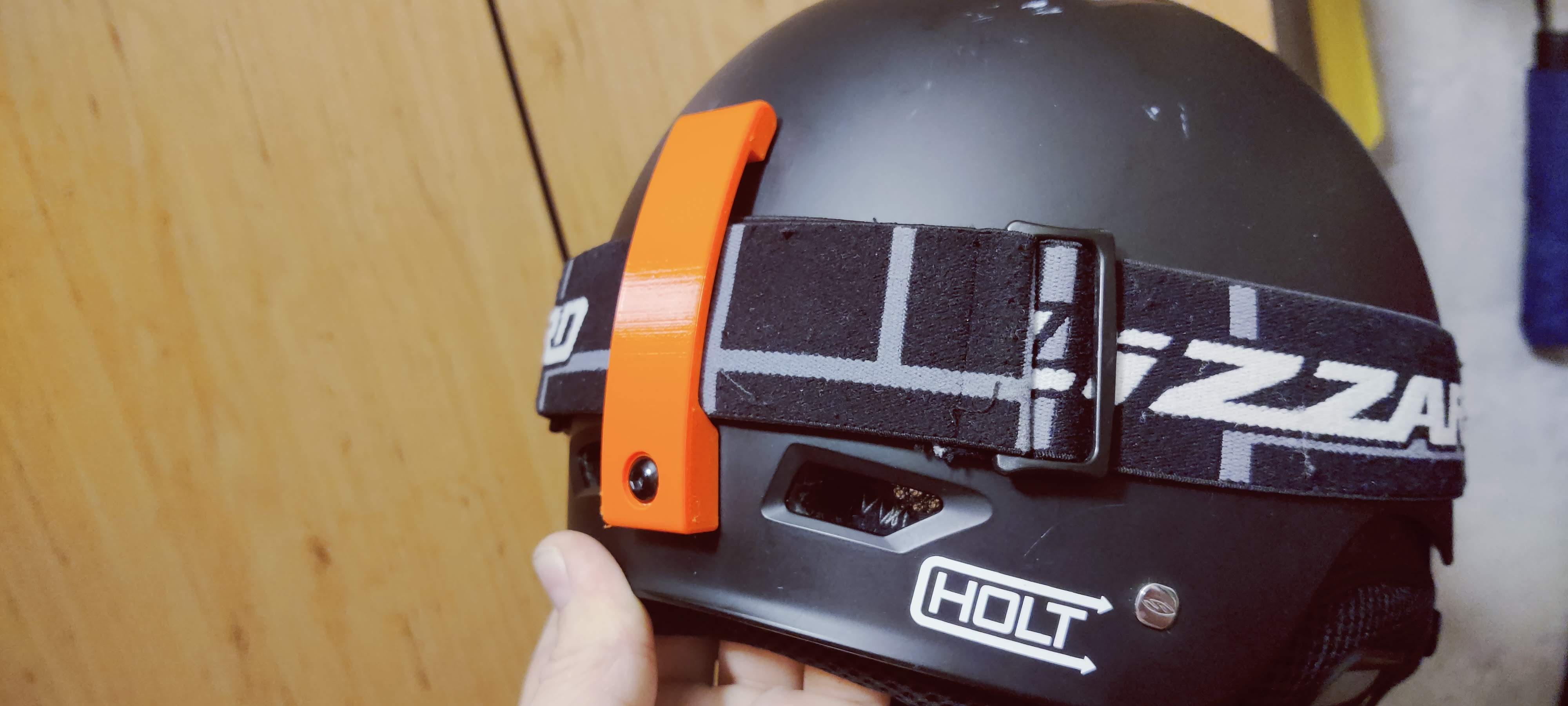

The original mount broke, luckily it was secured with a screw and held in place by two pins.
I designed a sturdier mount, and instead of pins, I put 2 holes there for inserting pieces of filament.
Printing requires no supports.
For possible modifications, it would be better to select the contact surface a bit, because the helmet is not completely flat at the mounting point, but the deviation is minimal.
