Mô Hình Tháp Phóng Saturn V (LUT) - Thiết Bị Bổ Sung - Tỷ Lệ 1:60

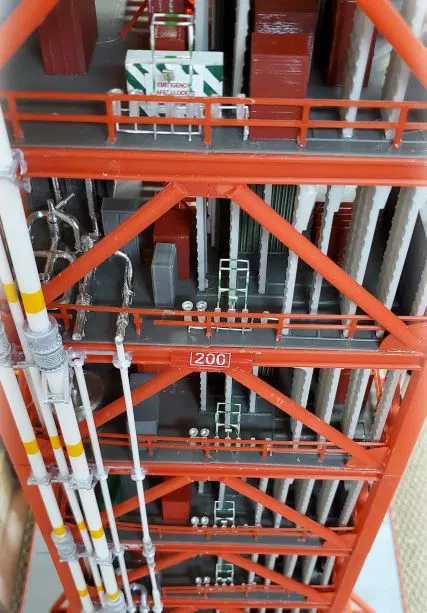

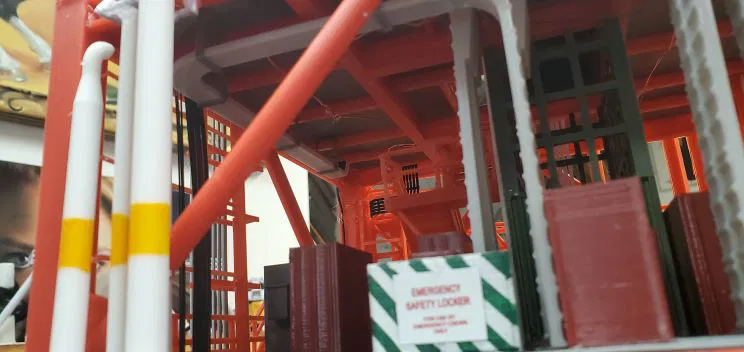

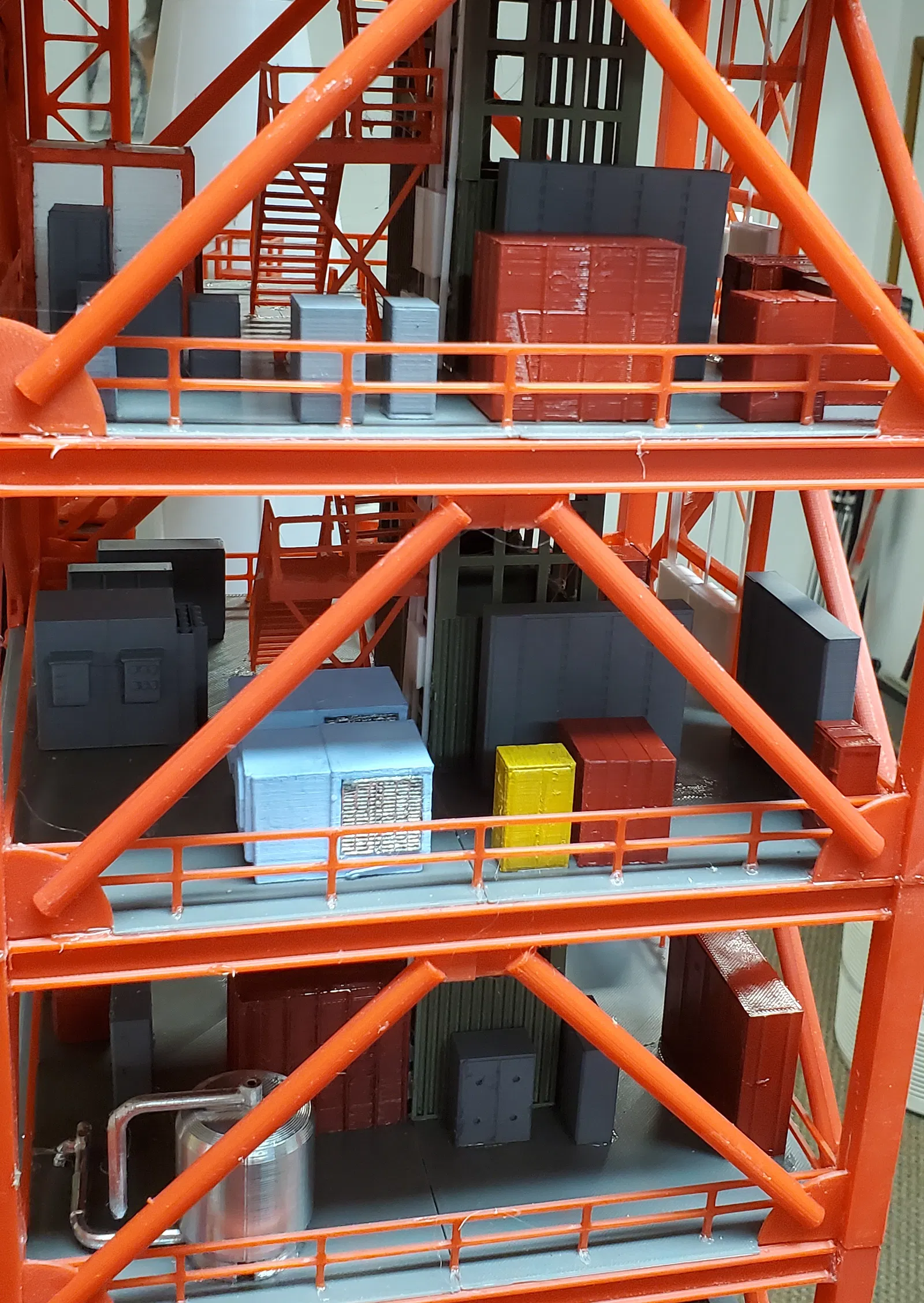

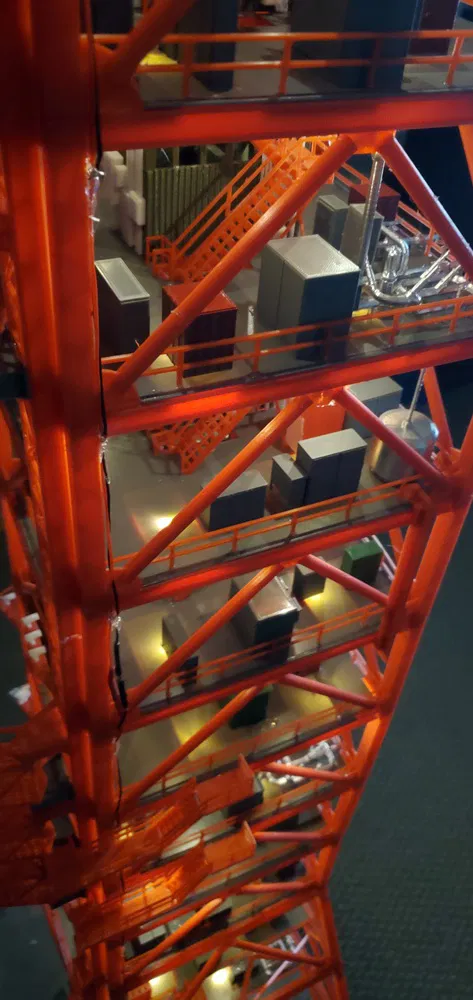

Bổ sung các thiết bị chi tiết như giá đỡ, hộp nối, đường ống cho mô hình Tháp Phóng Saturn V (LUT) tỷ lệ 1:60. Dự án này dựa trên mô hình của Paul Fischer và sử dụng các thiết kế 3D PDF được dịch sang tỷ lệ 1:60. Bao gồm cả các bổ sung từ Christine Zacharer và SMC321 để hoàn thiện cảnh quan mô phỏng.
👁️
10.1K
Lượt Xem
❤️
217
Lượt Thích
📥
1.6K
Lượt Tải
Cập Nhật Dec 18, 2025
Chi tiết
Tải xuống
Bình Luận
Khoe bản in
Remix
Mô tả
Nhớ tải về các tệp zip “Tất cả Tệp Mô Hình” và “Tất cả Các Tệp Khác” để có đầy đủ các tệp .stl cũng như các tệp .pdf hướng dẫn và bản vẽ bố trí thiết bị nha. (Link nằm gần cuối trang tải về)

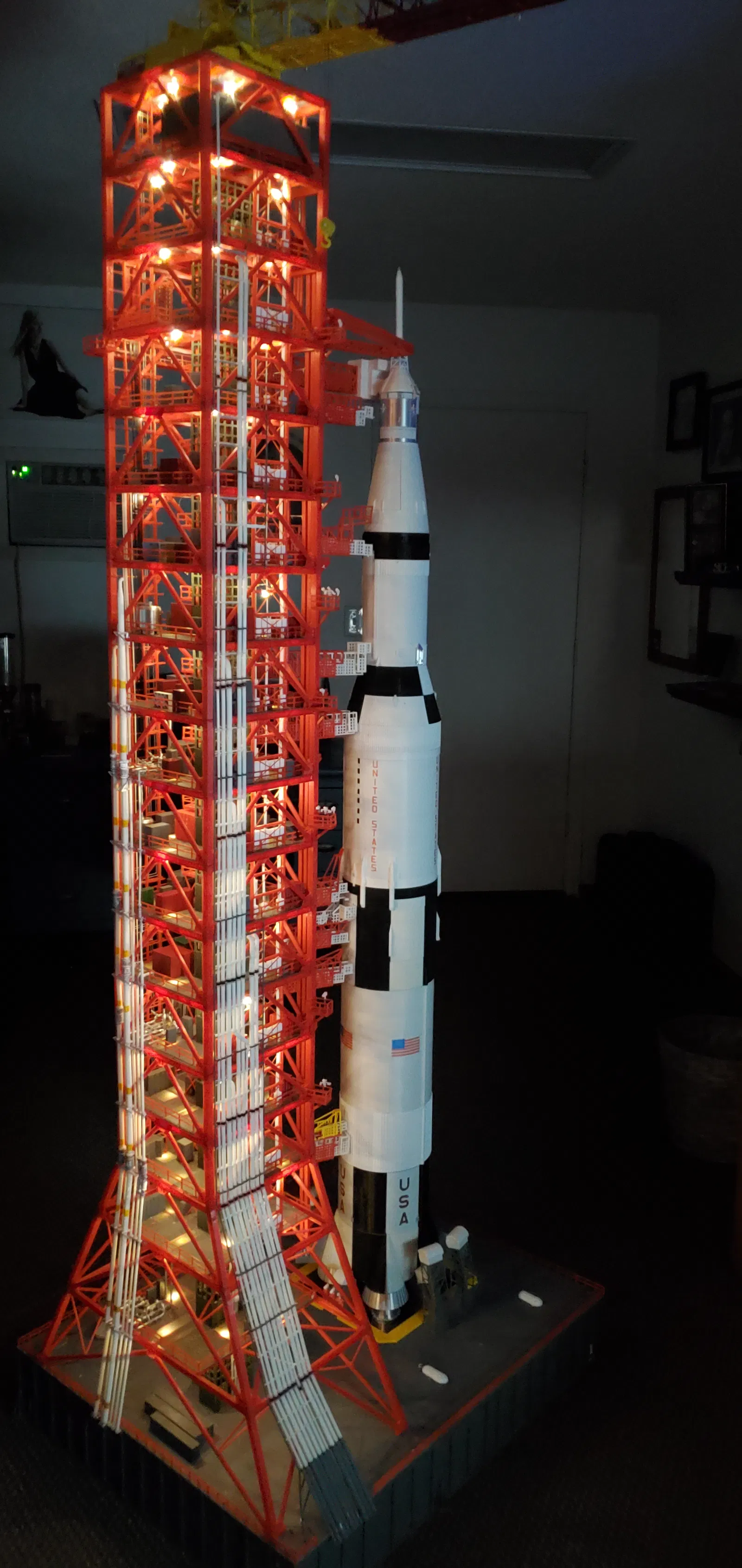

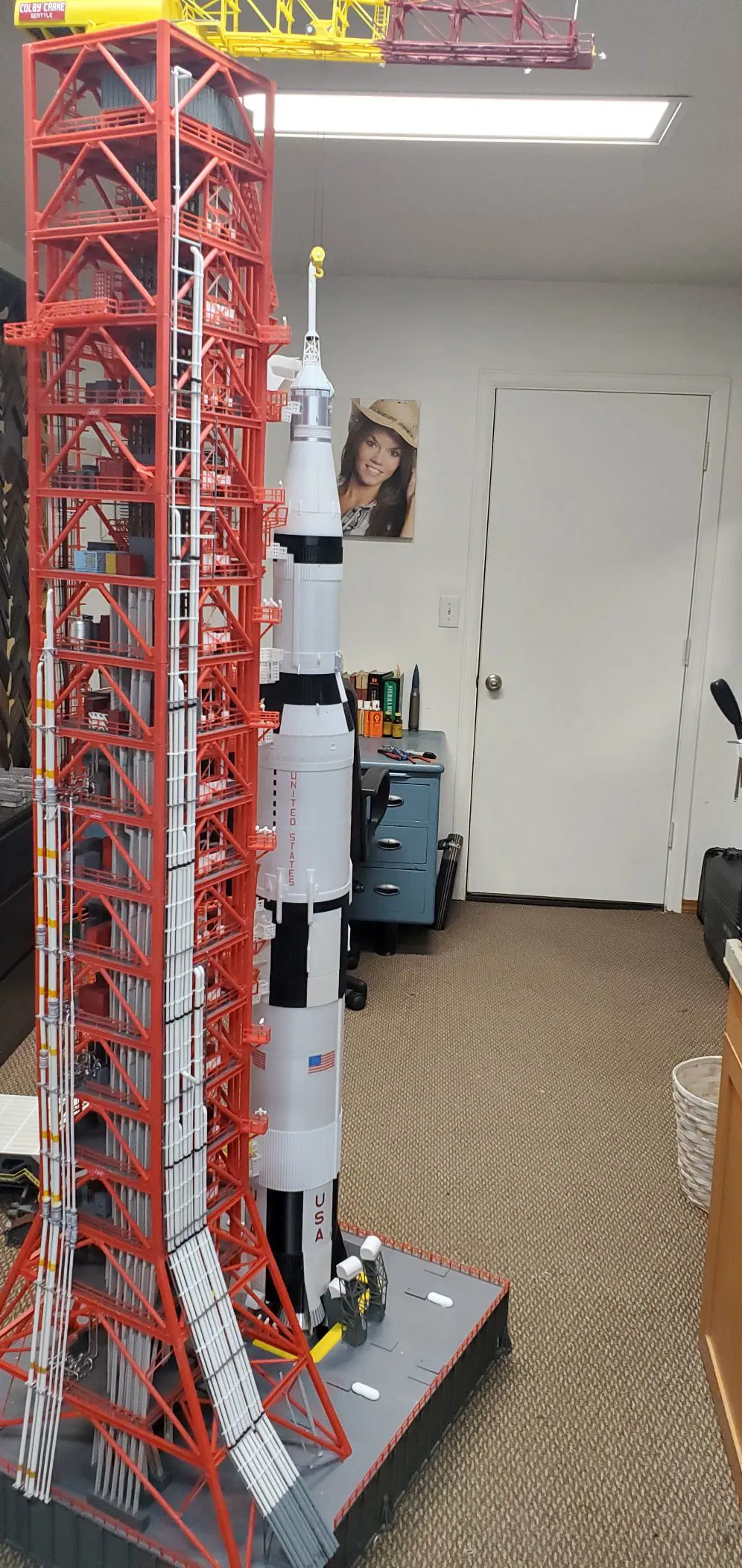

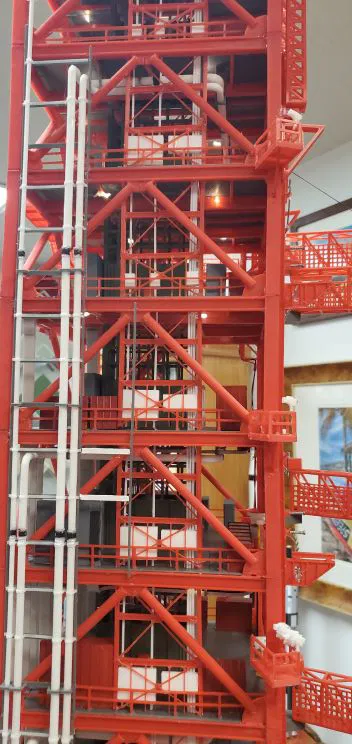

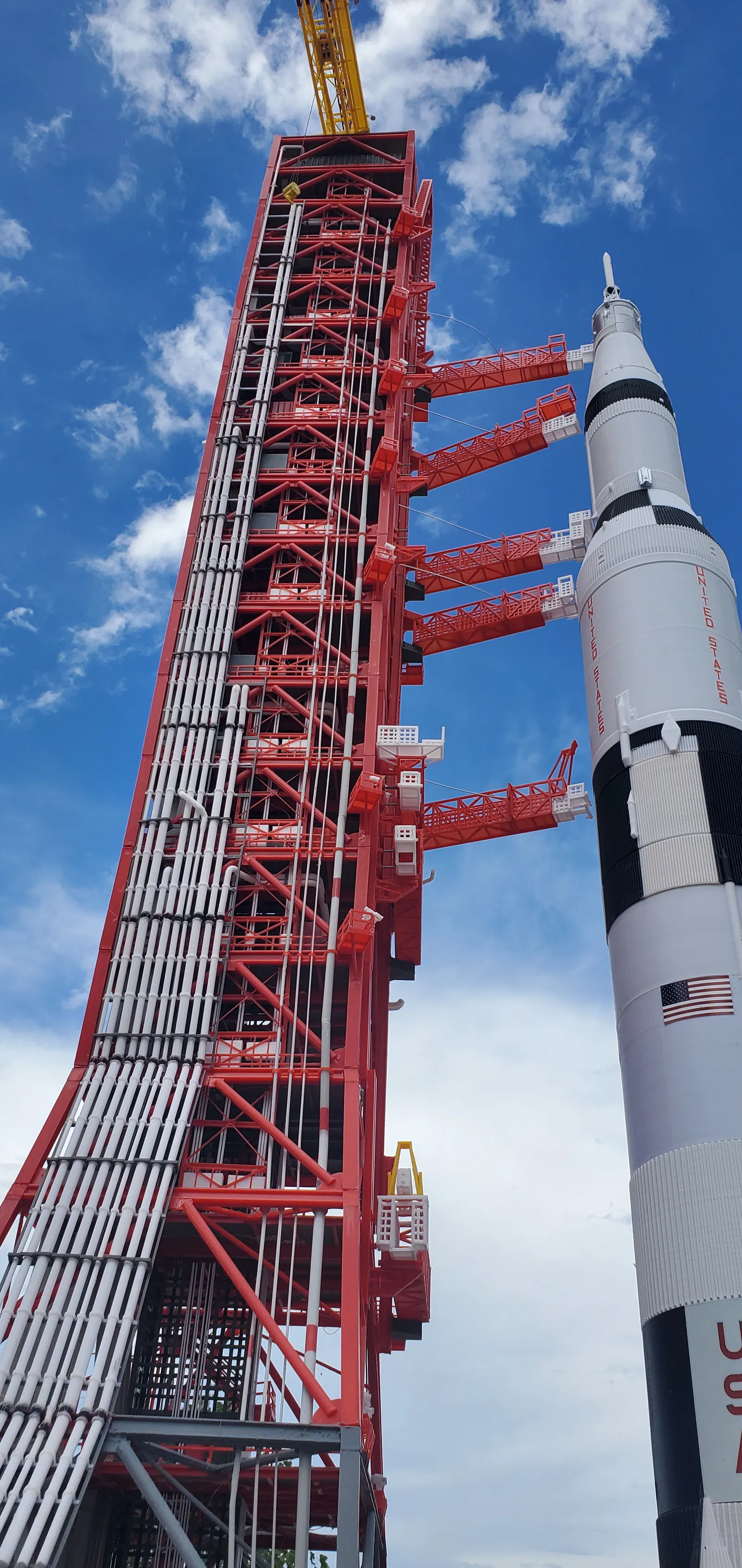

Được thiết kế để bổ sung cho Launch Umbilical Tower (LUT) của Paul Fischer (Farscape1) có tại https://www.thingiverse.com/thing:911891
Tháp phóng của Paul là một dự án lớn, nhưng nó không cung cấp các thiết bị chi tiết được lắp đặt ở mỗi tầng của LUT. Vì vậy, tôi đã tạo ra tất cả những thứ này bằng cách sử dụng các mô hình 3D PDF do Mischa Klement tại MicroArtwork tạo ra. Tôi đã dịch các thiết kế kỹ thuật số ban đầu của ông ấy sang tỷ lệ 1:60 cho LUT của mình.
Tôi bắt đầu dự án này vào ngày 1 tháng 7 năm 2021 khi bắt đầu in và chế tạo mô hình Saturn V tỷ lệ 1:60 của Emmanuel Robin. https://the-amphioxus.monsite-orange.fr.
Sau khi hoàn thành LUT của Paul, tôi đã bổ sung thêm cần cẩu Colby của Christine Zacharer, một dự án tuyệt vời khác (và cũng đầy thử thách)! (https://www.thingiverse.com/thing:4222791)
Sau khi hoàn thành cần cẩu Colby của Christine, tôi đã thêm
