Khay pin Gridfinity, mọi kích cỡ pin [nháp]

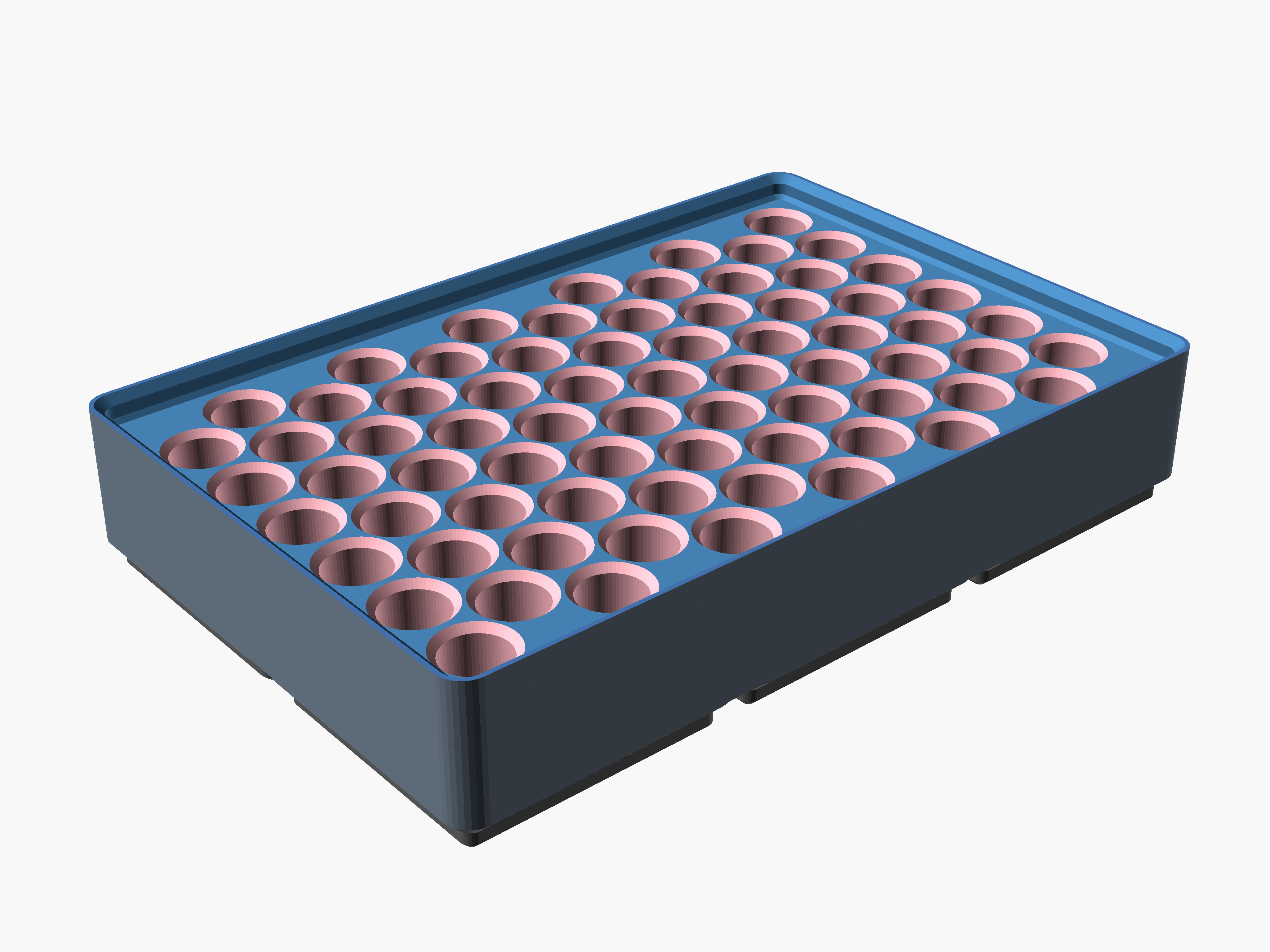

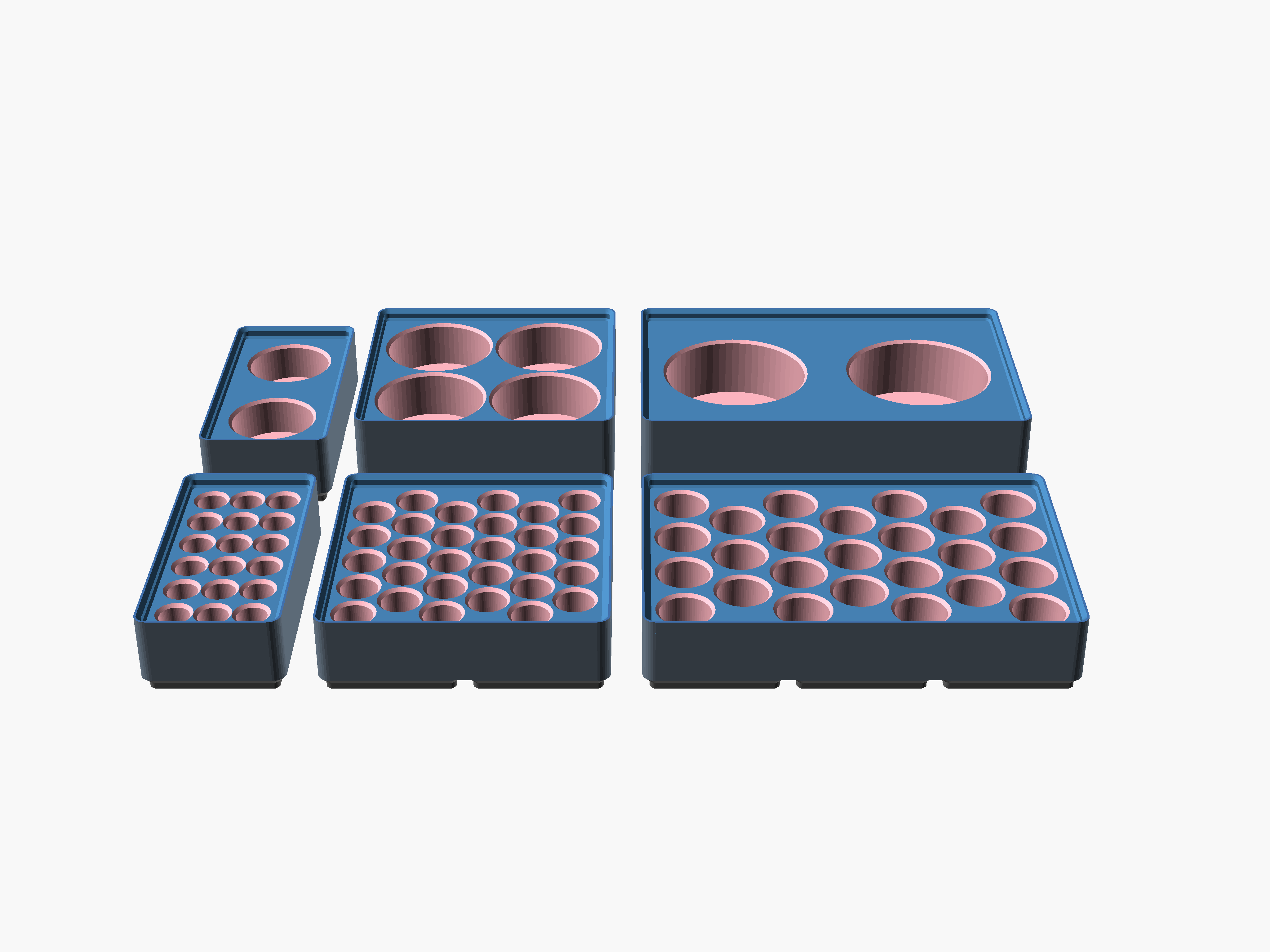

Khay Gridfinity đựng pin trụ, bao gồm mọi kích cỡ pin đã tìm được. Có các tùy chọn kích thước từ 1x1 đến 2x3, sử dụng hoa văn lục giác hiệu quả, chiều cao khay ¼ pin và vát cạnh trên mỗi lỗ. Khay có thể xếp chồng. Đây là bản nháp, chưa in thử.
![Khay pin Gridfinity, mọi kích cỡ pin [nháp] - Image 1](https://cdn.f3d.vn/uploads/public/693/c30/012/693c30012af6e974897814.png)
![Khay pin Gridfinity, mọi kích cỡ pin [nháp] - Image 2](https://cdn.f3d.vn/uploads/public/693/c30/01d/693c3001d146c501934501.gif)
![Khay pin Gridfinity, mọi kích cỡ pin [nháp] - Thumbnail 1](https://cdn.f3d.vn/uploads/public/693/c30/012/thumb_1795340_100_100_0_0_crop.png)
![Khay pin Gridfinity, mọi kích cỡ pin [nháp] - Thumbnail 2](https://cdn.f3d.vn/uploads/public/693/c30/01d/thumb_1795341_100_100_0_0_crop.gif)
Mô tả
Khay Gridfinity để đựng pin trụ, bao gồm tất cả các kích cỡ pin đã tìm được.
Lựa chọn:
- Kích thước từ 1x1 đến 2x3 (kích thước Gridfinity 42mm)
- Sử dụng hoa văn lục giác ở những chỗ hiệu quả hơn.
- Chiều cao khay bằng ¼ chiều cao của pin.
- Mỗi lỗ có vát cạnh nhẹ ở trên.
- Các khay có thể xếp chồng lên nhau, nhưng theo các bước chính xác cho 7mm.
- Tôi có thể sẽ thay đổi điều này, có thể làm tròn lên bội số của 7mm, hoặc làm chúng không thể xếp chồng. Rất mong nhận được phản hồi.
Đây là bản nháp, vui lòng xem lại trước khi thử nghiệm, tôi chưa in thử những cái này.
Được tạo bằng Gridfinity Extended OpenSCAD
Kích thước pin được lấy từ wikipedia
Name
width
depth
Item height
source
aaaa
8.3
10.625
42.5
https://en.wikipedia.org/wiki/List_of_battery_sizes
aaa
10.5
11.125
44.5
https://en.wikipedia.org/wiki/List_of_battery_sizes
aa
14.5
12.625
50.5
https://en.wikipedia.org/wiki/List_of_battery_sizes
c
26.2
12.5
50
https://en.wikipedia.org/wiki/List_of_battery_sizes
d
34.2
15.375
61.5
https://en.wikipedia.org/wiki/List_of_battery_sizes
7540
7.5
10
40
https://en.wikipedia.org/wiki/List_of_battery_sizes
8570
8.5
17.5
70
https://en.wikipedia.org/wiki/List_of_battery_sizes
10180
10
4.5
18
https://en.wikipedia.org/wiki/List_of_battery_sizes
10280
10
7
28
https://en.wikipedia.org/wiki/List_of_battery_sizes
10440
10
11
44
https://en.wikipedia.org/wiki/List_of_battery_sizes
10850
10
21.25
85
https://en.wikipedia.org/wiki/List_of_battery_sizes
13400
13
10
40
https://en.wikipedia.org/wiki/List_of_battery_sizes
14250
14
6.25
25
https://en.wikipedia.org/wiki/List_of_battery_sizes
14300
14
7.5
30
https://en.wikipedia.org/wiki/List_of_battery_sizes
14430
14
10.75
43
https://en.wikipedia.org/wiki/List_of_battery_sizes
14500
14
13.25
53
https://en.wikipedia.org/wiki/List_of_battery_sizes
14650
14
16.25
65
https://en.wikipedia.org/wiki/List_of_battery_sizes
15270
15
6.75
27
https://en.wikipedia.org/wiki/List_of_battery_sizes
16340
16
8.5
34
https://en.wikipedia.org/wiki/List_of_battery_sizes
16650
16
16.25
65
https://en.wikipedia.org/wiki/List_of_battery_sizes
17500
17
12.5
50
https://en.wikipedia.org/wiki/List_of_battery_sizes
17650
17
16.25
65
https://en.wikipedia.org/wiki/List_of_battery_sizes
17670
17
16.75
67
https://en.wikipedia.org/wiki/List_of_battery_sizes
18350
18
8.75
35
https://en.wikipedia.org/wiki/List_of_battery_sizes
18490
18
12.25
49
https://en.wikipedia.org/wiki/List_of_battery_sizes
18500
18
12.5
50
https://en.wikipedia.org/wiki/List_of_battery_sizes
18650
18
16.25
65
https://en.wikipedia.org/wiki/List_of_battery_sizes
20700
20
17.5
70
https://en.wikipedia.org/wiki/List_of_battery_sizes
21700
21
17.5
70
https://en.wikipedia.org/wiki/List_of_battery_sizes
25500
25
12.5
50
https://en.wikipedia.org/wiki/List_of_battery_sizes
26500
26
12.5
50
https://en.wikipedia.org/wiki/List_of_battery_sizes
26650
26
16.25
65
https://en.wikipedia.org/wiki/List_of_battery_sizes
26700
26
17.5
70
https://en.wikipedia.org/wiki/List_of_battery_sizes
26800
26
20
80
https://en.wikipedia.org/wiki/List_of_battery_sizes
32600
32
15
60
https://en.wikipedia.org/wiki/List_of_battery_sizes
32650
32
16.925
67.7
https://en.wikipedia.org/wiki/List_of_battery_sizes
32700
32
17.5
70
https://en.wikipedia.org/wiki/List_of_battery_sizes
38120
38
30
120
https://en.wikipedia.org/wiki/List_of_battery_sizes
38140
38
35
140
https://en.wikipedia.org/wiki/List_of_battery_sizes
40152
40
38
152
https://en.wikipedia.org/wiki/List_of_battery_sizes
4680
46
20
80
