Giá đỡ cuộn dây tóc bên trong VZBOT VZ235 AWD

Chào

Tôi đã tạo giá đỡ cuộn dây tóc cho vz235 - máy sấy tóc miễn phí.

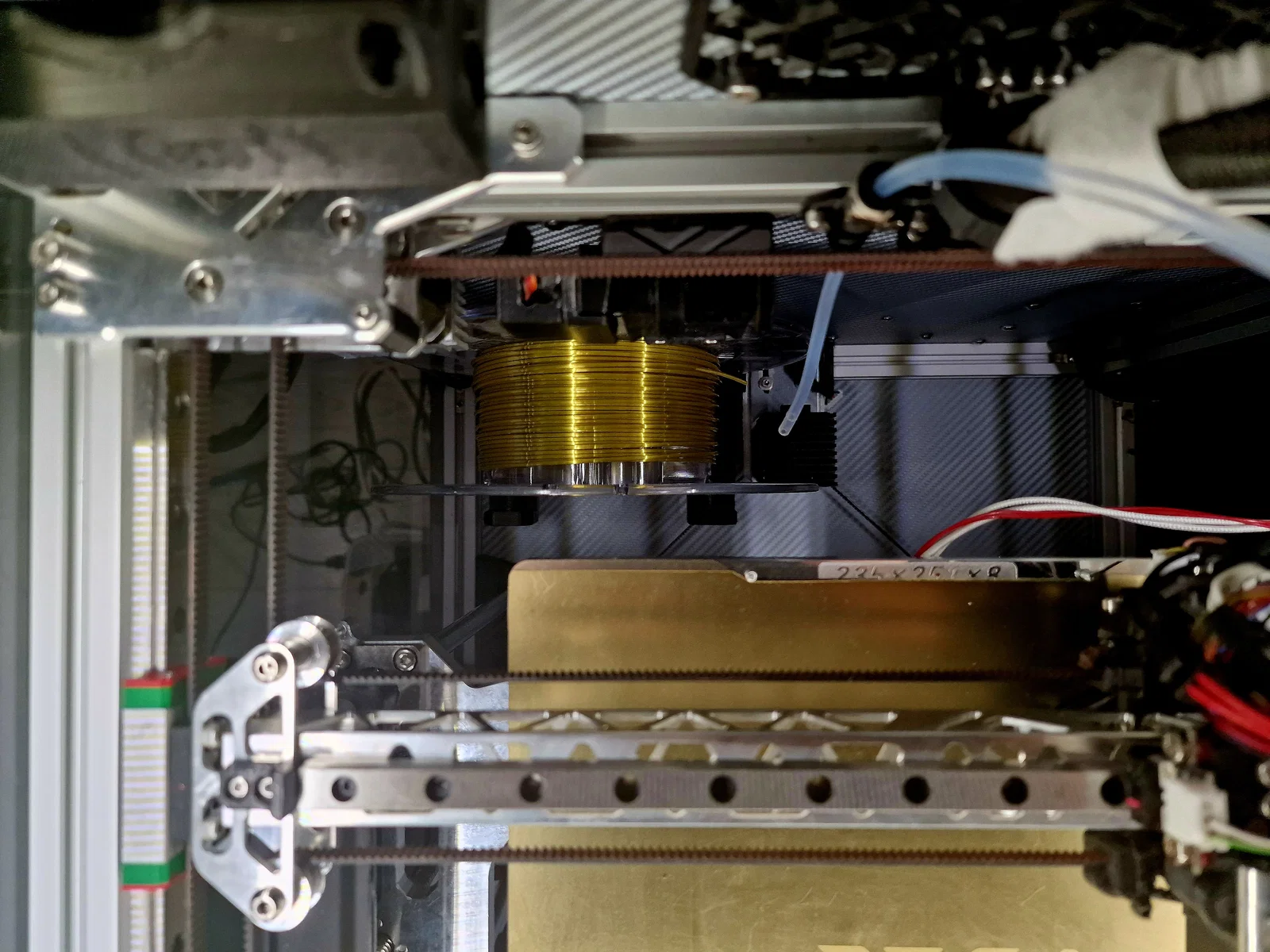

You can easily print 4 sets of this holder and mount 2 spool of filament inside.

BOM/1 set:

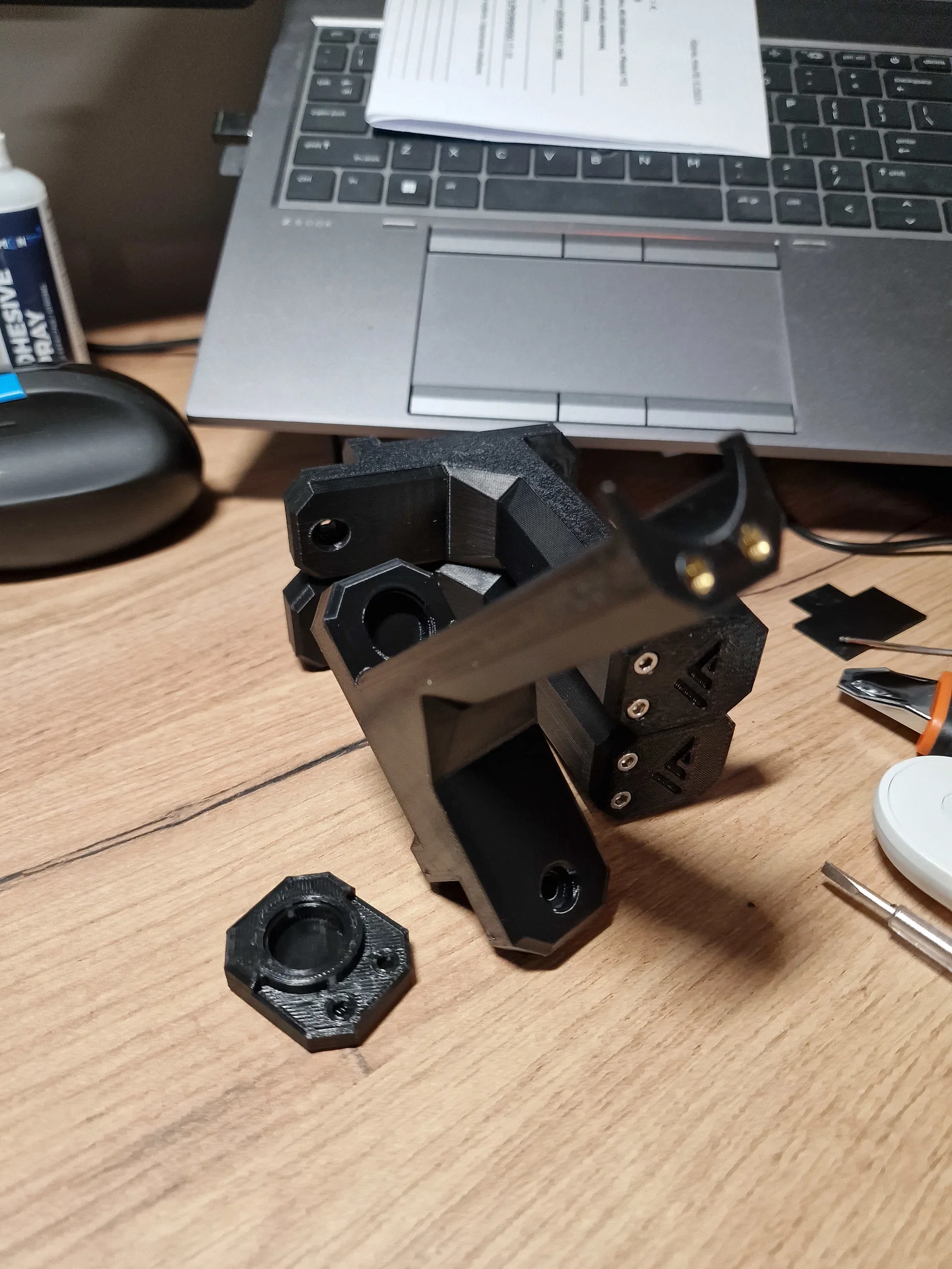

• 3D printed parts - ABS (1 part is mirrored - so you need 1 normal 1 mirror )
• 2 bearings ABEC-3 MF148 2RS https://pl.aliexpress.com/item/1736566598.html?spm=a2g0o.order_list.order_list_main.5.533f1c24ssAG5K&gatewayAdapt=glo2pol
• 2 M3 8mm screws
• 1 M3 50-55mm screw - fully threaded
• 3 M3 4/5mm heat inserts
• 4 M4 t-nuts
• 4 M4 flathead 8mm screws

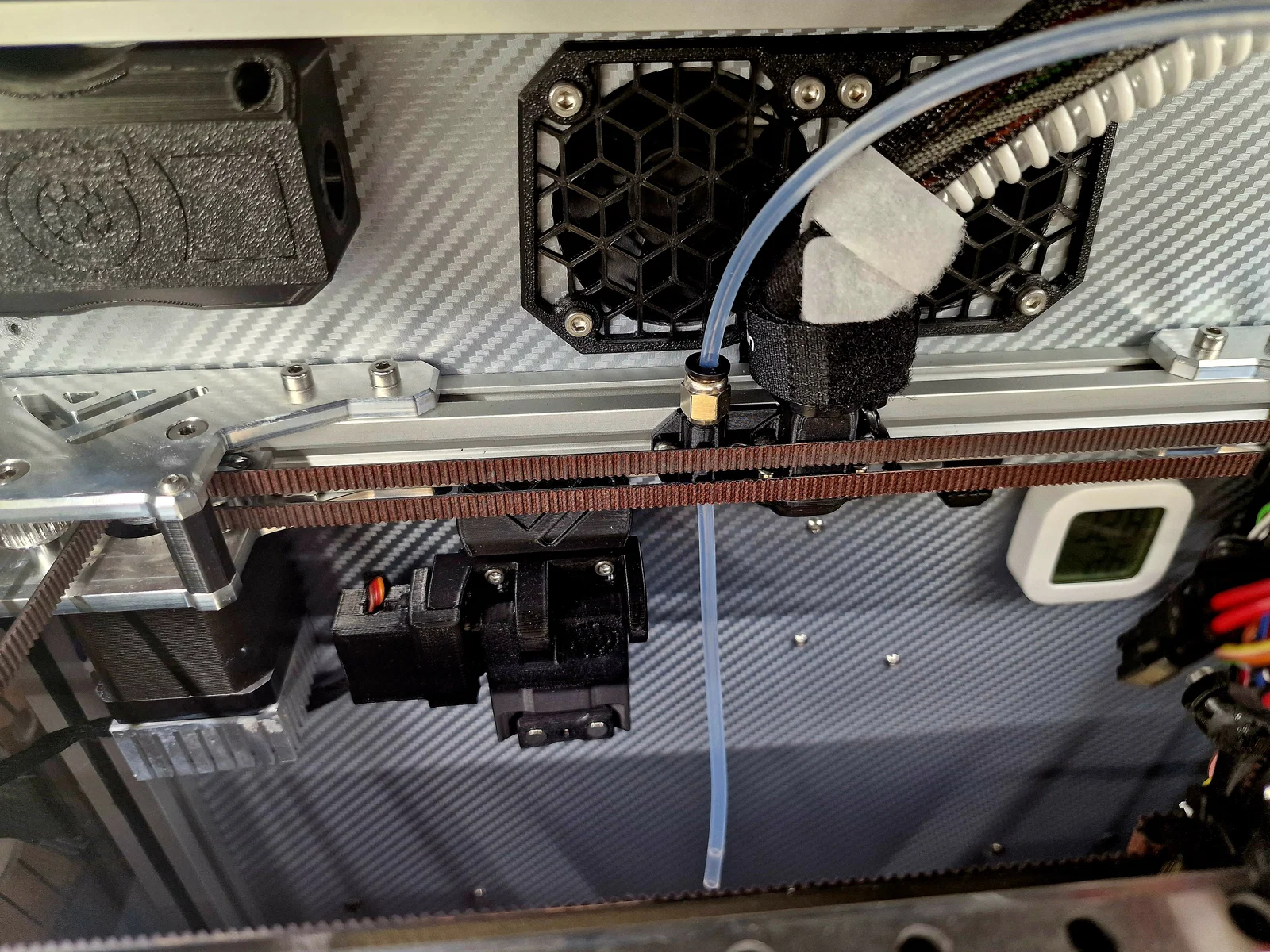

Additionaly I'm adding PTFE valve holder - which fits to CPAP mount ;) its for M6 thread.

Tips:

• no supports
• calibrate Your printer ;)
• I printed ROD with with fuzzy skin on countour. point 0.5/thick 0.3mm - it will require more force to place rod in the bearing.
