Bộ điều khiển OnStep cho Mount EQ5 (SkyWatcher)
- Lượt tải
- 103
- Lượt thích
- 14
- Lượt coi
- 1.837
- Bản remix
- 1
- Bình luận
- 0
File 14 2,1 MB

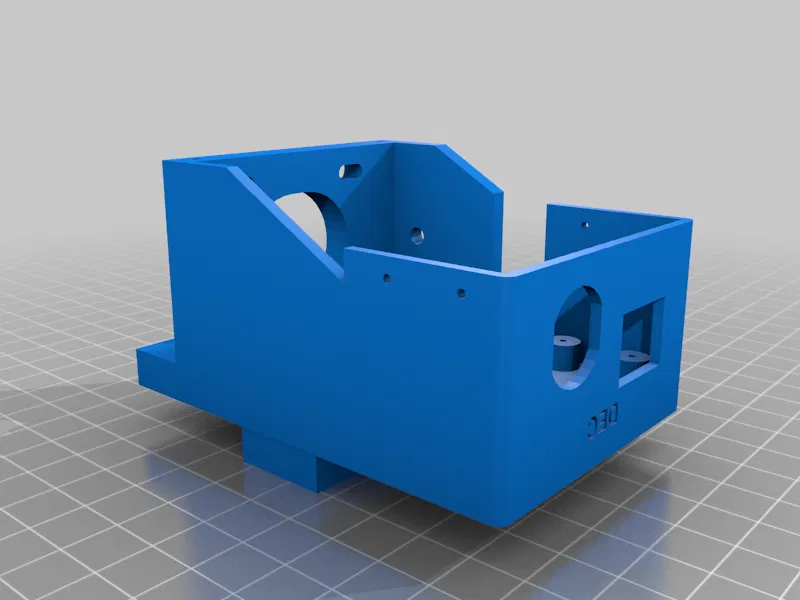

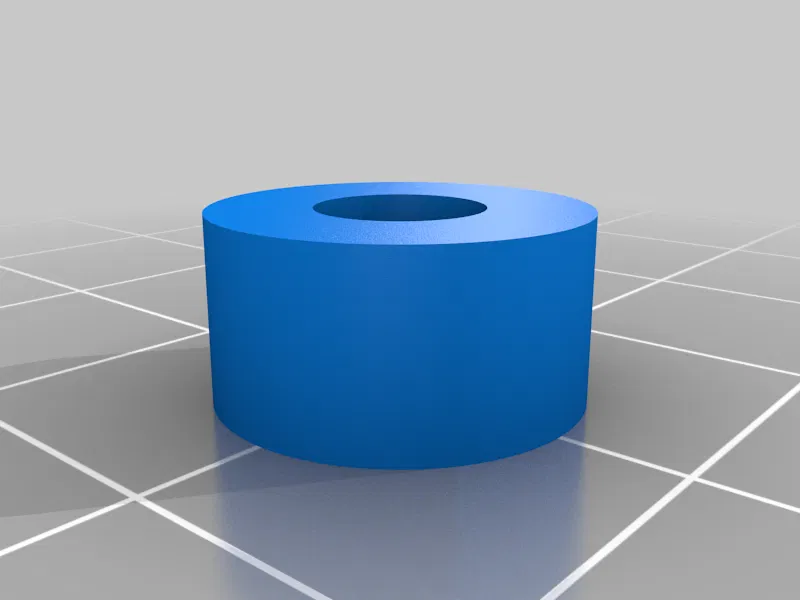

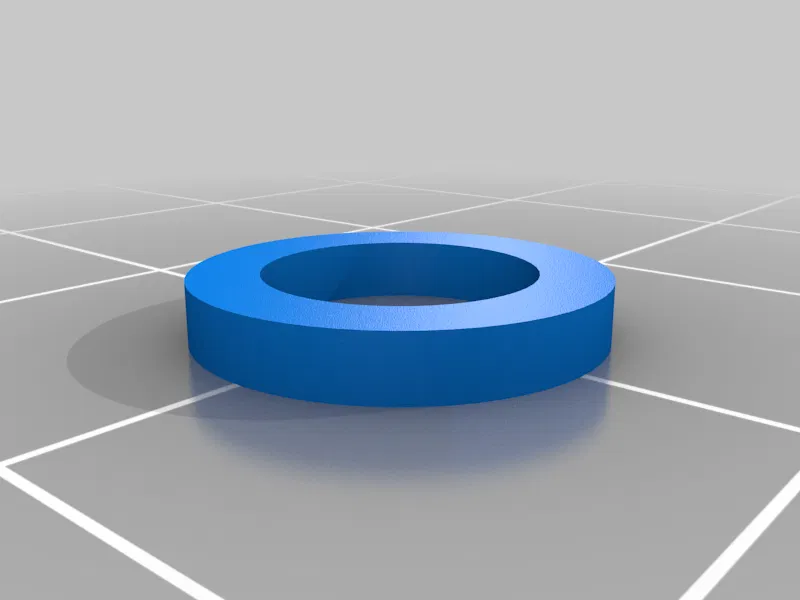

- Distance_Ring_1766001895.stlSTL · 20,8 KB

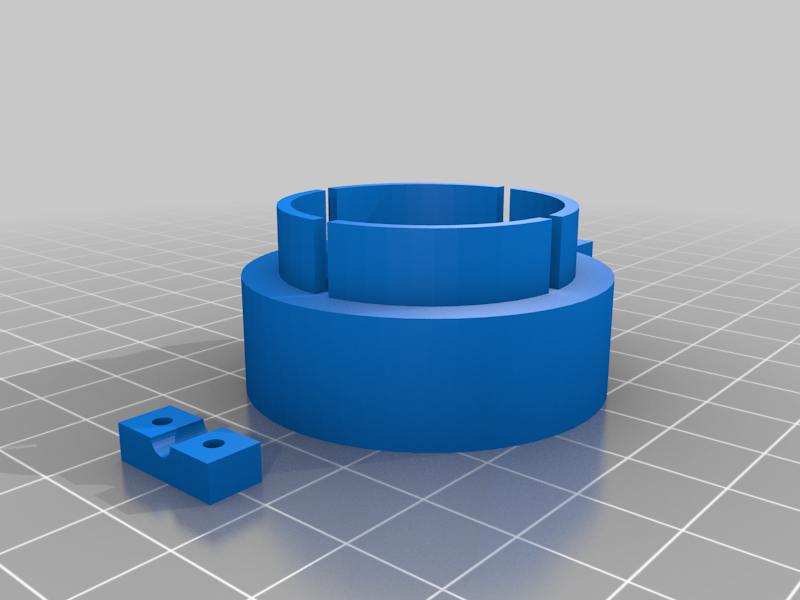

- Ra-red-EQ5_1766001896.stlSTL · 201,4 KB

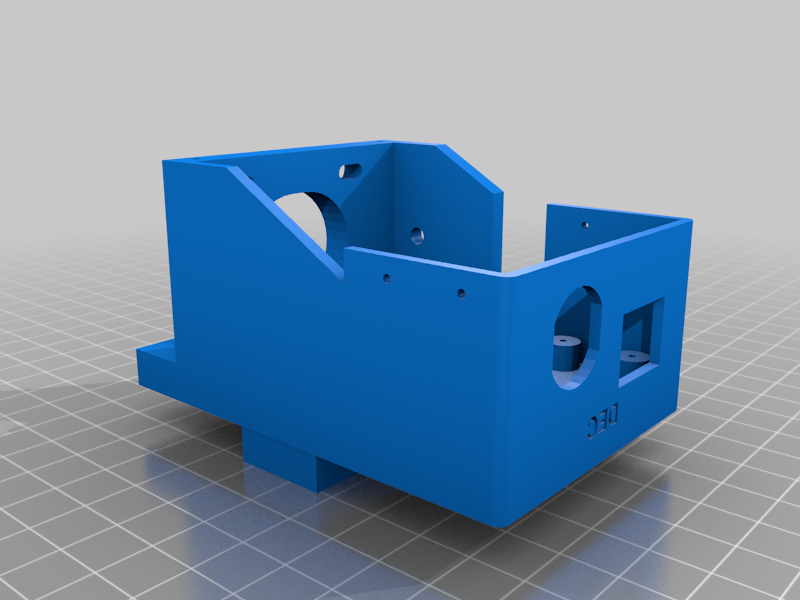

- OnStepMiniEQ5-breaker_1766001897.stlSTL · 171,4 KB

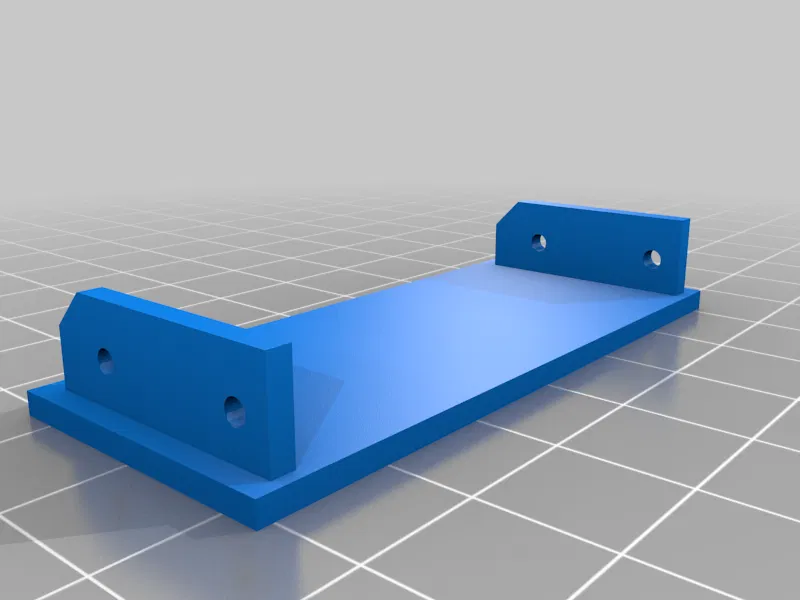

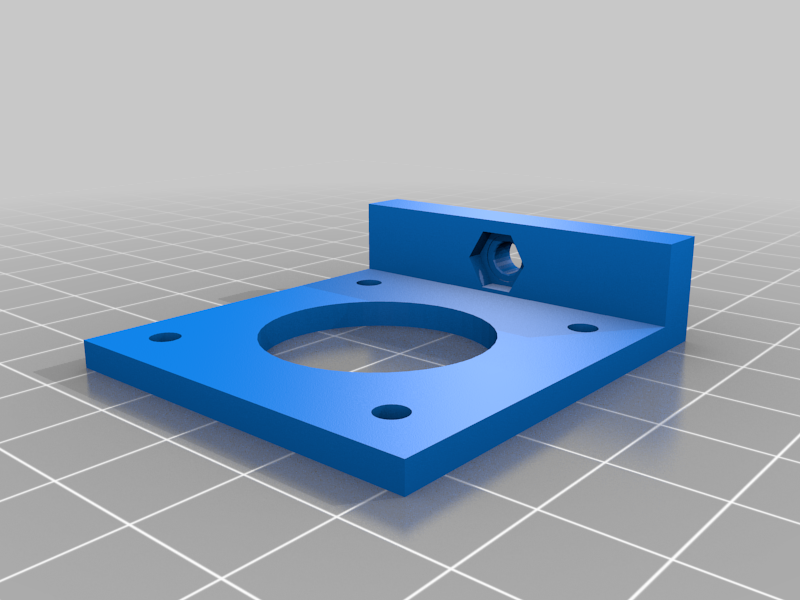

- OnStepMiniEQ5-holder_1766001898.stlSTL · 153,2 KB
Tạo biến thể bằng AI
Dựng một phiên bản khác của mẫu này.
Các phiên bản remix 1
Coi hết 1 bản remixThông tin
- Mã mẫu
- #108642
- Danh mục
- DIY
- Ngày đăng
- Giấy phép
- GPL v2.0 — Giấy phép Công cộng GNU
Mô tả

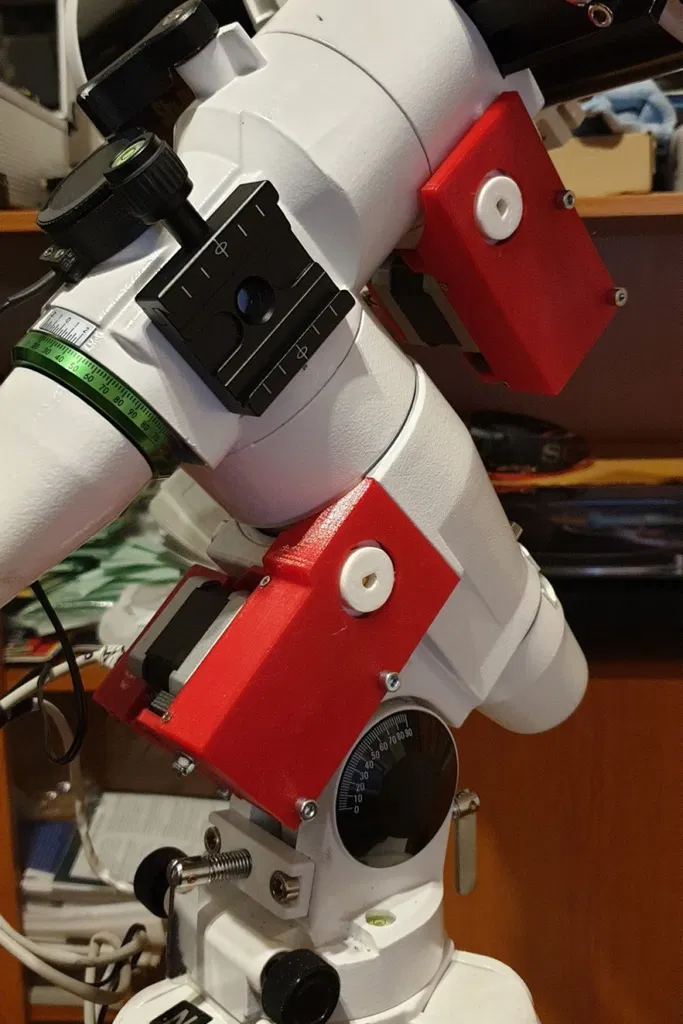

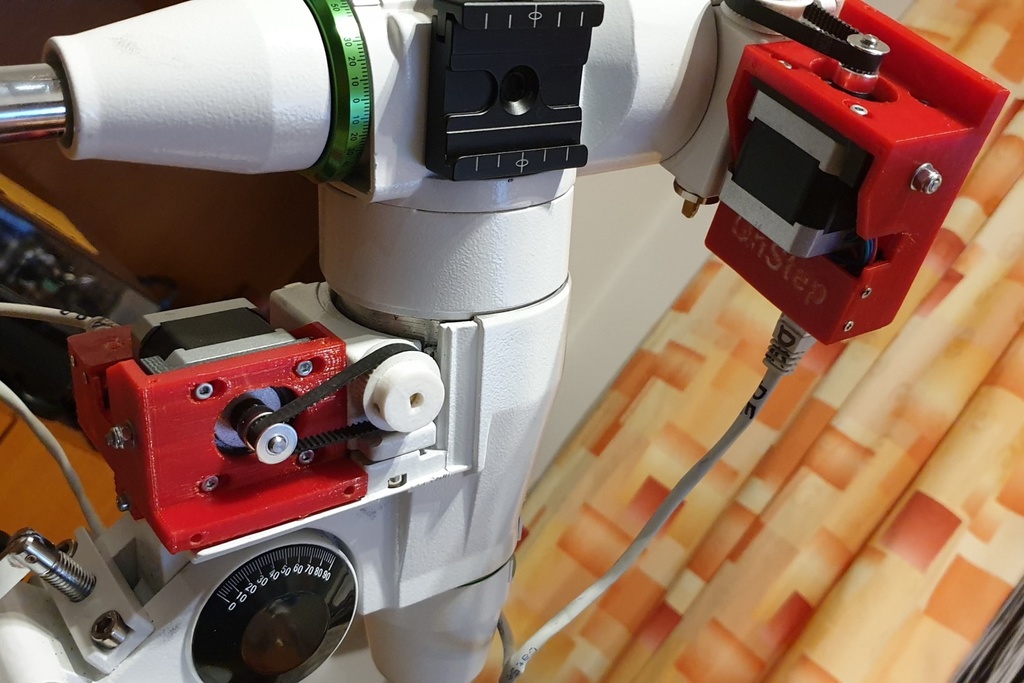

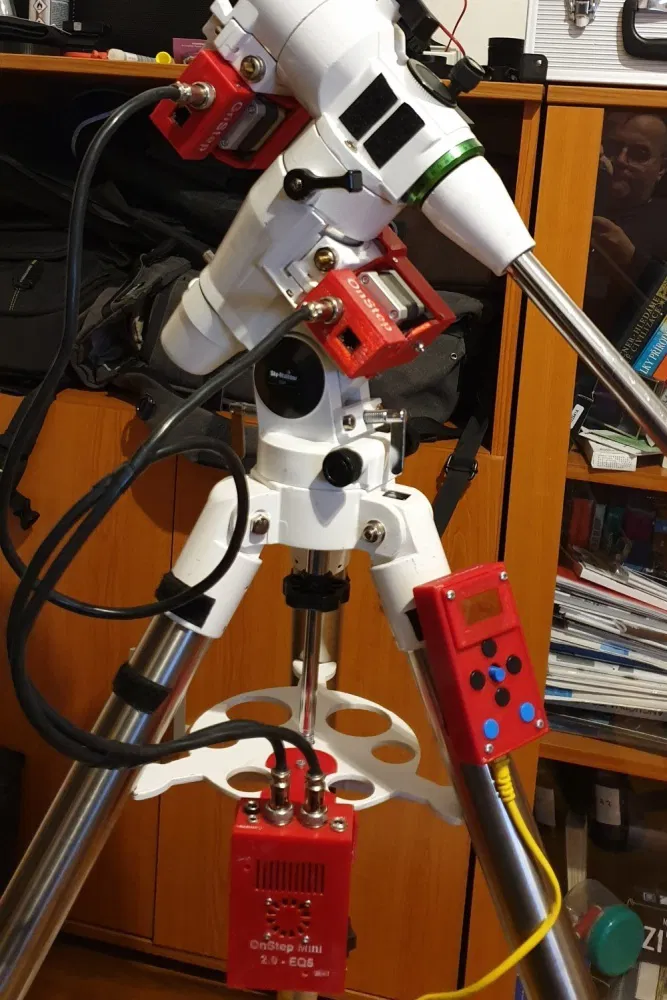

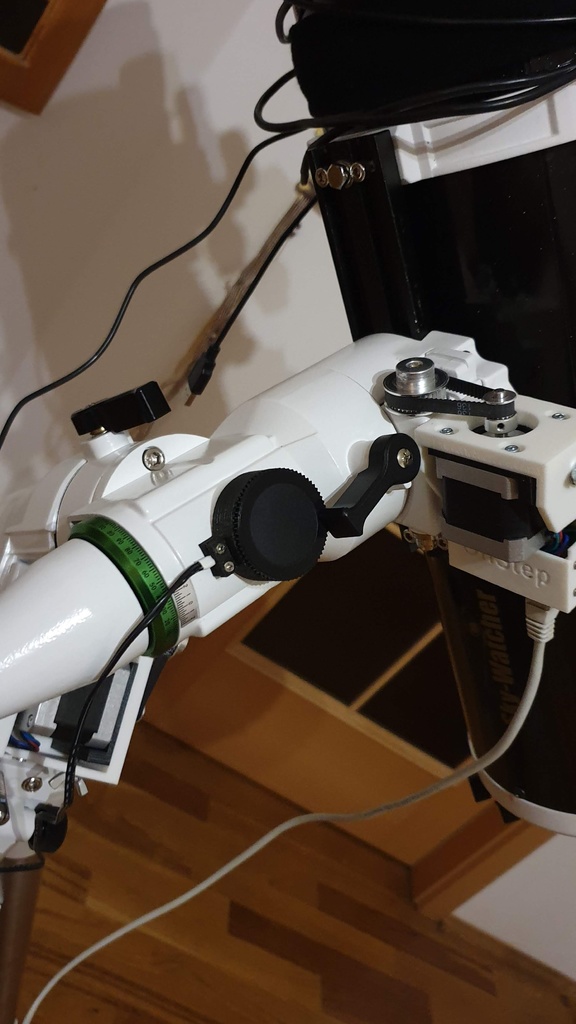

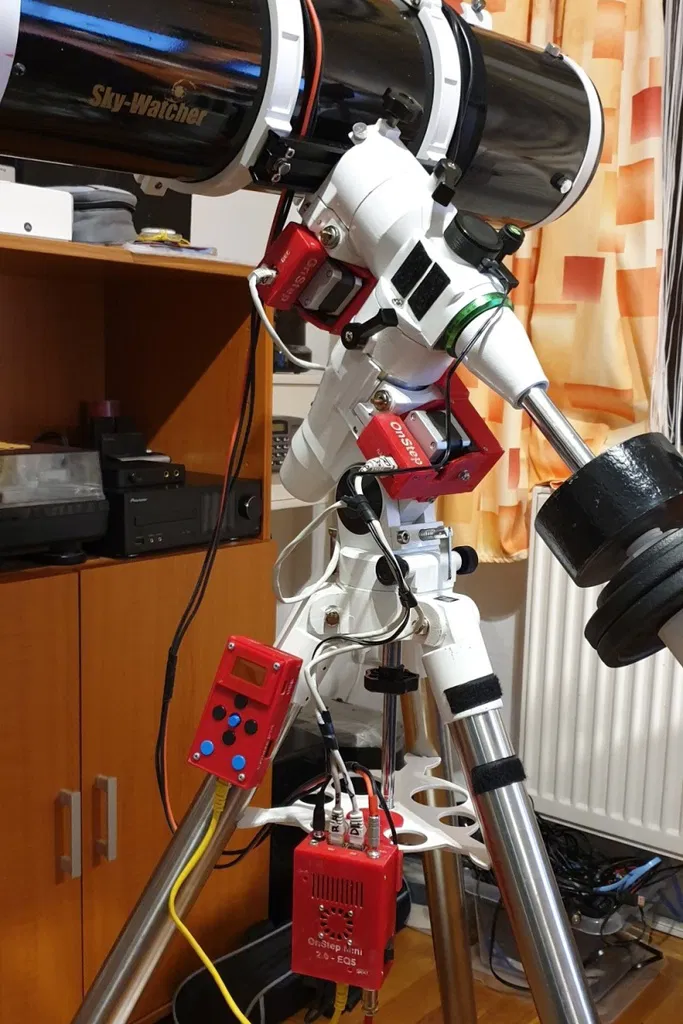

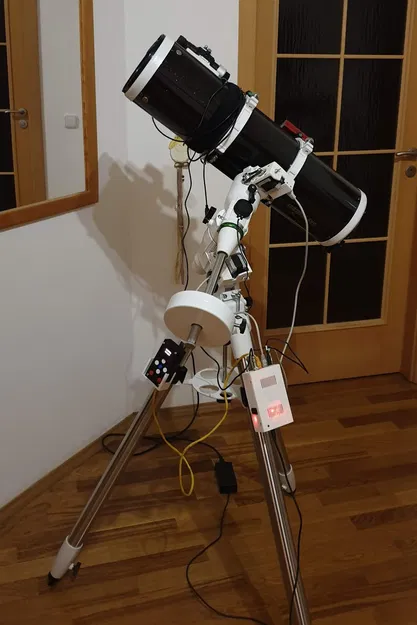

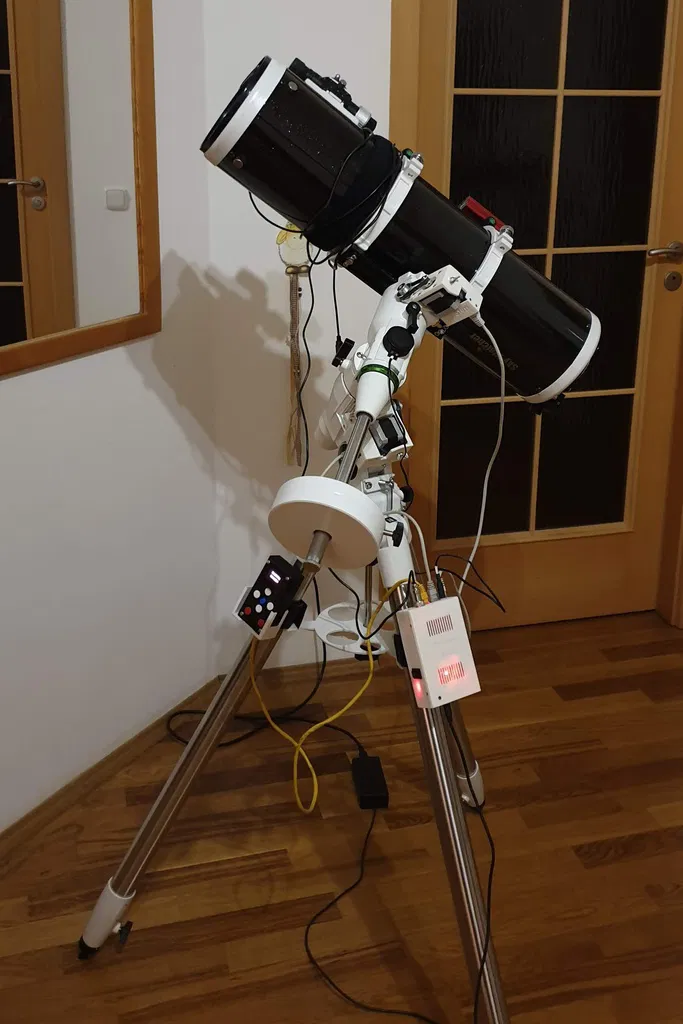

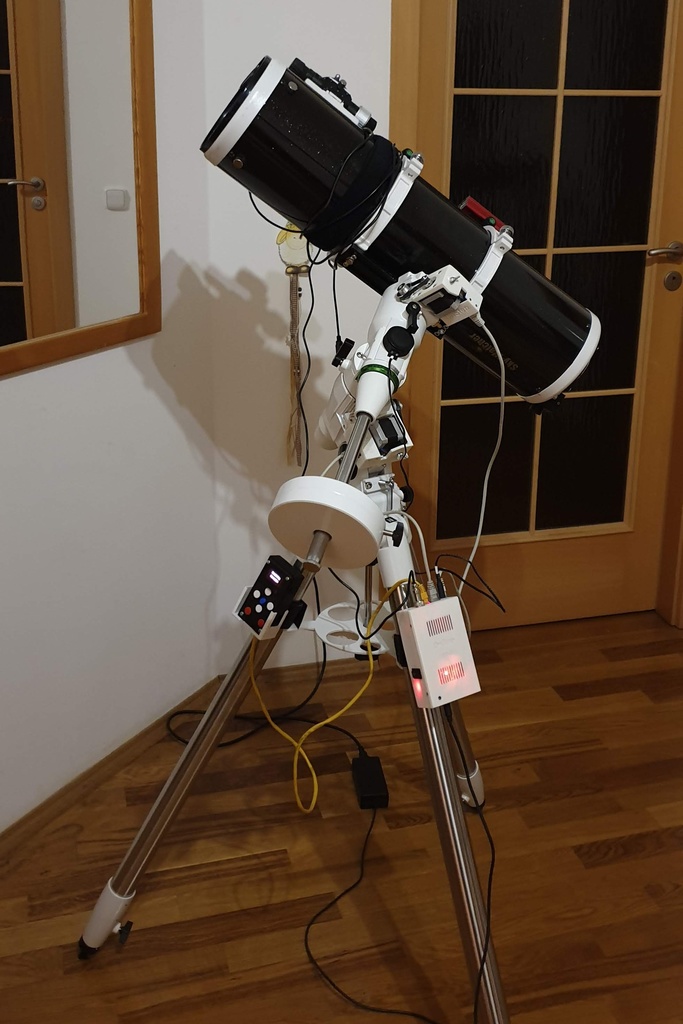

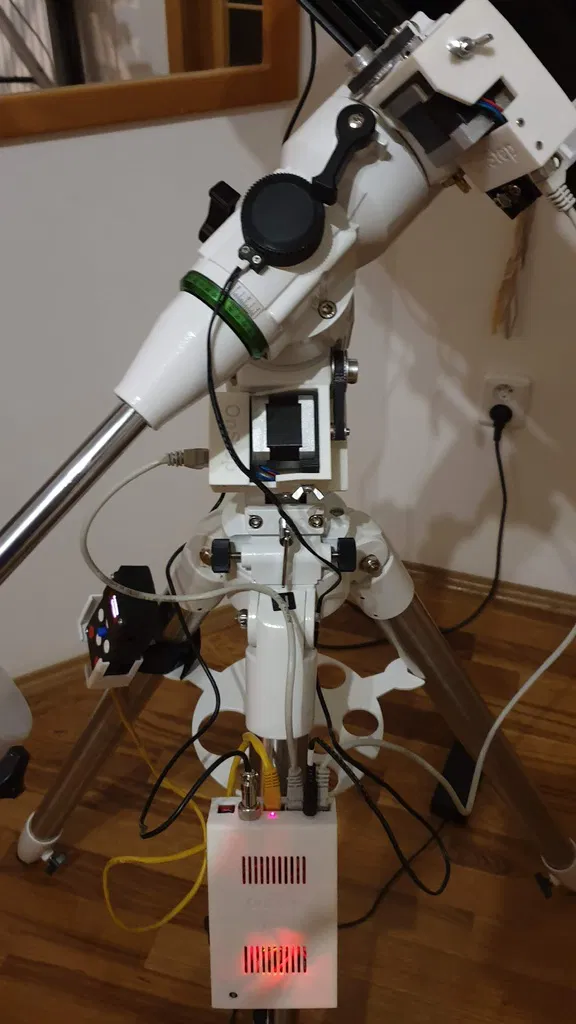

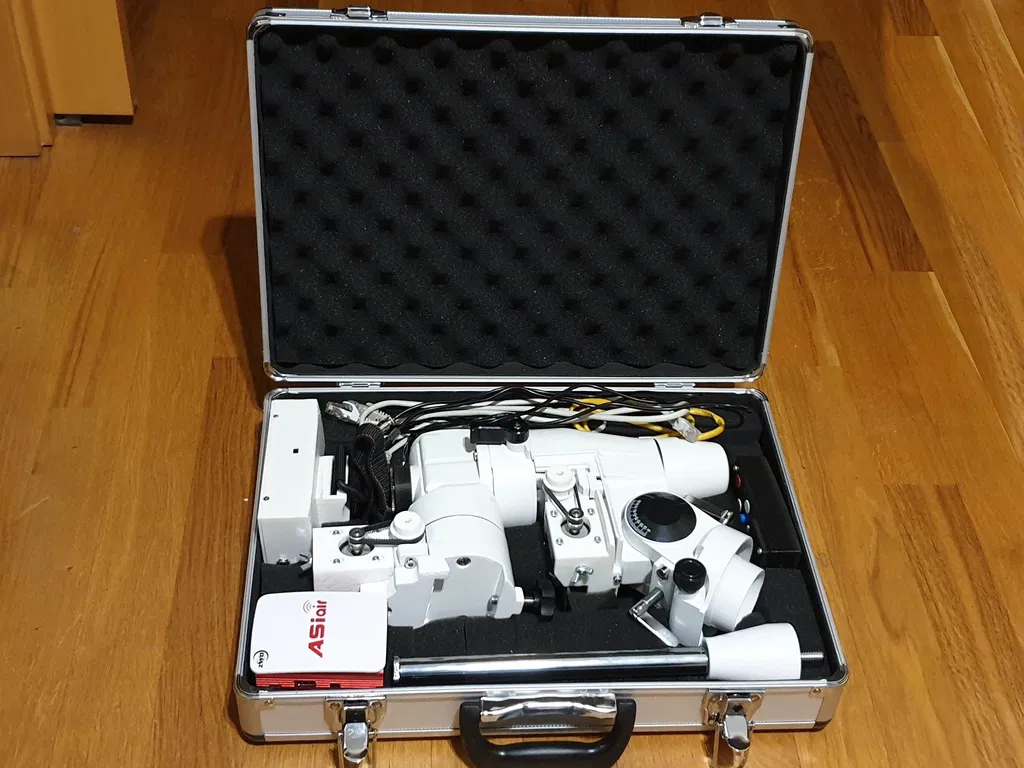

Chuyển đổi EQ5 (SkyWatcher) telescope mount hoặc các loại tương tự sang OnStep goto controller, bởi dự án của Howard Dutton.
Phụ kiện đề xuất

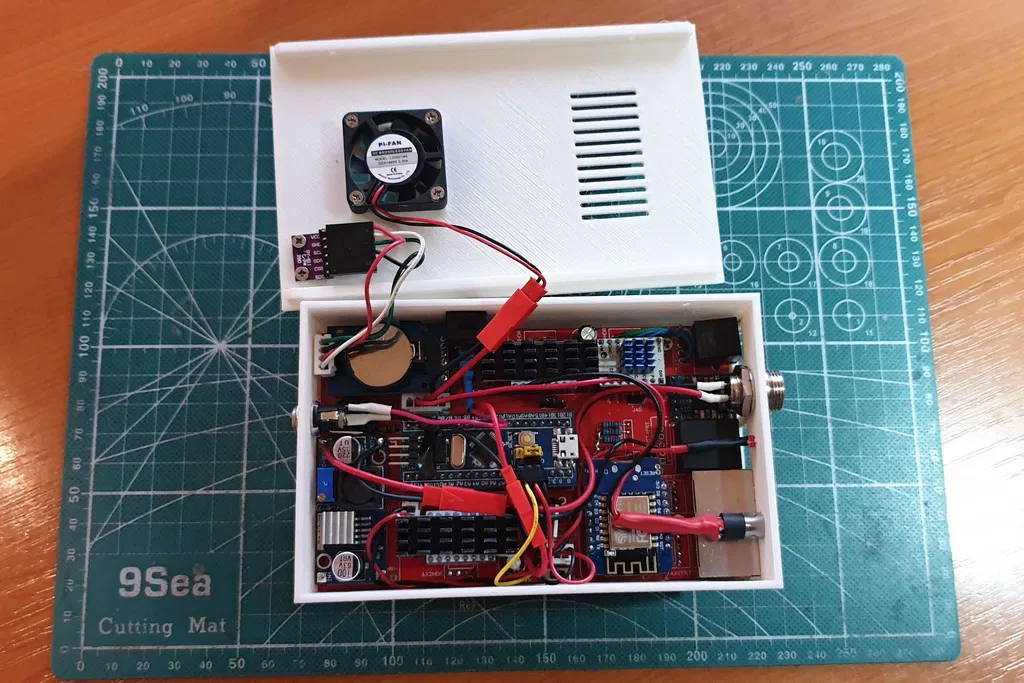

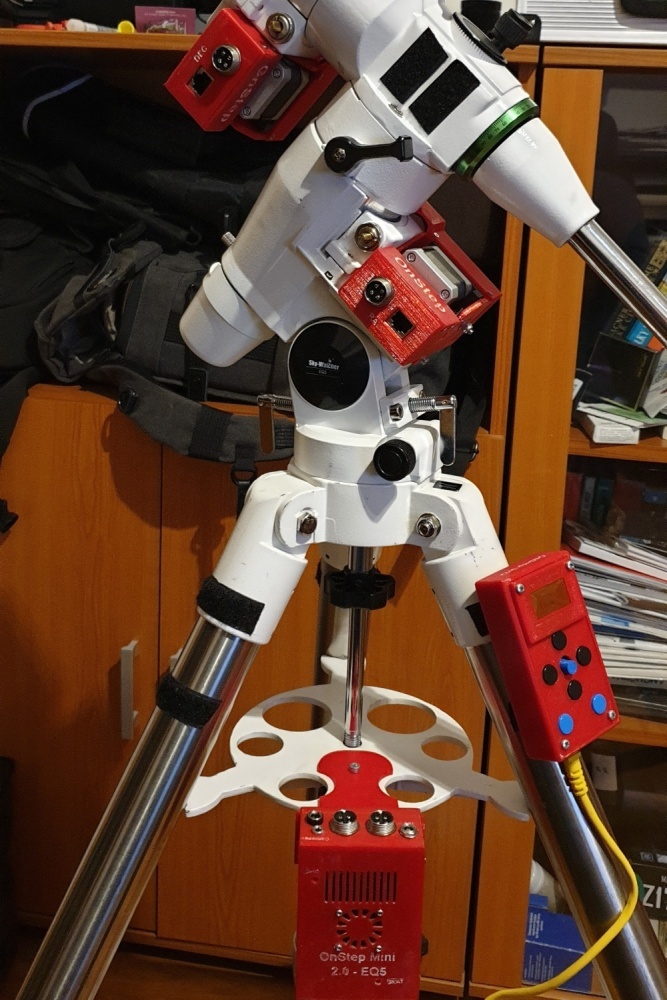

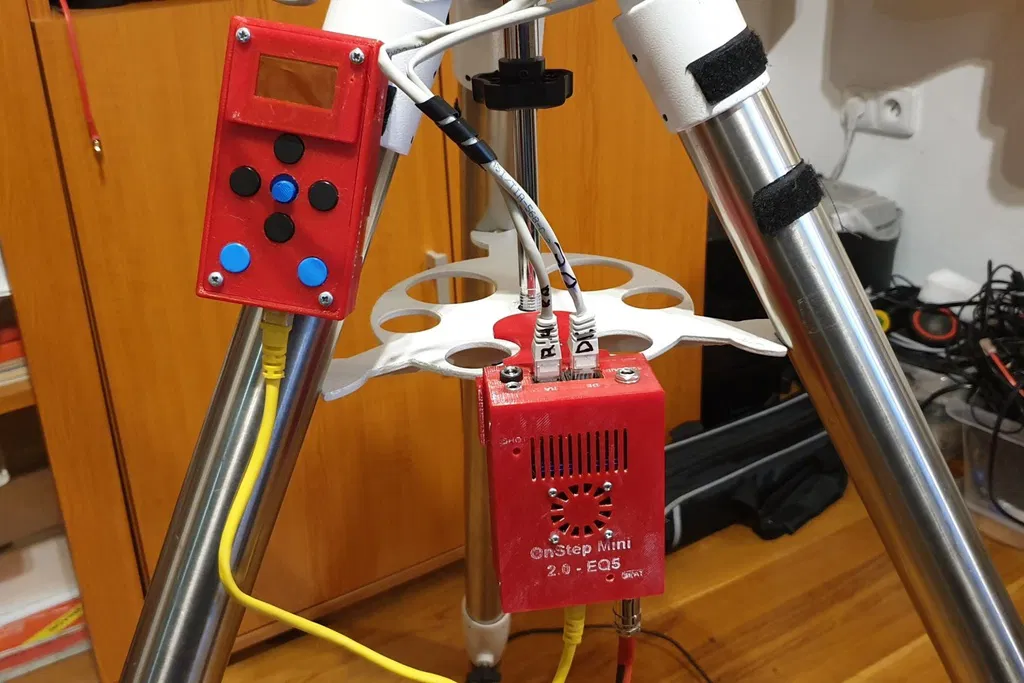

- OnStep Mini 2.0 Cotroller và Hộp trên đế MiniPCB2 và Teensy3.2
hoặc

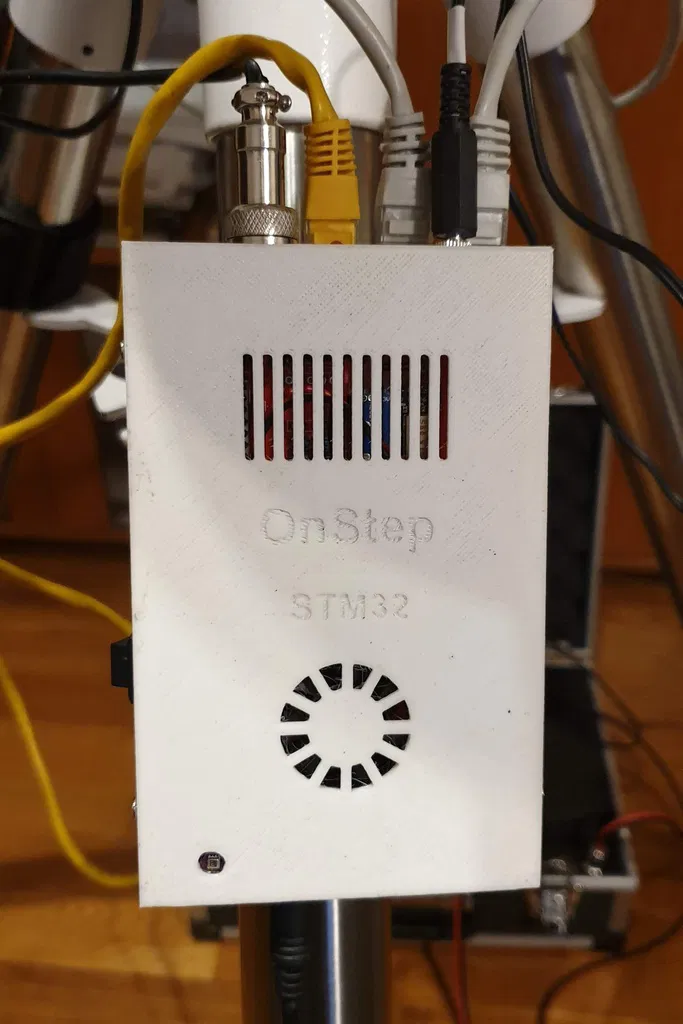

- OnStep STM32 Controller và Hộp trên đế STM32 Blue Pill
- OnStep SHC Smart Hand Controller

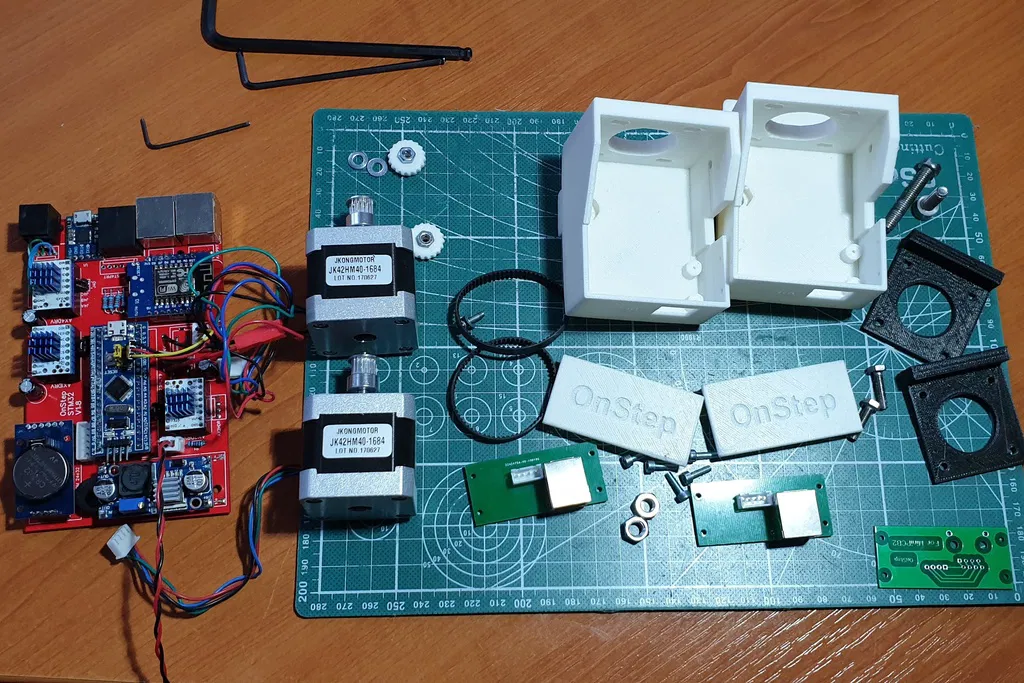

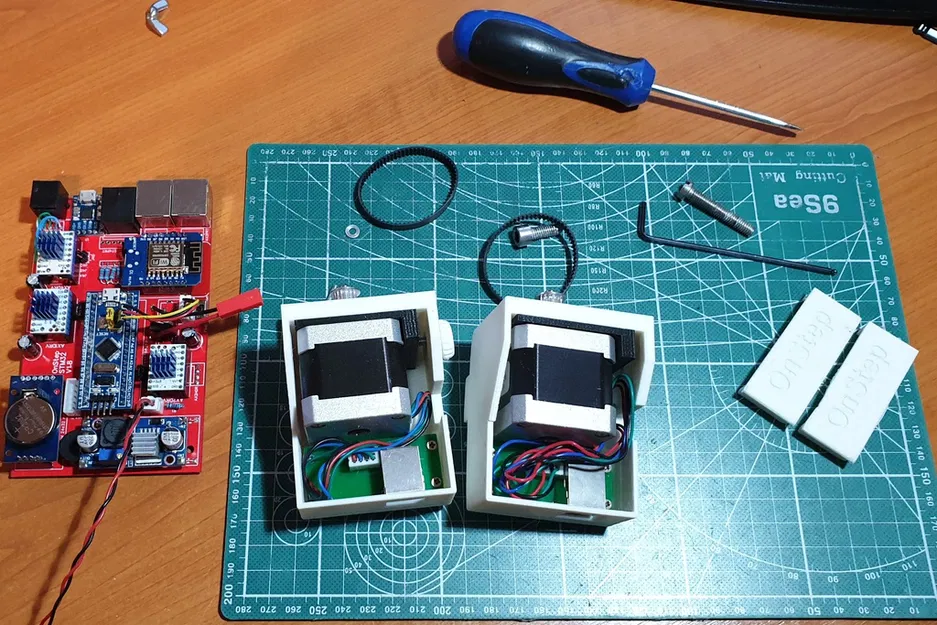

BOM
2x JK42HM40-1684 NEMA17 0.9 Degree Stepper Motor 1.68A
2x GT2 Timing Belt 6mm wide 2mm pitch 136mm-2GT 68 teeth
2x GT2 Timing Pulley with 16 Teeth and Bore 5mm for 6mm belt

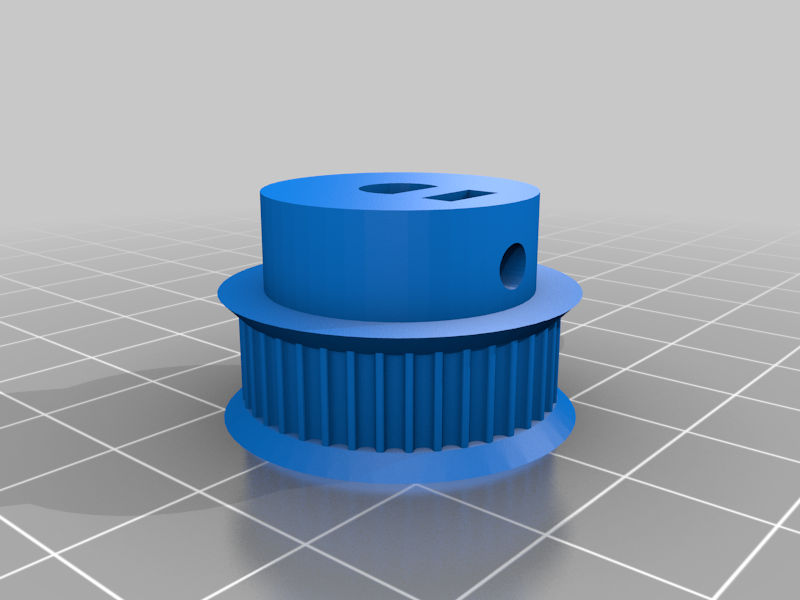

2x GT2 Timing Pulley with 40 Teeth and Bore 6mm for 6mm belt (Optional)
1x M8x15mm Inbus screw
1x M8x40mm Inbus screw
2x M8 nuts
9x M3x10mm Inbus screw
1x M3 Assortmen
2x M4 worm
2x M3 nuts
2x M4x20mm Hex Head screws
2x M4 wing nuts
2x M4 Assortmen
18x 2x6mm self-tapping screws
2x RJ14 6P6C Right Angle PCB Jacks
2x JST B4B-XH-A socket
1x 3mm Red LED and (1kΩ rezistor in STM32 case)
1x 3.5mm Stereo jack and cable
Tùy chọn
OnStep 2.22 Config for TMC2130 drivers (Vref=1.6V)

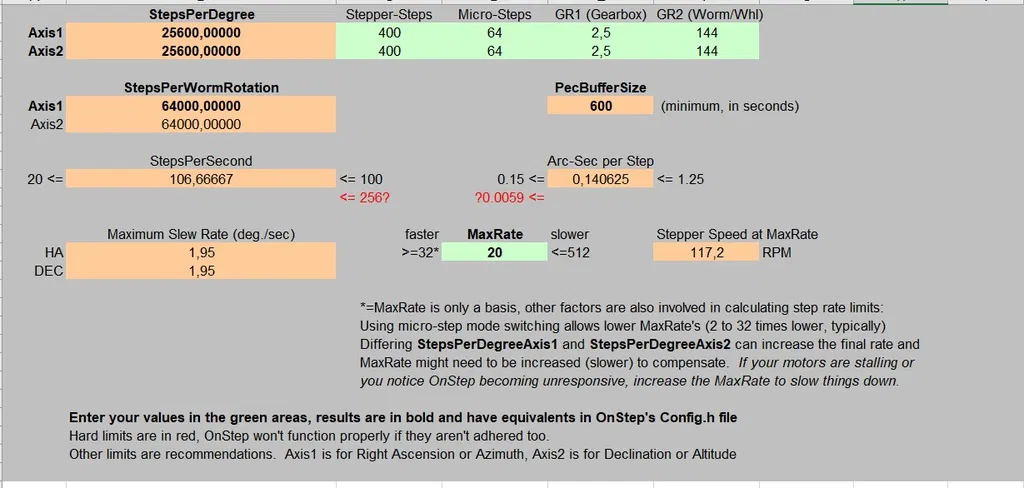

// Axis1 is for RA/Az
// calculated as : stepper_steps* micro_steps* gear_reduction1* gear_reduction2/360 // EQ5 : 400* 64* 2.5* 144/360 = 25600.0
#define StepsPerDegreeAxis1 25600.0
#define AXIS1_DRIVER_MODEL TMC2130_QUIET_LOWPWR
#define AXIS1_MICROSTEPS 64
#define AXIS1_MICROSTEPS_GOTO 64
// Axis2 is for Dec/Alt
// calculated as : stepper_steps* micro_steps* gear_reduction1* gear_reduction2/360 // EQ5 : 400* 64* 2.5* 144/360 = 25600.0
#define StepsPerDegreeAxis2 25600.0
#define AXIS2_DRIVER_MODEL TMC2130_QUIET_LOWPWR
#define AXIS2_MICROSTEPS 64
#define AXIS2_MICROSTEPS_GOTO 64
// PEC, number of steps for a complete worm rotation (in RA),
// (StepsPerDegreeAxis1_360)/gear_reduction2.
// EQ5 : 25600.0* 360/144 = 640000
#define StepsPerWormRotationAxis1 64000L
#define MaxRate 24
#define STEP_WAVE_FORM PULSE
#define RETICULE_LED_PINS 128
OnStep 3.16 Config for TMC2130 drivers is here (Vref=2.4V)
LƯU Ý

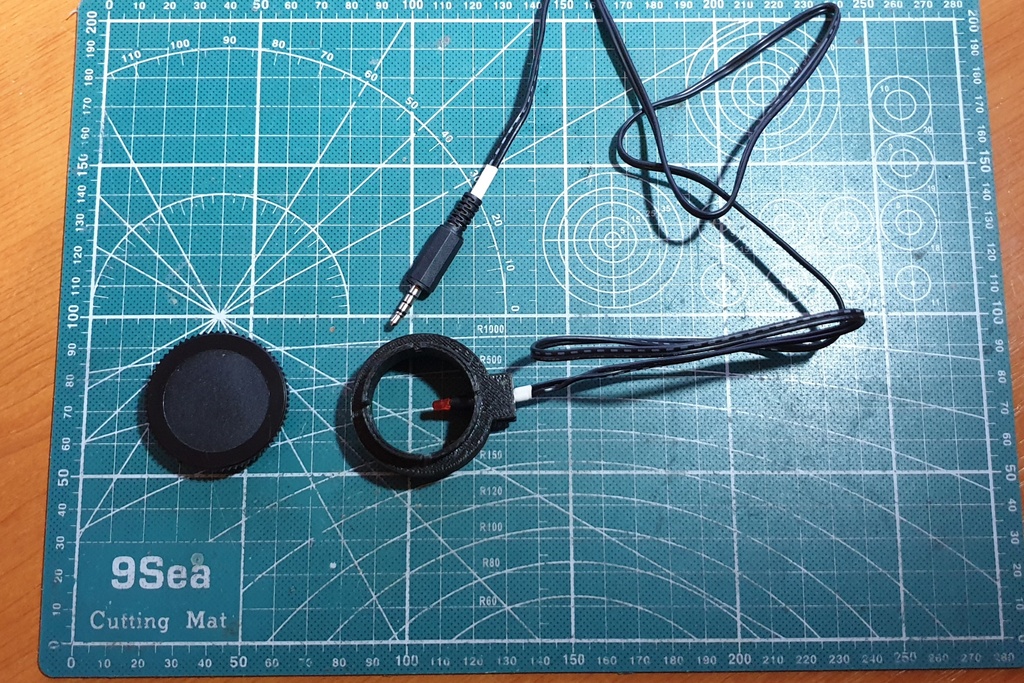

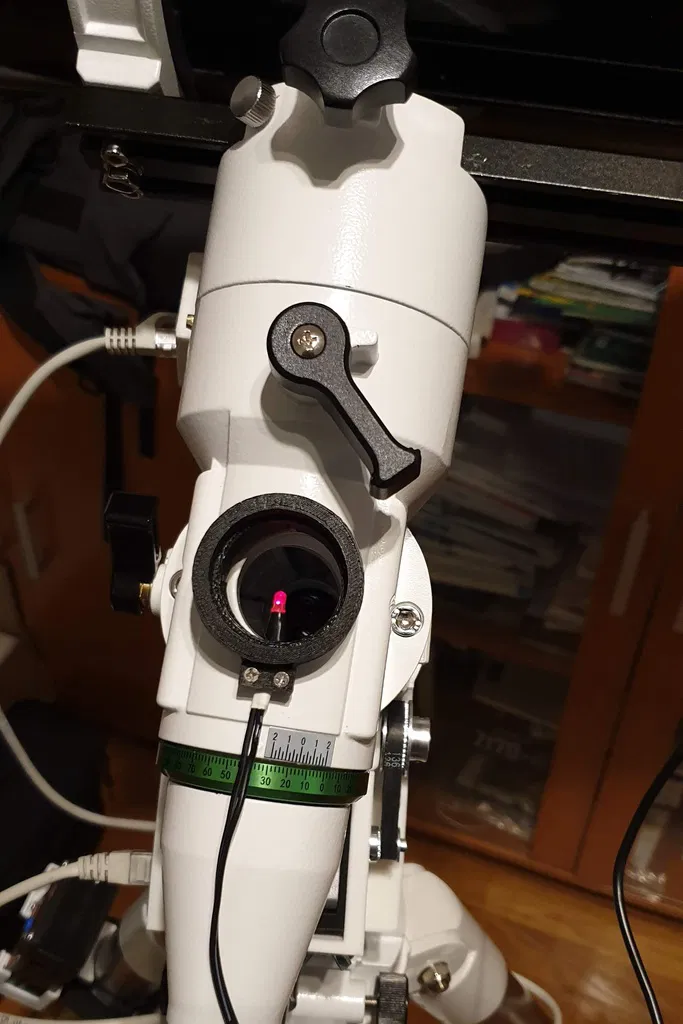

- Polar Scope Iluminátor LED serial connected with 1kΩ rezistor. In STM32 board plug to MULTI socket 3V3 pin and reticle pin.
- FreeCAD sources on Github
CẬP NHẬT
- 2020-02-23 Add Config.h for OnStep 3.16 and Pulley_GT2-40v2.stl

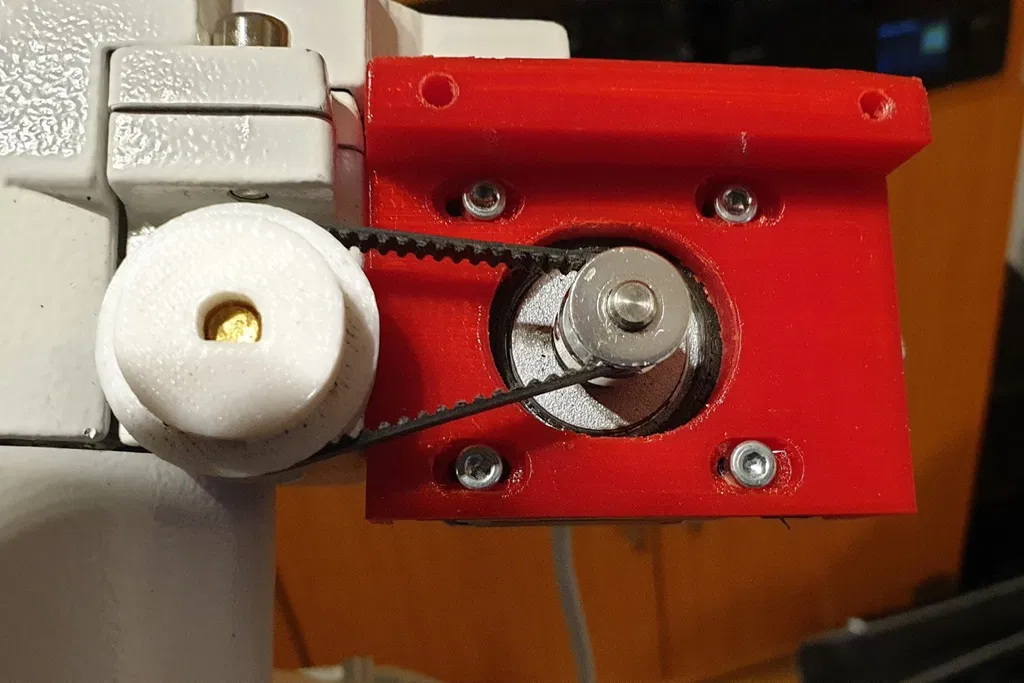

- 2020-10-09 New red edition add RA/DE belt gear box cover and more improved
- 2020-12-12 Add GX16-4 ports version, PCB is on EasyEDA
Link khác đề xuất:
- 3D printed - Small Travel EQ telescope mount
- OnStep for GS-280 (old GSO) EQ mount
- OnStep for SEBEN EQ3 mount
- My all desing for Astronomy telescope
Category: Other
Thông số in
- Định dạng
- stl
- Số file mô hình
- 14
- Tổng dung lượng
- 2,1 MB
- File lớn nhất
- 481,2 KB
