Giá Treo Tai Nghe Kẹp Bàn (Desk Clamp Headphone Stand)

By WaffleDude_496342

Downloads
136
Likes
54
Views
539

Files 5 1.1 MB

  • stopper_1785158122.3mf3MF · 62.5 KB
  • stand_1785158123.3mf3MF · 156.3 KB
  • screw_1785158124.3mf3MF · 282.3 KB
  • stand_wide_1785158125.3mf3MF · 143.7 KB

Make a variant with AI

Build another version of this model.

Open Studio

Description

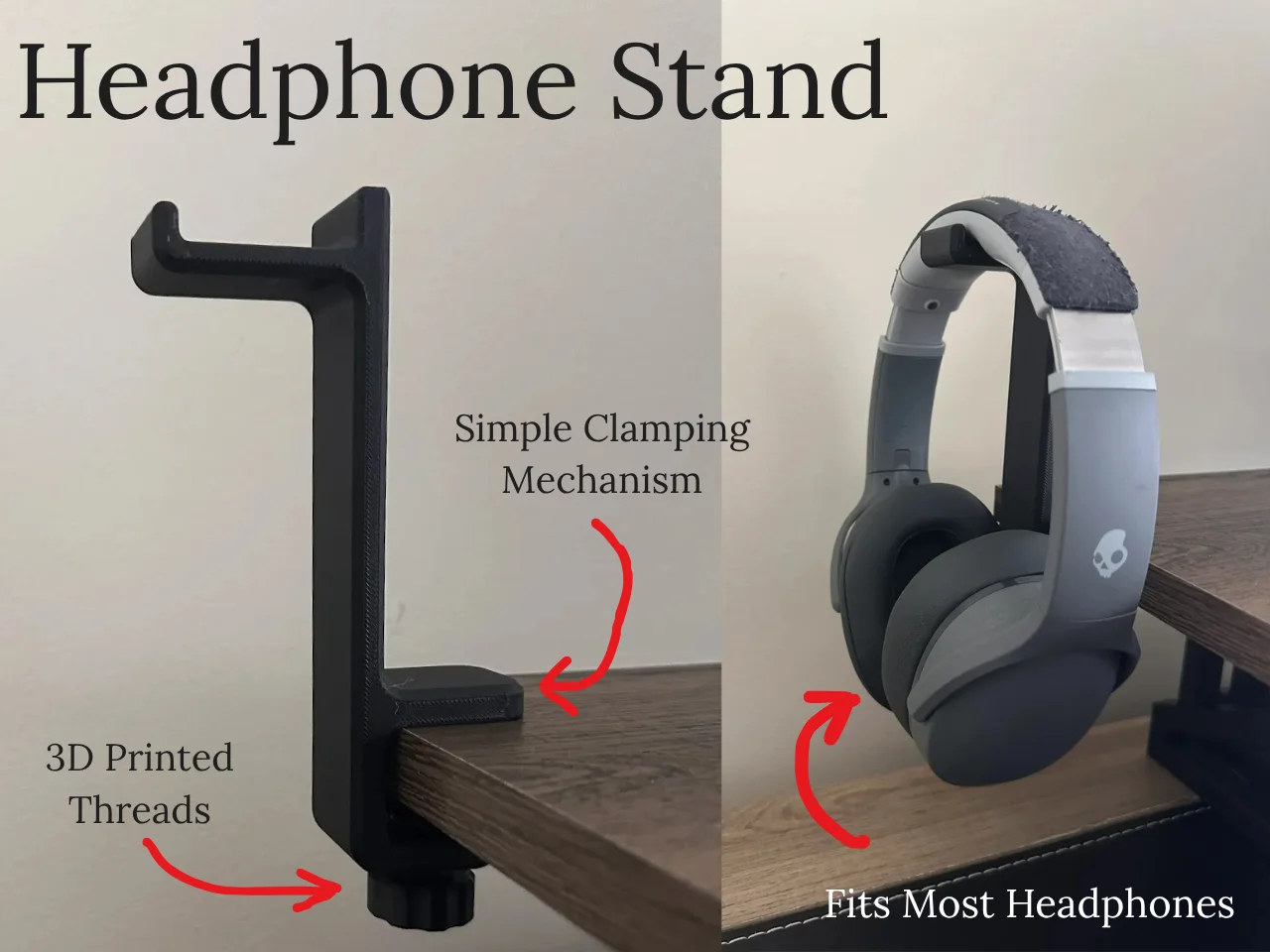

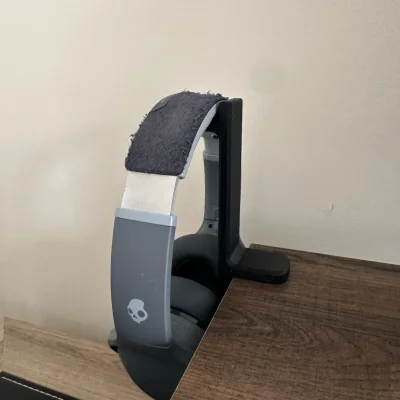

I created this model to solve an issue I frequently found in many existing headphone stand models. Other models I saw all included the hook below the actual clamping mechanism which did not really work for me due to obstructions in my current desk setup. This model attempts to solve that issue by placing the above the clamp, so the headphones naturally end at about clamp height, making this model compatible with desk setups that utilize monitor risers like mine.

This model is compatible with desk that have both thin and thick tops, with two separate models and screws for each. The small clamp measures 25mm of between space while the larger measures 40mm. The majority of the model is 3D printed; however, there is a small mounting step that either requires a single M4-M5x8 screw, or a threaded insert & M3 screw.

For assembly, insert the screw into the stand hole, then place the stopper above the screw and tighten it into place such that it is in between the clamp housing itself.

I hope you find this model as useful as I did! Any feedback/makes would be awesome! Thank you all so much for your support.
