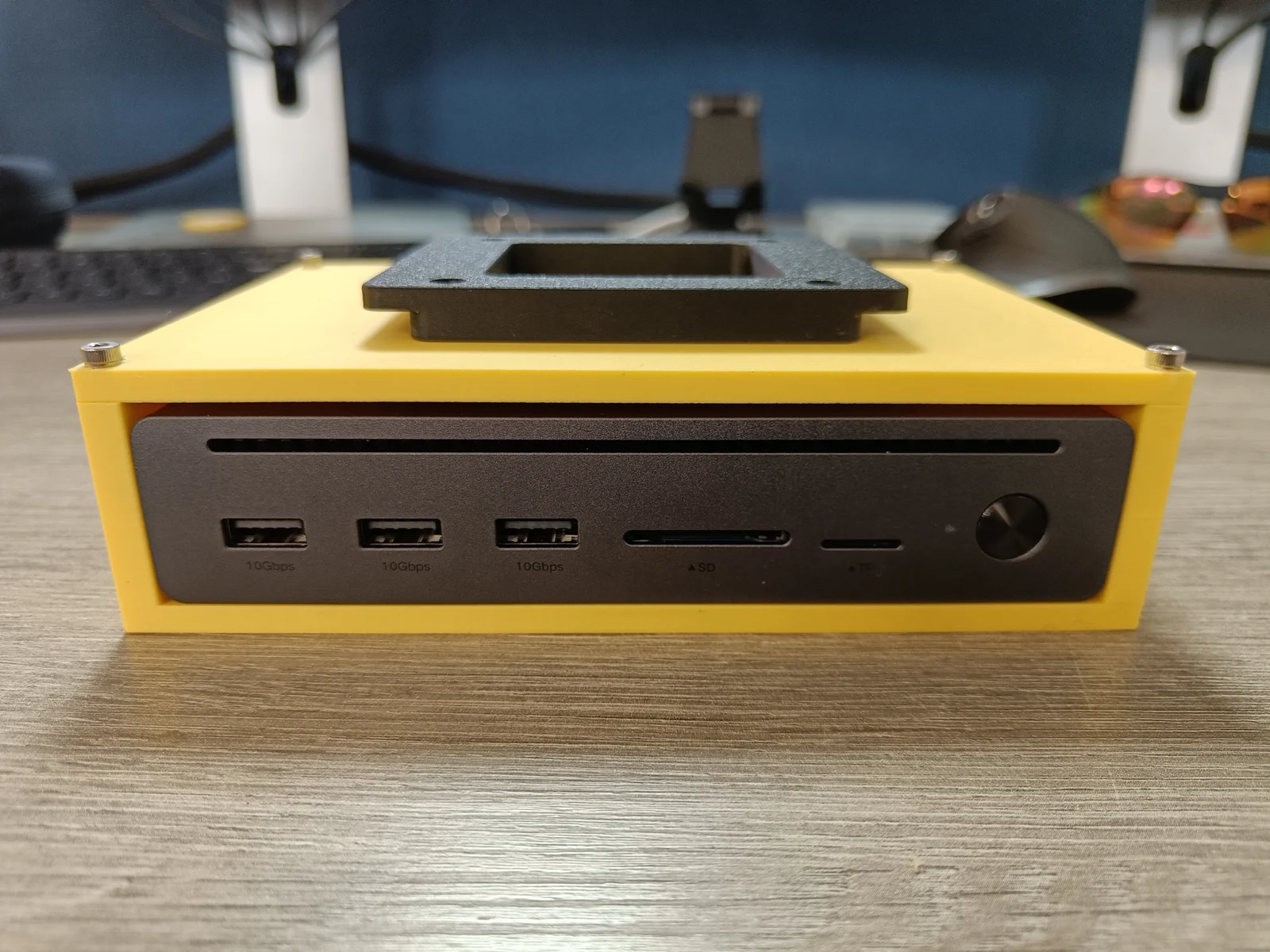

Giá treo dưới bàn cho UGREEN Maxidok 10-in-1 Thunderbolt 5 Dock

This is an adapter model for the awesome Dell WD19 Thunderbolt Dock Mount by round_circle.

A total of 4 models are required to print.

Printing

Remove the rubber feet from the bottom of the Maxidock. The Base Part comes with it's own feet to keep the dock in place.

I used the following settings for printing:

• Infill: 15% Honeycomb

• Supports: None

• Ironing: Top surfaces

• Layer height: 0.2mm

Printing in PLA should be totally fine as the dockingstation has a pretty good heatsink and ventilation opening. Use PETG or ABS to be extra sure and for more stability.

Required hardware

• 4x M3x18 Screws for mounting the lid to the base

Also check the hardware requirements from the Dell WD19 Dock Mount.
