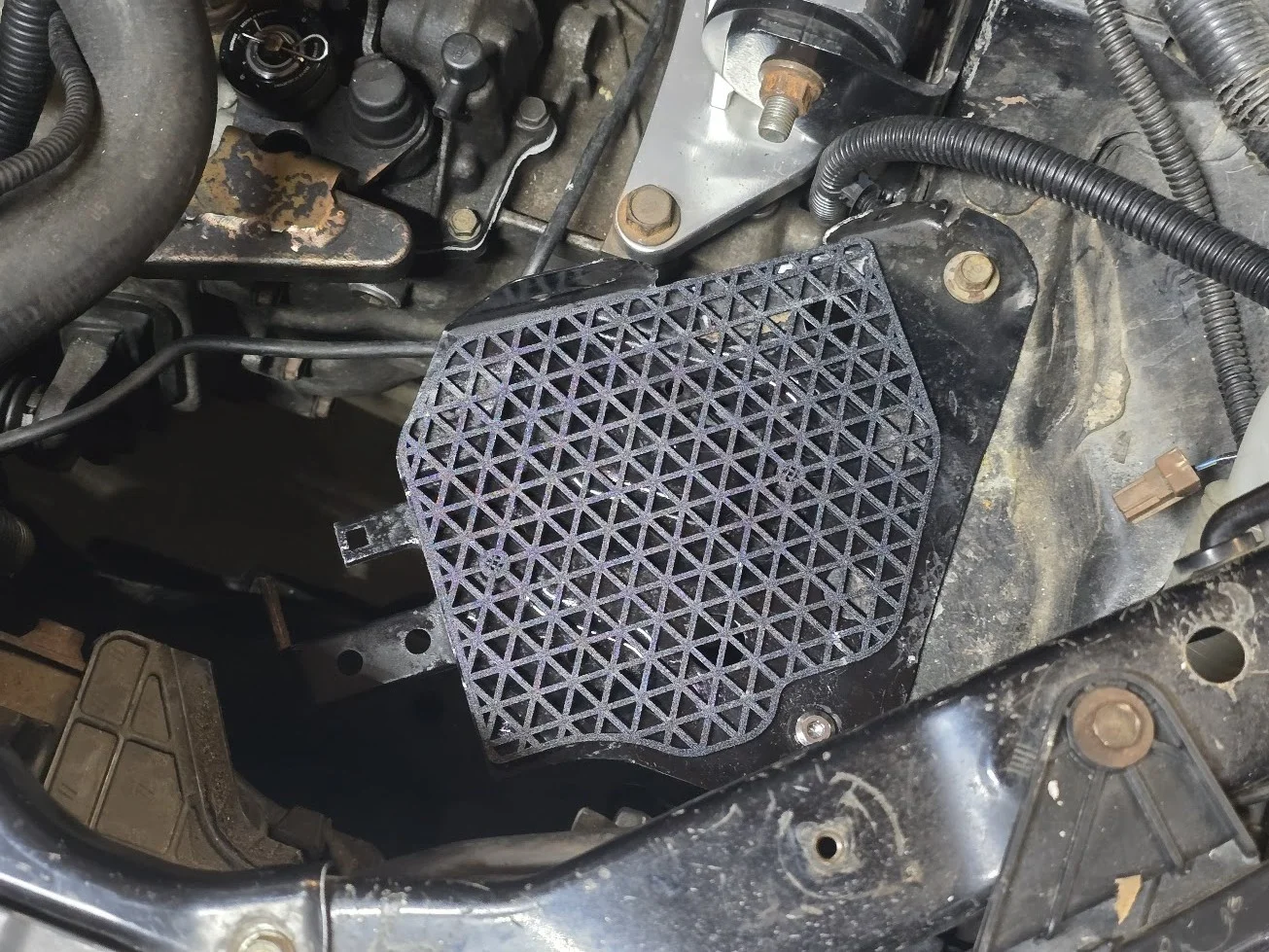

Đế đệm khay bình ắc quy Acura RSX Group 35

By T3Kgg

Views
63

Files 5 1.5 MB

  • Group35_battery_tray_rsx_1775675464.stlSTL · 200.5 KB
  • Group35_battery_tray_rsx_complete_lattice_-_outer_1775675465.stlSTL · 385.4 KB
  • Group35_battery_tray_rsx_complete_lattice_-_inner_1775675466.stlSTL · 218.9 KB
  • Group35_battery_tray_rsx_skeleton_1775675467.stlSTL · 484.8 KB

Make a variant with AI

Build another version of this model.

Open Studio

Description

The spacer is designed so you don't need to use washers on the battery tie down.
You will need a M8x1.25 12mm low profile flat topped cap screw. (the head is 3mm tall)
The spacer is also 3mm tall

I had an impossible time trying to print it out of Polycarbonate, but if your printer is better I recommend Nylon or PC. However the minimum you should use is ABS or ASA plastic like I did. (mine is printed in black gizmodorks ASA)

Should also fit the JDM DC5 Honda Integra.

Read more Show less

Print spec

Formats
stl
Model files
5
Total size
1.5 MB
Largest file
484.8 KB
