Vỏ bảo vệ ngoài trời cho thiết bị Smartcitizen

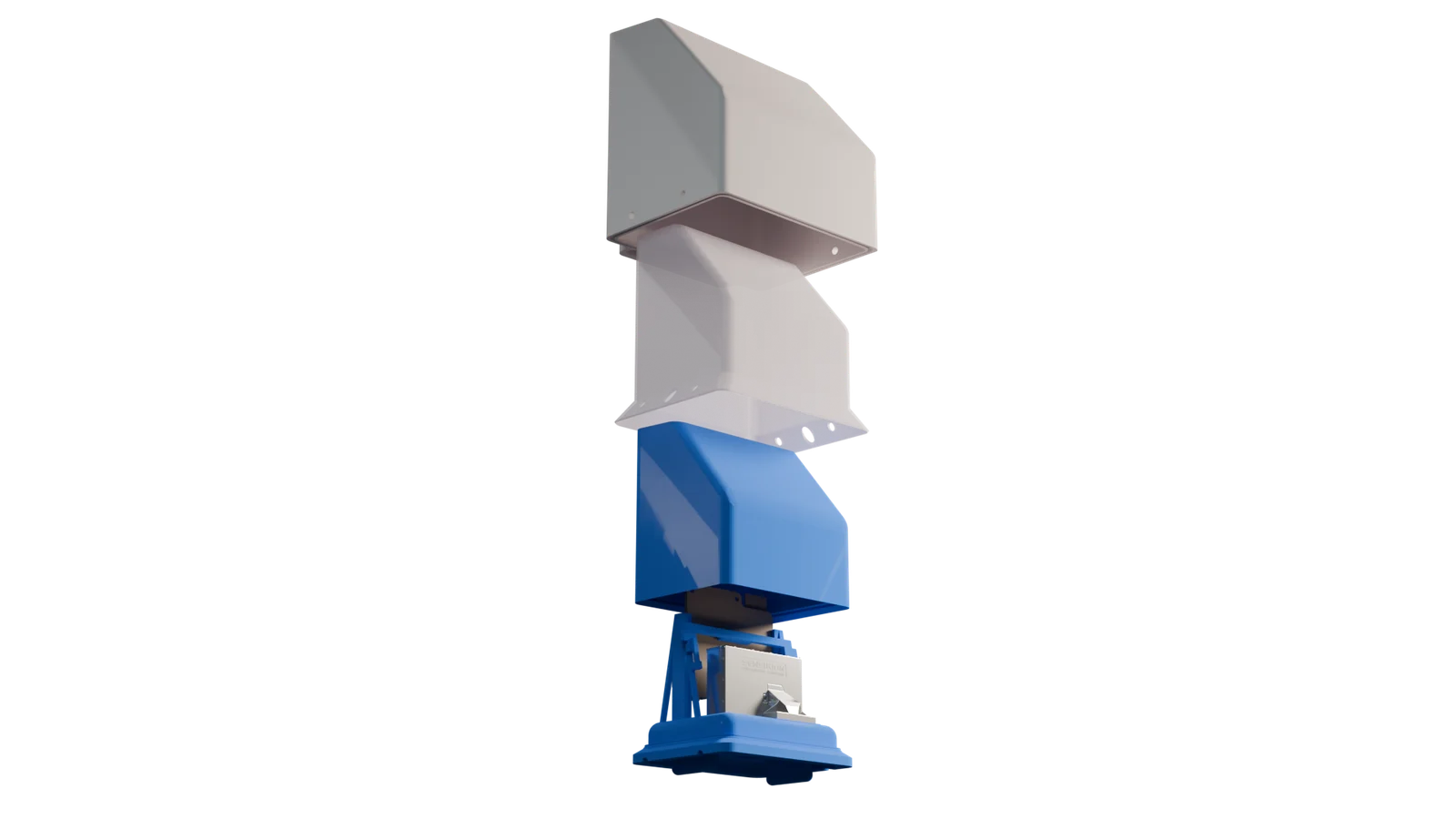

This enclosure is to be used with the {{version}}. It's made from scratch in [Blender]([url](https://www.blender.org/)).

⚠ WARNING: All the pieces that need to be exposed to the environment need to be printed in PETG in order to have a long live and not degrade with the direct sun or different weather conditions.

To use it, you need to print:

• - 1x [PETG outer cover](components/outterLayer.stl)

• - 1x [PETG mid layer](components/midLayer.stl)

• - 1x [PLA shell](components/innerCover.stl)

• - 2x [SCK slider CLIP](components/slide_guides.stl)

• - 1x [Upper base](components/baseUP.stl)

• - 1x [Lower Base](components/baseDW.stl)

• - 1x [battery Bridge](components/batteryBridge.stl)

 Printing
We have tested this on a Prusa MK3 3D printer, using PLA and PETG using the following settings:

• - No supports

• - 0.2mm layer height

• - At least 3 vertical walls

• - When printing PETG is better doing it in a closed printer to avoid warping

See the slicer capture below:

 Additional components

• - 2x M3 Inserts

• - 4x M4x20mm INOX screws

• - 2x M3x10mm screws

• - Rubber seal 2.5mm

• - Pressure relief vent (https://es.rs-online.com/web/p/ventilacion-para-cajas/1749423)

⚠ WARNING: For further information about this enclosure there is a [post in our forum](https://forum.smartcitizen.me/t/fighting-against-water-part-ii-effective-waterproof-3d-printed-enclosures-that-do-the-job/2017).
