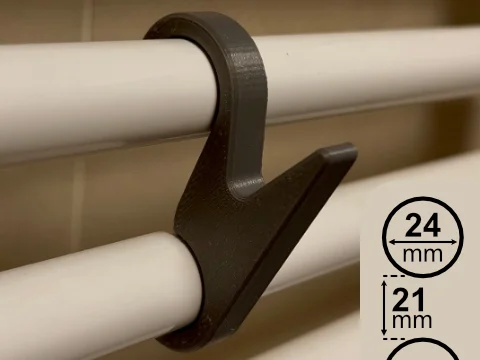

Móc treo khăn và quần áo cho thang sưởi phòng tắm (24x21mm)

Description

This model was designed as a simple way to extend the functionality of a bathroom ladder radiator. These radiators often lack convenient places to hang smaller items like towels, shirts, or underwear.

This snap-on holder adds an extra hanging point without modifying the radiator.

Key Features

• 🔧 Snap-on installation – simply clip it onto the radiator bar

• 🚫 No screws or tools required

• 🧵 Great for towels, shirts, or small laundry

• 🖨 Prints without supports

• 🔁 Easy to move between radiator bars

The holder is designed for radiator bars with a diameter of approximately 24 mm.

If your radiator uses a different diameter, the model can easily be adjusted in 3D software.

---

Measure Your Radiator Before Downloading

Bathroom ladder radiators are produced with different bar diameters and spacing between the bars.
Before downloading a model, please measure your radiator carefully to choose the correct version. For better accuracy use caliper.

Please check these two dimensions:

1. Bar diameter – the thickness of the horizontal radiator tube

2. Gap between bars – the clear space between two horizontal tubes

Even small differences of 1–2 mm can affect the fit of the clip.

If your measurements fall between two sizes, you can also adjust the model slightly in your slicer using ±1–2% scaling.

Didn't find a match? There are all sizes:

• 20 mm diameter x 20 mm gap

• 22 mm diameter x 22 mm gap

• 22 mm diameter x 19 mm gap

---

Recommended Print Settings

Layer height:
e.g. 0.15 mm

Infill:
e.g. 15%

Supports:
No

Brim:
Optional

---

Recommended Materials

Since the holder will be used in a warm and humid bathroom environment, these materials are recommended:

• ASA / ABS (recommended)

• PETG

• PLA (works but may deform over time at higher temperatures)

---

📏 Compatibility

Designed for radiator bar diameter:

e.g. 24 mm
