Giá Treo Tường Điện Thoại IP Cisco 7800 7841

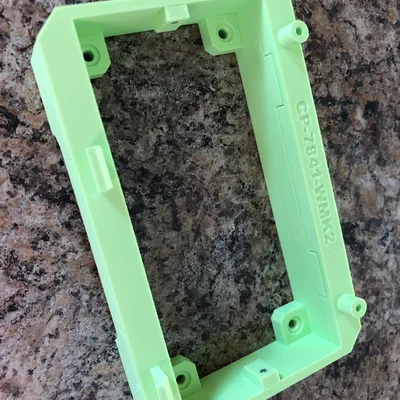

The official Cisco part for wall-mounting 7800-series IP phones has been getting increasingly scarce and expensive as of late, so I set out to make a 3D-printed alternative for use at work.

Additional Materials Needed:
- 2x M3x6 machine screws
- 2x M3x10 machine screws
- 4x wall-mounting hardware (wood screws and/or wall anchors, etc.)

Print Settings Used:
0.4mm nozzle
0.2mm layer height
15% infill
No supports
2 perimeters

Installation Instructions:
1. Remove and invert the handset hook on the telephone so that it retains the handset when held upright
2. Remove the phone stand and the two black stickers which cover the screw-holes on the rear of the telephone

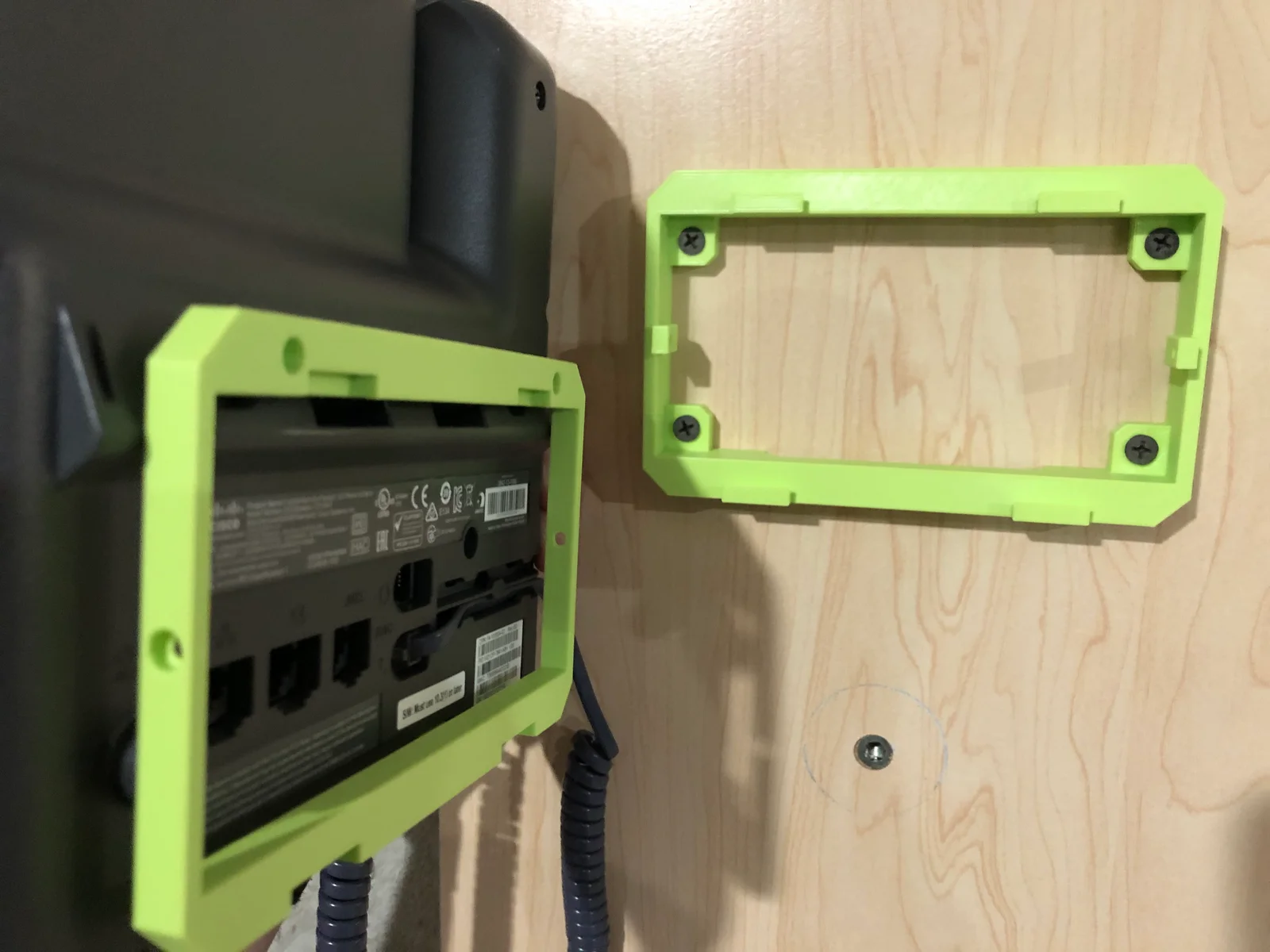

3. Attach the thinner of the two brackets to the rear of the phone with M3x10 machine screws
4. Attach the thicker of the two brackets to your wall
5. Gently hang the telephone on the wall-bracket using its built-in clips
6. Secure the bracket in place by tapping the two M3x6 screws into the holes on either side of the assembled wall-mount bracket

An optional seventh step is to go out for dinner with the $40-60USD you just saved!
