Kẹp Cảm Biến Hộp Sấy Anycubic v4 PC4 M10 Reverse Bowden cho Kobra 2 Max / Kobra 2 Pro / Kobra 2 / Kobra 2 Plus / Kobra 2 Neo

By FreshPrintsBelair805

Downloads
937
Likes
103
Views
4,632
Download· 1 file · 1.5 MB· 1.5 MB

Files 1 1.5 MB

  • Filament_Sensor_Bracket_Traditional_M10_v4_1766134197.stlSTL · 1.5 MB

Make a variant with AI

Build another version of this model.

Open Studio

Details

Model ID
#109118
Category
Máy In 3D
Published

Description

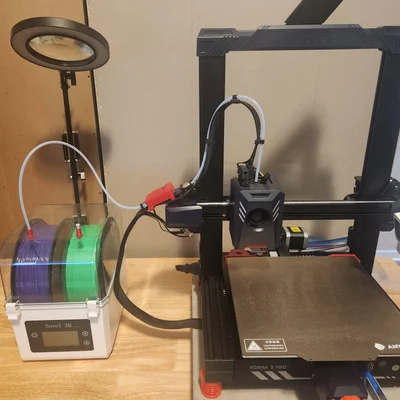

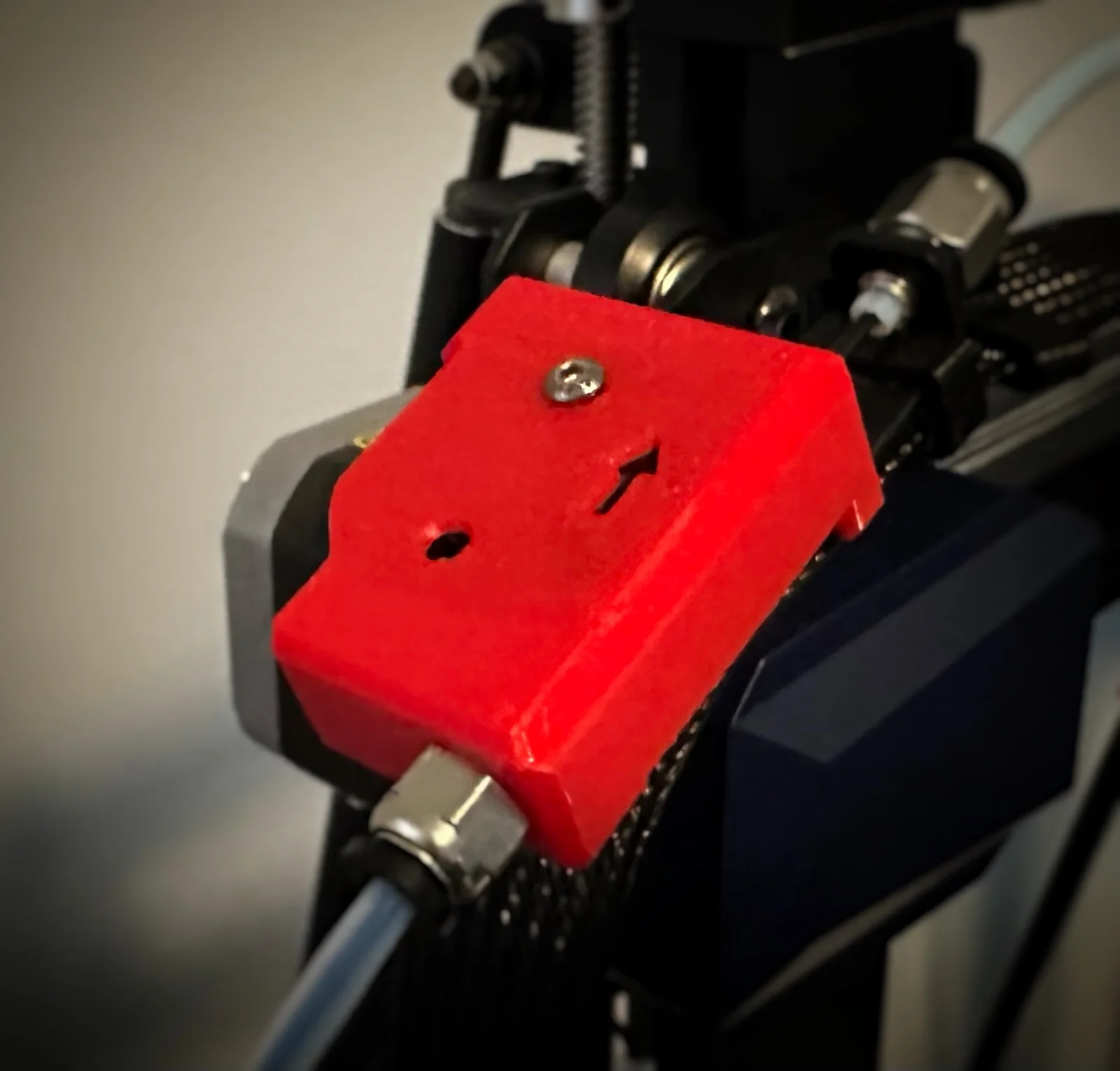

Made a filament sensor bracket so I can use my dryer box with the printer using M10 fitting. Added Supports arms to keep runout sensor in align.  solve problem sensor would easily twist and turn and put filament in a bind.

Print Instructions

Take your time clean off print when finished printing make sure material is off cap and the holes are clear, make sure the filament is removed and you have a clear passageway.

Easy Print Version No Supports required:

Filament Sensor Bracket Traditional M10 v4

Installation:

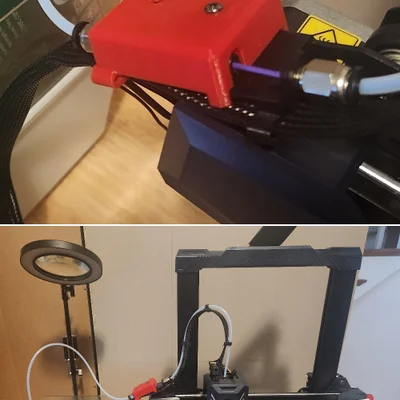

Make sure the PTFE tube entering the bracket is pushed all the way in till it stops. This model designed to butt the PTFE tube all the way up to Runout sensor so no chance of added friction.

Materials Used

Links to buy:

PTFE cap for 1.75 filament by @LopCot_179182

https://www.printables.com/model/152356-ptfe-cap-for-175-filament

PTFE Grommet for Sovol Filament dryer @Robindk

https://www.printables.com/model/157974-ptfe-grommet-for-sovol-filament-dryer

Read more Show less

Print spec

Formats
stl
Model files
1
Total size
1.5 MB
Largest file
1.5 MB
