Tiêu đề Bộ chuyển đổi vít máy ảnh chung cho giá treo webcam SV0

An adapter for thing:6308788 SV07 Camera Mount allowing cameras/webcams that are fit with a 1/4x20 thread to be mounted onto the Y belt tensioner of the Sovol SV07. All parts are printable without supports, and no additional metal parts are needed!

Printing suggestions:

• print the screw vertically with 4 perimeters (walls) and 0.1 mm layer height

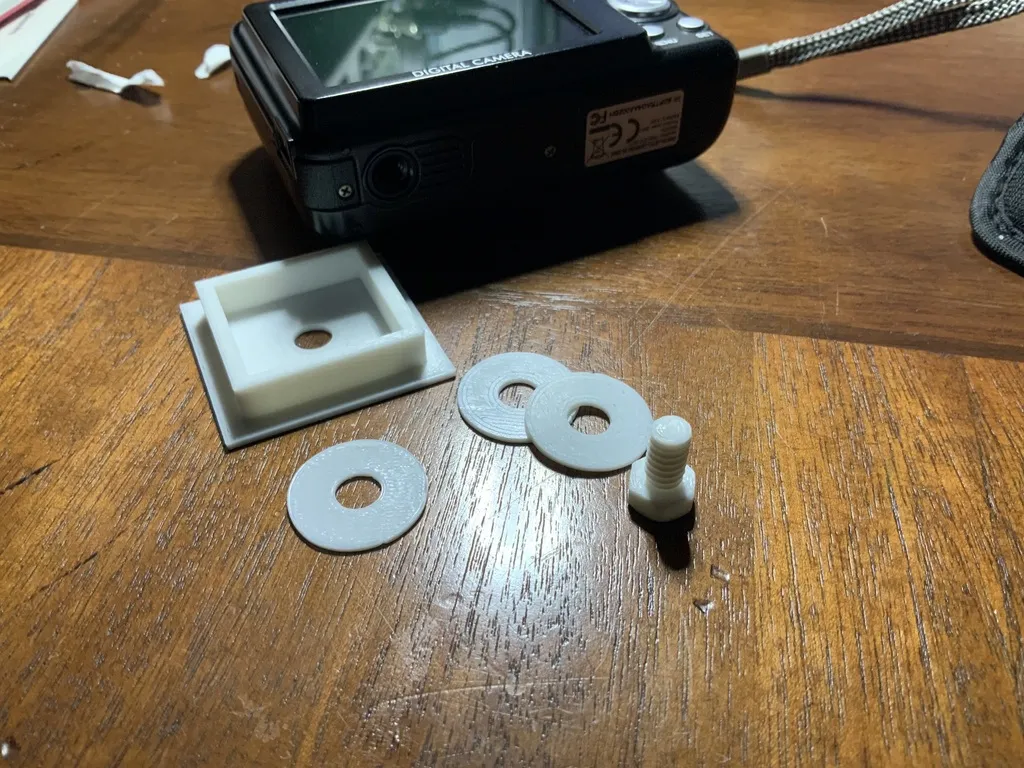

• print 3-4 washers to have on hand in case the screw hole on your camera is too shallow

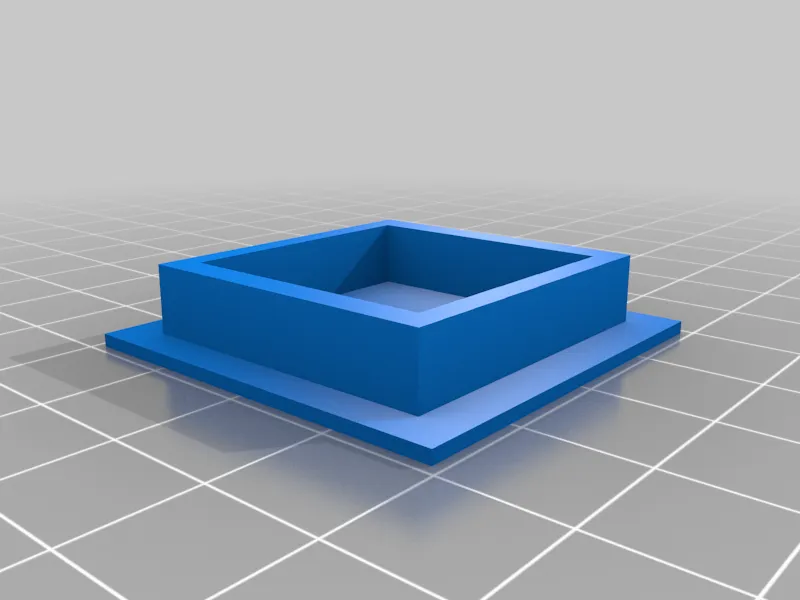

• print the adapter upside down as shown in the 2nd photo (wide base down)

Assembly:

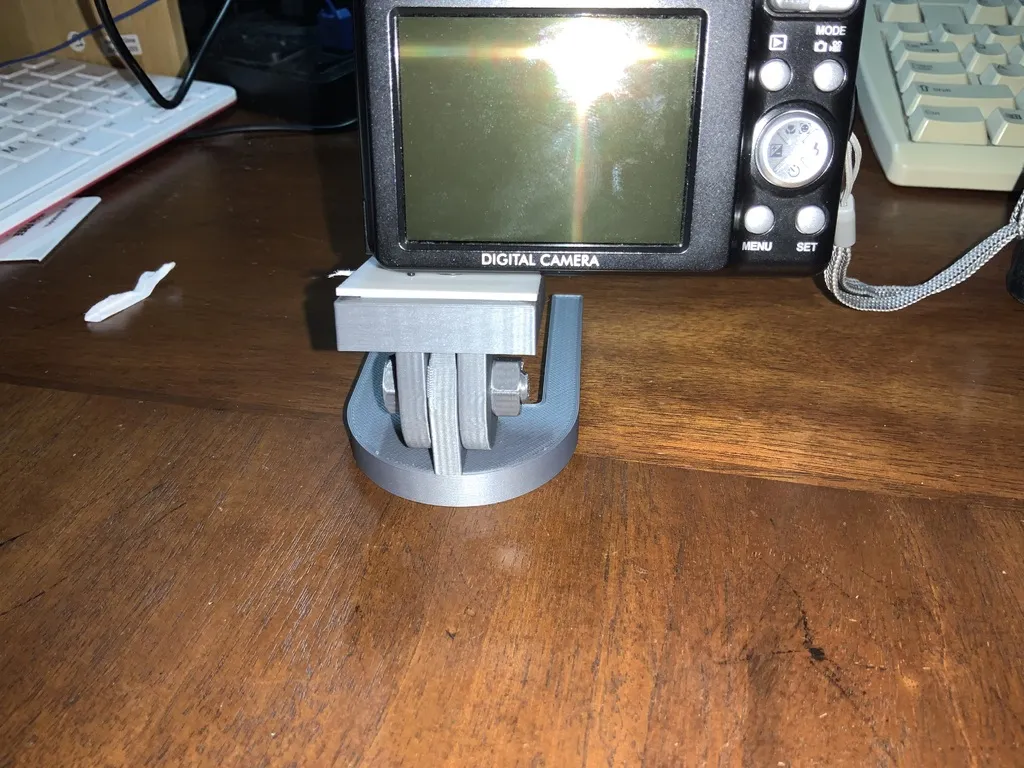

• First, pass the screw through the washers and the adapter and screw it into the camera.
• The adapter is sized to fit the belt tensioner mount by friction alone (may require some force to assemble).The mount isn't square! so try rotating it 90° if it doesn't want to go in before you open the swear jar. if the fit is too loose add 4 drops of CA superglue at the 4 corners of the adapter before assembling.
